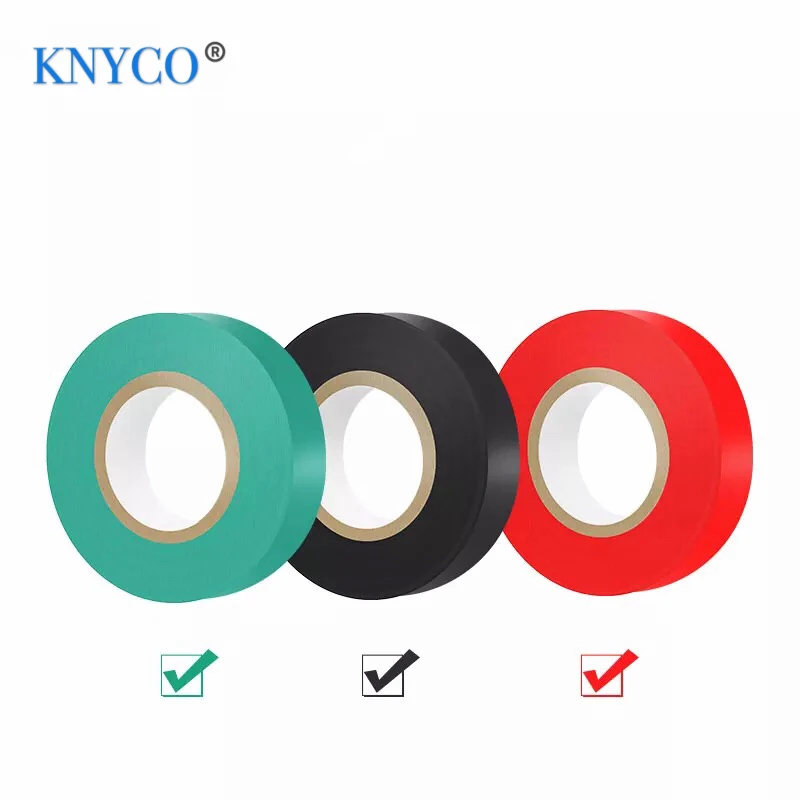

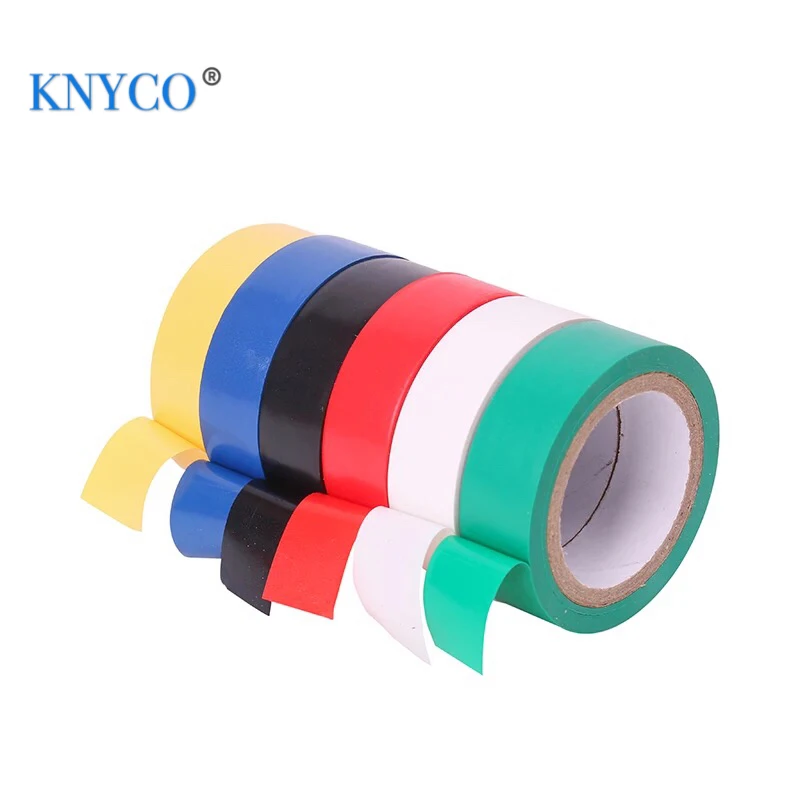

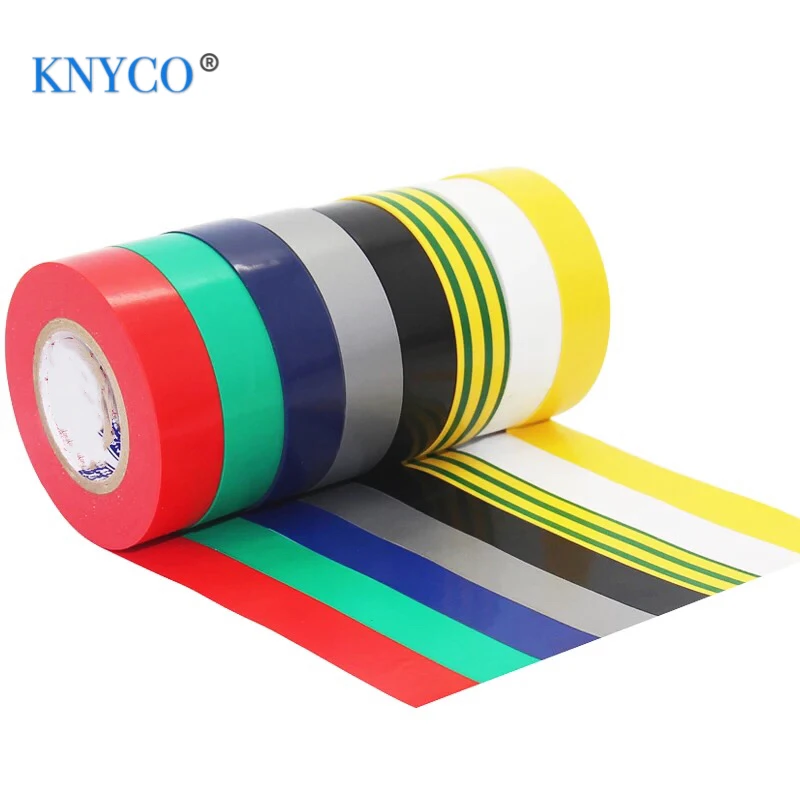

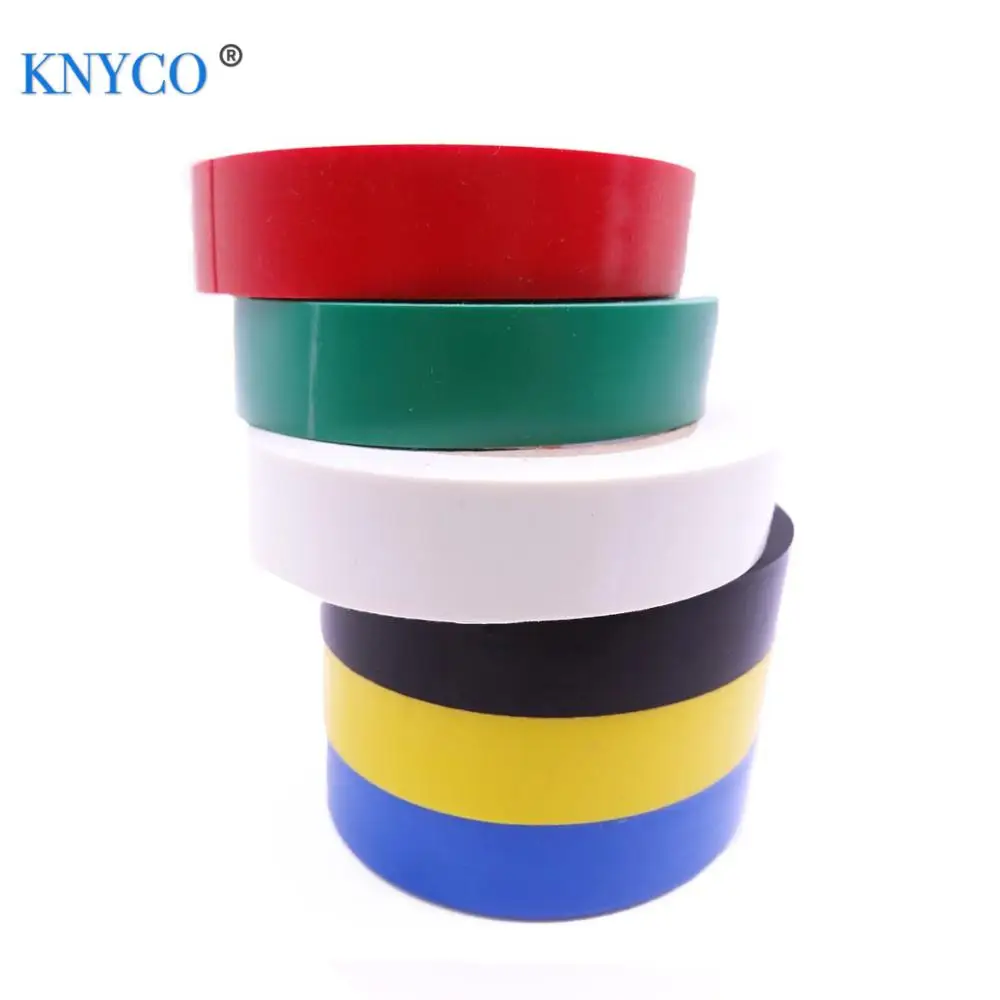

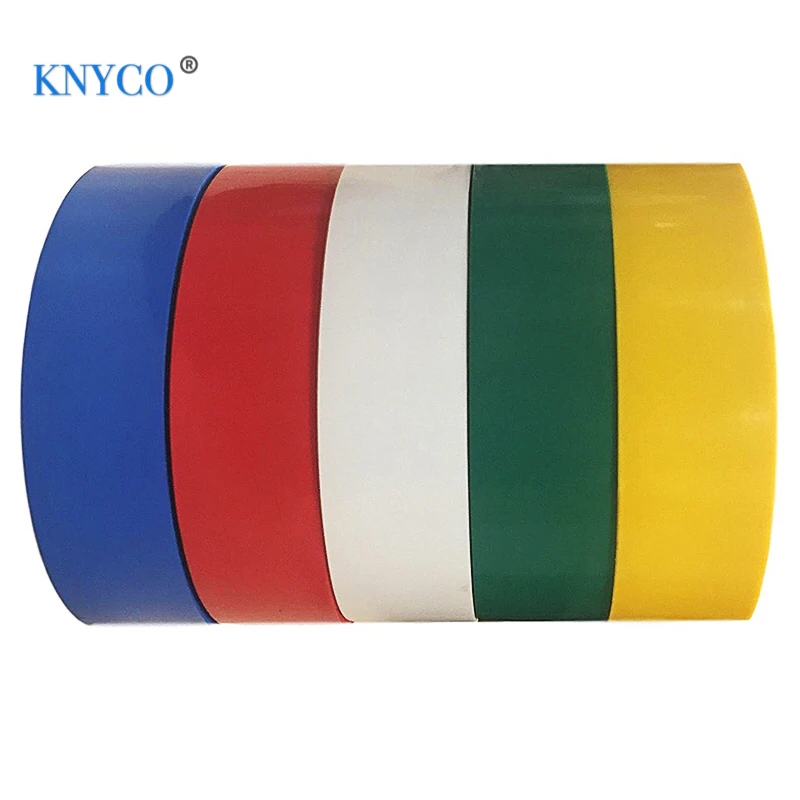

Good quality colorful PVC electrical insulation tapes for wire wrapping and bonding

Product Overview

Description

Detailed Product Description

PVC Electrical insulation tape

Materials:PVC film coating with Rubber pressure-sensitive adhesive and paper core.
T:110-450 micron.
W:10-1250mm.



1:Product Description:

- PVC Caoted Rubber pressure-sensitive adhesive

- 11 Years of Experience.
- Short Delivery Time within 20 days, In time deliver Noted: this   product must have 15days produce time

-OEM Available.
- ISO9001:2008 & SGS & BV. COTECNA,SONCAP approved.


PVC Electrical insulation tape : PVC Insulating Tape is made from soft polyvinyl Choride(spvc)  as the backing material,which are coated with rubber pressure-sensitive adhesive. Good resistant to high voltage, temperature ,moisture and flame.Common pvc insulation tape is widely used for connecting separate electrical wires , electrical insulating and protection applications. Col. strip tape with two col. for warning purpose. Available in variety of widths ,lengths and colours to meet your special requirement.



APPLICATIONS:

1.Insulation
2.anti-abrasion,damp resistance
3.resistance to acid and alkali.
4.OEM welcome





2:Technical Data:

 General specification: 19mm×10yd, 19mm×20yd

                                      (Your special size also can be available)





Application range:

Electric insulation below 600V

Insulating wrapping of electric wires and cables

Marking of electric wires and cables

Can be used indoors and outdoors



Technical Parameter	SPECIFIC DATA			TEST METHOD
Backing	Soft PVC Film
Color	Black, White, Yellow, Blue, Green, Red, Grey,brown,green/yellow
Adhesive	Rubber Based PSA
Tape Kind	A Grade-FR	A Grade-Non FR	B Grade
Thickness (mm)	0.11-0.20	0.11-0.20	0.11-0.20	ASTM D-1000
Adhesion (N/cm)	1.5-1.8	1.5-1.8	1.0-1.5	ASTM D-1000
Tensile Strength (N/cm)	18-32	18-32	16-25	ASTM D-1000
Elongation (%)	190-250	190-250	150-180	ASTM D-1000
Voltage Breakdown (V)	600	600	600	UL510
Temperature (°C)	80	80	80	ASTM D-1000







Width:	12-72mm
Length:	3-33
Thickness:	80mic-200mic(0.080mm-0.20mm)
Paper core:	1.5''(38mm) 1.25''(32mm)
Colour:	Black, White, Yellow, Blue, Green, Red, Grey,brown,green/yellow
MOQ:	25000rolls
Packing:	Export carton 200/300/500rolls
Delivery:	within 15days/20'FCL after receiving deposit.
	within 20days/40HQ after receiving deposit.
Payment:	30% deposit before production,70% upon copy of B/L.
	30% deposit before production,70% by L/C at sight.







Product Numbers | Sizes | Case Quantities

Product Code	Size	Units Case	Packaging
KNY-PVCT-1901	3/4"  x   30 ft 19mm*9.1m	300 / case	cello/label
KNY-PVCT-1902	3/4"  x   60 ft 19mm*18.2m	200 / case	cello/label
KNY-PVCT-1903	3/4"  x   66 ft 19mm*20m	200 / case	cello/label
KNY-PVCT-1904	3/4"  x   30 ft 19mm*9.1m	300 / case	cello
KNY-PVCT-1905	3/4"  x   60 ft 19mm*18.2m	200 / case	cello
KNY-PVCT-1906	3/4"  x   66 ft 19mm*20m	200 / case	cello
KNY-PVCT-2401	1"     x   66 ft 24mm*20m	48 / case	bulk
KNY-PVCT-3801	1 ½" x   66 ft 38mm*20m	36 / case	bulk
KNY-PVCT-4801	2"     x   66 ft 48mm*20m	24 / case	bulk
KNY-PVCT-1907	3/4"  x  108 ft 19mm*33m	100 / case	bulk
KNY-PVCT-2402	1"     x  108 ft 24mm*33M	48 / case	bulk
KNY-PVCT-4802	2"     x  108 ft 48mm*33m	24 / case	bulk
KNY-PVCT-12501	49"   x    66 ft 1250mm*20m		LOG
KNY-PVCT-12502	49"   x  108 ft 1250mm*33m		LOG

Noted: Above size and package only the generally, Just for reference, we are  available make more your custom design, single shrink with the label, or with the sticker, PP bags wrapping or show box etc





TRADE TERMS:

1. Payment: 30% T/T DEPOSIT PAYMENT IN ADVANCE, BALANCE AGAINST COPY OF B/L, WESTERN UNION, ESCROW, L/C.


2. Production Lead Time: 20 - 30 DAYS AFTER DEPOSIT PAYMENT.


3. Shipping Methods: OCEAN OR AIR DEPENDS ON CUSTOMER


4. FOB Shipping port:NINGBO/SHANGHAI, CHINA.


5. If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.



OUR SERVICE:

• Your inquiry related to our product & price will be replied within 24hours.


• Well-trained & experienced staff are to answer all your inquiries in English of course.


• Working time: 8:30am - 6:00pm, Monday to Saturday(UTC+8).


• OEM & ODM projects are highly welcomed. We have strong R&D team here to help.


• Your business relationship with us will be confidential to any third party.


• Good after-sale service offered, please get back if you got question.

In the end,please contact us, send us the enquiry, you will get the well response and service!
