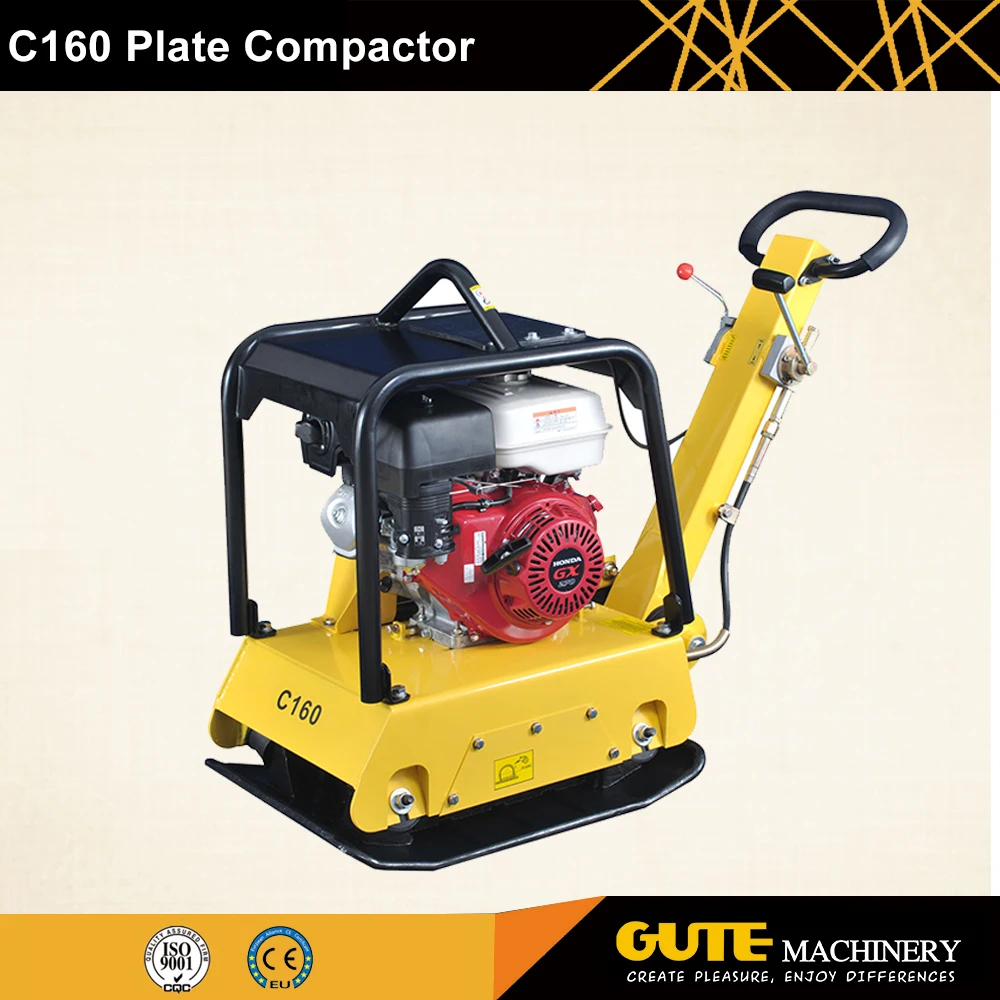

Reversible vibratory Plate Compactor with optional gasoline engine
- Category: >>>
- Supplier: Chengdu Gute Machinery Works Co. Ltd.
Share on (60794450774):
Product Overview
Description
Reversible vibratory Plate Compactor with optional gasoline engine
Product Description
1. Conveniently placed handles
2. Foldable handle easy for transportation and storage
3. Open design reduces dirty building
4. Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate
5. Heavy-duty shock mounts reduce vibration to the upper engine&handle

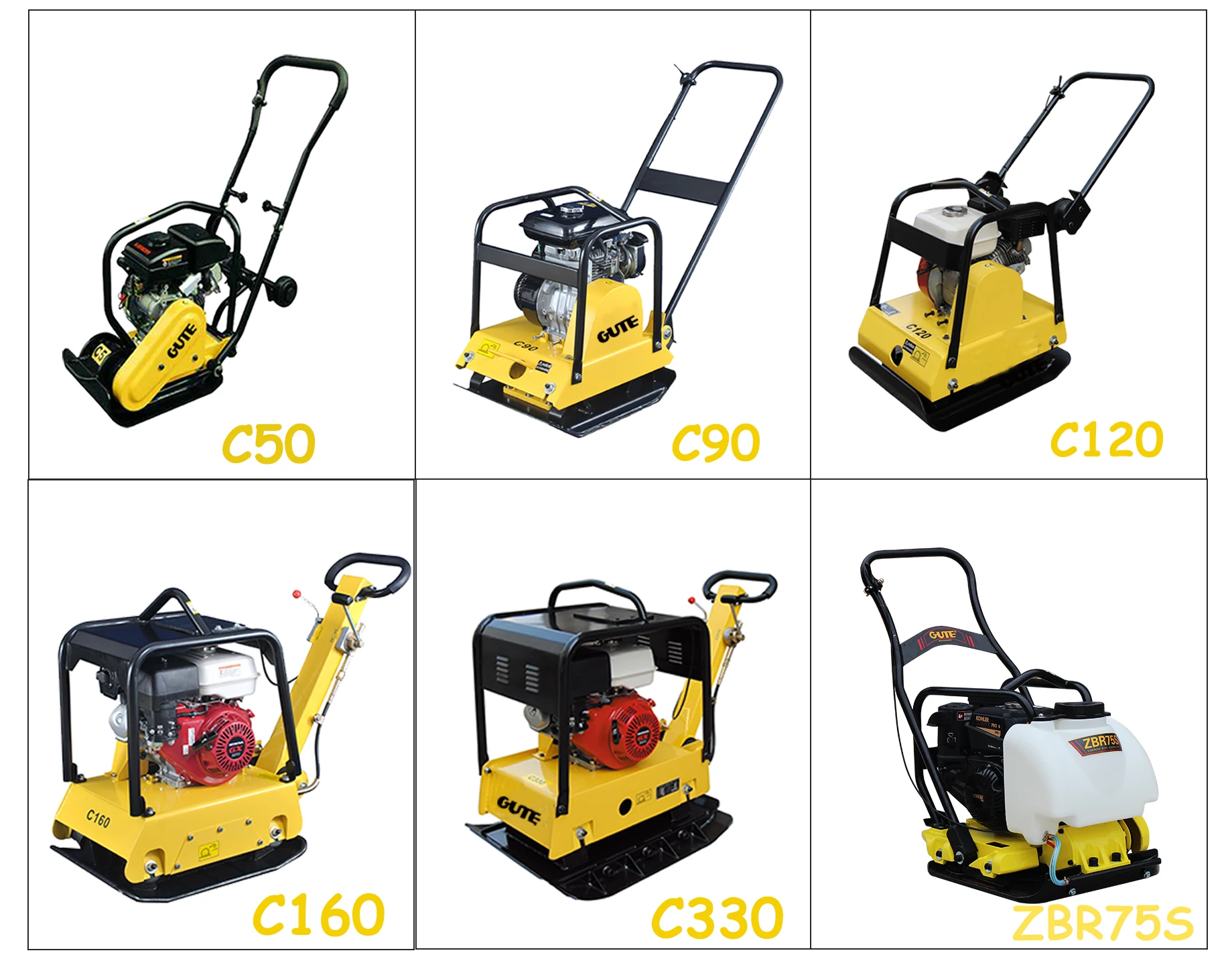

| Model | C50 | C90 | C160S (L) | C330 | ZBR75S |
| Centrifugal Force | 8.5kn | 16KN | 30KN | 38KN | 14KN |
| Vibrating Frequency | 5210vpm | 4750VPM | 4500VPM | 4500VPM | 4300VPM |
| Max. Travel Speed | 15m/min | 20m/min | 20m/min | 20m/min | 21m/min |
| Plate Size | 450*300mm | 540x450mm | 700x500mm | 700x500mm | 500x520mm |
| Efficiency | 250m2/hr | 450m2/hr | 480m2/hr | 480m2/hr | 520m2/hr |
| Compaction Depth | 20cm | 30cm | 50cm | 50cm | |
| Engine Type | Loncin G154 (3HP) | Honda GX160(5.5HP) Loncin G200(6.5HP) | Honda GX270(9HP) Loncin G270(9HP) | Honda GX390(13HP) Loncin G390(13HP) | Gasoline Kohler CH260 |
| Weight | 52kg | 90kg | 146kg | 250kg/275kg | 77kg |
