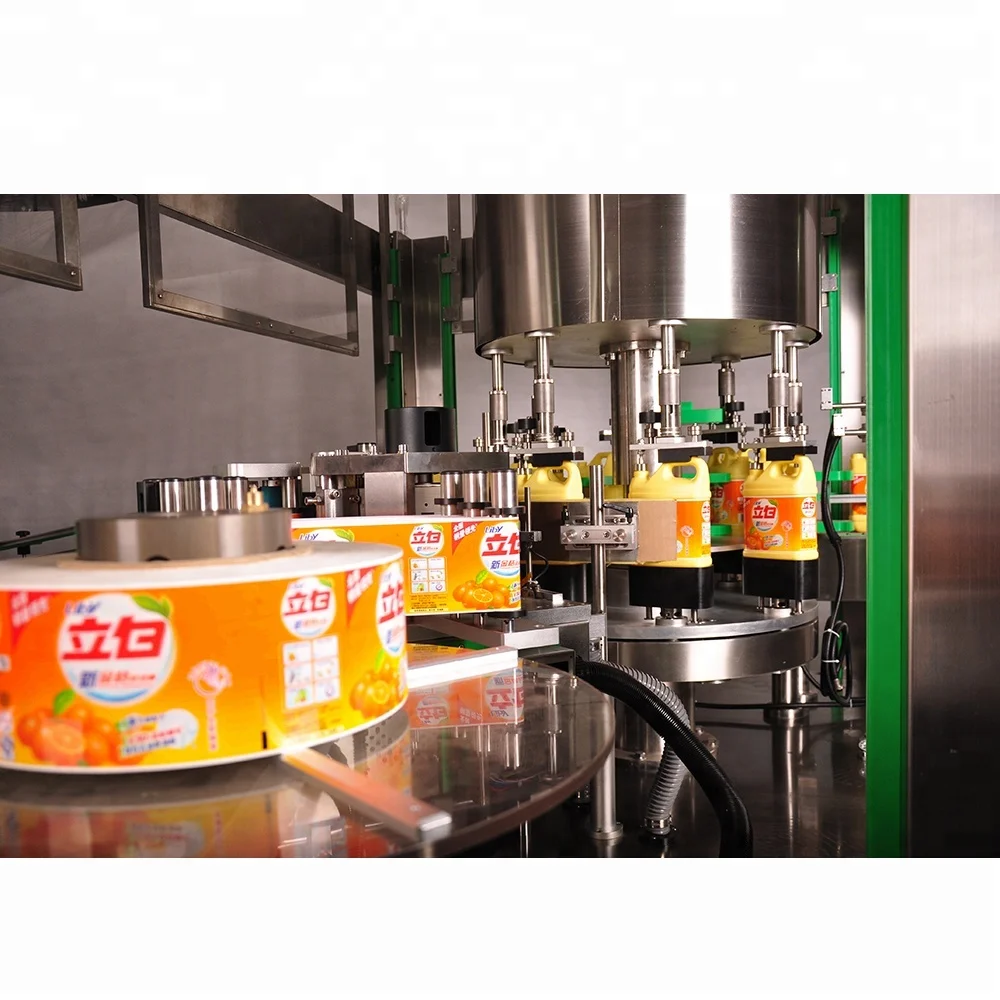

automatic rotary OPP hot melt glue labeling machine for square bottle 10000 BPH
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (60794456280):
Product Overview
Description
Product Description

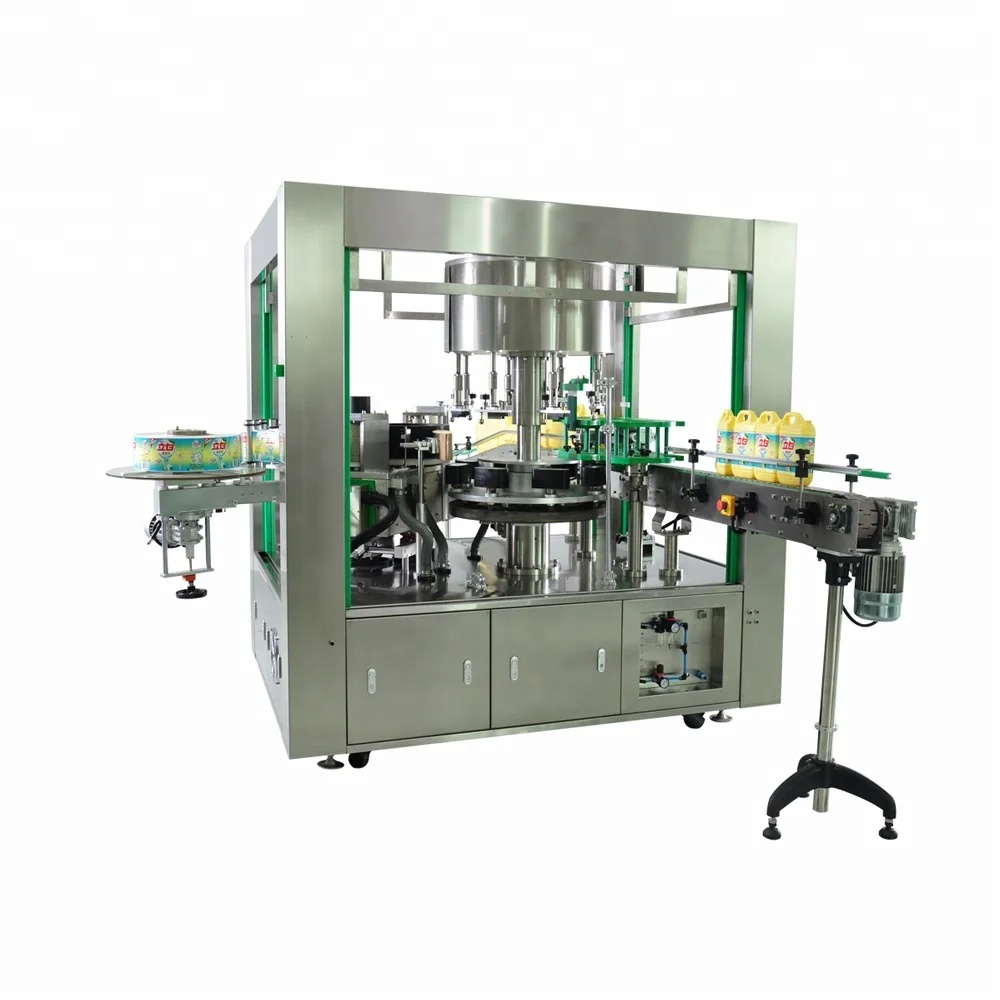

TYRY-0806R Automatic Opp Hot Melt Square Bottle Labeling Machine
Suitable for labeling on all kinds square bottles for wrap around.
Label material: hot melt glue label, OPP film or pearl film.
Apply to the industry of detergent, food, beverages etc.
Label material: hot melt glue label, OPP film or pearl film.
Apply to the industry of detergent, food, beverages etc.
SPECIFICATIONS | ||||||
Label size | L:300-420mm W:40-145mm | Labeling product size (standard model) | L: 50-300mm ￠: 40-100mm Remark: Can be customized, the height adjustment range of each machine: ±50mm | |||
Labeling production size(L*W*H) | L(40-150)mm*W(40-100)mm*H(50-300)mm | Labeling speed | 4000-36000 BPH | |||
Standing model labeling max width | 100mm (Can be customized) | Labeling accuracy | ±1mm | |||
Max outer diameter of the label | 600mm | Paper core diameter | 152mm | |||
Max speed of come out label | 100M/min | Labeling glue | Hot melt glue at both ends of each | |||
Heating glue temperature | 120~160℃ | Speed adjustment method | Uninterrupted-adjust rate | |||
Conveyor belt | L: 3500mm W: 100mm H: 1100mm ±30mm | Power consumption (W) | 8000 | |||
Air consumption(MPA) | 5-6 | power supply | Three phase 380V 50Hz (According to local voltage in different countries, can add voltage transformer after customer told us about the local voltage.) | |||
Machine net size (L*W*H) (can be customized) | 2420*2500*2050mm | Machine ne weight | About 3000kg | |||

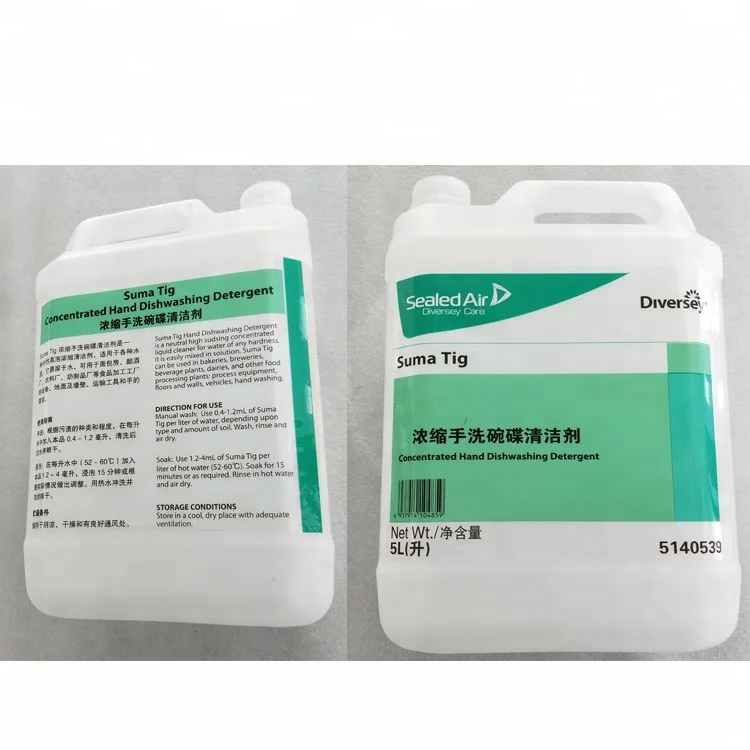

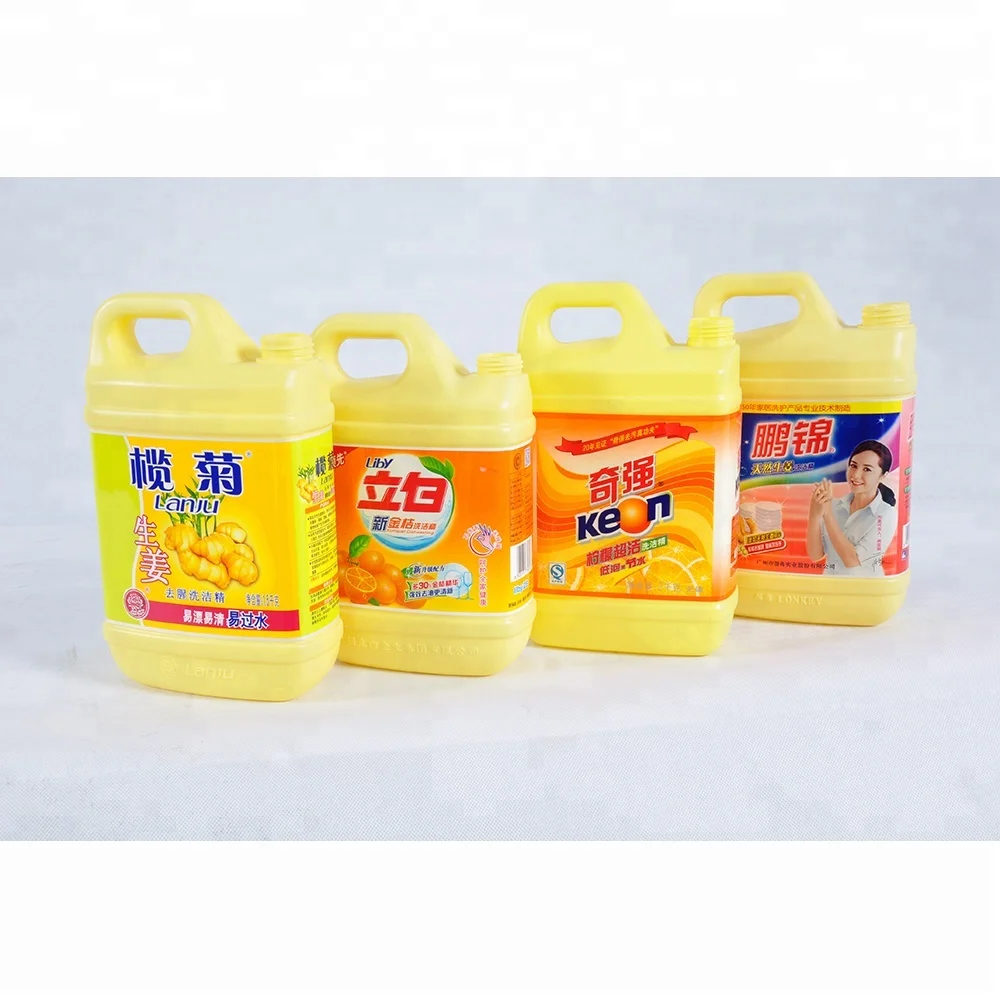

Labeling sample
Detailed Images

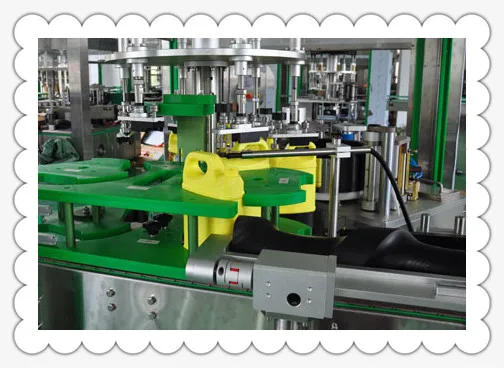

Bottle mold
For each set of machinery, we will provide a complete set of molds for free. If there are many styles of bottles, we can make more molds according to the specific size of the bottle (price calculated separately. can be replaced when change bottles.

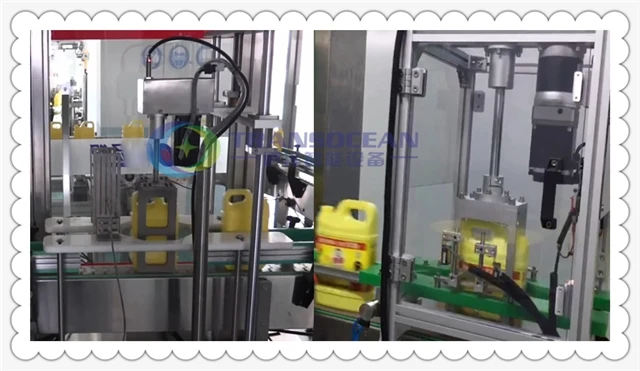

In/out of the bottle method
In/out of the bottle star wheel, the spacing of the bottles can be separated, the bottle can be smoothly inserted/exited, and the labeling efficiency can be improved to smoothly complete the labeling.

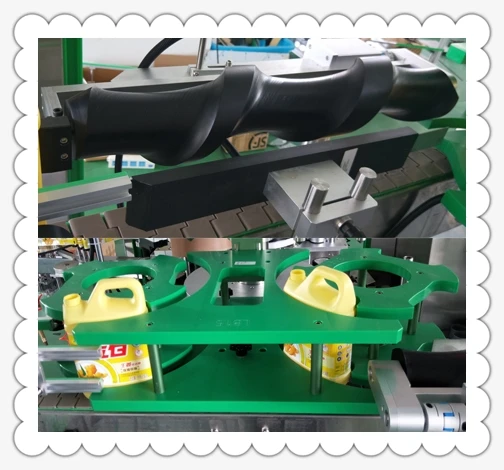

screw and star wheel cooperate in and out bottles
Adopts for screw and star wheel cooperate in and out bottles, ensure high speed operation, products smooth and stable.
advanced glue system and vacuum drum combination
Adopts advanced glue system and vacuum drum combination, ensure high precision. glue at both ends of each label, decrease rubber and save costs.
Touch screen in English
Imported PLC control system, colorful touch screen, easy operation, intuitionist and efficient, with auto warning protection function to minimize loss. Multiple language for choice.
emergency stop switch
Mobile emergency stop switch for quick and easy operation
Air filter
Filter the moisture in the air, when working in machinery, it is need to connect the air compressor, and the working air pressure is 6KG-8L/min.
machine size

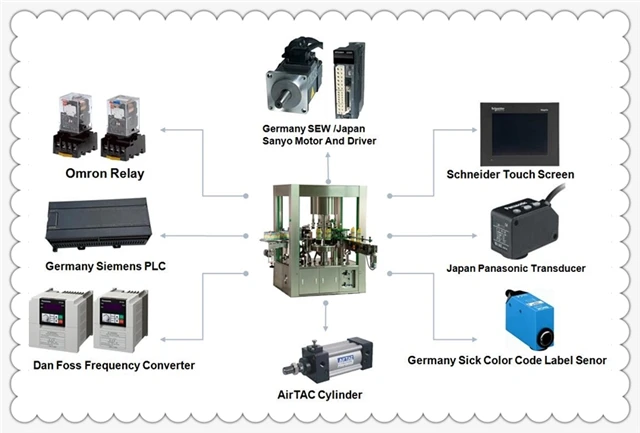

Main electrical configuration
Available function(customized type)

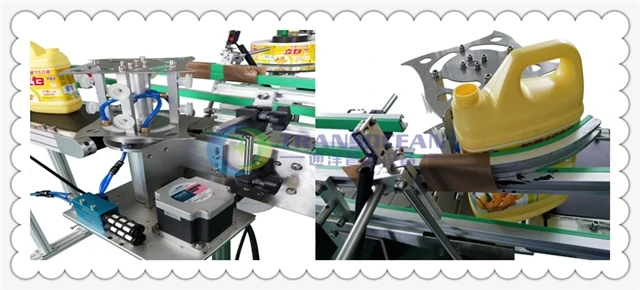

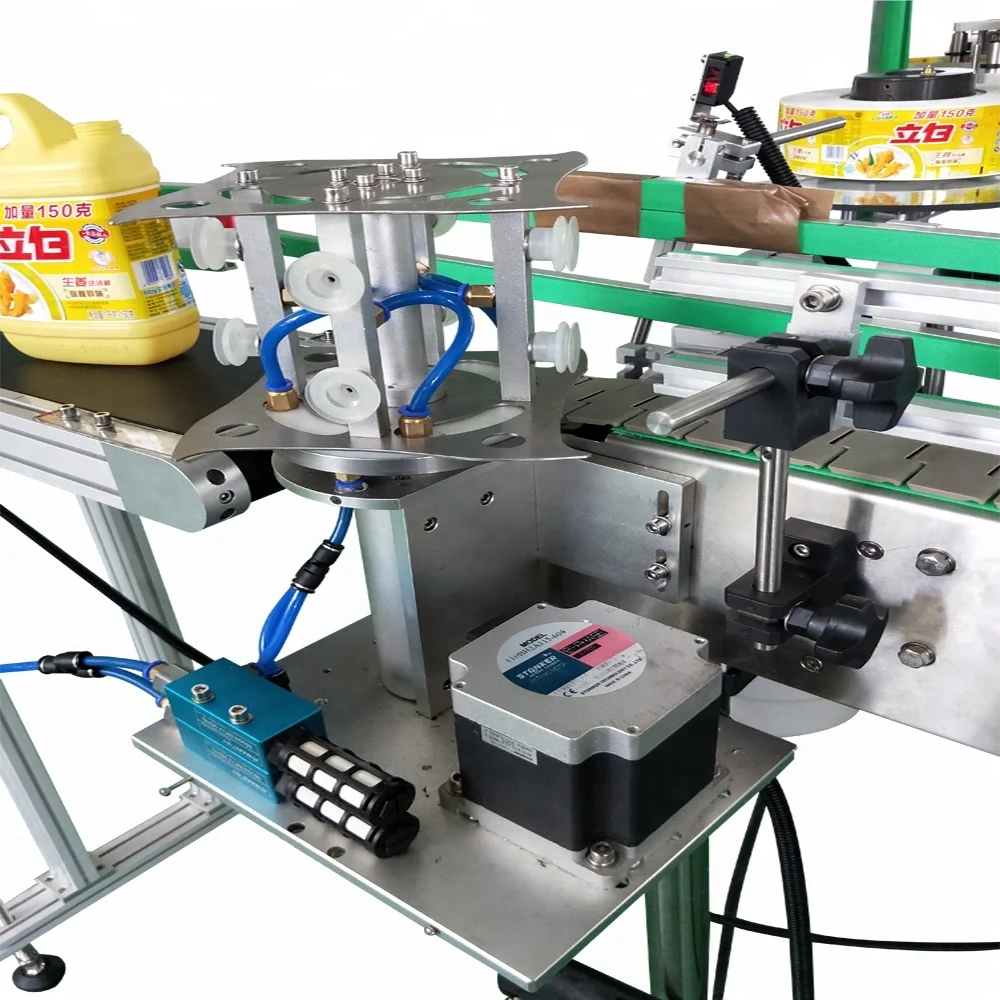

Twisting bottle orientation mechanism
Rotate the bottle 90° so that the bottle mouth is in the same direction, speeding up loading bottles into a carton and packaging speed.
Twisting bottle mouth direction mechanism
The bottle can be twisted by 180°, so that all the bottles can be unified in one direction for easy filling.
Automatic connection label mechanism
In the case of non-stop machinery,can replace the new label roll.
Inkjet printer
Can match production line printing:
MFD (manufacture date), EXD (expiry date) and BATCH (batch lot) serial number, etc.
MFD (manufacture date), EXD (expiry date) and BATCH (batch lot) serial number, etc.
Payment terms and service
Payment terms.
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before send out the good or see the scan bill of lading.
* Sample testing support.
* View our Factory.
Pre-Sales Service
* Inquiry and consulting support.* Sample testing support.
* View our Factory.
After-Sales Service
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Packing & Shipping
Packing.
Export wooden box
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested.
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 30-60 days, By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
Related Products
Company Introduction
We are in Guangzhou city China, professional packing machine manufacturer, specialize in:
Rotary&Linear OPP hot melt glue labeling machine
Rotary&Linear self-adhesive/sticker labeling machine
mixing--filling--capping-whole packing line solutions,
we have professional sales team and engineer team to present you best technical project and help you solve problems, we verify believe that buy from us, you not only get quality Product but also best service together.
Rotary&Linear OPP hot melt glue labeling machine
Rotary&Linear self-adhesive/sticker labeling machine
mixing--filling--capping-whole packing line solutions,
we have professional sales team and engineer team to present you best technical project and help you solve problems, we verify believe that buy from us, you not only get quality Product but also best service together.
Reception
Factory Location
Foreign Trade Department
Production Workshop
FAQ
Q1: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q2. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q3. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q4. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 40% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
