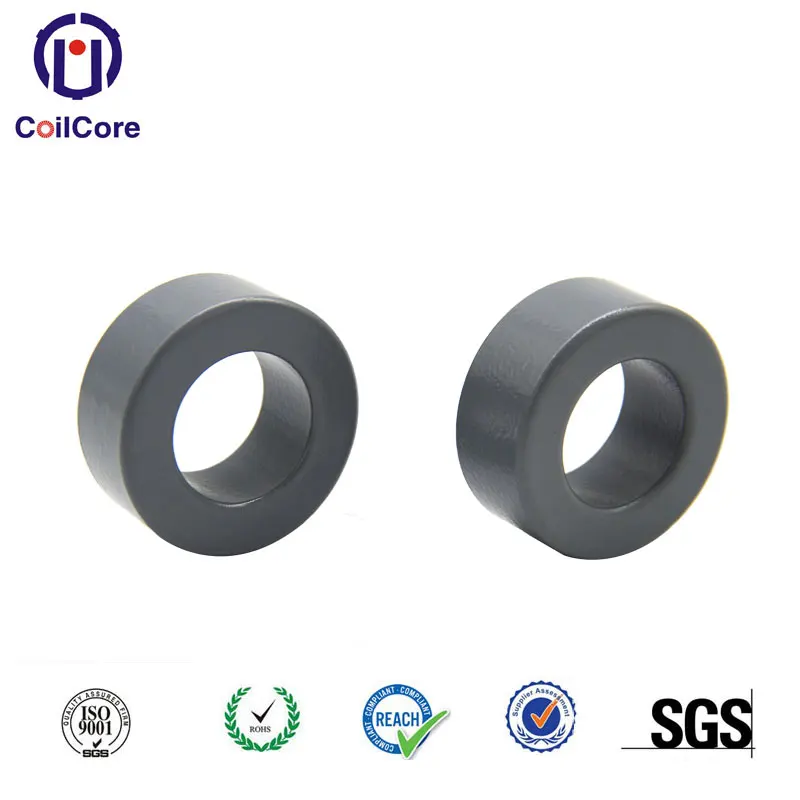

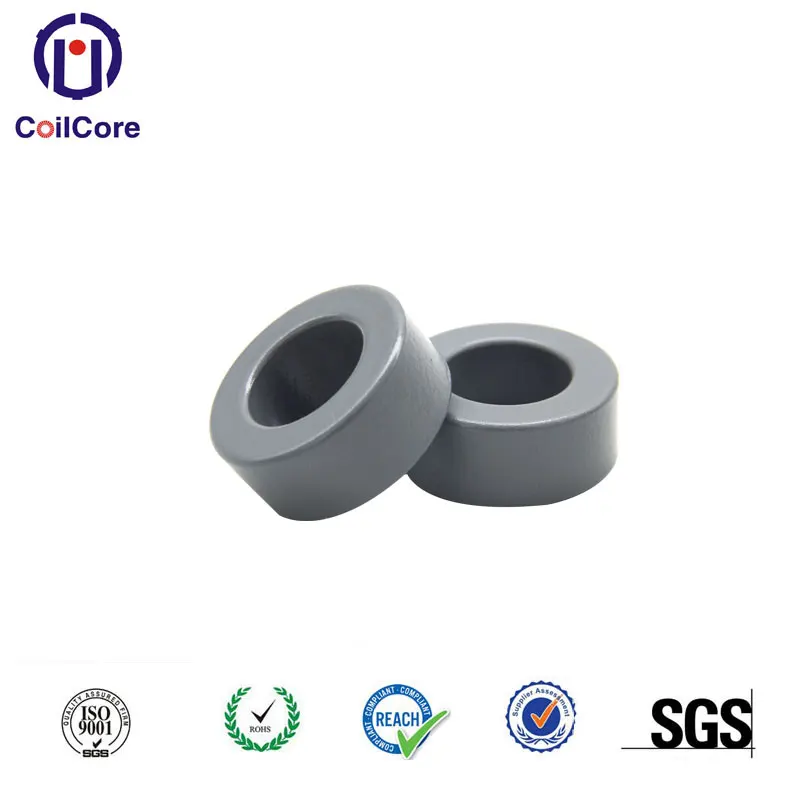

High Permeability /High Frequency Gap Ferrite Core

Product Overview

Description

OD38 * ID20 * H20mm

Gap Thickness: 6mm



Key Properties:

. Large DC Bias characteristics

. Permeability µ=180-200

. Good frequency and temperature characteristics



Typical Parameter
Density	7.3g/cm3
Curie Temperature	Tc =410°C
crystallization temperature	Tx =530°C
Saturation	Bs= 1.56T
Electrical Resistivity	ρ=130Ω-cm
Saturation Magnetostriction	λs=27x10-6



Main Application:

. PFC choke coil

. Output choke coil for SMPS

. Choke coil for DC/DC Converter

. Normal mode choke coil

. Choke Coil for adapter and battery charger



Standard specifications and electric parameters:

We can design & produce goods based on specifications & drawing, specification needed including:

1. Bare core size, Size finished

2. Parameter, AL@ DC bias=0A ;  AL@ Different DC bias



 Coilcore - Guangzhou Amorphous Electronic Technology Co.,ltd., established in 2009, our core competence is Nanocrystalline Core & Amorphous Core & Ferrite Core.
It has been a major manufacturer in Current Transformer & Sensor Industry. The certification to ISO9001:2015, SGS, FTA ensures that rigorous procedures are followed in all areas of operations. Like clients ABB,ALCE, ESITAS, SIGMA, RITZ, you can get our service of quickly service, stable quality, affordable cost, fast delivery.
