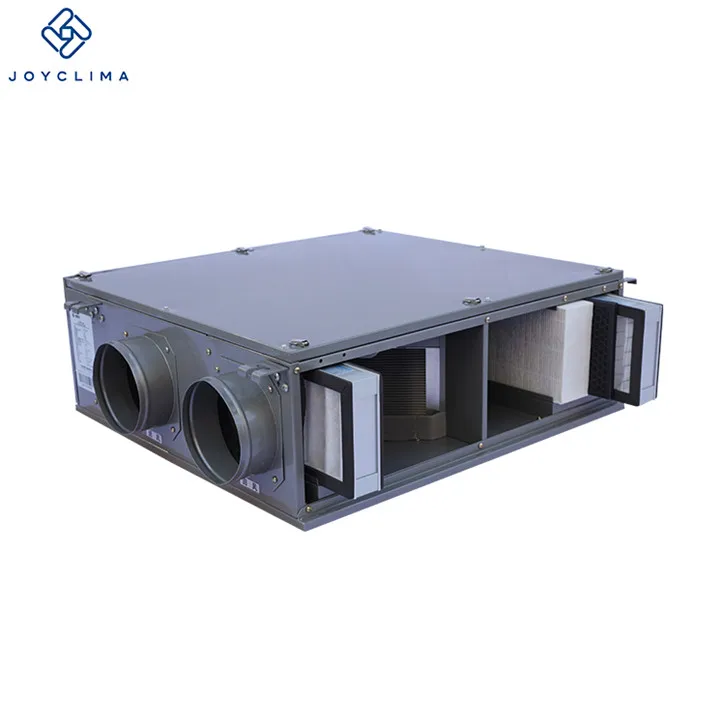

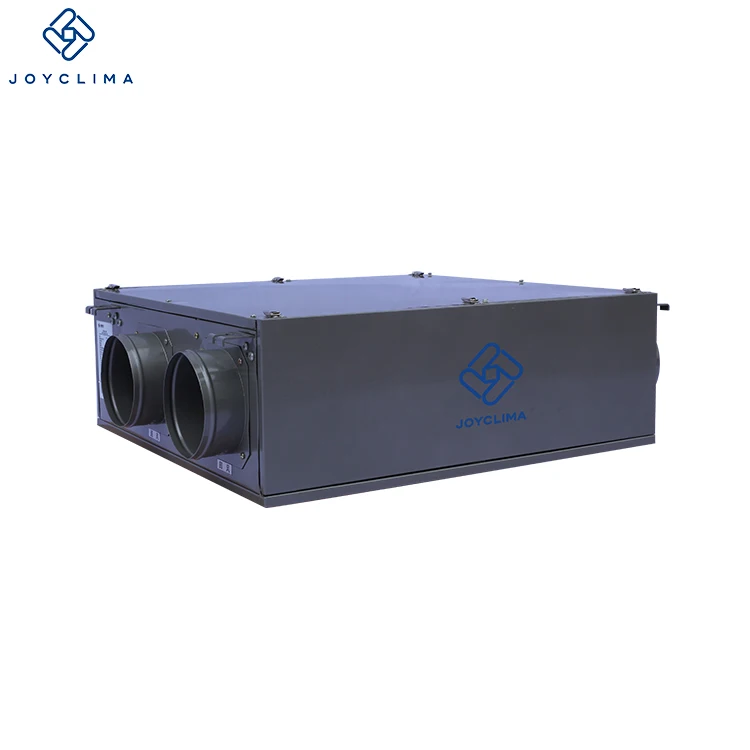

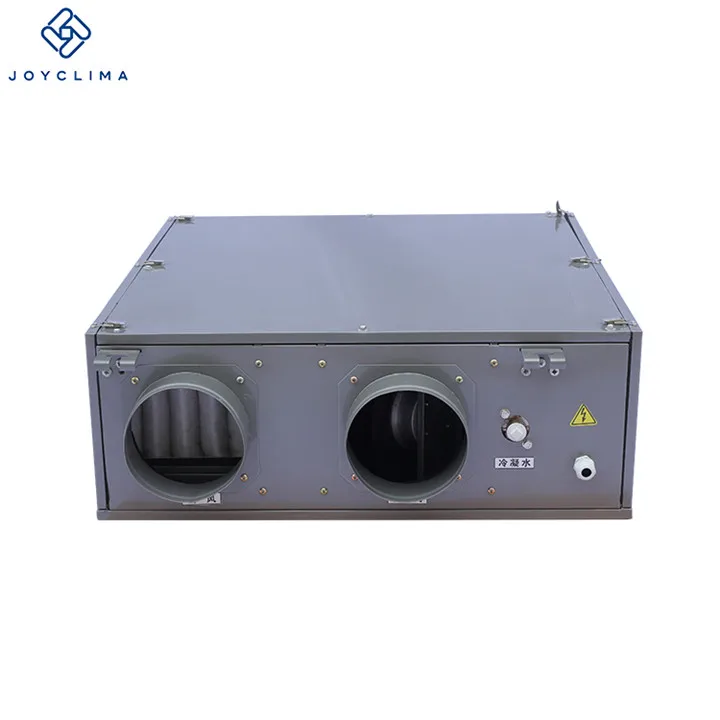

Energy Saving wall mounted heat recovery ventilation system, ventilation unit heat exchange
- Category: >>>
- Supplier: Guangzhou Join Electronic & Technology Co. Ltd.
Share on (60794544897):
Product Overview
Description
Energy Saving Heat Pump For Hot Water And Cold Water/App Control Heat Pump

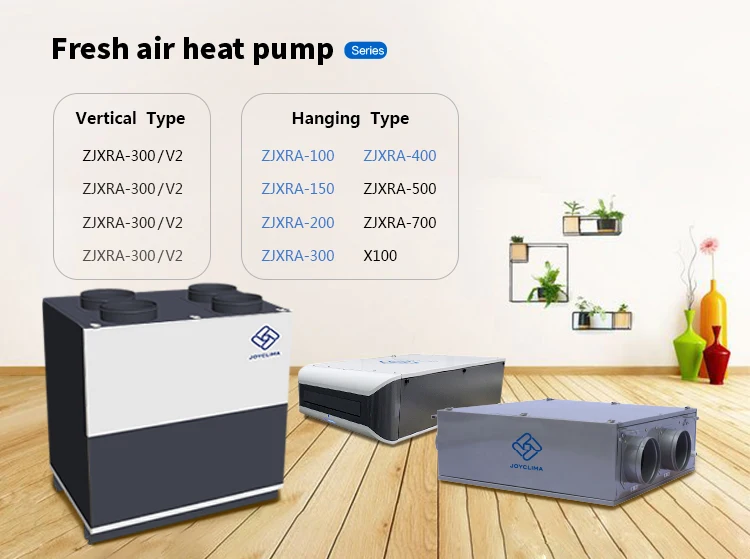

| Hanging type Fresh Air Heat Pump series parameter sheet | |||||||
| Model | Model number | ZJXRA-100 | ZJXRA-150 | ZJXRA-200 | ZJXRA-300 | ZJXRA-400 | |
| Installation mode | Hanging type | Hanging type | Hanging type | Hanging type | Hanging type | ||
| Rated cooling capacity | W | 650 | 750 | 830 | 2000 | 2300 | |
| Rated heating capacity | W | 750 | 800 | 950 | 2500 | 2800 | |
| Rated cooling power | W | 240 | 260 | 290 | 550 | 630 | |
| Rated cooling current | A | 1.1 | 1.23 | 1.37 | 2.6 | 3 | |
| Rated heating power | W | 240 | 260 | 290 | 610 | 685 | |
| Rated heating current | A | 1.1 | 1.23 | 1.37 | 2.9 | 3.3 | |
| Max operation power | W | 380 | 400 | 430 | 750 | 800 | |
| Max operation current | A | 1.8 | 1.9 | 2.04 | 3.6 | 3.8 | |
| Compressor | / | Constant speed compressor | Constant speed compressor | Constant speed compressor | Constant speed compressor | Constant speed compressor | |
| Power | Power supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 |
| Fresh air/Exhaust air flow | m3/h | 30~100 | 70~150 | 100~200 | 150~300 | 220~400 | |
| External static pressure | Pa | 50 | 80 | 80 | 130 | 130 | |
| Noise | dB(A) | 31 | 31 | 31 | 31 | 32 | |
| Air outlet dimension | mm | 100 | 150 | 150 | 184 | 184 | |
| Condensate drainage size | inch(BSP) | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |
| Machine size(L/W/H) | mm | 840/685/250 | 840/685/250 | 840/685/250 | 1170/760/400 | 1170/760/400 | |
| Packing size(L/W/H) | mm | 891/731/358 | 891/731/358 | 891/731/358 | 1211/811/498 | 1211/811/498 | |
| Net weight/Gross weight | Kg | 43/50 | 43/50 | 43/50 | 120/135 | 95/113 | |
| Refrigerant | / | R134a | R134a | R134a | R410A | R410A | |
Product Show

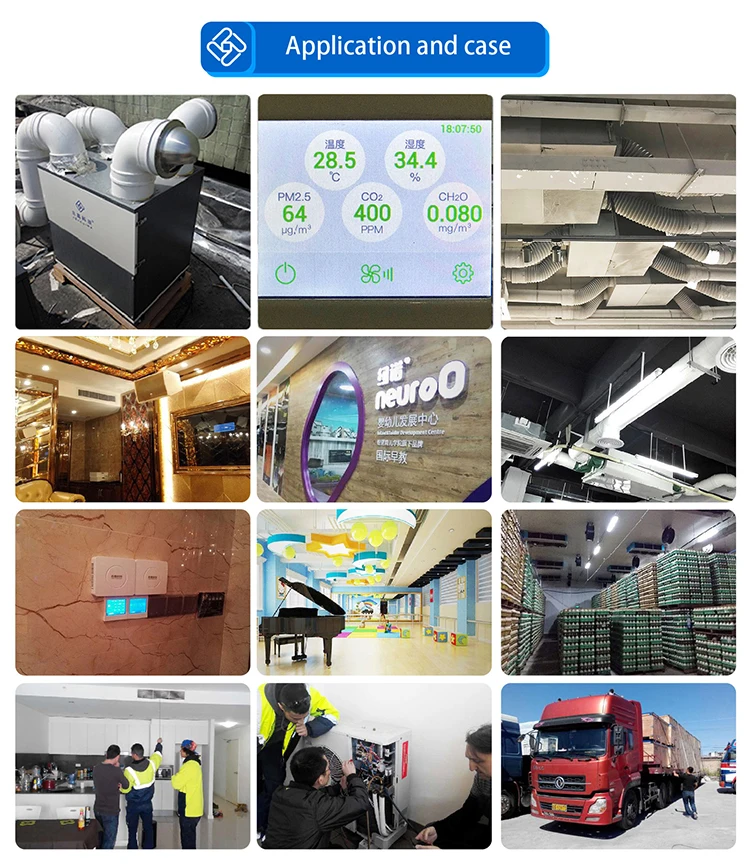

Cases & application
