Product Overview

Description


Product Description

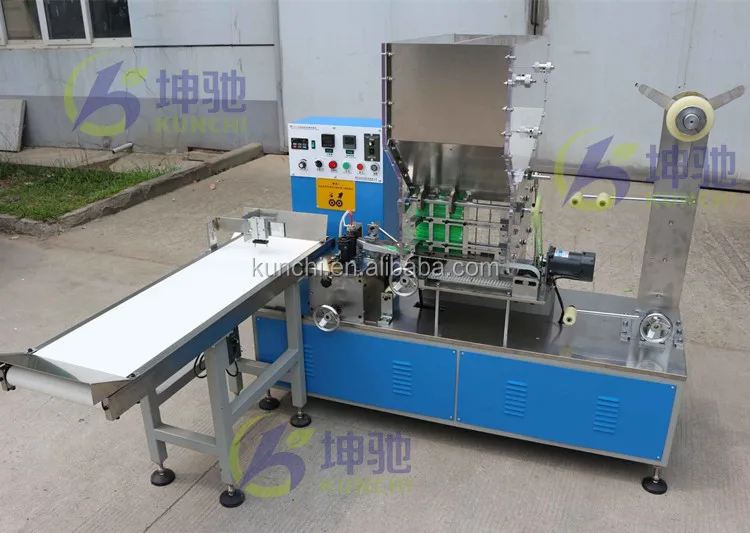

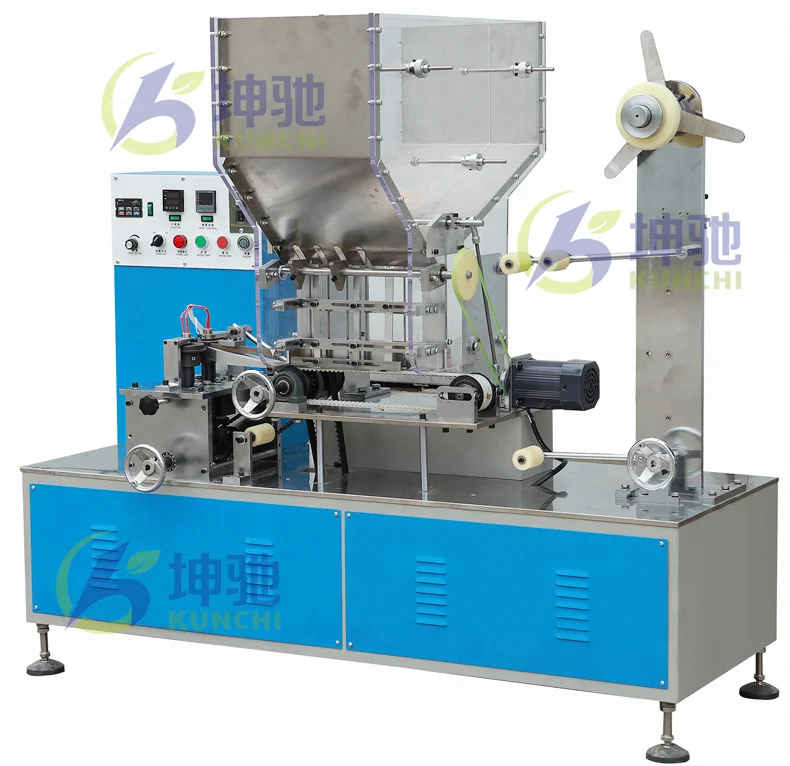

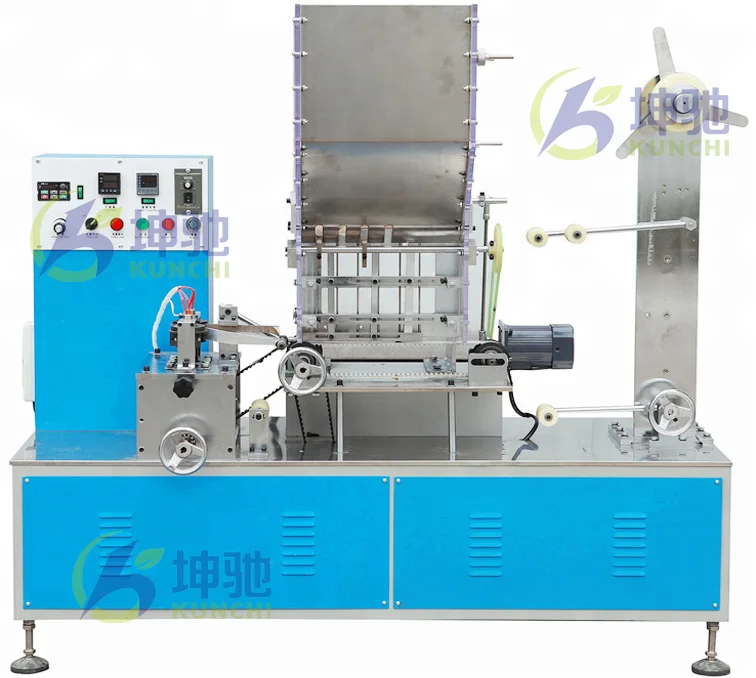

 Individual Straw Packing Machine

Single Straw Packaging Machine

High Speed Uniparted Straw Wrapping Machine

This full automatic individual straw packing machine is used for packing the single straw into film or paper bags with high speed, the whole machine consists of driving motor, transmission system, film or paper roll putting device, straw filling device, automatic bag sealing device, finished products conveying device.

The merits of the high speed straw packing machine is as below:

* Single-piece packaging. Feeding and packing can be completed at one time.

* Automatic counting function, the quantity can be set in advance, when it is completed, the machine will be stopped and will give an alarm.

* Packing speed can be adjusted, for paper packing, speed can reach 600 bags/min, for film packing, speed can reach 500 bags/min


*Main technical parameter of single straw packaging machine

Name

High speed automatic single straw packing machine

Working capacity

400-500 bags/min(film), 500-600 bags/min(paper)

Motor power

0.75kw(frequency control)

Sealing way

Three-side sealing

Packing material

Paper/Film

Packing straw size

Diameter: Φ5-Φ13mm   Length: 140~260mm

Machine size

1500*800*1300mm

Machine weight

300kg

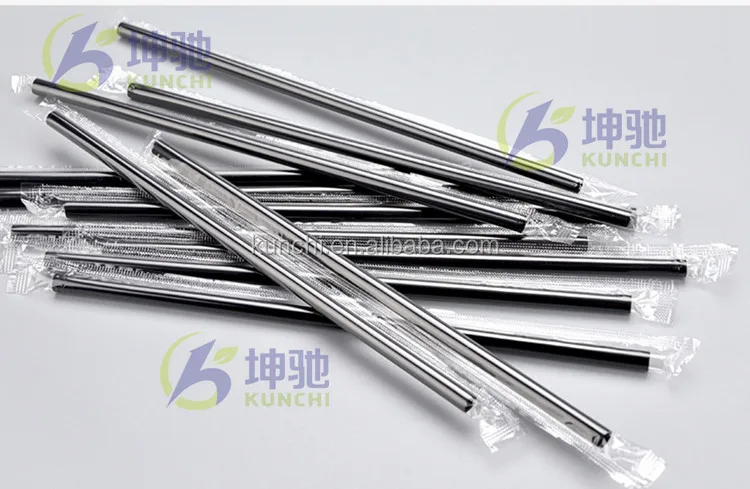

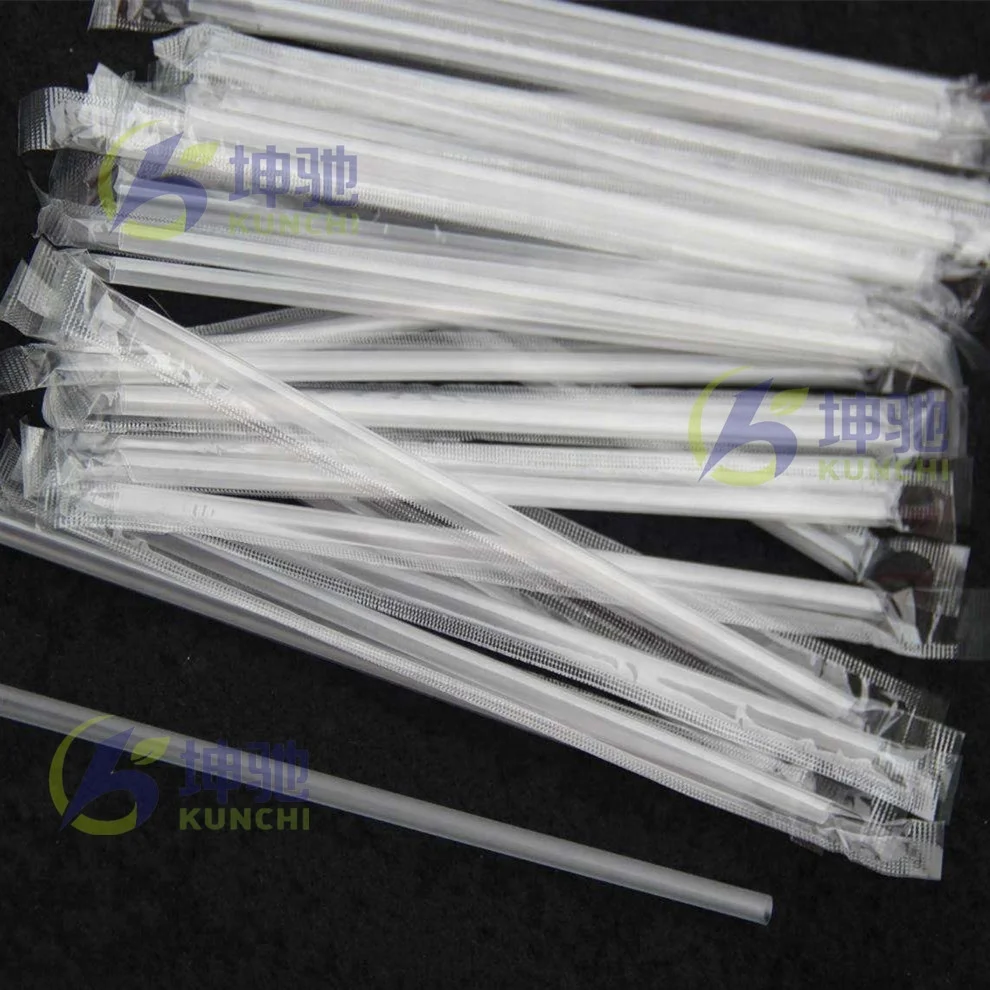

film pack.jpg

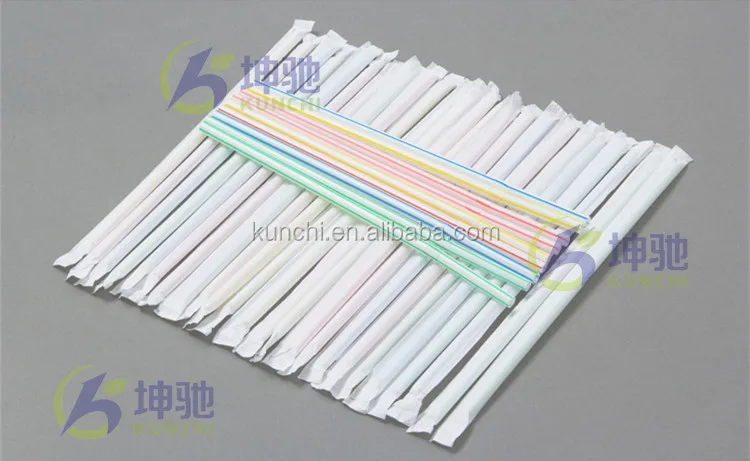

paper pack.jpg
