Automatic Yarn Rapier Sample Weaving Shuttle Loom With Touch Screen Control

Automatic Yarn Rapier Sample Weaving Shuttle Loom With Touch Screen Control

Category: Weaving Machines >>>
Supplier: Anytester,(hefei),Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

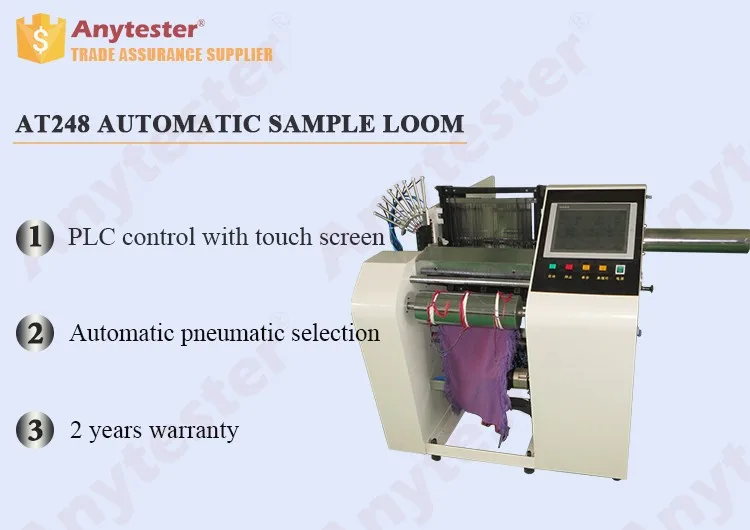

AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Specifications
Reed width			12inches (16, 20, and 24inch, optional)
Yarn linear density range			5~500tex
Weft density			30~45weft/min, selectable
No. of heald frame			4~20
Color selection			8 color, automatic pneumatic control
Let-off			Active electronic control
Take-up			Motor control
Shedding			Dobby shedding, pneumatic control
Beating-up			Motor control
Air pressure			0.45~0.8Mpa
Air consumption			Max. 200L/min
Power			A220V 50Hz, single-phase

Details & Features

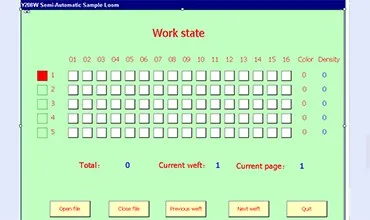

\tPLC control touch screen with 2G memory capacity to store designed patterns;

\tDesignable and editable patterns and USB interface to share designed patters;

\tMechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;

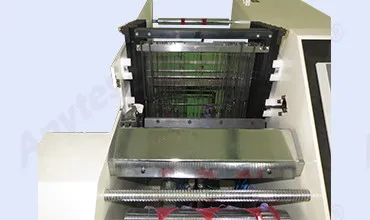

\tPneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

\tRapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;

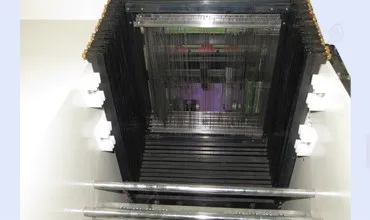

\tHeald frames up to 20pcs, easy to mount and dismount;

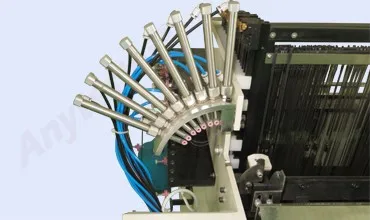

\tAutomatic pneumatic selection of weft yarns up to 8 colors;

\tProfessional software for designing or editing patterns;

Packing & Delivery

Packaging
Size	140(L) * 100(W) * 180 (D)
Weight	200 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
