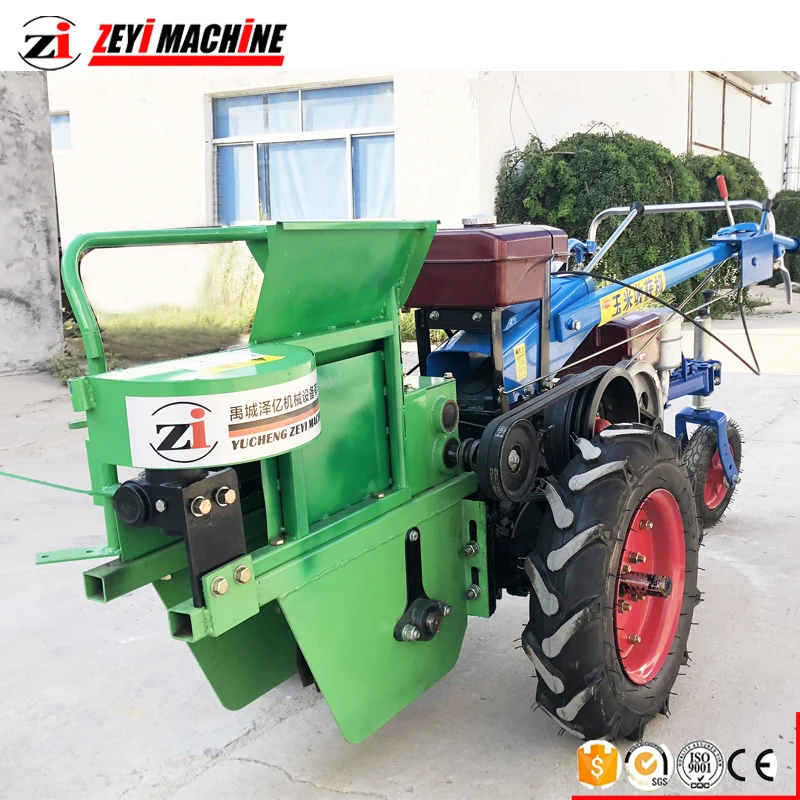

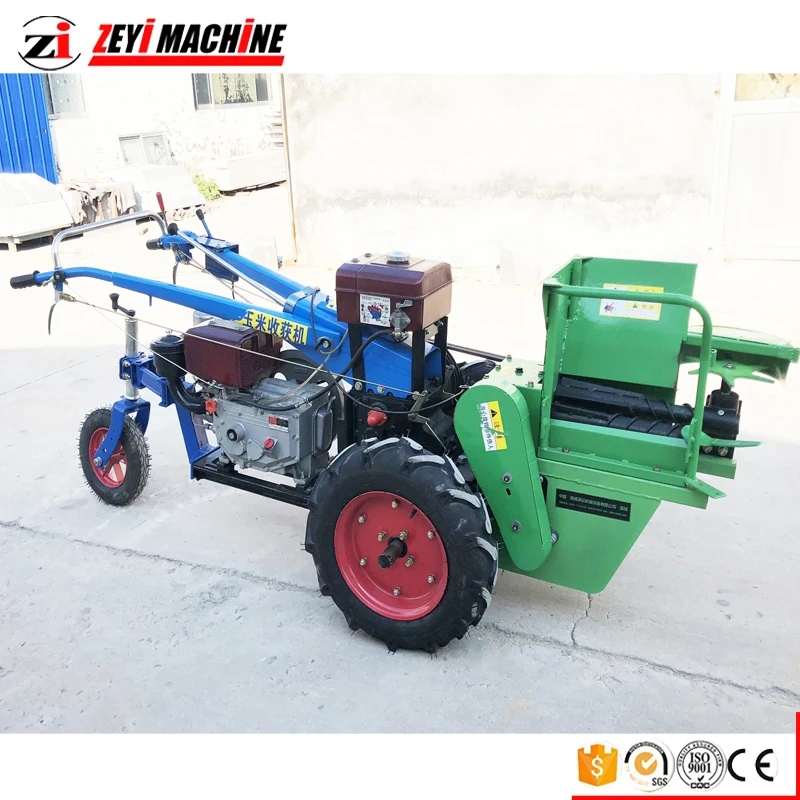

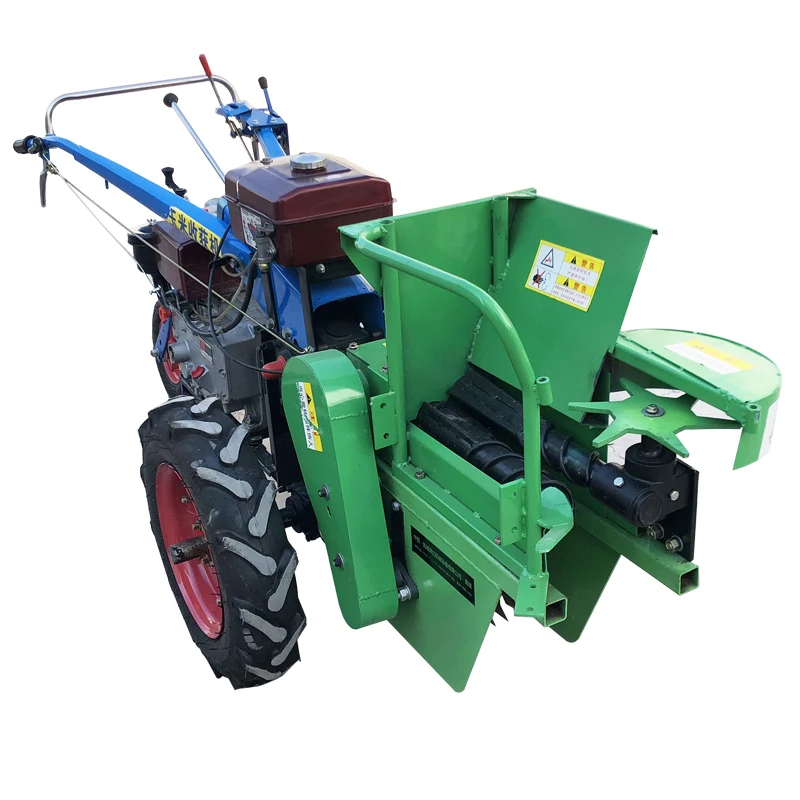

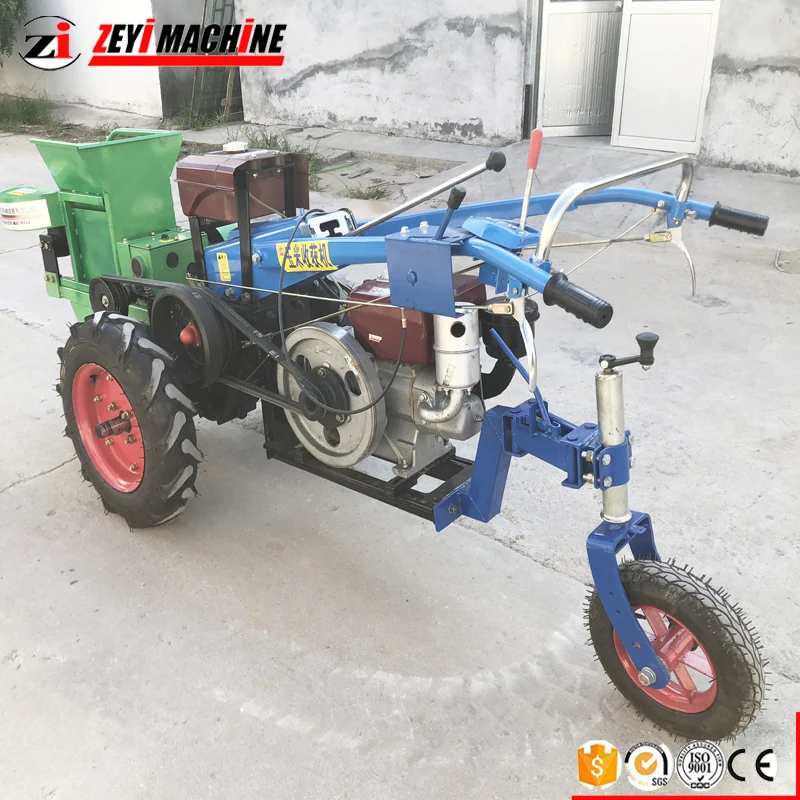

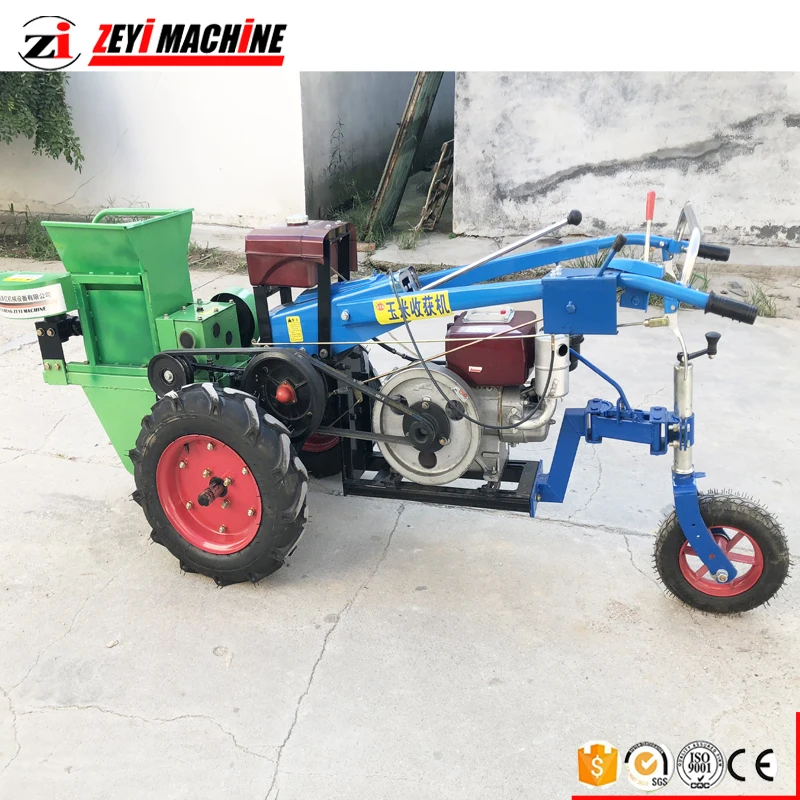

A new type of walking tractor corn harvester / corn threshing straw mill

Share on (60794629344):


Price:

Quantity:


Product Overview

Description


Product Description



specification

 Single rows corn harvester match with walking tractor.Its function is pick up corn and crush corn straw.Easy operate.

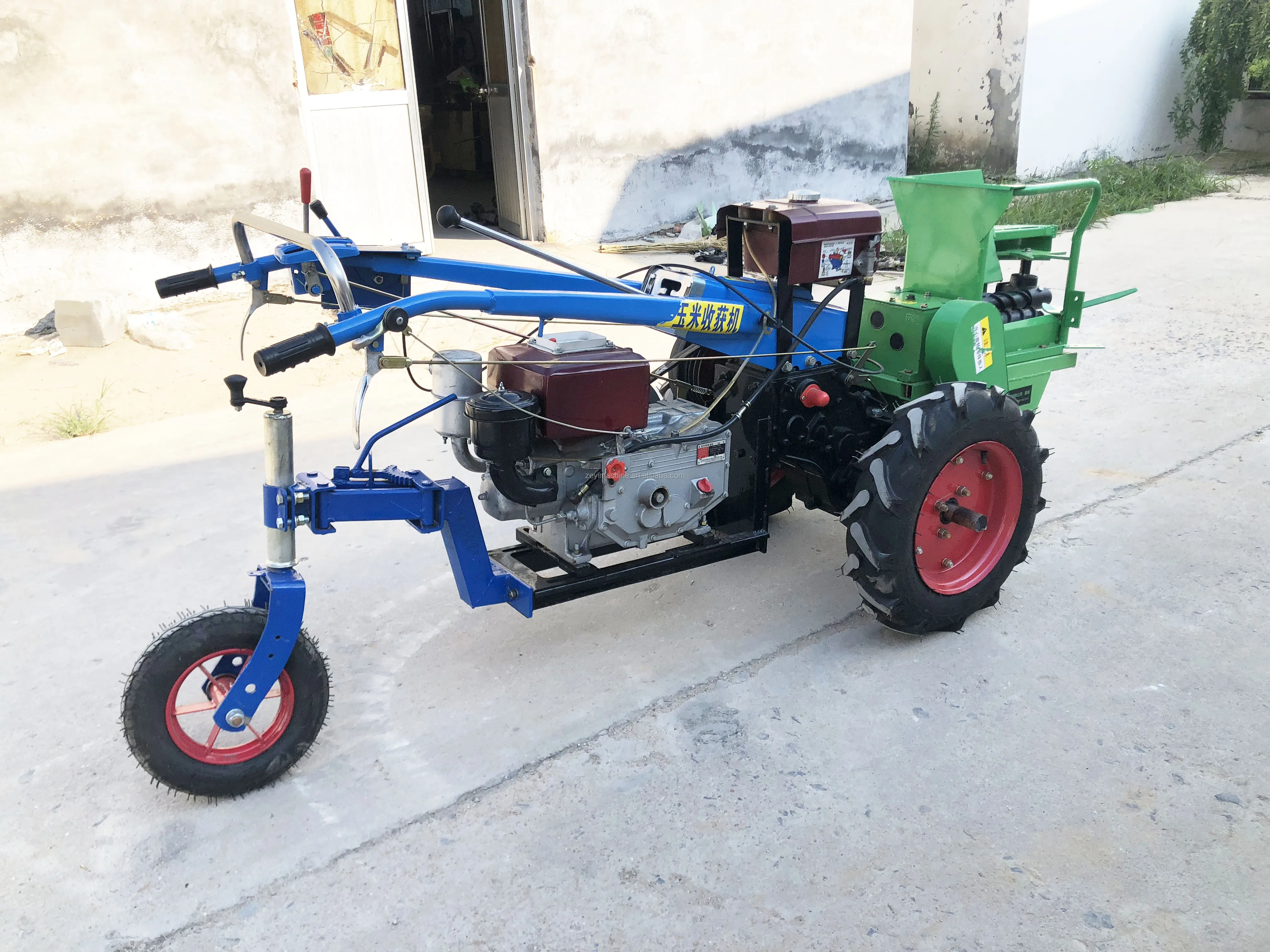

walking tractor combine corn harvester is hand-pushing self propelled type mini combine harvesters. It can finish one row maize cutting,corn-picking,maize stalks and leaves shredding at one time. When the tank is full, you can bag the corn quickly and easily. This tractor mounted corn harvester is very suitable for small farmer.
This used corn harvesters with the small machine size, it is easy to operated and suitable be used in the hilly and mountainous area, etc, which big combine maize harvester can't working.

Features

1:small size, adaptability, widely used in hills and mountains and other large corn harvesters can not pass the sporadic block
2:full-featured, picking crushed straw crushed into the field, etc., and almost the same function
and large corn harvester.
3: matching power, machine delivery.
4: easy to install and disassemble, really a car more use.
5: flexible operation, cutting crop height can be adjusted, turning radius is small ,

model2ZYMH-1  corn combine corn harvester
EnginePatternhorizontal , One Cylinder, Four Stroke,   diesels powered, Water-cooled
ModelZS180N (9hp)
Displacement(L)0.815
Oil Consumption (g/ Kilometer. h)less than250
Engine Oil Consumption     (g/ Kilometer. h)less than2.00
Rated Power(kw)6.93 KW
Rated Speed(rpm)2000
Starting TypeHand start
engine weight 120 kg
machine specificationWorking width 70 cm
Total loss rate 1%
Work efficiency1.5 mu/hour
Machine weight 105 kg
overall Dimension (mm)1450 x 580 x 650 mm
seatwith
total weight225 KG

1101101414

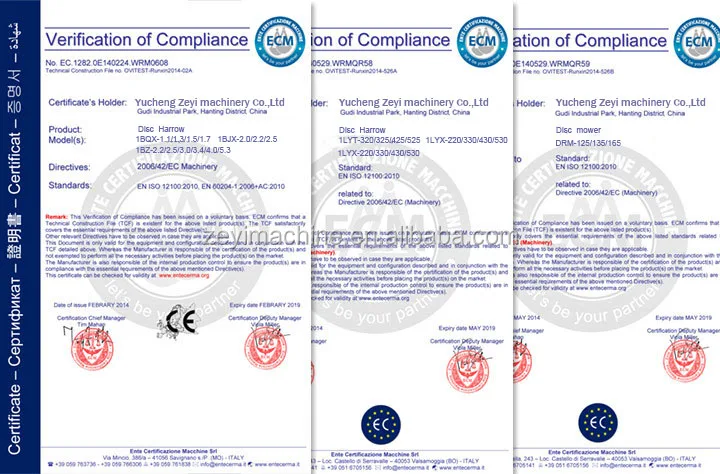

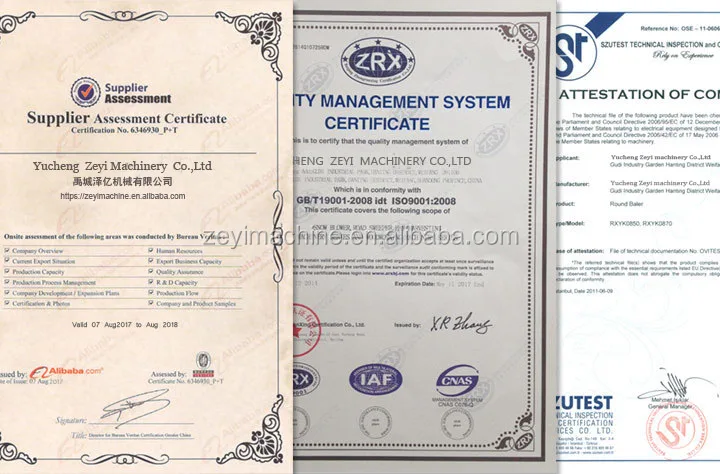

certification

CECCE
