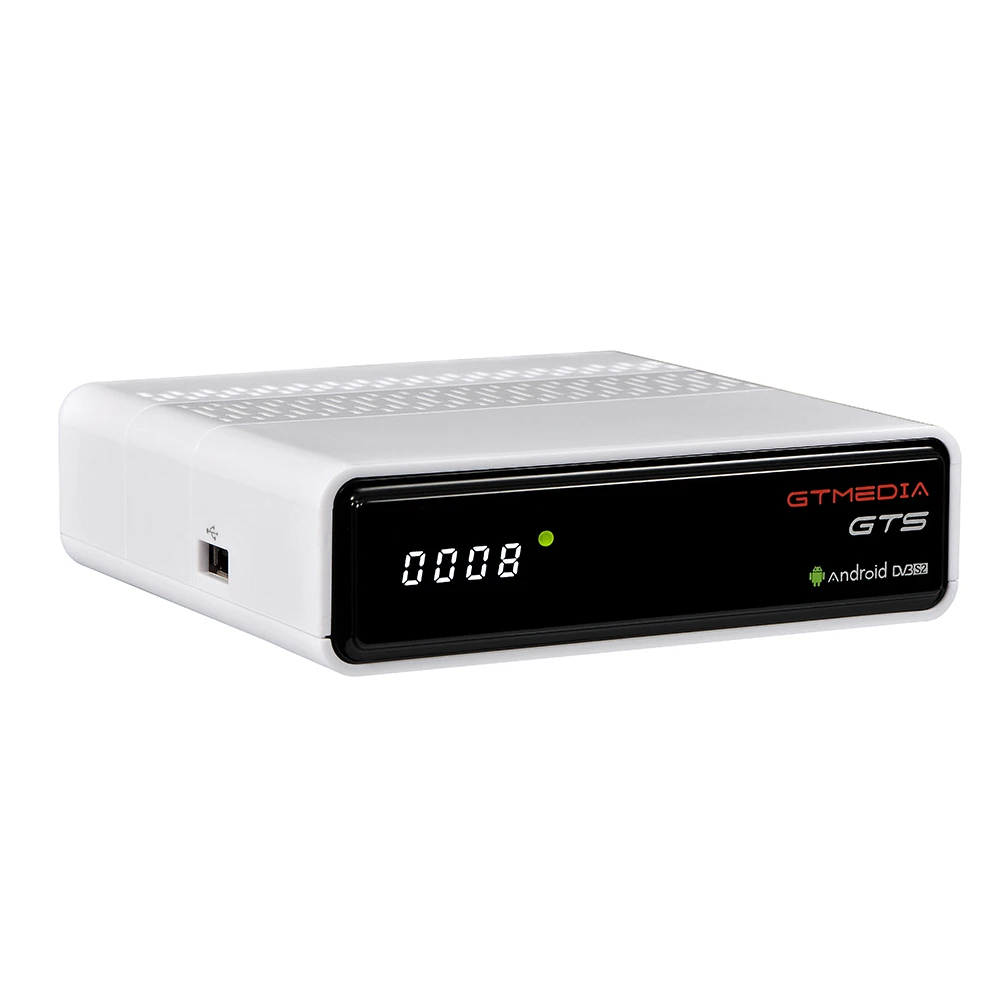

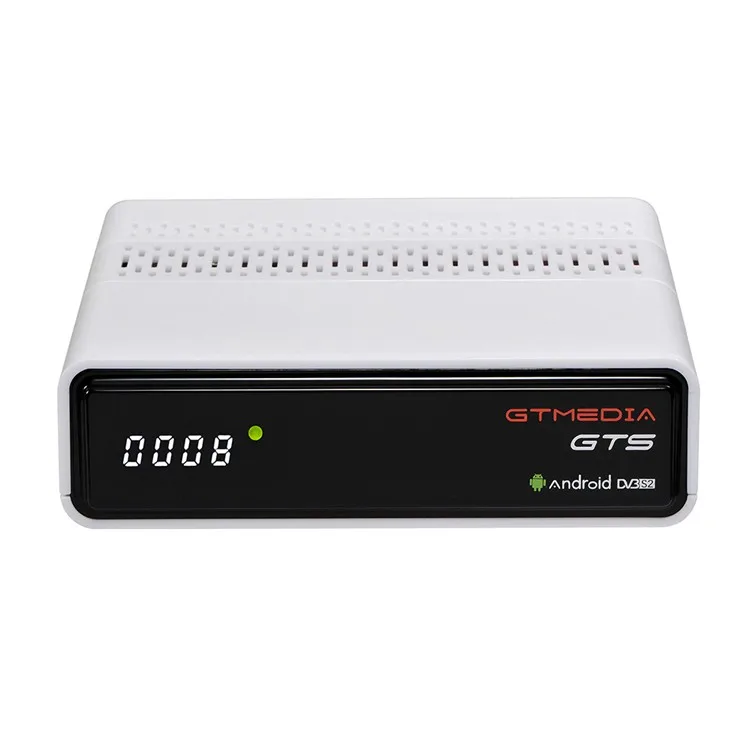

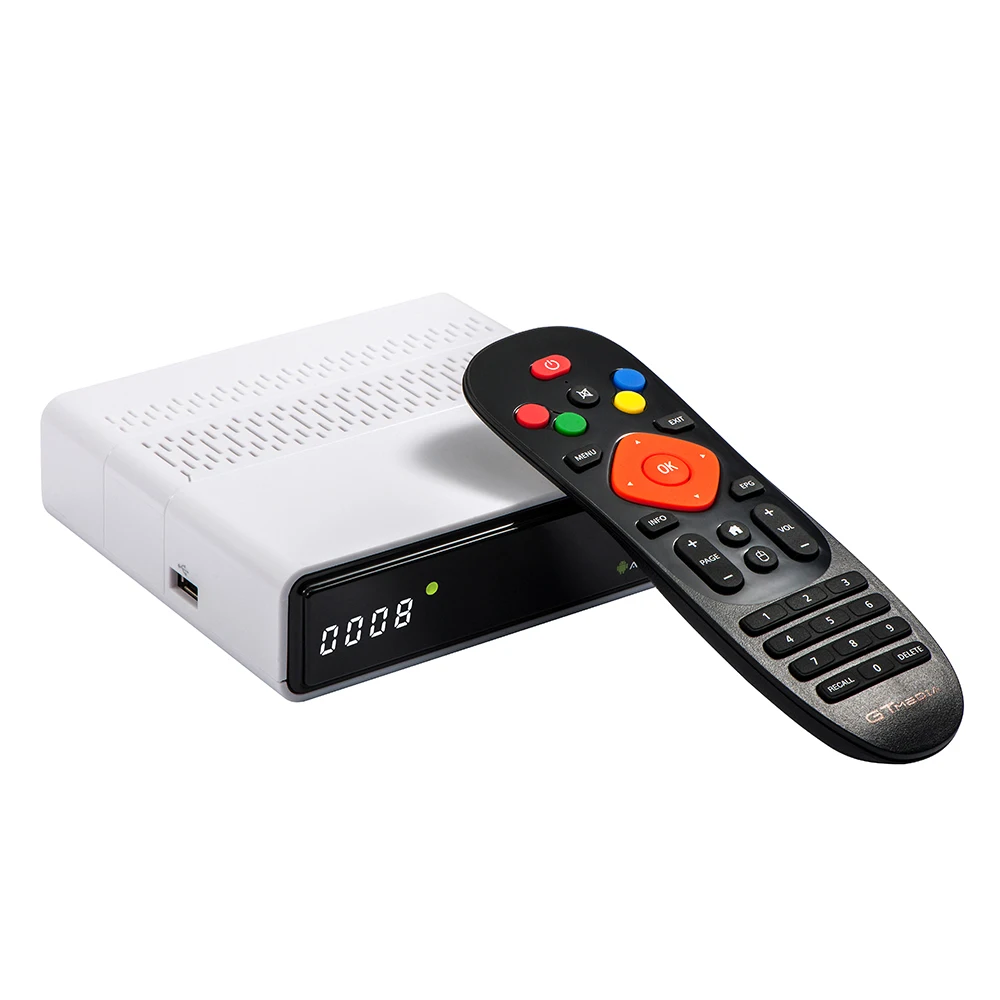

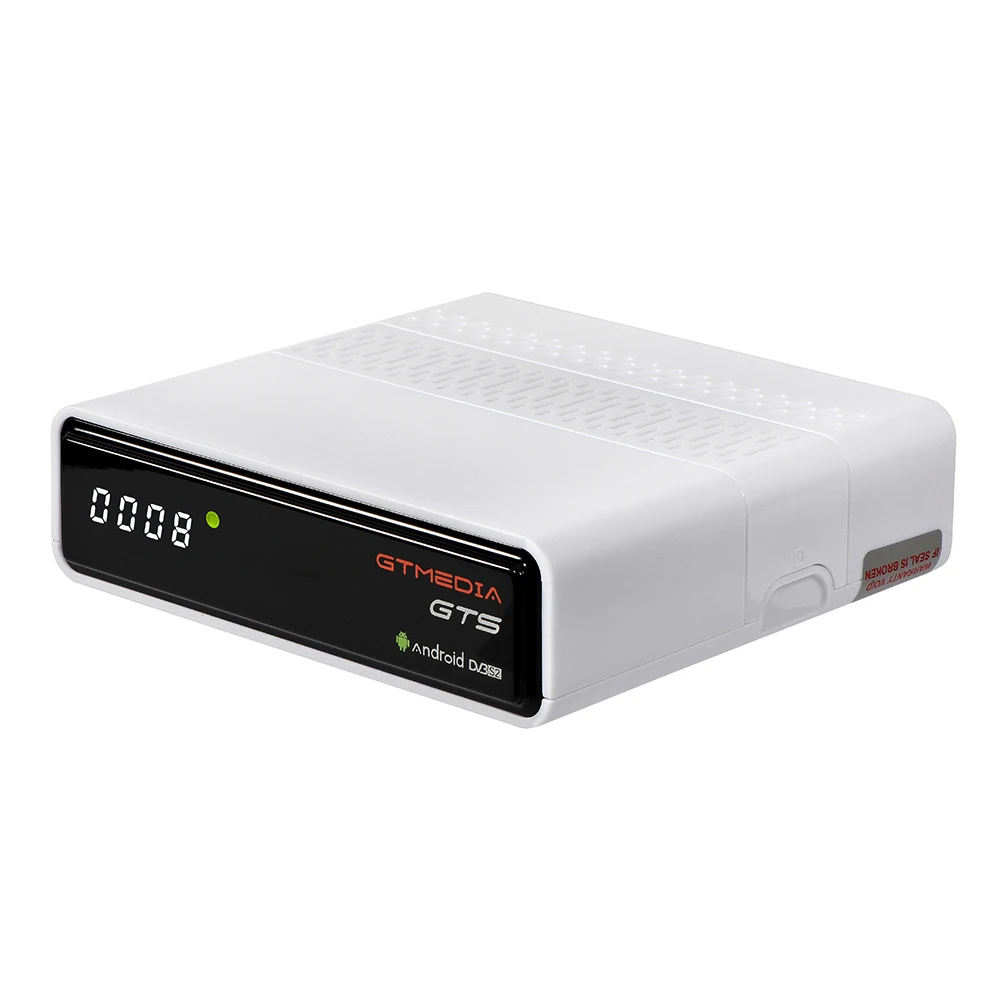

GTS GT media DVB S2 Android 6.0 TV CAIXA Receptor DVB S/S2 android 6.0 gb RAM CAIXA de TV 2 8 gb ROM BT4.0 GTMEDIA G
- Category: >>>
- Supplier: Shenzhen Rui Xin Industrial Limited
Share on (60794639331):
Product Overview
Description
Product Paramenters
Product Description
I. Highlight:\t\t\t\t
\t1, Android 6.0 TV BOX+DVB-S/S2,DVB+T/T2/Cable/ISDBT.\t
\t2, XBMC Addons pre-installed.(KODI15.2)\t
\t3, 4K/3D/H.265/MPEG-4 movies supported.\t
\t4, Amlogic S905D 2GBRAM +16GBROM\t
\t5, Built-in Wifi 2.4G+BT4.0, 802.1.1b/g/n\t
\t6. Netflix,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.\t
\t7, Technical support website : www.freesat.cn\t\t\t
\tNote: We reserve the right to change the design and OEM/ODM supported\t\t\t
II. Hardware:\t\t\t\t
\tCPU\tAmlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53\t
\tGPU\tPenta-core ARM Mali-450 , up to 750MHz+(DVFS)\t
\tFlash Memory\teMMC Flash 16G\t\t
\tDDR3 Memory\t2GB DDRIIII\t
\t3D Graphics\tOpenGL ES 1.1/2.0 and Open VG 1.1 support\t
\tVideo Decode \t UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264\t\t
\tAudio Decode\tMPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3,Dolby+\t
\tPanel display\t4-digit LED display\t
\tLED Indicator\tPower ON :Green; Standby :Red
\tButton\tNOT\t
\tWifi\tBuilt in 2.4G WiFi Support IEEE 802.11 b/g/n/ac\t
\tBlutooth\tBluetooth 4.0\t\t
\tIR\tExit IR for 38KHz,Infra Remote control\t

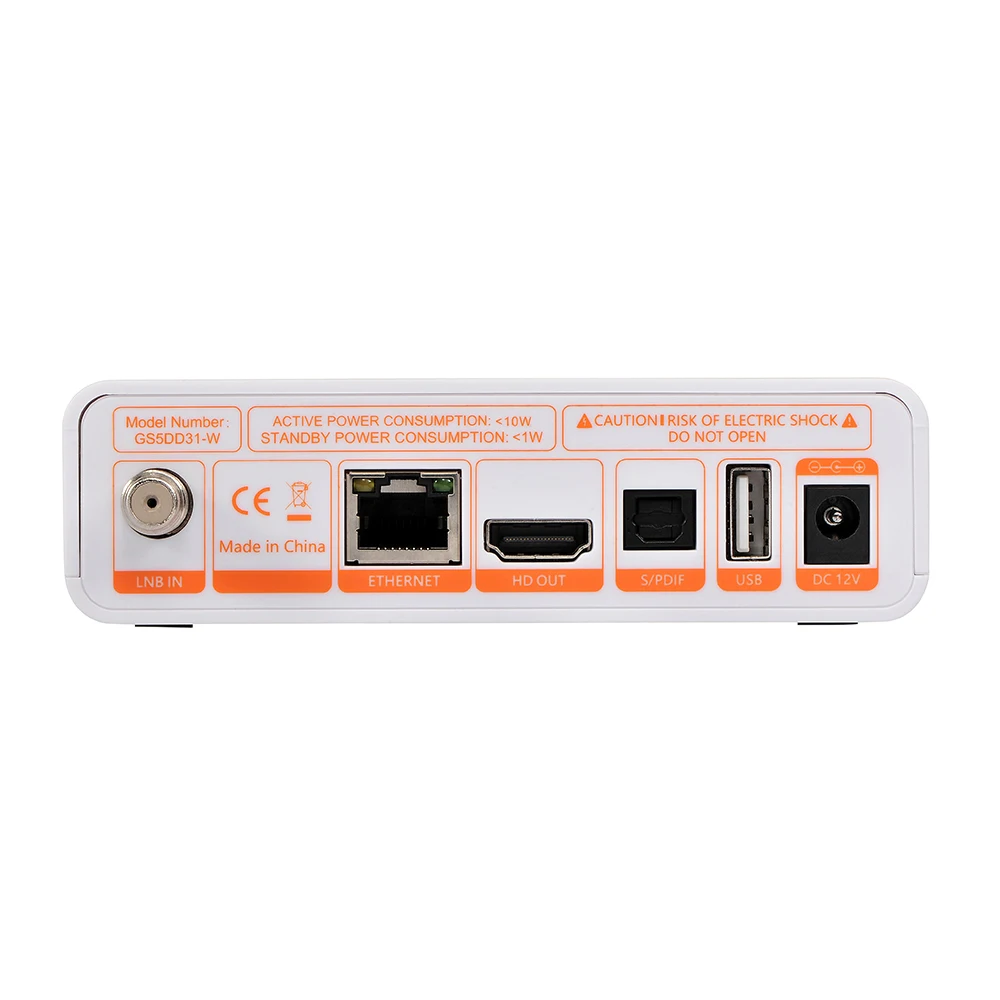

\tRear Panel\tRF IN ( EC-type IEC169-2 Female)\t
\t\tLNB IN (Frequency Range950MHz to 2150MHz)\t\t
\t\tHDMI 2.0 (V1.3/V1.4)\t
\t\t2*USB HOST\t
\t\t1*TF CARD\t
\t\t1*SPDIF\t
\t\t1*RJ45\t
\t\tPower (DC 12V/1.5A)\t
\tCPU\tAmlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53\t
\tGPU\tPenta-core ARM Mali-450 , up to 750MHz+(DVFS)\t
\tFlash Memory\teMMC Flash 16G\t\t
\tDDR3 Memory\t2GB DDRIIII\t
\t3D Graphics\tOpenGL ES 1.1/2.0 and Open VG 1.1 support\t
\tVideo Decode \t UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264\t\t
\tAudio Decode\tMPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3,Dolby+\t
\tPanel display\t4-digit LED display\t
\tLED Indicator\tPower ON :Green; Standby :Red
\tButton\tNOT\t
\tWifi\tBuilt in 2.4G WiFi Support IEEE 802.11 b/g/n/ac\t
\tBlutooth\tBluetooth 4.0\t\t
\tIR\tExit IR for 38KHz,Infra Remote control\t
\tRear Panel\tRF IN ( EC-type IEC169-2 Female)\t
\t\tLNB IN (Frequency Range950MHz to 2150MHz)\t\t
\t\tHDMI 2.0 (V1.3/V1.4)\t
\t\t2*USB HOST\t
\t\t1*TF CARD\t
\t\t1*SPDIF\t
\t\t1*RJ45\t
\t\tPower (DC 12V/1.5A)\t
III. Tuner specifications:
\tDVB-S2\t DVB-S2 system standard:ETS 302 307\t
\t\tSymbol Rates: QPSK,8PSK\t
\t\tForward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10\t\t
\t\tCarrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates\t
\t\tRoll-off factors for pulse shaping: 0.2, 0.25 and 0.35\t
\t\tSymbol Rates: 1- 55 Msps\t\t
\t\tCode Rates: 1/2, 2/3, 3/4, 5/6, 7/8\t
\t\tInput Signal level: -84 dBm to 0 dBm (average power)\t
\t\tANT. Connector:IEC TYPE F \t\t
\tDVB-T2\t DVB-T2 system standard:ETSIEN 302 755\t
\t\tSupport MPLP\t
\t\tDemodulation: QPSK,16QAM,64QAM or 256QAM\t\t
\t\tForward error correction rate 1/2,2/3,3/4,3/5,5/6\t
\t\tGuard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128\t
\t\tBandwith: 6/7/8MHz\t\t
\t\tInput Frange range:54--860MHz Input Impedance:75 Ω\t
\t\tInput Signal level: -84 dBm to 0 dBm (average power)\t
\t\tANT. Connector:IEC TYPE, female\t\t
\tDVB-C \tIEC 169-24 female 75Ω for input\t
\t\tDemodulation: 16QAM,32QAM,64QAM,128QAM,256QAM\t
\t\tInput Frange range:50--860MHz Input Impedance:75 Ω\t\t
\t\tInput Signal level: -84 dBm to 0 dBm (average power)\t
\t\tANT. Connector:IEC TYPE, female\t\t
\tISDB-T ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX
\t\tFFT Mode: 2K/ 8K/32K\t
\t\tDemodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK\t\t
\t\tForward error correction rate 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic\t
\t\tGuard interval : 1/4,1/8,1/16,1/32\t
\t\tBandwith: 6/7/8MHz\t\t
\t\tInput Frange range:VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz\t
\t\tInput Signal level: -83 dBm to 0 dBm (average power)\t
\t\tANT. Connector:IEC TYPE, female\t\t
IIV. Sortware Features:\t\t\t\t
\tStandard\tFully comply with DVB-S/S2 (SCPC and MCPC receivable from C/Ku band satellite), DVB-T/T2/Cable/ISDBT, MPEG-2/4 H.264 Standard\t\t
\tswitch protocol\tDiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX,Overload Protection, 0/22K\t\t
\tChannels Number\t10000 channels TV and Radio programmable\t\t
\tFavorites\t8 different favorite groups selection\t\t
\tOSD Language\tOSD Multi-language for options(Arabic, Catalan, Czech, Dansk, Deutsch, Eapanol,English,Euskar,Farsi,French,Finnish,Galego,Greek,Hrvatska,Italian,Magyar,Nederlands,Polska,Spanish,Slovakian,Svenska,Portuguese,Russian,Ukrainian,Turkish,Thai and etc.)\t\t
\tEPG\tFully support to 7 days Electronic Program Guide(EPG)\t
\tOSD Color\t256 color/16bit On Screen Display\t
\tPicture \tJPEG,BMP,PNG,GIF Supported\t\t
\tChannel Search\tSupports NIT Search ,Automatic network search for newly added transponders\t
\tChannel Edit\tVarious channel editing function(favorite,move,lock,skip,delete,rename,find,sort)\t
\tParental Ctrl\tParental control for channels\t\t
\tEasy Menu\tPlug and Play installation, with an easy to use Menu System\t
\tPAL/NTSC\tAutomatic PAL/NTSC conversion\t
\tSoftUpgrade\tSoftware upgrades through USB port, Support OTA and HTTP/FTP upgrade.\t\t
\tChannel\tRecording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)\t
\tSubtitle\tsupport DVB EN300743 and EBU\t
\tTeletext\tsupport DVB ETS300472 by VBI and OSD\t\t
\tTime Set\tTime set by GMT offset automatic and manual,Summer Time support\t
\tTimer\t5 event timers,off/Once/Daily/Weekly Mode\t
\tUSB 2.0\tSupport FAT/FAT32/NTFS big capacity hard disk\t\t
\tPVR Option\tUSB 2.0 for PVR,TIMESHIFT,media files playback\t
\tMedia Codec\tTS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG/M4A files\t\t
\tAudio Codec\tWMA,MP3,AAC (.wma,.mp3,m4a)\t
\tPhoto Codec\tJPEG, BMP, PNG\t\t
