11ac 1200Mbps High Power Outdoor Wireless AP 11ac/b/g/n 2.4GHz 5.8GHz 500mW Qualcomm Chipset IP65 Omni 5dBi antenna 500 meters
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. Ltd.
Share on (60794653254):
Product Overview
Description
Product Description

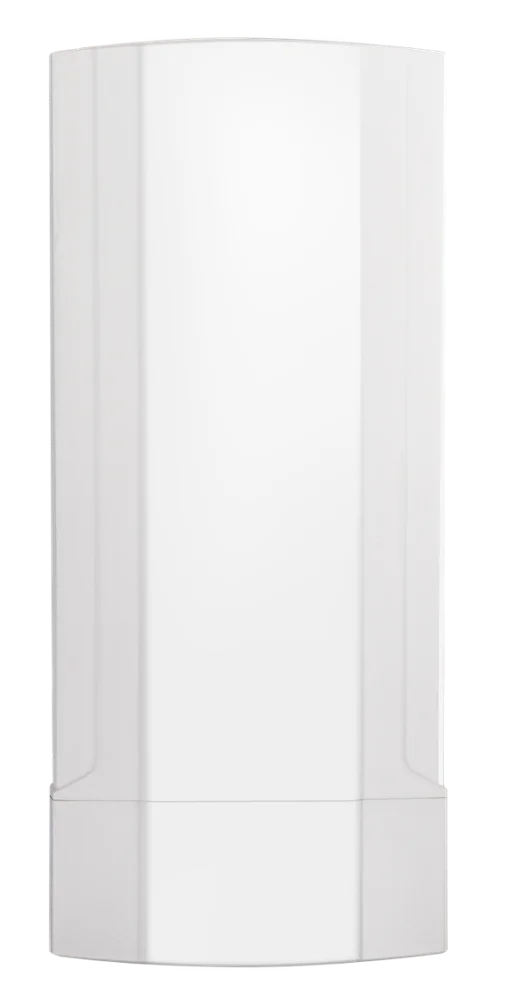

11ac 1200Mbps High Power Outdoor Wireless AP
Model: AP1200
Description:
AP1200 is the 1200Mbps high power industrial use Outdoor wireless access point with the next generation 802.11ac Wi-Fi standard, 2x2 MIMO technology, it is dual band, 2.4GHz(300Mbps) and 5GHz(900Mbps), Gigabit WAN/LAN port, the fast Ethernet data rate and clear frequency make 100+ end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
ABS weather-proof case
AP1200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the maximum working temperature can be at -40℃ to 70℃. Suit for any country.
High Power, 5dBi omni antenna, more Wi-Fi Range
Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, build in 5dBi omni Wi-Fi antenna, outdoor Wi-Fi range up to 500 meters.
Power over Ethernet
AP1200 has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 48V IEEE 802.3at PoE, 24V Passive PoE is possible by change PCB board.
Access Controller System & Cloud Management System
Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....

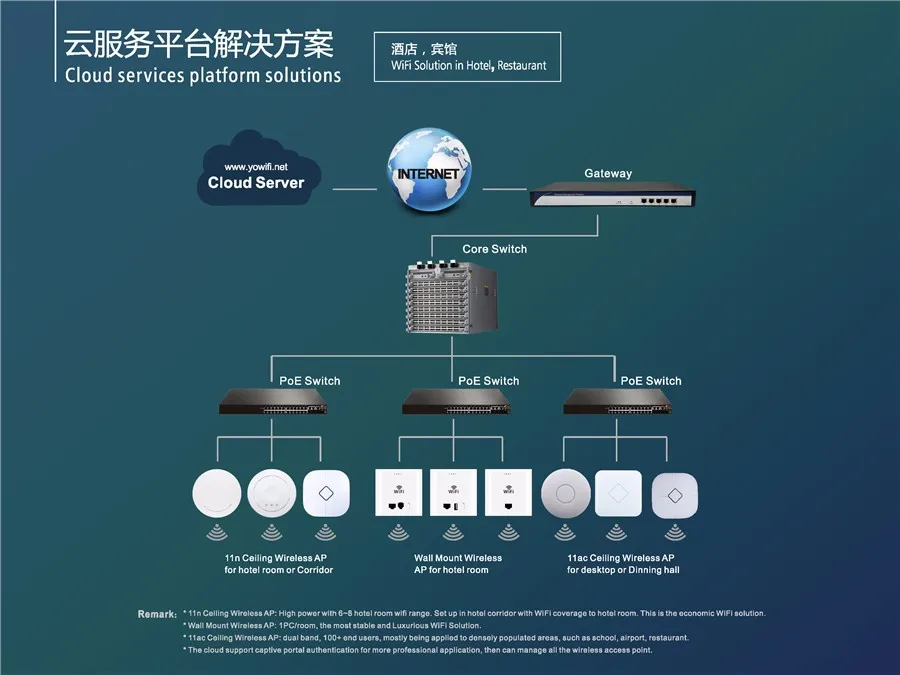

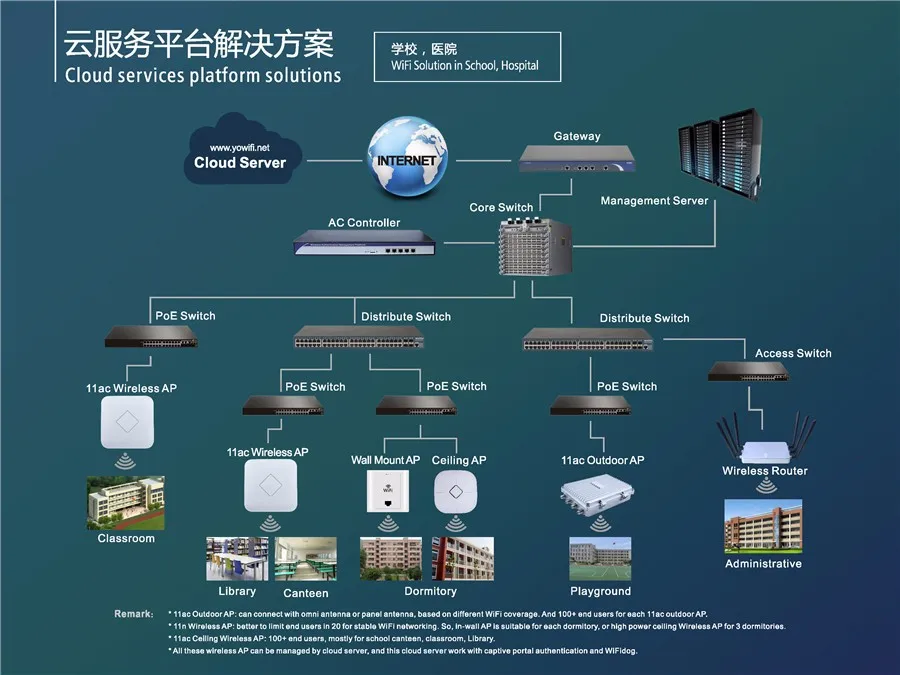

Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in Wi-Fi Projects.
Main Features:
l Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
l 1*10/100/1000Mbps WAN Port,1*10/100/1000Mbps LAN Port
l 1000mW high power, Qualcomm Chipset, 16M Flash, 128M DDR2 RAM, more user, more stable
l Support 48V active PoE, work with IEEE 802.3at standard PoE switch or 48V PoE adapter.
l Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz), support tag VLAN based on SSID to protect the whole data safety.
l Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
l With function of firewall, IP filter, URL filter and MAC filter
l Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
l Support DDNS, VPN pass through, Port forwarding and DMZ host
l Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Product Spec.:
Hardware: | |
Chipset | Qualcomm QCA9563 + QCA9882 +QCA8334 |
Standard | 802.11ac/b/g/n, MIMO technology |
Memory | 128MB DDR2 RAM |
Flash | 16MB |

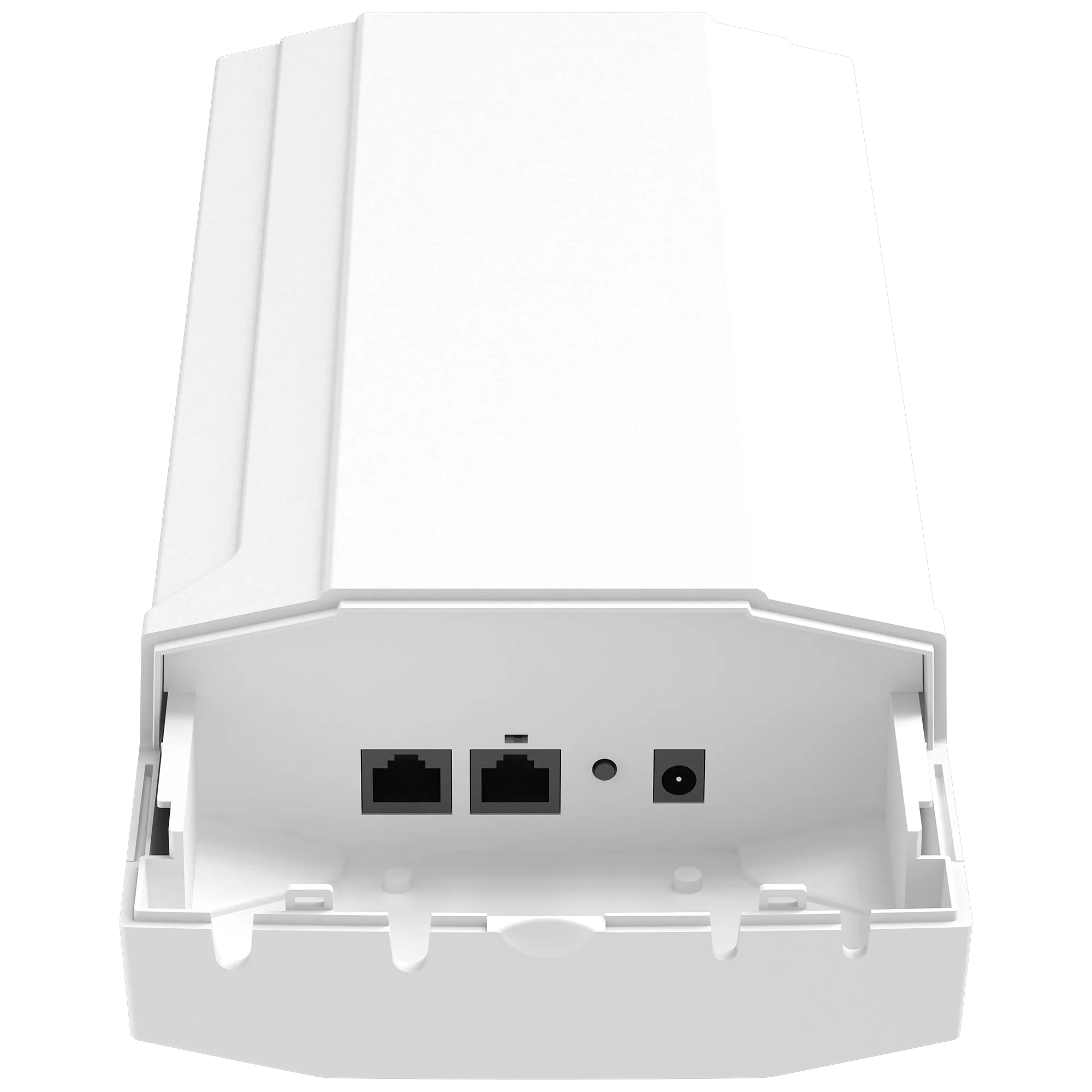

Interface | 1 * 10/100/1000Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE |
1 * 10/100/1000Mbps RJ45 LAN Port | |
1 * DC injector, 12V/1.5A | |
1 * Reset button, press 15 seconds to revert to default setting | |
Antenna | Build in omni antenna, 5dBi, MIMO |
Power consumption | 48V PoE<30W |
Size | 315mm * 145 mm * 80 mm |
RF Data | |
Frequency | 2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac |
2.4GHz: 2.4GHz to 2.484GHz 5GHz: 5150 -5850 GHz | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Data Rate | 1200Mbps (2.4G 300Mbps, 5.8G 900Mbps) |
Firmware Features: | |
Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK, 802.1x encryption |
SSID | Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) |
Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter |
Protocols | IPv4 |
Others: | |
Package Contents | 1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: -30~55 ℃ Maximum Working Temperature: -40~70 ℃( Throughput some attenuation) Storage Temperature: -40~70 ℃ Storage Humidity: 5%~95% non-condensing |
Management | Firmware GUI , Remote Management, WLAN Controller, Cloud Management System |
Packaging & Shipping
Gift box + Carton box: CTN Size: 69*36.5*35CM ,10PCS/CTN.
Shipping by Express: TNT, DHL, UPS, FedEx
Our Services
OEM & ODM for LOGO, Box and Stickers.

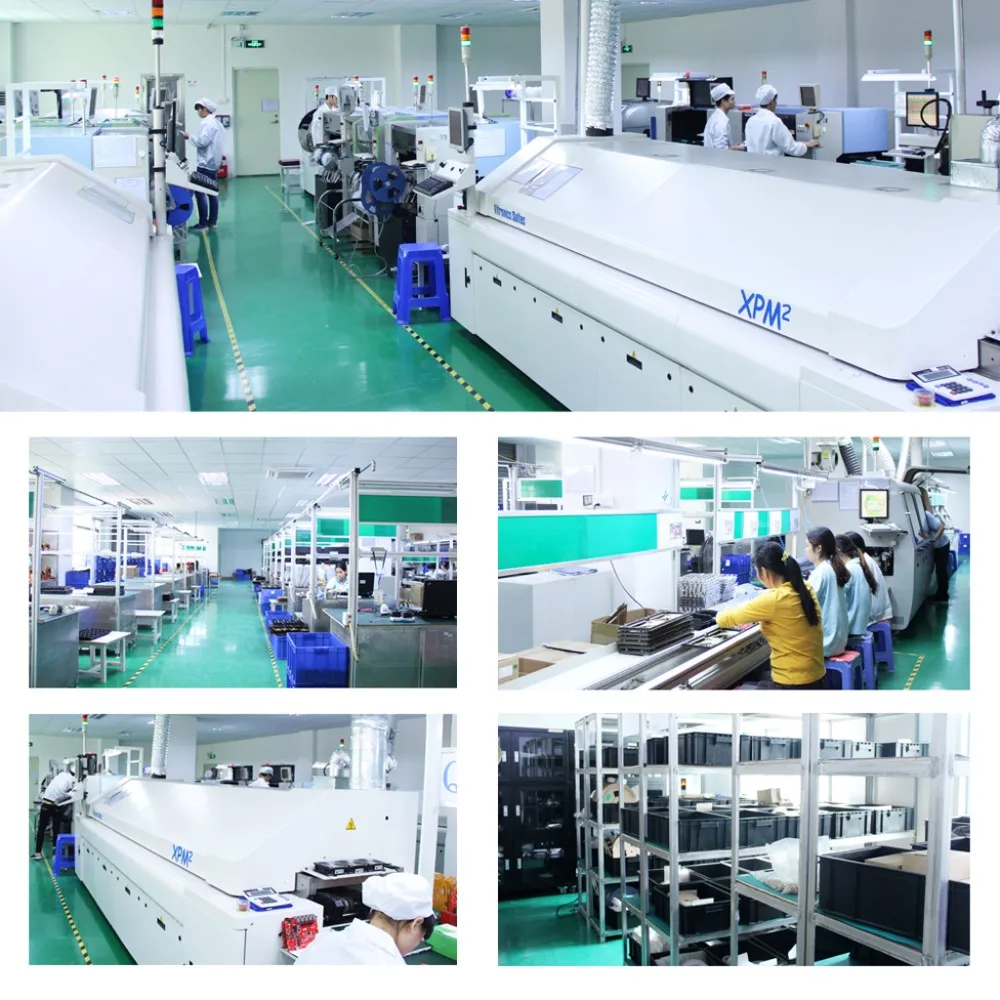

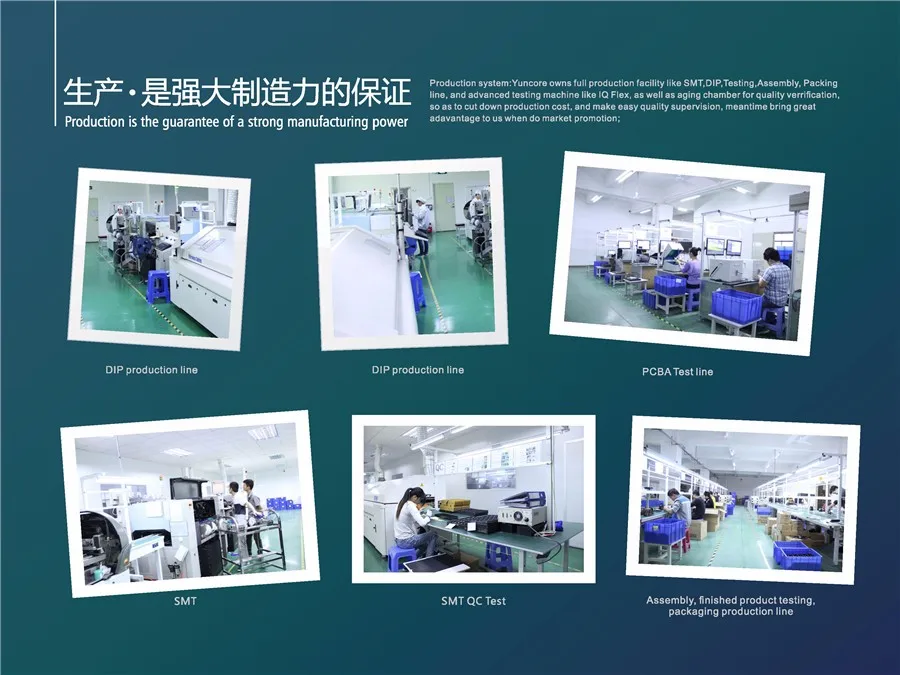

Company Information
FAQ
Q1: How can I get product Price List?
A1: Contact us by WhatsApp, Email, TradeManager, Skype, Line, Facebook Messenger, Viber, WeChat, our contact details are at the bottom of this page.
Q2: Can I get samples to test before place an order?
A2: Yes, welcome samples order to test and check quality. Mixed samples are acceptable. Go to top of this page, click "Start Order" to place samples order directly by Trade Assurance, easy and safe!
Q3: How does your factory do regarding quality control?
A3: Quality is the priority, it's our life!
All products with CE RoHS certificates, and 100%QC inspection before shipment.
Q4: What's the best way for shipping?
A4: For small order, by express is the best, and for big orders, by air, or by Ocean shipping is better.
Q5: Can we get support if we have our own market position?
A5: Plz inform us your detailed mind on your market demand.
we will discuss and propose helpful suggestion for you, then find the best solution for you.
Q6: What is the warranty for your products?
A6: Warranty time is 12months, if problems during use, we will help you to solve.
