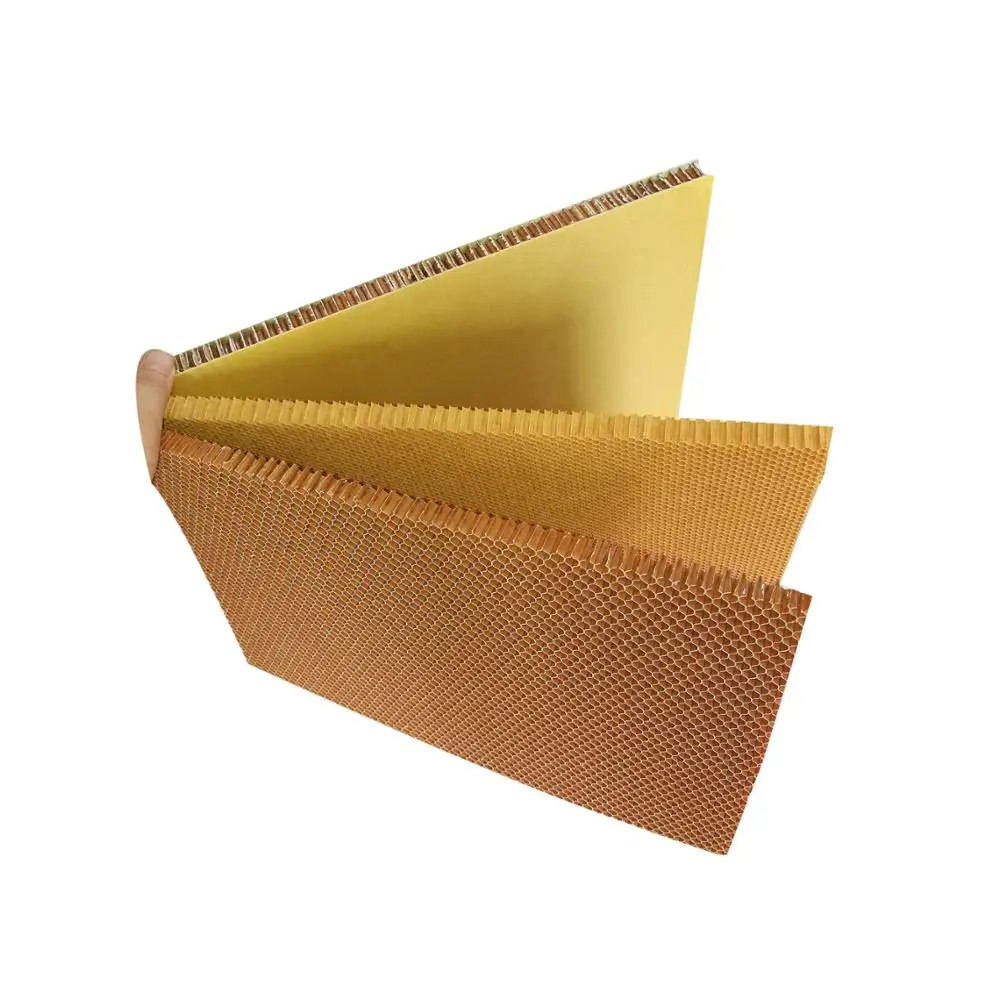

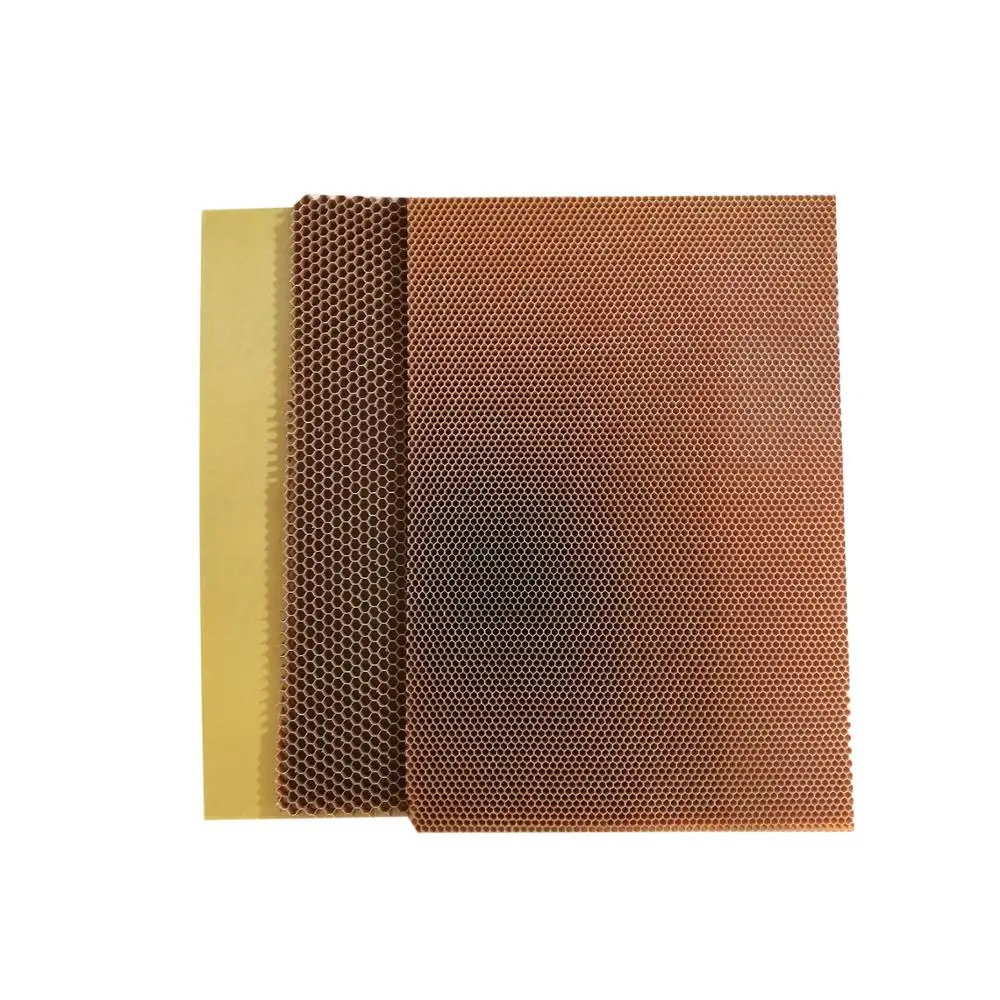

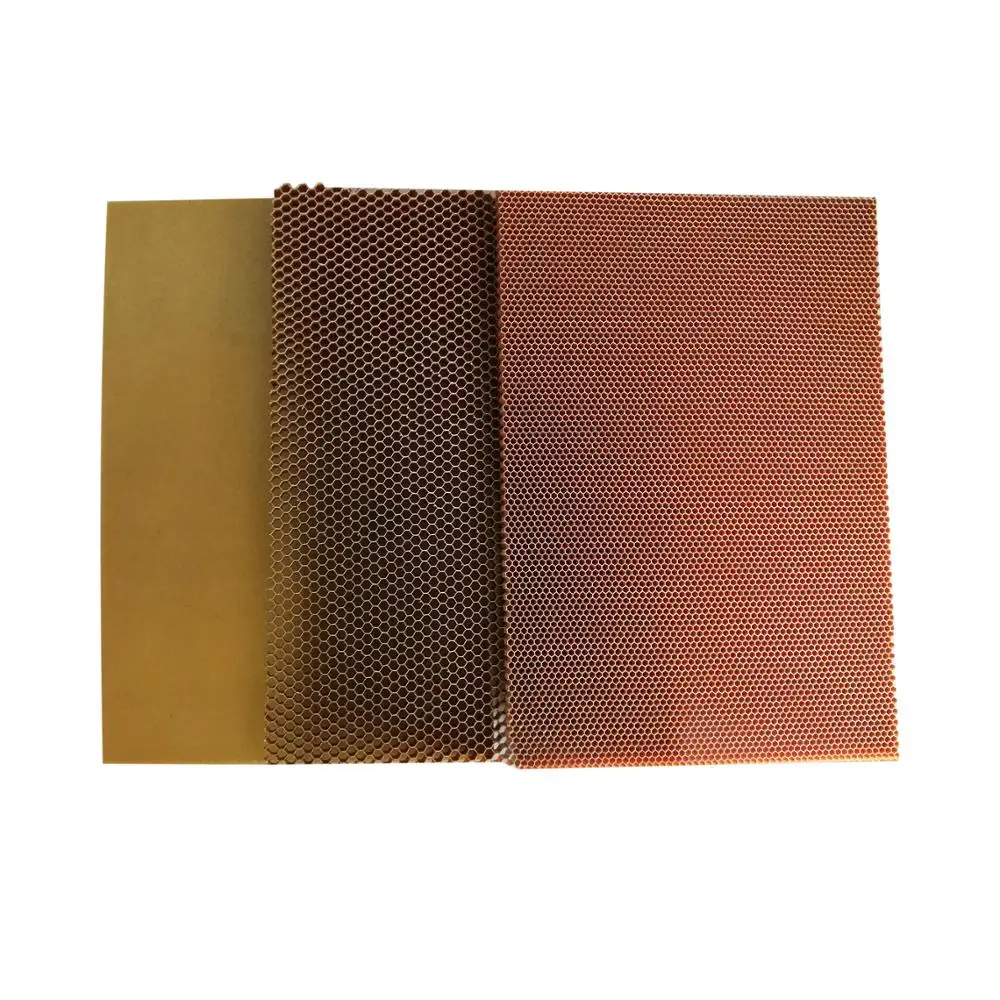

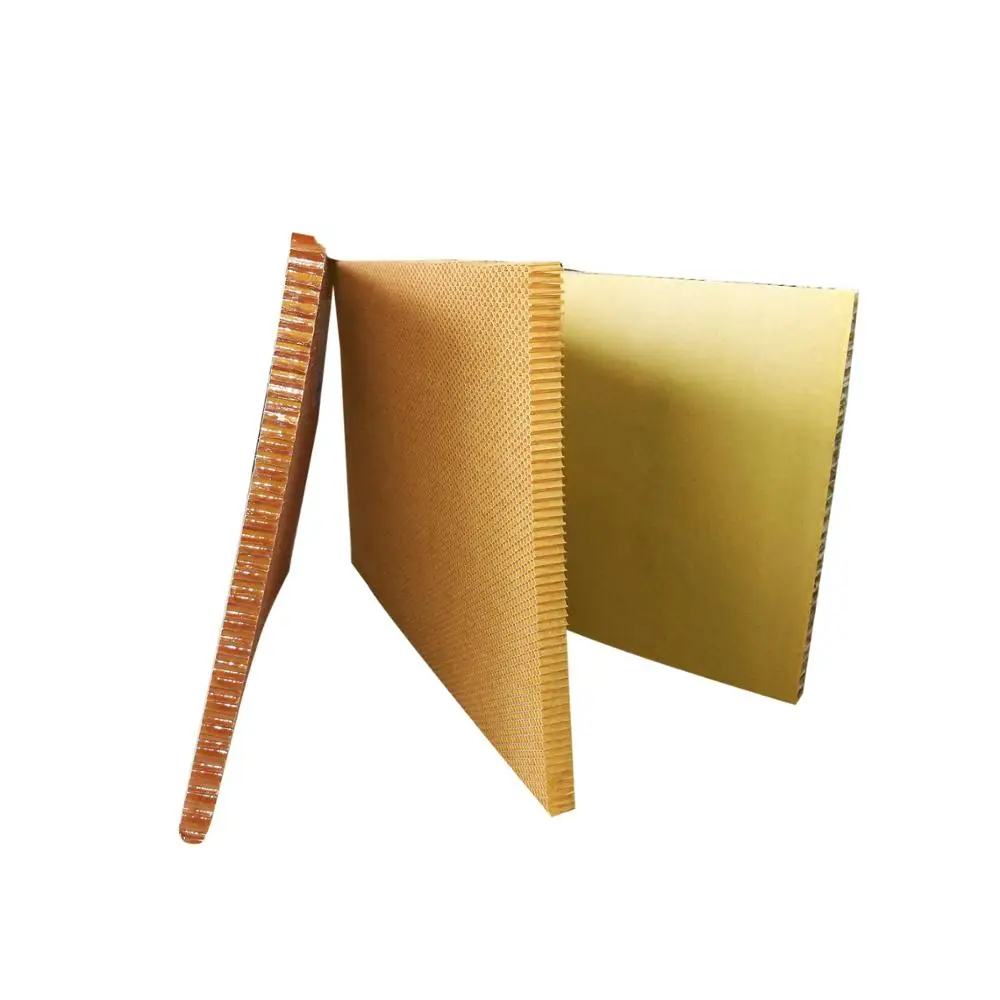

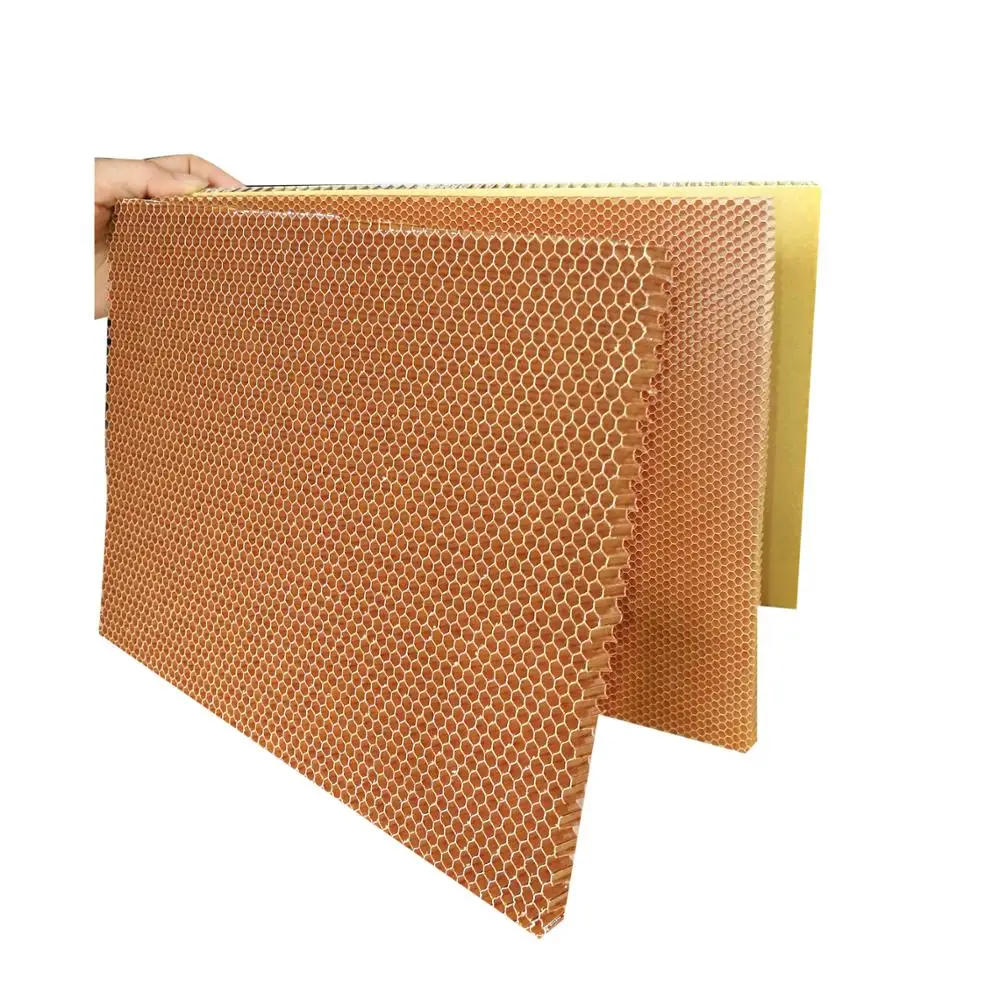

Kying paper honeycomb Electrical Insulation
- Category: >>>
- Supplier: Suzhou Kying Industrial Materials Co. Ltd
Share on (60794654000):
Product Overview
Description
Description:
Aramid honeycomb, aerospace grade and commerical grade, is manufactured from high performance meta-aramid paper and dipped with thermosetting phenolic resin.
Aramid honeycomb offers light-weight, high strength, rigidity and good flam resistant, electrical insulation,corrosion, fatigue and impact, easily to be formed, used in aircraft,aerospace, shelters, racing boats, racing cars and radomes fields etc..
Features
- High strength to weight ratio
- Corrosion resistant
- Excellent dielectric properties
- Thermally insulating
- High toughness
- Excellent creep and fatigue performance
- Good thermal stability
- Over collapsed cell configuration suitable for forming simple curves
- Compatible with most adhesives used in sandwich composites
Specification
Cell Size | Length mm | 1.83, 2.29, 2.75,3.67, 4.5, 5.5 |
Diameter inch | 1/8, 5/32, 3/16, 1/4, 5/16, 3/8 | |
Diameter mm | 3.2, 4.0, 4.8, 6.4, 8.0, 9.5 | |
Density | 1b/ft3 | 1.5, 1.8, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0,9.0 |
kg/m3 | 24, 29, 40, 48, 64, 80, 96, 128, 144 | |
Standard size | inch | 48×96 51×102 63×126(Max.) |
mm | 1220×2440 1300×2600 1600×3200(Max.) |
