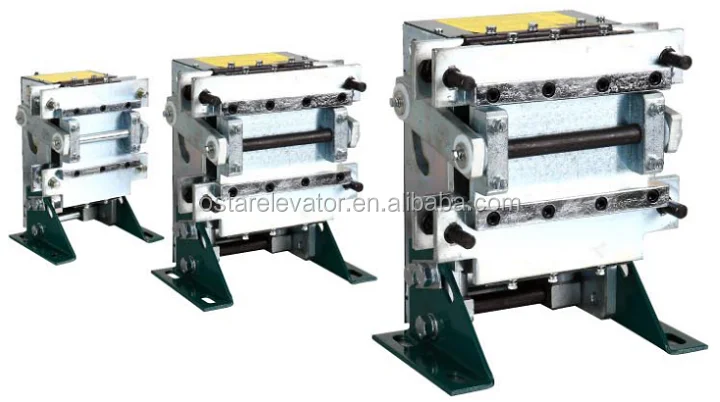

Lift Parts Rope Brake Elevator Mechancial Wire Rope Brake
Product Description
The way of actuation: the speed governor drives the wire tightening component to enable the rope clamp.
The rope clamp exerts force by the coiled compression spring, strengthens the spring force by the wedge iron and the roller, the two brake plates move the center, clamp and tow the wire rope, stopping the car ascending with excessive speed. The installation angle can be regulated.

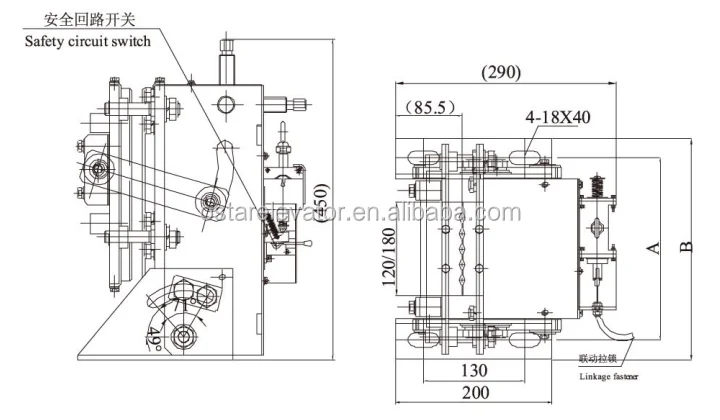

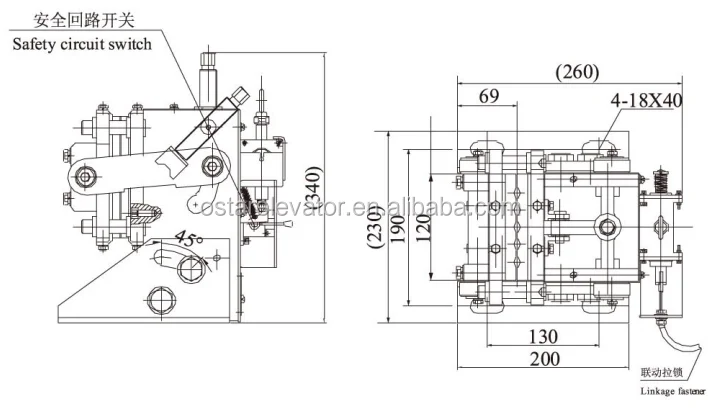

G
A
B
Wire Rope Diameter
Slot Amount
Traction Sheave Slot Specification
G01
235
285
≤Φ16
≤5
≤25
G02
270
320
≤Φ16
6~8
≤25
Rated Speed
a) 1:1 V≤2.5m/s
b) 2:1 V≤1.25m/s
Rated Load Range
a) 1:1 Q=320~1250KG
b) 2:1 Q=640~2500KG
Total Weight
a) 1:1 992~2905KG
b) 2:1 1984~5810KG
Rated Speed
a) 2:1 V≤0.63m/s
b) 4:1 V≤0.31m/s
Rated Load Range
a) 2:1 Q=1000~5000KG
b) 4:1 Q=2000~10000KG
Total Weight
a) 2:1 5530~13110KG
b) 4:1 11060~26220KG
