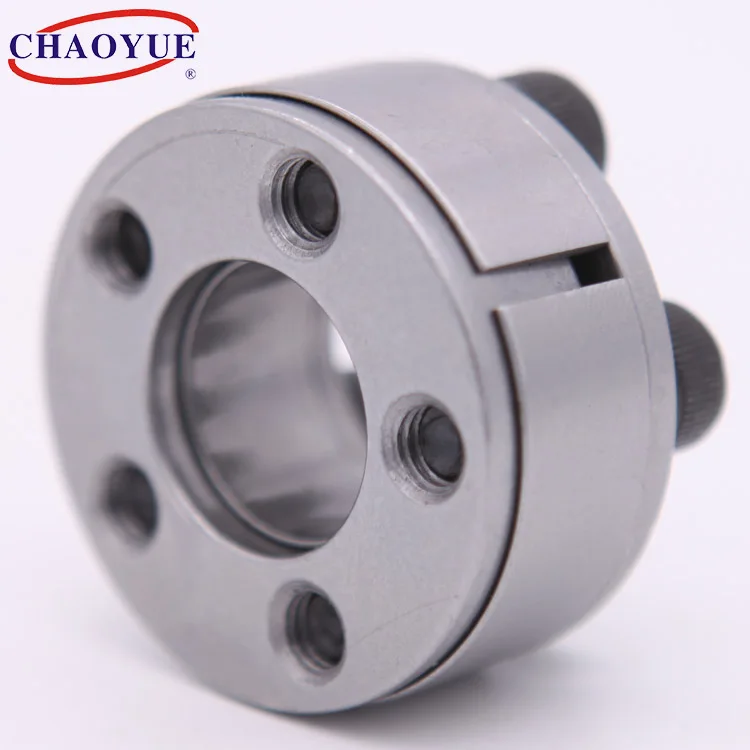

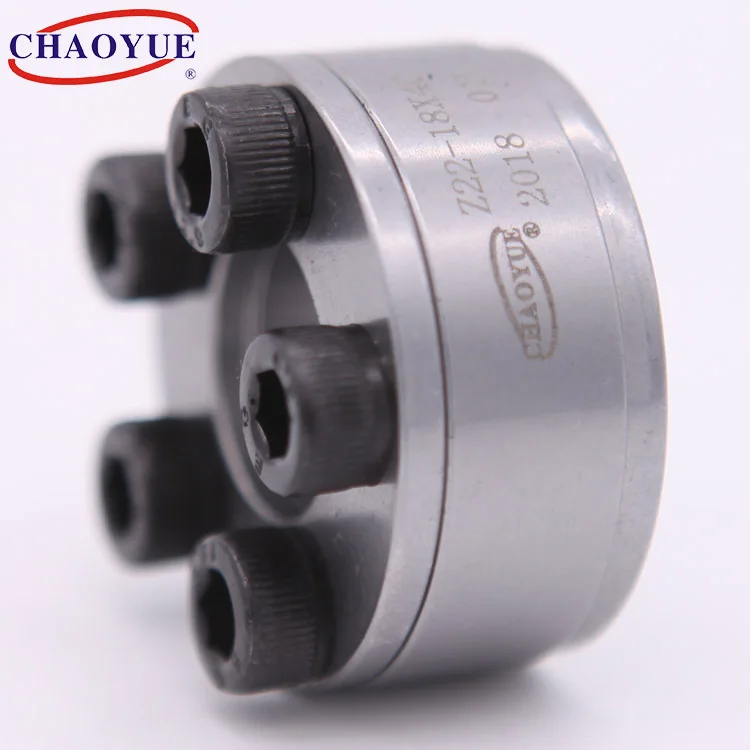

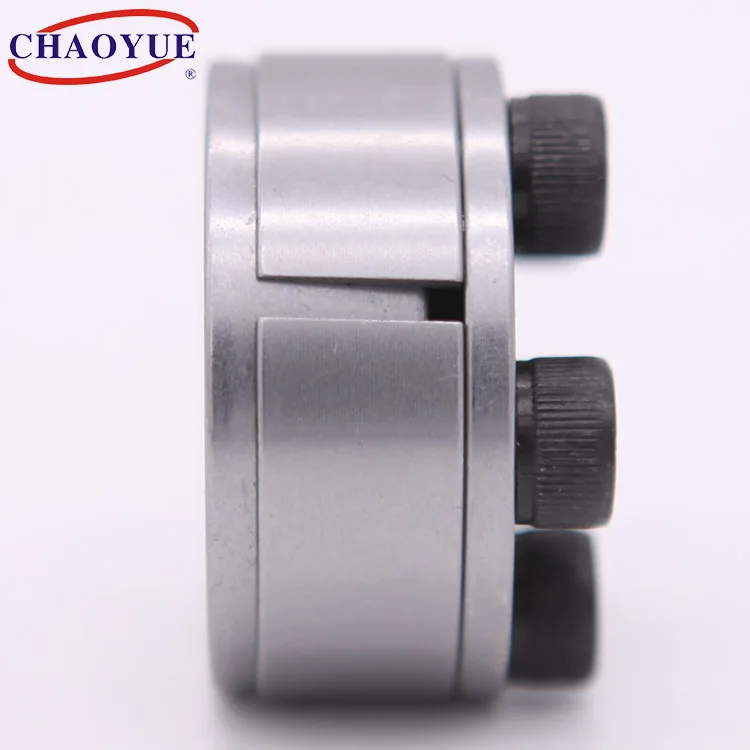

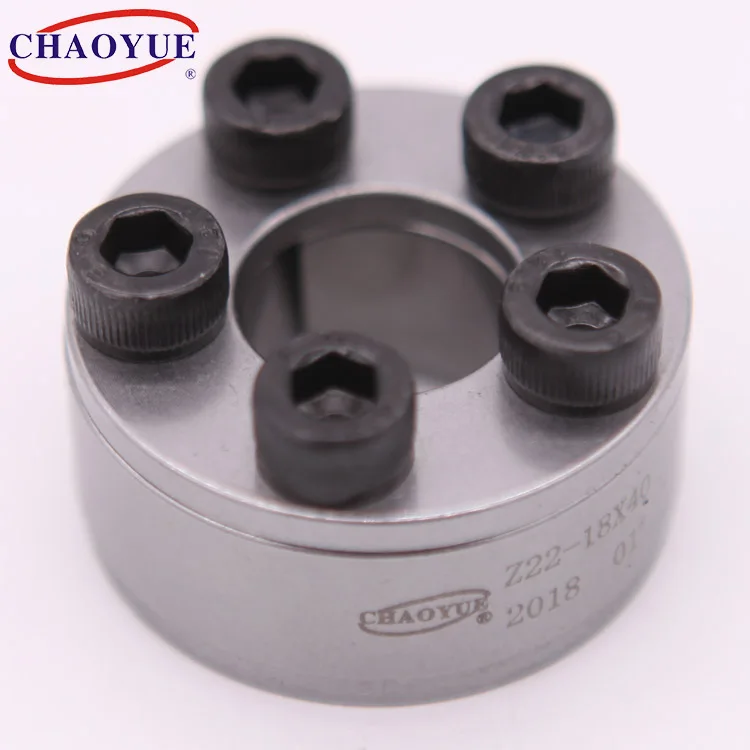

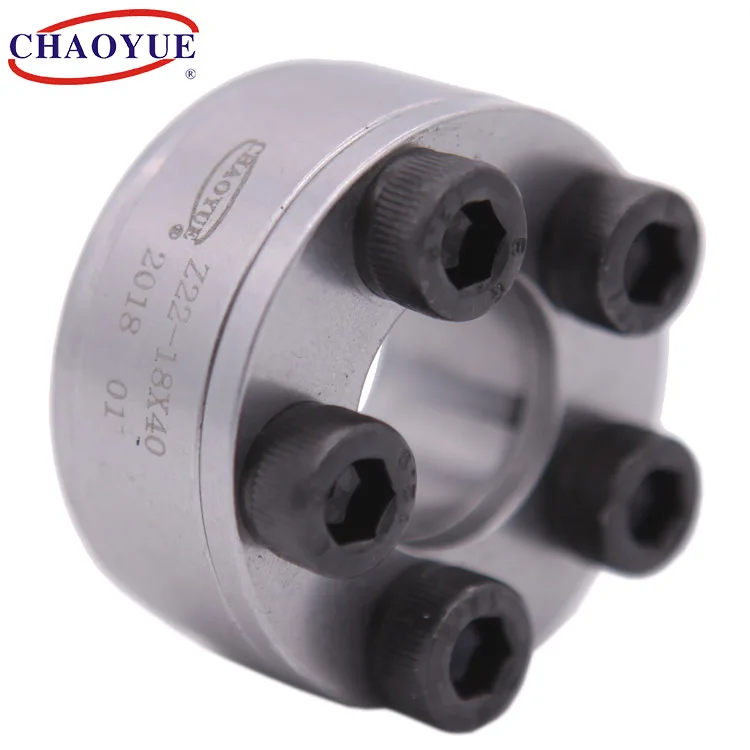

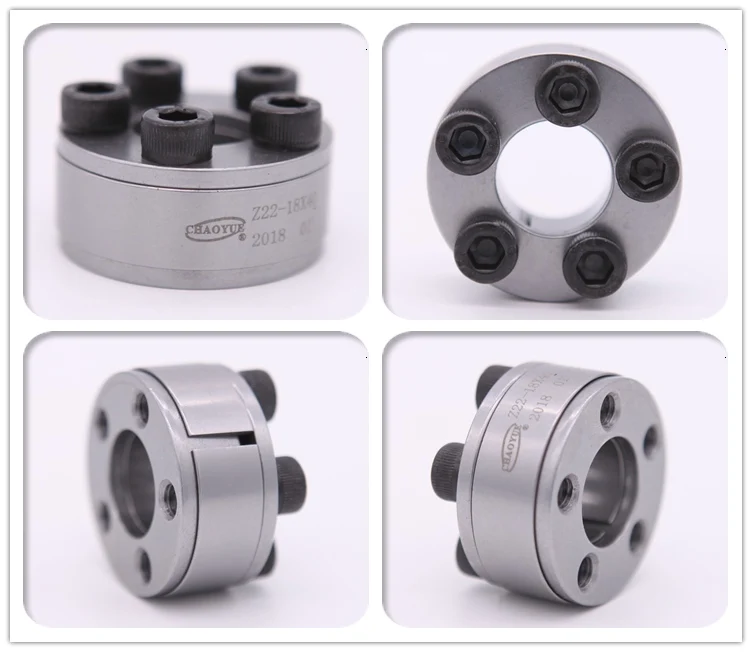

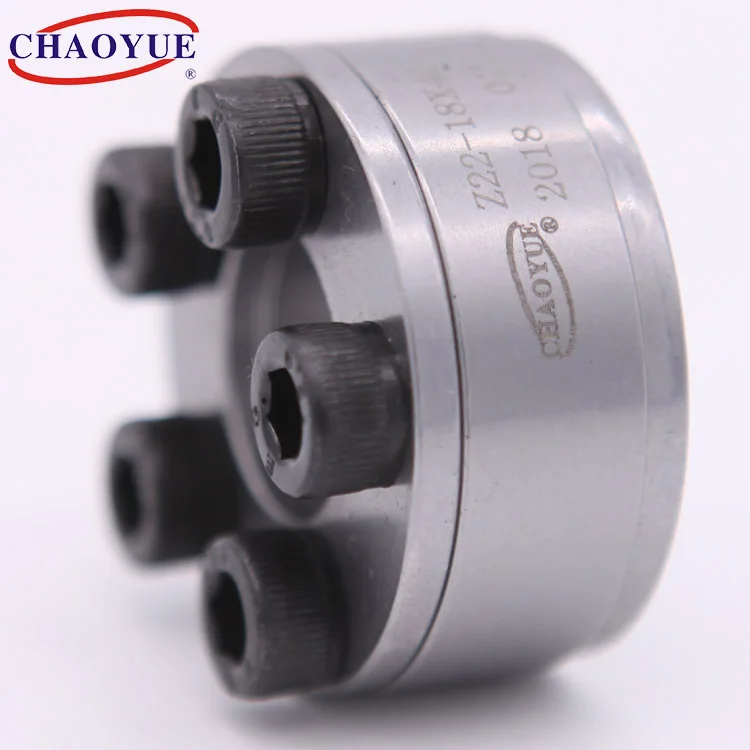

Type Z22 is a keyless shaft power lock. It can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.

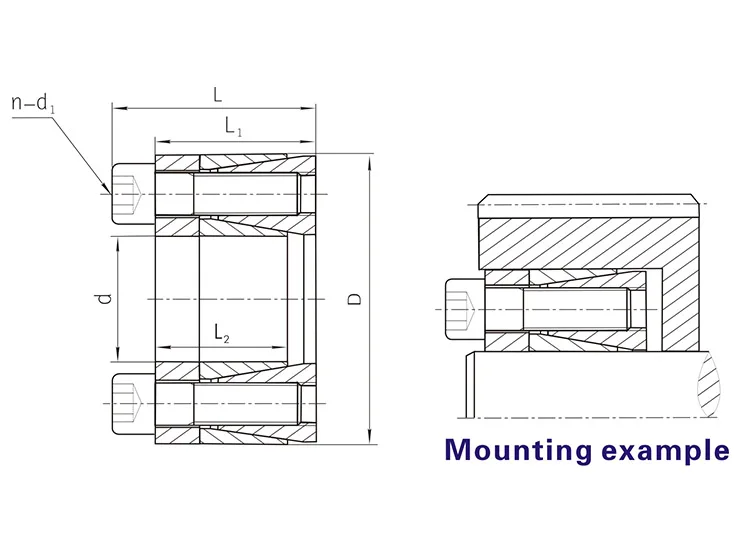

Parameter of keyless shaft wheel connect locking assembly
DIMENSION
Bolt
Rated Load
Pressure
on shaft
Pf
N/mm2
Torque of
tighten
locking-bolt
MA
N·m
Weight
[Kg]
d
D
L
L1
L2
d1
n
Axial Force Ft [kN]
Torque Mt [kN·m]
18 19 20 22 24
40 41 42 44 46
24 24 24 24 24
18 18 18 18 18
15 15 15 15 15
M6 M6 M6 M6 M6
5 5 6 6 6
22 22 26 26 26
0.20 0.21 0.26 0.29 0.31
260 255 280 260 230
14 14 14 14 14
0.16 0.18 0.19 0.19 0.2
25 28 30 32 35
47 50 52 54 57
24 24 24 24 28
18 18 18 18 22
15 15 15 15 18
M6 M6 M6 M6 M6
6 8 8 8 9
26 35 35 35 38
0.33 0.49 0.52 0.56 0.68
270 250 230 200 190
14 14 14 14 14
0.2 0.24 0.24 0.25 0.26
36 38 40 42 45
59 60 62 70 73
28 28 28 36 36
22 22 22 28 28
18 18 18 24 24
M6 M6 M6
M8 M8
9 10 10 8 8
38 43 43 64 64
0.70 0.83 0.87 1.36 1.45
200 190 225 210 195
14 14 14 35 35
0.26 0.27 0.27 0.38 0.45
48 50 55 56 60
76 78 83 84 88
36 36 36 36 36
28 28 28 28 28
24 24 24 24 24
M8
M8
M8
M8
M8
8 8 9 9 10
64 64 72 72 80
1.55 1.61 2.00 2.03 2.42
190 195 190 195 190
35 35 35 35 35
0.46 0.48 0.49 0.5 0.55
63 65 70 75 80
91 93 105 110 115
36 36 45 45 45
28 28 35 35 35
24 24 31 31 31
M8 M8 M10 M10 M10
10 10 9 10 10
80 80 114 128 128
2.54 2.62 4.00 4.80 5.10
190 180 200 205 190
35 35 70 70 70
0.56 0.58 1.01 1.06 1.12
85 90
120 125
45 45
35 35
31 31
M10 M10
10 10
128 153
5.45 6.90
180 205
70 70
1.19 1.25
