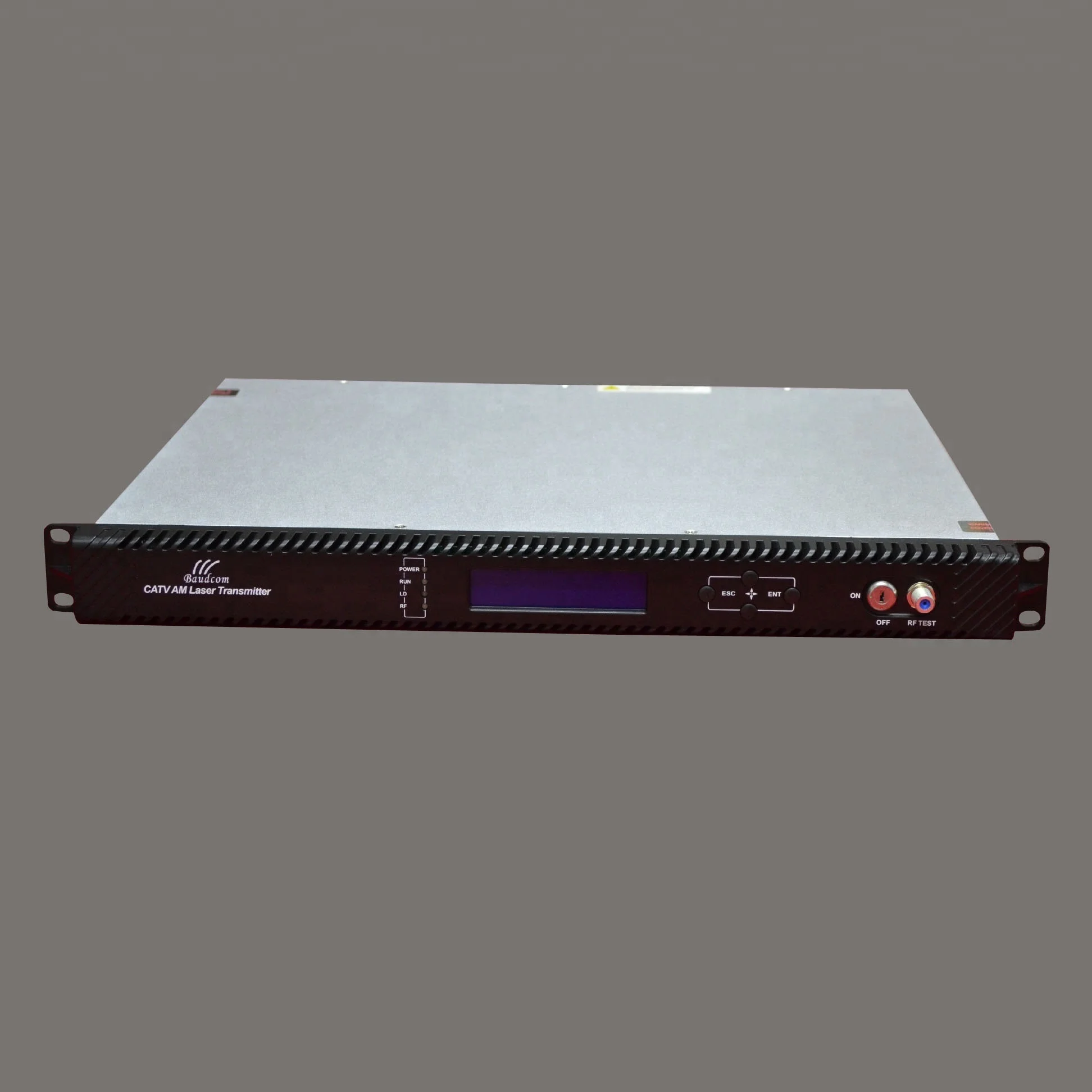

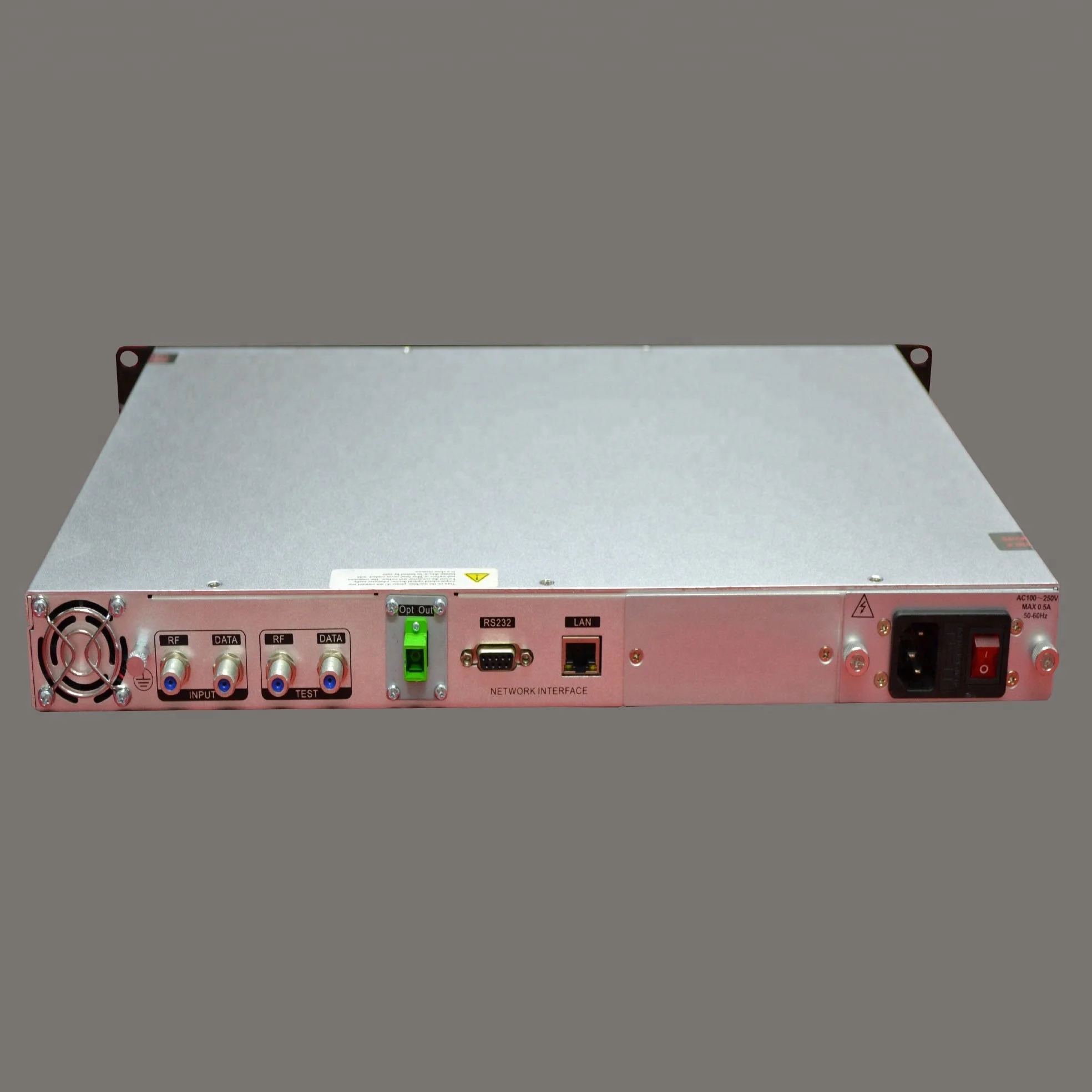

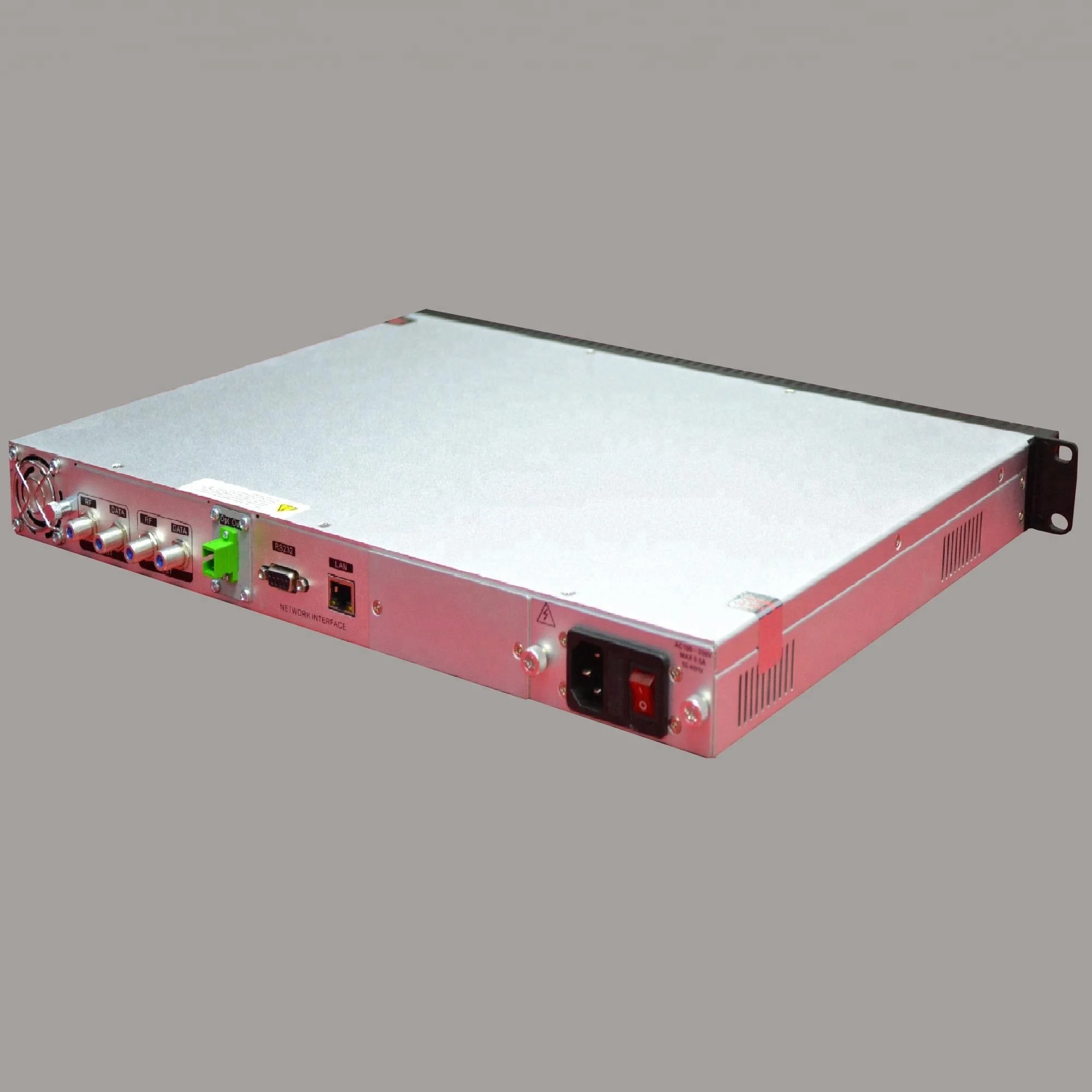

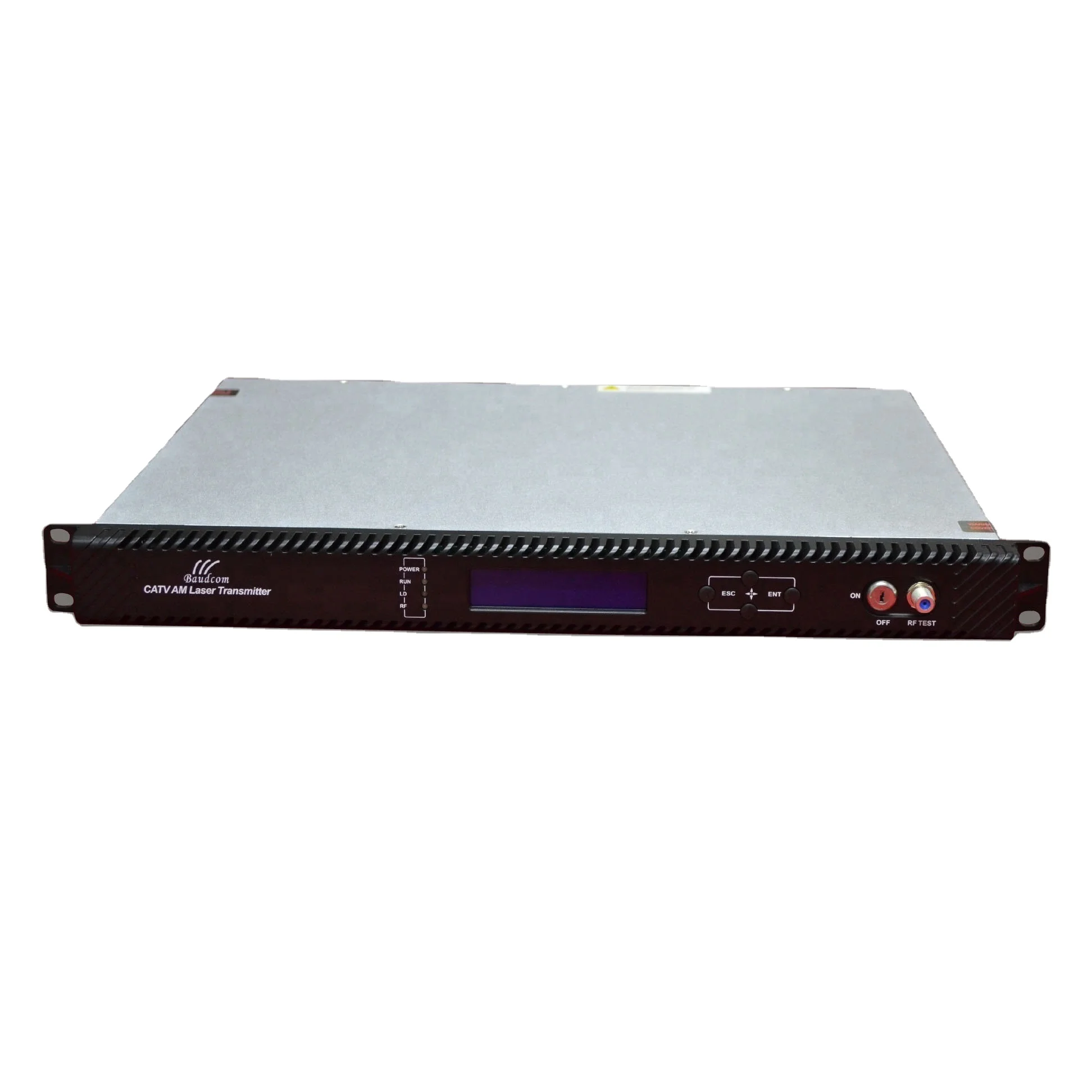

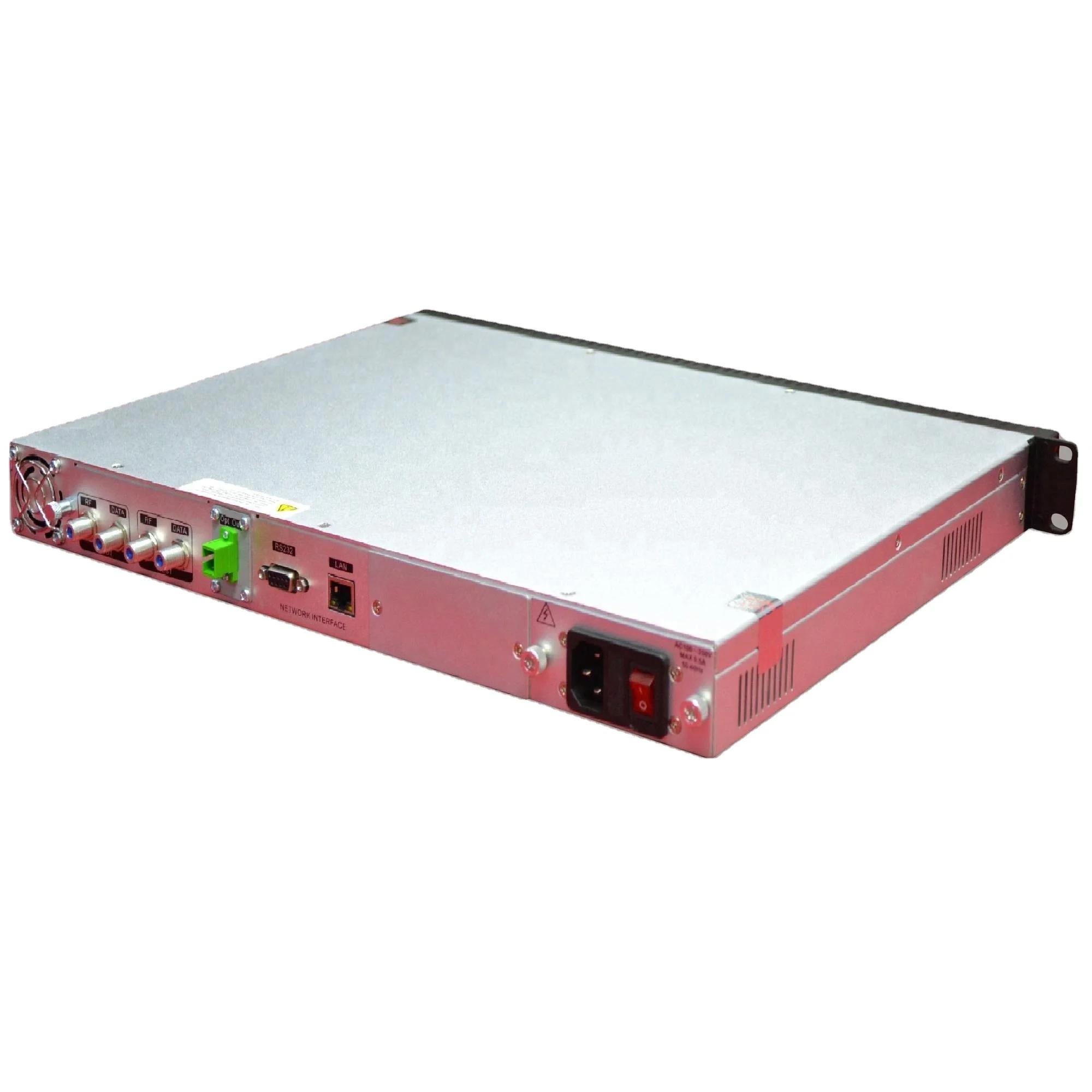

10dB CATV 1550nm optical transmitter

According to the Next Generation Broadcasting (NGB) planning and PON standards, 1550nm is defined as the transmission wavelength for HFC downstream. The high cost of 1550nm external modulated transmitter and dispersion effects of 1550nm directly modulated make network transformation difficult. Thus we create the 1550nm directly modulated optical transmitter with electronically controlled dispersion compensation.

It supports up to 1.2GHz band and DOCSIS 3.1 system. With two RF inputs and high isolation, it enables the signal transmission of QAM and IPQAM smoothly. Support a transmission distance of 50KM with electronically controlled dispersion compensation.

Features:

1.2GHZ band, support DOCSIS 3.1 system.
The AGC and MGC gain control modes are optional.
Two inputs with 50dB isolation for high quality RF insertion.
Dual power supply; hot backup; a variety of power supply options are available, optional AC220V and DC48V.
Laser output power, bias current and cooling current are detected in real time.
Optional CWDM for optical signal insertion.
Electronically controlled dispersion compensation can support a transmission distance of 50KM.
Low-cost solution is comparable to the performance of external modulated transmitter.
ITU standard wavelength is optional.

Specification:

FAQ

Q:How can i get a gepon onu sample ?

A:You need place sample order to us.We will arrange the sample production for you.

Q:Could you do design for us?

A:Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

Q:How can we place order?

A:After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

Q:How about the shipping for gepon onu ?

A:For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

Q:what's your products' advantages ?

A:1.good quality and competetive prices.

    2.Strictly quality control when producing.

    3.Professional team work, from design, development, producing,assemble,packing and shipping.

    4.Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
