RZ 61L NO normally open reed switch sensor magnetic contact switch with bracket rolling door alarm
- Category: >>>
- Supplier: Shenzhen Rich Security Technology Co. Ltd
Share on (60794804069):
Product Overview
Description
Product Description
Specification

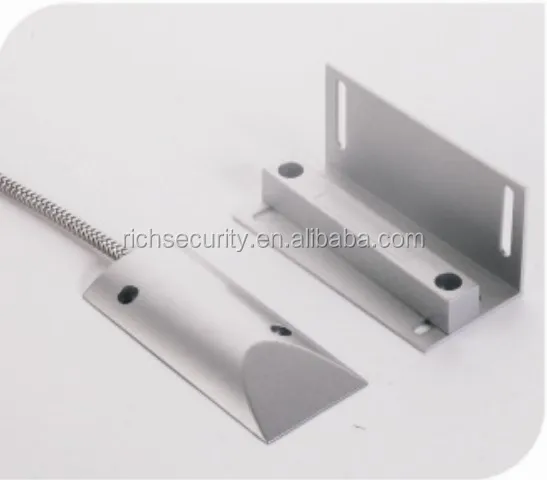

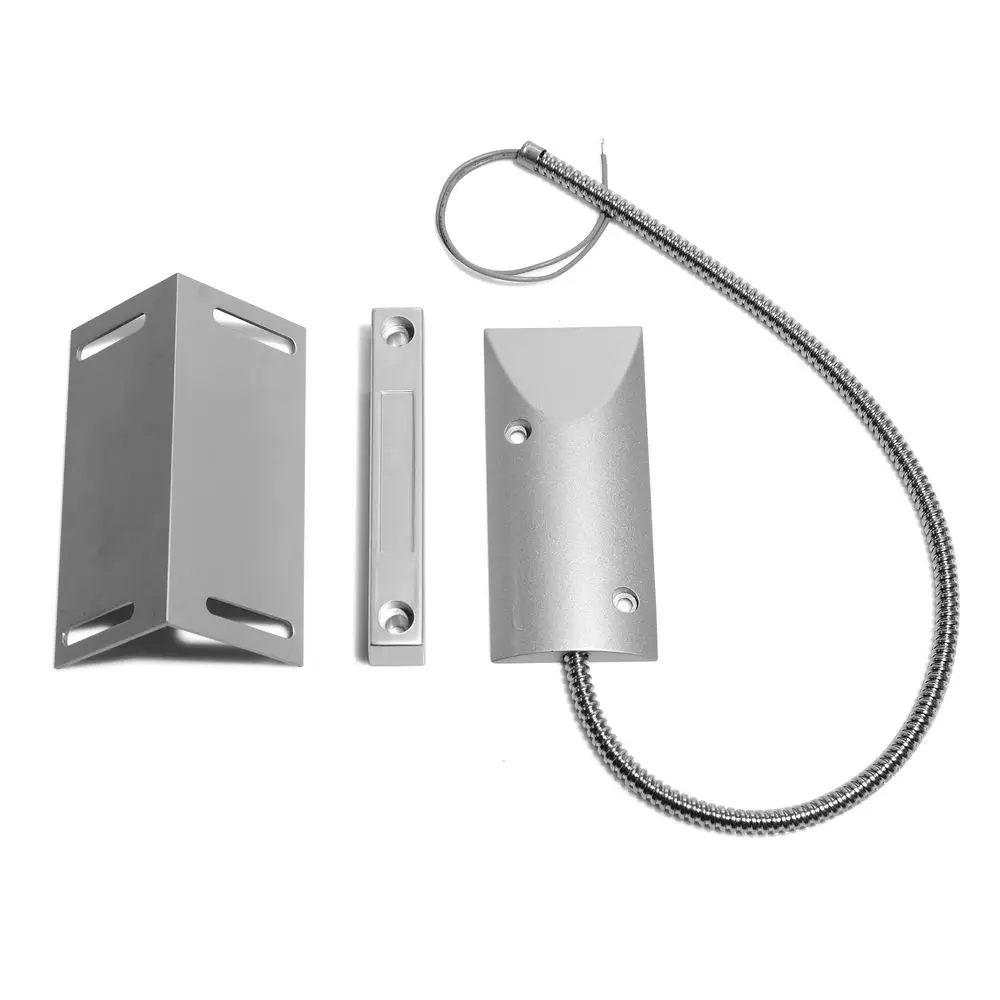

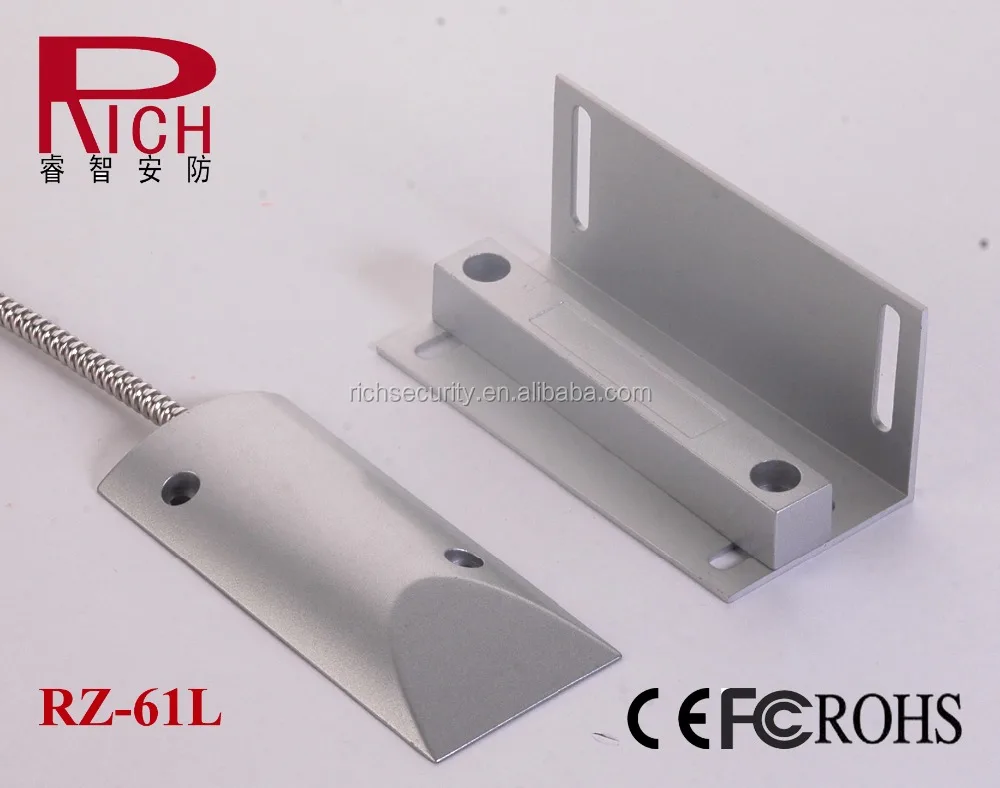

RZ-61L NO normally open reed switch sensor magnetic contact switch with bracket rolling door alarm
Heavy Duty Overhead Door Contact
Magnetic switch designed for tough, rush traffic and outdoor installations
Switch enclosed in a solid Aluminum housing
Leads with 1007UL #22AWG 550mm,380mm stainless steel tube(480mm available)

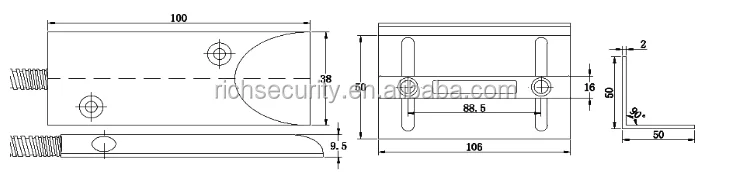

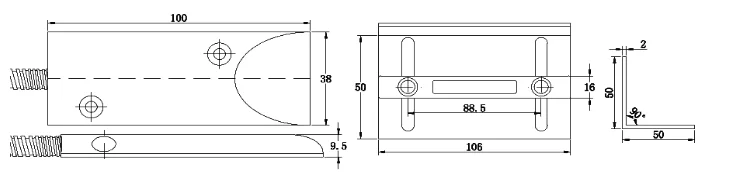

Dimension
Order information
Part No. | Reed Form | Gap (mm) | MaximumInitial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC) | Maximum Switching Current (A) |
RZ-61L N/C | N/O | 50-70 | 0.150 | 10 | 100 | 0.5 |
RZ-61L N/O | N/C | 50-70 | 0.150 | 3 | 30 | 0.2 |
RZ-61L COM | SPDT | 50-70 | 0.150 | 3 | 30 | 0.2 |
Product Display
Packaging & Shipping
1pcs/bag 50pcs/ctn 20kgs/ctn
CTN Size 37.5*29.5*25CM
CTN Size 37.5*29.5*25CM
