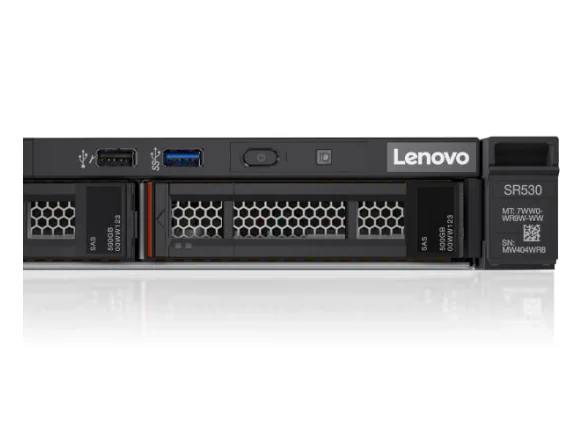

Form Factor/Height

1U Rack

Processor (max)/Cache (max)

Up to two Intel Xeon Bronze, Silver, Gold, or Platinum processors:

Up to 20 cores (2.0 GHz core speeds)

Up to 3.6 GHz core speeds (4 cores)

Two UPI links up to 10.4 GT/s each

Up to 27.5 MB cache

Up to 2666 MHz memory speed

Memory

Up to 1TB DDR4 – 2400 MHz via 64GB x 16 DIMMs (RDIMM/LRDIMM)

Expansion Slots

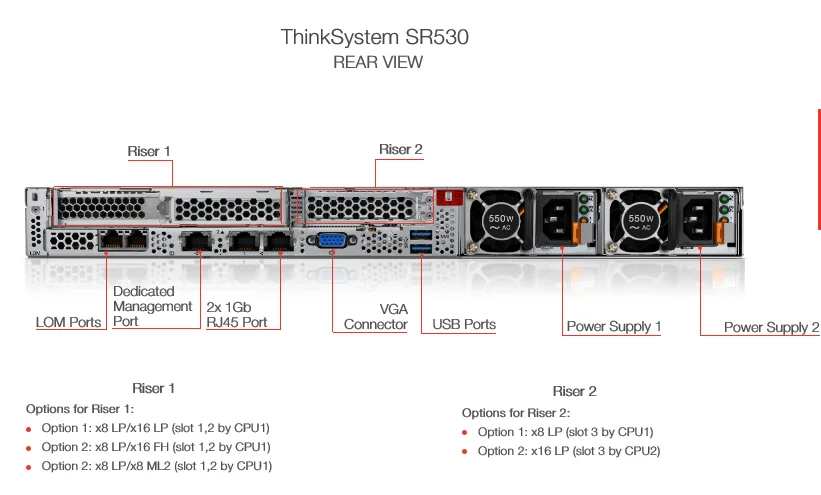

Up to 3x PCIe 3.0, via multiple riser options (either all-PCIe, or PCIe and ML2)

Drive Bays

Up to 8 bays.

SFF: 8x HS SAS/SATA; or LFF: 4x HS SAS/SATA; or 4x simple-swap (SS) SATA; PLUS up to 2x mirrored M.2 boot (opt. RAID 1)

HBA/RAID Support

Software RAID std. (up to 8 ports); opt. hardware RAID (up to 8 ports) with flash cache; up to 8-port HBAs

Security and Availability Features

TPM 1.2/2.0; PFA; HS/redundant drives and PSUs; operating temp up to 45°C (with limitations); front-access diagnostics via dedicated USB port

Network Interface

2x 1GbE ports + 1x dedicated 1GbE management port (std); optional modular LOM supports 2x 1GbE Base-T or 2x 10GbE with Base-T or SFP+

Power

2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium

Systems Management

XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported

Microsoft Windows Server, SLES, RHEL, VMware vSphere. Visit lenovopress.com/osig for details.

Limited Warranty

1- and 3-year customer replaceable unit and onsite service, next business day 9x5, opt. service upgrades

Dimensions

Height: 43 mm (1.7 in), width: 434 mm (17.1 in), depth: 715 mm (28.1 in)

Weight

Minimum configuration: 10.2 kg (22.5 lb), maximum: 16 kg (35.3 lb)
