Similar Nelson Koco Stud Welding Gun ,Stud Range 3 25mm shear stud
- Category: >>>
- Supplier: Changzhou Longhai Welding Equipment Co. Ltd.
Share on (60794819073):
Product Overview
Description
Similar Nelson KOCO stud welding Gun,stud range 3-25mm shear
DA Stud Welding Gun for Stud Welder
| Model of Stud Welding Gun | LH-16 | LH-25-I | LH-25-II | ||
| Suits to ARC Stud Welder Model | ARC-800,ARC-1450 | ARC-2000,ARC-2650 | ARC-2000,ARC-2650 | ||
| Welding Range (mm) | Φ3-Φ16 | Φ3-Φ28 | Φ3-Φ28 | ||
| Advantages | similar Nelson type | Similar Koco Type |
| Model | LH-16 | LH-25-I | LH-25-II | |
| Stud Range (mm) | Φ3-Φ16 | Φ5-Φ28 | Φ5-Φ28 | |
| Adjustable Hydraulic Damper | Option | Option | yes | |
| Adjustable Assemble | yes | Option | yes | |
| Lift Setting (mm) | 1-5 | 1-6 | 1-6 | |
| Lift Coil Voltage | 25-60v | 25-70V | 25-70v | |
| Control Cable Port | 4 | 4 | 4 | |
| Control Cable | 4*1.0mm2 | 4*1.0mm2 | 4*1.0mm2 | |
| Weight | 1.9kgs | 2.7kgs | 3.5kgs | |

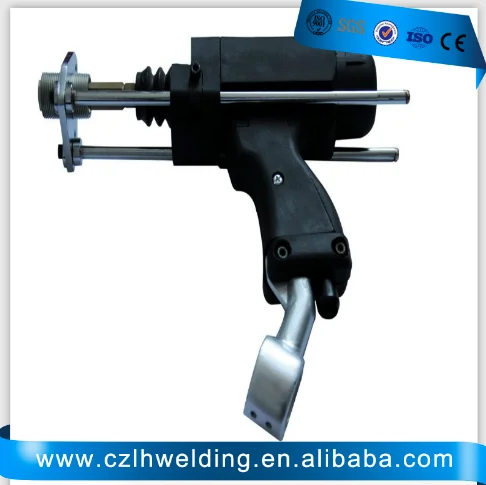

LH-25-II

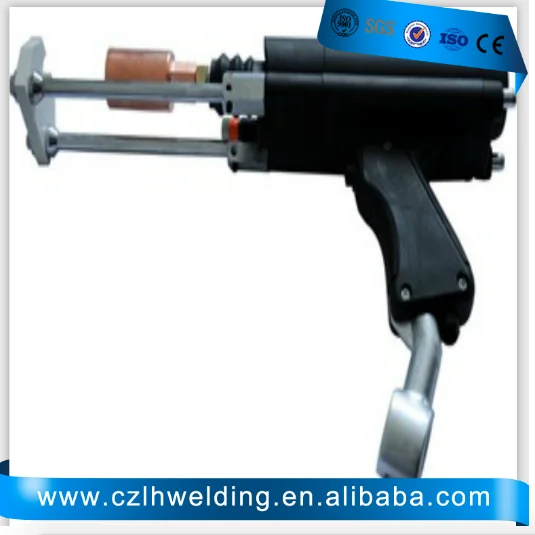

LH-25-I

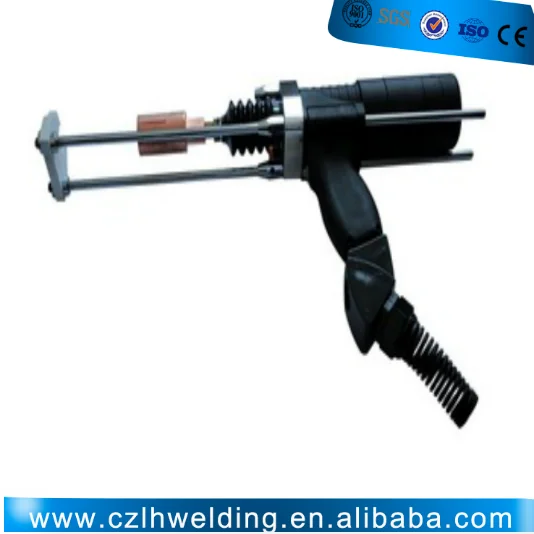

LH-16
Packaging & Shipping
By Carton
Shipping by Air express or Sea shipment .
Our Services
12 Months Gurantee
Sales Service could be supplied after you ordered the welding machine .
Accurate photoes will be sent to you after you transfer payment to us .

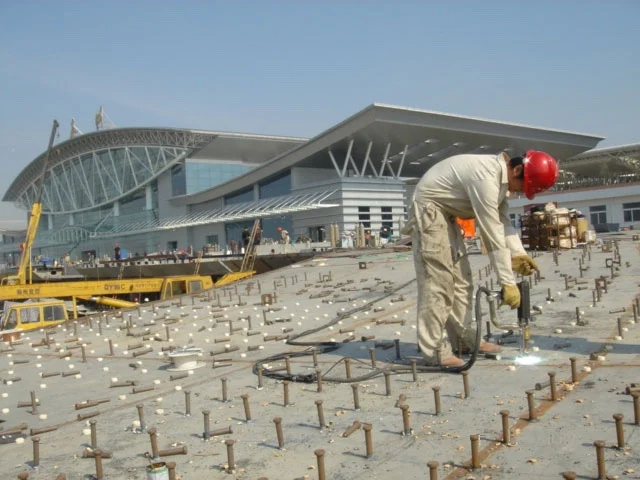

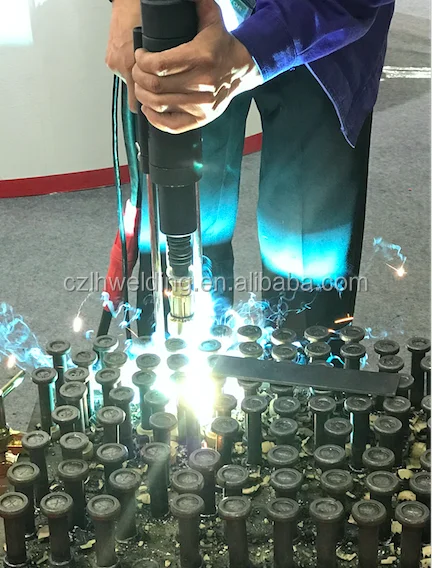

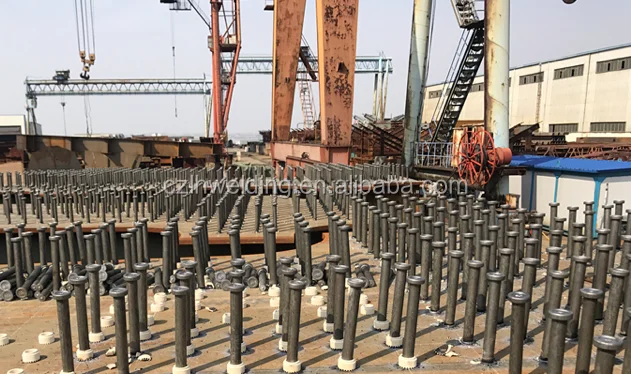

Application Cases Photoes :
Company Information
We specializied in CD and Arc Stud Welding Machine ,Stud Gun ,Drawn Arc Welding Stud ,CD Welding Stud RD PD UD ,Cearmic Ferule ,Ceramic Backing Tape ,Al Ball,Shear Connector ,etc ...
For any problems,kindly contact with us timely .
FAQ
Email: czlhwelding at hotmail.com
