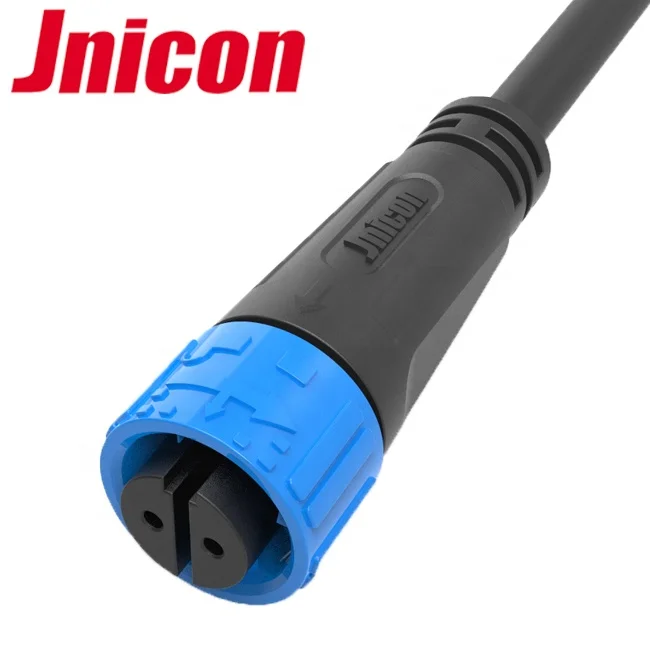

China IP67 2 pin connector Waterproof M16 push locking 2 wire overmolding cable connector

Share on:


Price:RUB 75.82 - RUB 151.64
Price in USD:Details

Quantity:


Product Overview

Description

China IP68 2 pin Waterproof M16 push locking 2 wire overmolding cable connector

Welcome to Jnicon!!!

Welcome

Product Description
Operation Parameters
Voltage Rating300VAC max
Current Rating10A max
Min Wire Size OD3.0mm ~ 6.5mm
Max Wire Size OD6.5mm ~ 9.0mm
Max.Cable Cross Section Area0.5mm2 ~ 1.5mm2

Number of contacts

2

3

4

5(2+3)

2+4

6

7

8

Contact diameter x number

Φ1.5

Φ1.5

Φ1.0

Φ1.0

Current/voltage rating

10A 300V

10A 125V

10A+5A 60V

5A 60V

Cable specification

0.5mm2-1.0mm2

0.75+0.5mm2

0.2mm2 -0.5mm2

Wistanding voltage

1500V

500V

Protection level

 IP68

Dirameter range

Φ3.5mm-Φ9mm

Operating temperature

-45℃~105℃

Connecting mode

 Screw type

Copperneedles

copper alloy

Application

LED lighting, outdoor display, elctrical equipments, automation machines, electrical vehicle, etc.



   8_028_038_04

Company Information

About us.jpg

Jnicon is located in Shenzhen China,own more than 200 people's team,4000 square meters factory,varites of test equipments of environment,electric and machinery 3 aspects.Jnicon does not only povide waterproof and high-current connectors, but also offer the service of customized connectors and cable assembly.



Jnicon has more than 50 items invention, utility model and design patents till 2017. In addition,all our connectors have UL,TUV,CCC,CE and Rohs certificate.we are committed to providing responsive, cost effective, efficient and reliable logistic solution to our customers.



With years of experience in waterproof connector applications,Jnicon connectors are selling well in all cities and provinces around China, also popular to countries such as United State, United Kingdom, Germany, Netherlands, Spain, United Arab Emirates etc.
