Molecular sieve is a kind of synthetic molecular screening of hydrated silicon aluminate (zeolite) or natural zeolite, it has a lot of aperture on structure of concreted complete neat rows of cavity, different aperture of molecular sieve to separate different molecular size and shape. Molecular sieve with different pore sizes were obtained according to the molecular ratios of SiO2 and Al2O3. The models are: 3A(potassium A type), 4A(sodium A type), 5A(calcium A type), 13X(sodium X type), etc. It has high adsorption capacity, high selectivity and high temperature resistance. It is widely used in organic and petrochemical industries and is also an excellent adsorbent for gas dewatering. More and more attention has been paid to waste gas purification.
Physical and Chemical properties

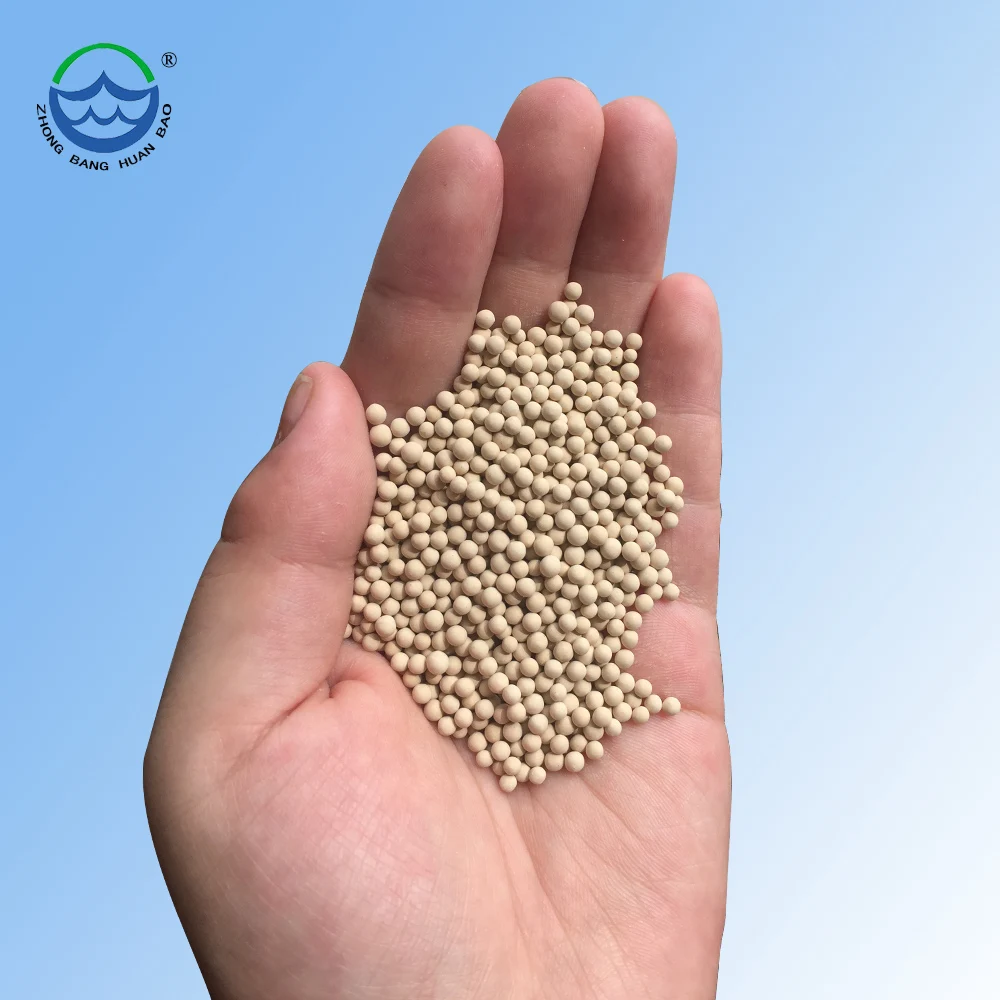

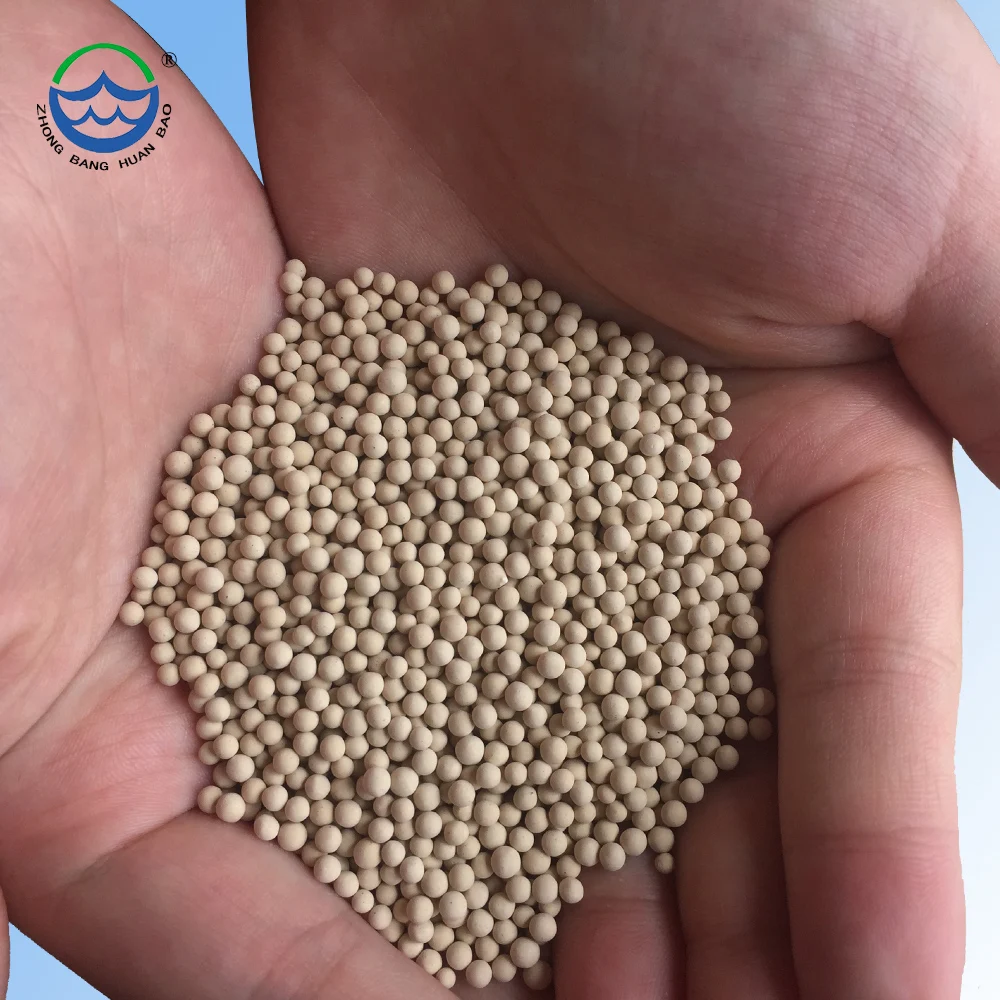

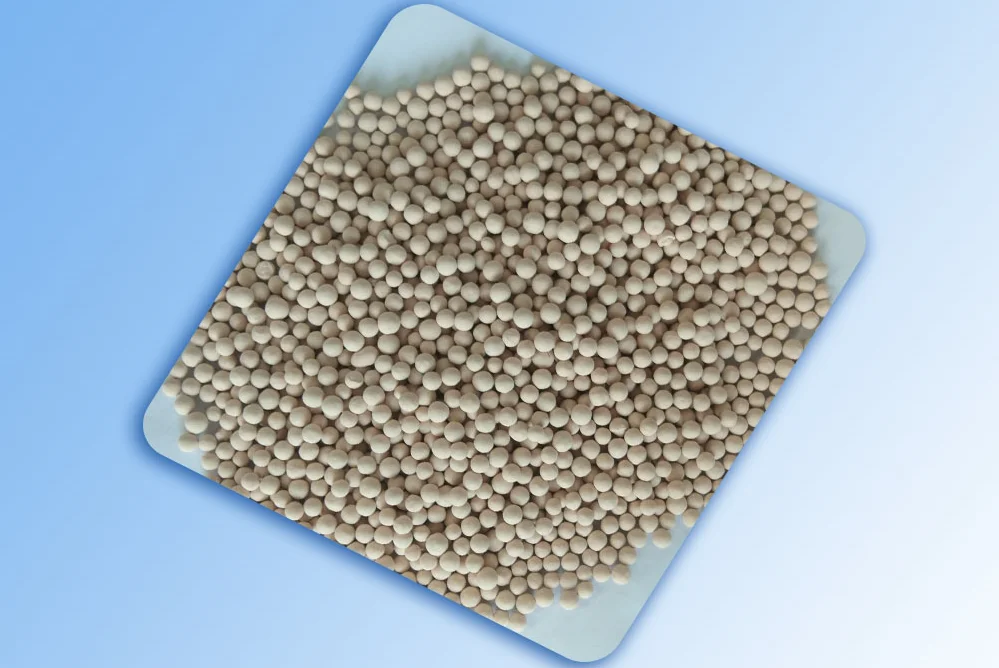

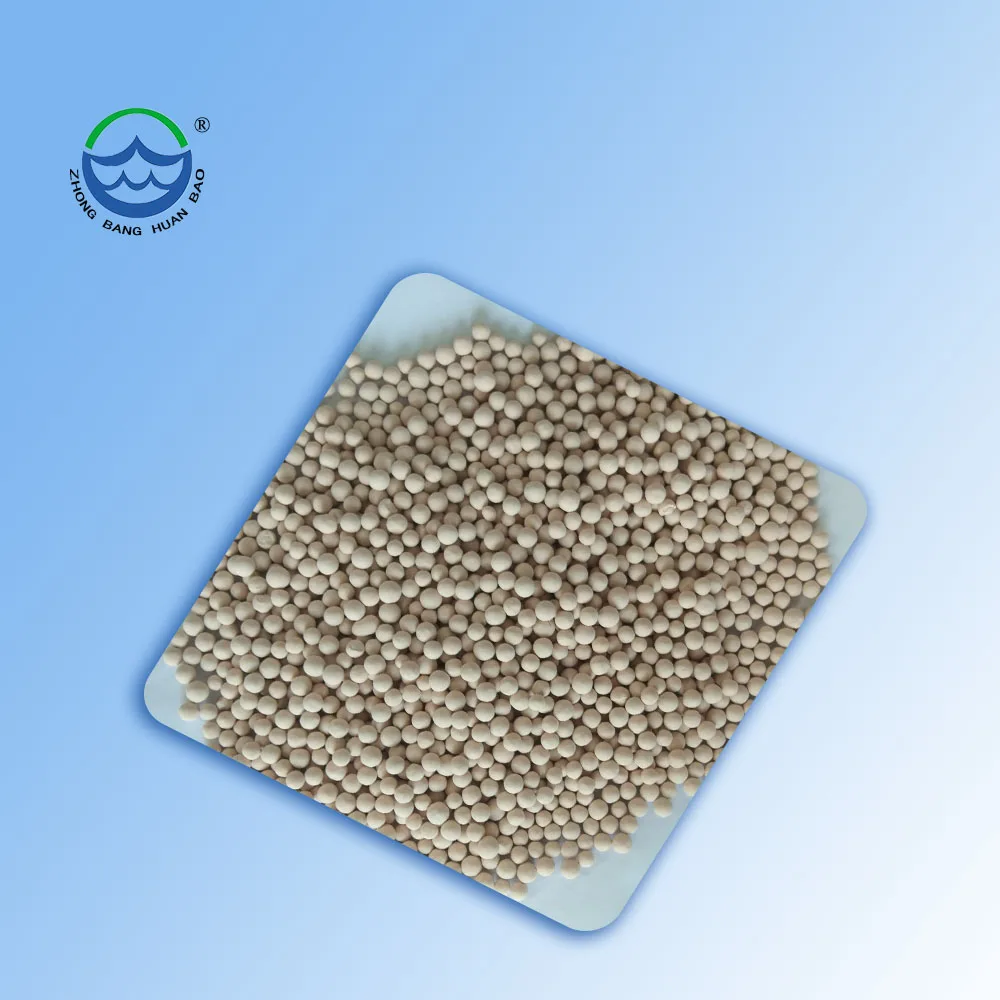

Molecular sieve 5A
Item
Unit
Technical data
Shape
Pellet
Sphere
Diameter
mm
1.5-1.7
3.0-3.3
2.0-3.0
3.0-5.0
Size ratio up to grade
%
≥98
≥98
≥98
≥98
Wear ratio
%
≤0.20
≤0.40
≤0.20
≤0.20
Static water adsorption
%
≥22
≥22
≥22
≥22
Water content, as shipped
%
≤1.5
≤1.5
≤1.5
≤1.5
Bulk density
g/ml
≥0.65
≥0.65
≥0.70
≥0.70
Crushing strength
N
≥30/cm
≥45/cm
≥30/p
≥60/p

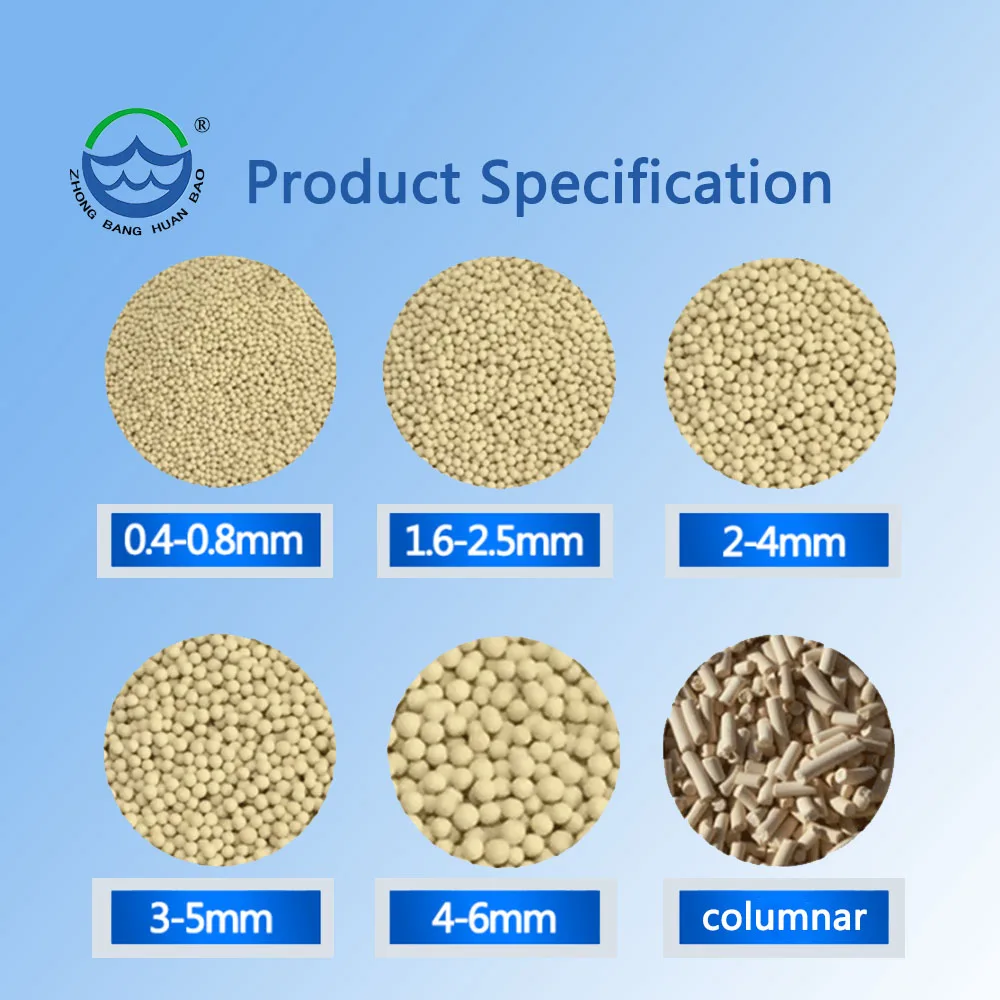

Product specification
Product Performance
a. Adsorption performance The adsorption of zeolite molecular sieve is a physical change process. Gravity causes of adsorption is mainly molecules in the solid surface to produce a "surface force", when the fluid flows through some of the fluid molecules due to the collision and irregular exercise to the surface of adsorbent, the surface molecules together, reduce the number of molecules in fluid, achieve the purpose of separation, remove.
b. Ion exchange performance In general, ion exchange refers to the exchange of compensated cation outside the zeolite molecular sieve framework. Compensation outside of zeolite molecular sieve skeleton ion is usually protons and alkali metal or alkaline earth metal, they are easily in metal salt aqueous solution by ion exchange into various valence metal ionic type zeolite molecular sieve.
c. Catalytic performance Most zeolites have strong acid centers on the surface of zeolite molecular sieve. These properties make it an excellent catalyst.
Product Uses
molecular sieve 5A is mainly used for the drying and refining of chemical, petroleum, natural gas, oxygen and other industrial gases.
Typical uses as below:
Packaging & Shipping

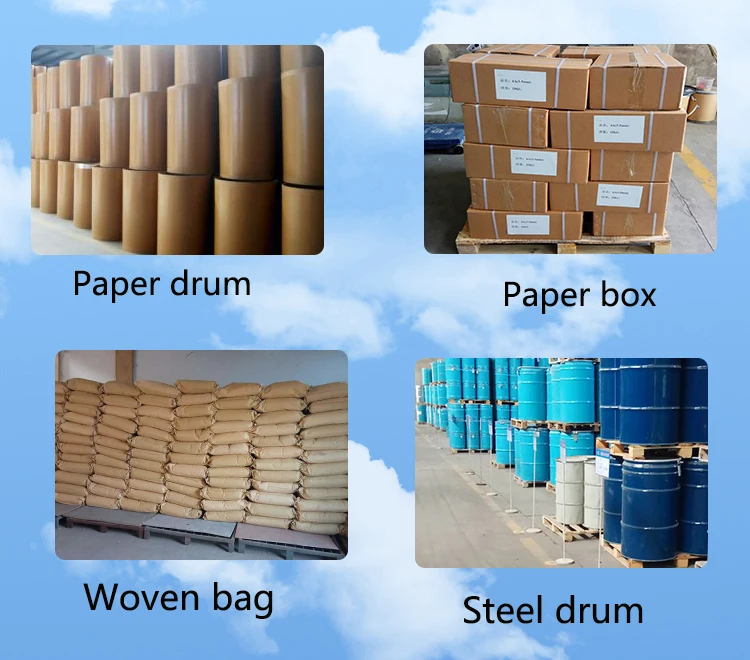

Packing specification for molecular sieve 5A: 25kg paper drum or paper box or woven bag ,150kg steel drum.
Package Type
Container Load Capacity
20 GP
40 GP
Paper drum, 25kg/drum
9000 kg
18000 kg
Paper box, 25kg/box
13500 kg
27000 kg
Steel drum, 150kg/drum
12000 kg
24000 kg
Product transport requirements:keep dry, away from inflammable, corrodible, toxic goods.
Certifications
FAQ
Q1. Zhongbang provides Molecular Sieve models as below. 0.4-0.8mm 1.6-2.5mm 2-4mm 3-5mm 4-6mm bar
Q2. The sample service requirements for Molecular Sieve 5A. Normally, we can provide 1000g samples for free and you need to pay the related express fee.
