Catenary shot blasting machine has the characteristics of high production efficiency and is suitable for the surface cleaning or strengthening of small and medium-sized castings, forgings and heat-treated parts in mass production. Especially suitable for automotive, tractor, diesel engine, motor valve and other industries.
Features short blast times the wheelabrator pass-through monorail type Dshot blast machines (closed loop operation )achiece short blasting times due to the combination of the latest transport technology and highly efficient blast wheel workpiece changeover is carried out semi-automatically or automatically by the power& free system .the closed loop blast machine is provided with a rotating device on the monorail which rotates the loaded workpiece carriers in front of the turbines , this means that blast wheel need only be installed on one side of the blast cabin wuich lowers maintenance and energy expenses.
Details Images
Machine Compositon
The complete set of equipment includes blasting room, sealing sub-room, front and rear doors, abrasive control unit, shot-blasting system, abrasive recycling sorting storage system, ventilation and dust removal system, ring track conveying system, electrical control system, maintenance platform, safety system, etc. . Mechanical and electrical systems should be equipped with reliable safety devices.
Blast wheel / Tubine / Impeller H400

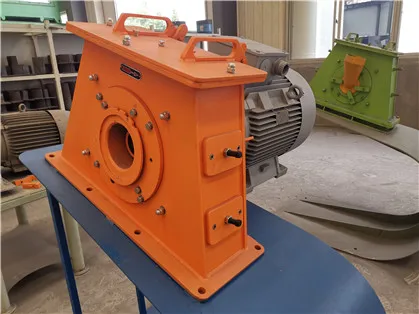

This blast wheel is Asia's most high-end technology, is the key parts of the equipment in various Shotblast cleaning machines, it is widely used for casting off the sand, casting, forging, welding parts, cleaning up of the surface heat treatment, various profiles of the surface pretreatment, and gears, springs and other mechanical parts of the surface strengthening process. This direct coupling type blast wheel technology is one of the important progress in the history of the development of shot blasting machine in China.
Hanging Type Shot Blasting Machine

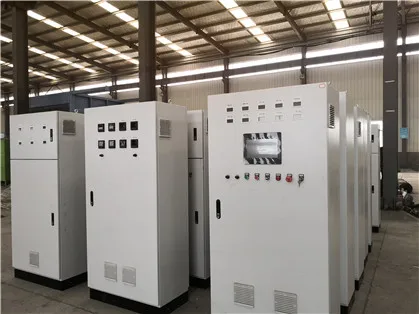

Name: Electronic Control System Brand: KNNJOO Original: China
Hanging Type Shot Blasting Machine
Name: Dust collector Brand: KNNJOO Original: China There are so many kinds of dust collector for shot blasting machines , they are produced by our factory . you can choose bag type dust collector or Pulse filter cartridge type dust collector according to your request.

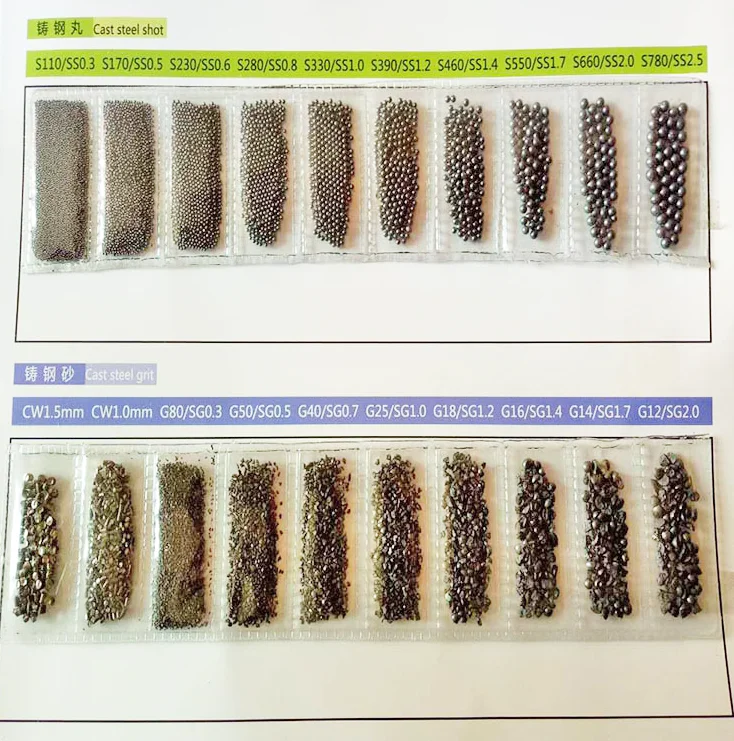

Abrasive Media -Cast Steel Shots
Cast steel shot is used in peening critical aircraft, automotive components, surface preparation of stainless steel and non ferrous components. Our cost effective range removes ceramic residue from investment castings, deburring and surface finishing of aluminium dia castings. The steel shot that we offer are widely used in shots for blasting operations for inner/outer surface cleaning of steel castings, CI castings, s.g. Iron castings, forgings. These product are huge demand in stainless steel and aluminium foundries.
The technical features of this machine: 1. Adopt the most advanced direct coupled blast wheel technology(Cooperative R & D with Germany Thyssenkrupp, patent number: ZL 2015 2 0702933.5) 2. 3D designed blasting angle, side blast wheel make sure the front and back end face incident angle achieve 35°, which can completely clean complicated structures.
3. Wear resistant parts for Blast wheel adopt investment casting Cr28% technology, the lifetime is 3 times of ordinary sand casting chromium material.
4. Abrasive control unit use the new R&D KC90 pneumatic Plug-in technology.
5. KJ3715 Scope of supply
No. Part name QTY 1 BLAST WHEEL ACCORDING TO BLASTING CAPACITY 2 Shot-blasting chamber 1set 3 Front sealing sub-room 1set 4 Rear sealing sub-room 1set 5 Top seal structure 1set 6 Pneumatic open door 2sets 7 Rails and supports system 1set 8 Hanging device 1set 9 Bucket elevator 1set 10 Separator 1set 11 Longitudinal screw conveyor 2sets 12 Lateral screw conveyor 1set 13 Collecting shot screw conveyor 1set 14 Platform railing ladder 1set 15 Pilling system 1set 16 Dust collector 1set 17 Electronic control system 1set
Our customer
Our Service
1. Installation and commissioning issue: We will send one technician to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
Any question please kindly contact with us, and welcome to visit our factory in Qingdao China.
New Sales Promotion!!!Competitive Price!!!Please contact us.
