Craft Beer Brewing Machine micro brewery 100L 200L 300L 500L microbrewery equipment
- Category: >>>
- Supplier: Shandong Tonsen Equipment Co. Ltd.
Share on (60794879767):
Product Overview
Description
Product Description
Craft Beer Brewing Machine micro brewery 100L 200L 300L 500L microbrewery equipment

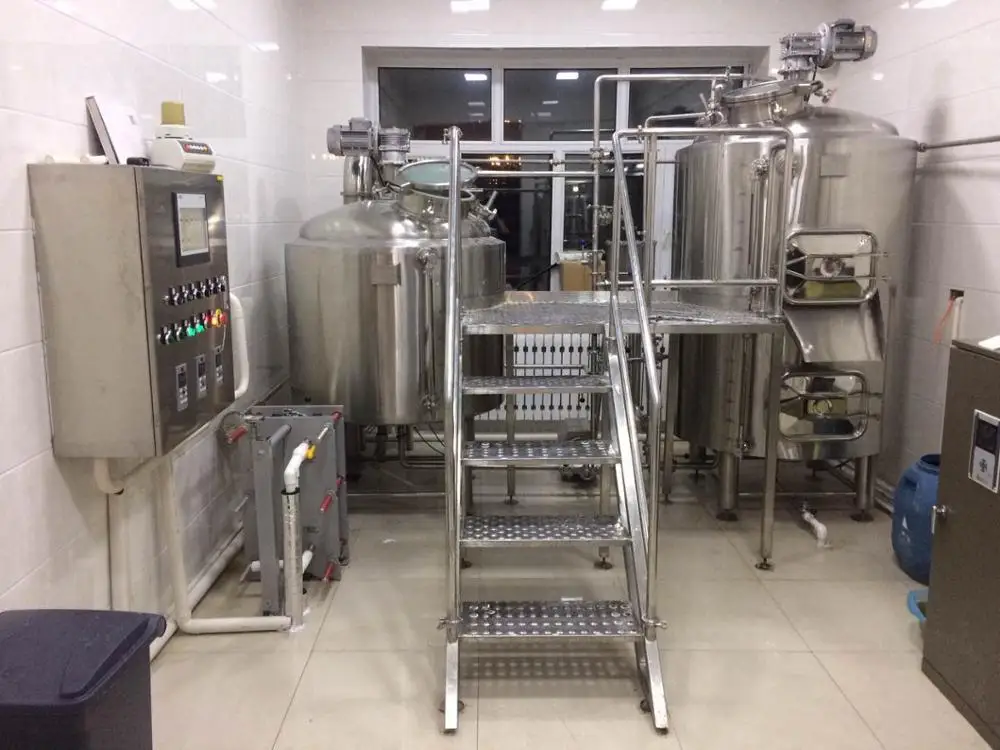

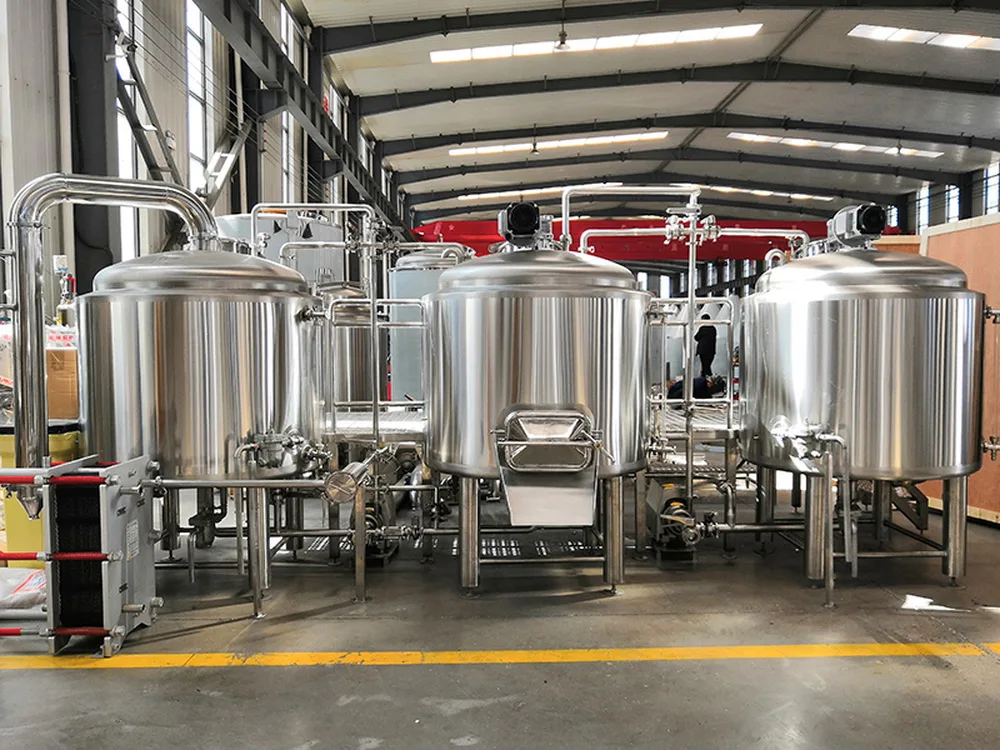

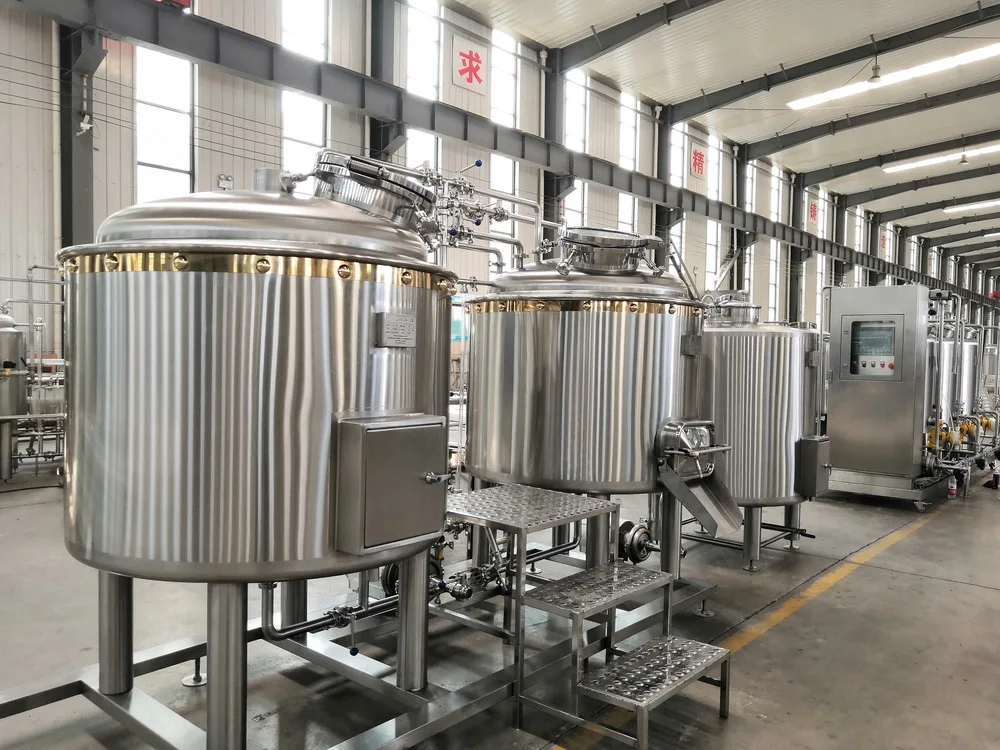

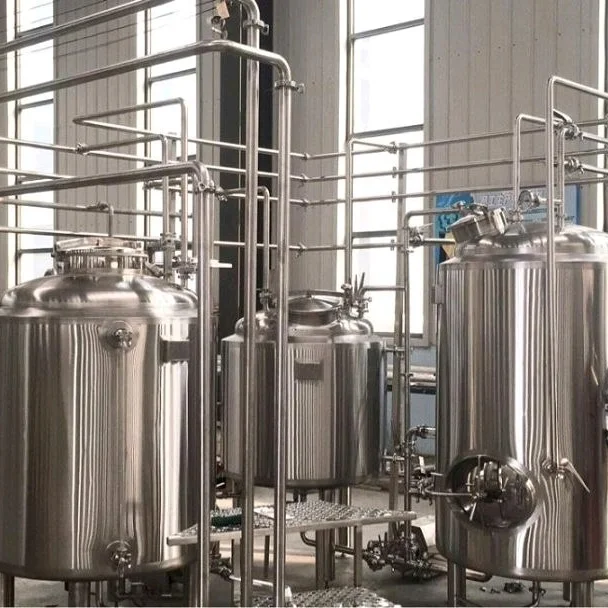

Brew house system consists of Mash Tun, Lauter Tun, Boiling Kettle, Whirlpool kettle, Hop Dosing Equipment.The main equipment adopted international quality standards of sanitary 304 stainless steel,to deal with the tank by plasma cutting ,pure Ar-shielding welding,mechanized automatic polishing machine .

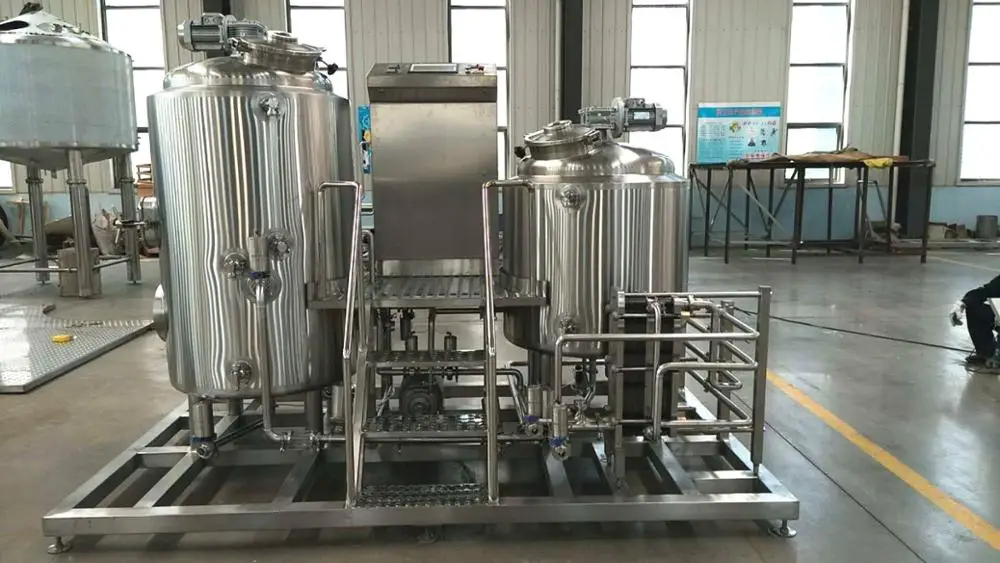

The brew house system could be included two-vessels brew house, three-vessels brew house
and four-vessels brew house. Two-vessels brew house includes mash/lauter tun and kettle/whirlpool tank. Three-vessels includes
mash tank, lauter tun and kettle/whirlpool tank. Four-vessels includes mash tank, lauter tun, boiling kettle and whirlpool tank.
The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency.
The brew house system could be included two-vessels brew house, three-vessels brew house
and four-vessels brew house. Two-vessels brew house includes mash/lauter tun and kettle/whirlpool tank. Three-vessels includes
mash tank, lauter tun and kettle/whirlpool tank. Four-vessels includes mash tank, lauter tun, boiling kettle and whirlpool tank.
The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency.
Sample of Equipment, customize available aslo
Brewhouse | Parameters |
Headspace | +30% |
Heating way | Steam, Electric, Driect fire |
Material | SUS304, SUS316, Red Copper |
Detailed Specification | 1.Insulation:rock wool 2.Insulation thickness:80mm 3.Interior Shell: SUS 304 full welded;TH=3.0mm Exterior Shell: SUS 304 full welded;TH=2.0mm 4.Thermowell with high accuracy temperature sensor 5.Dished top and conical bottom 6.Sanitary liquid level lindicator with valves 7.Raker with motor on top with Scrape board, VFD 8.Milling sieve plate 9.Side spent grain door 10.Washing grain pipe 11.CIP 360°rotary spray device 12.Stainless steel manhole on top 13.Material: SUS304,Brushed outer shell 14.4pcs completely SUS304 heavy duty legs 15.With all matched valves and accessories Option: glass lamp, glass manhole, grist hydrator,wort grant, hop filter. Other special request, can be customized according for your brewhouse |

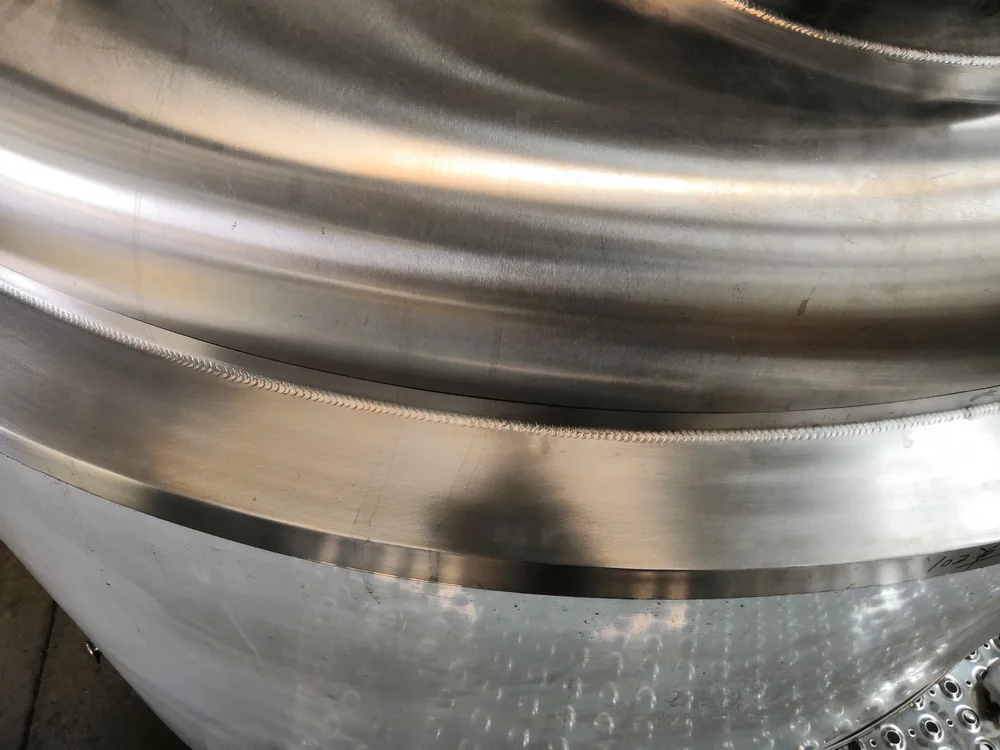

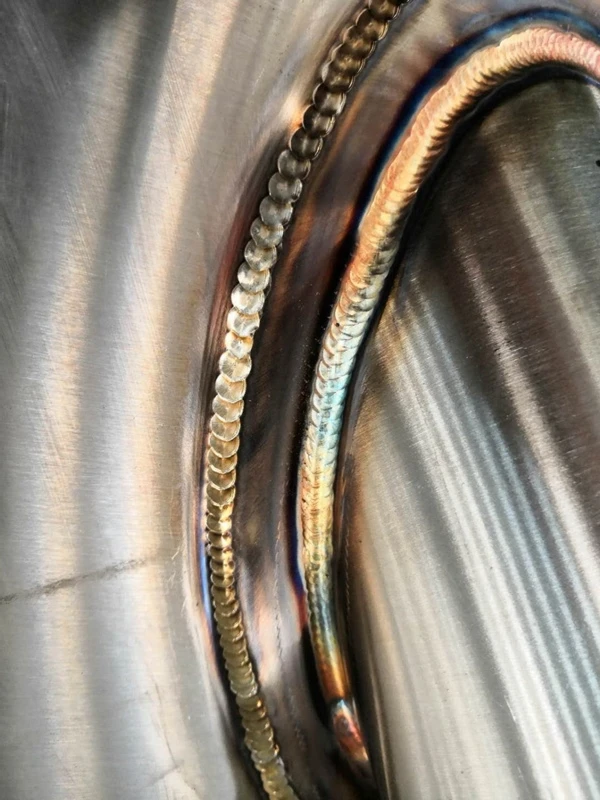

Manufacture Arts | 100% TIG welding with pure argon gas shield; Interior Finish: Overall polishing to ≤0.6μm without dead corner Inner tank inside surface fully acid washed and passivated after polishing;form protective film, easy to clean, no sanitary dead angle. |
Fermenting System

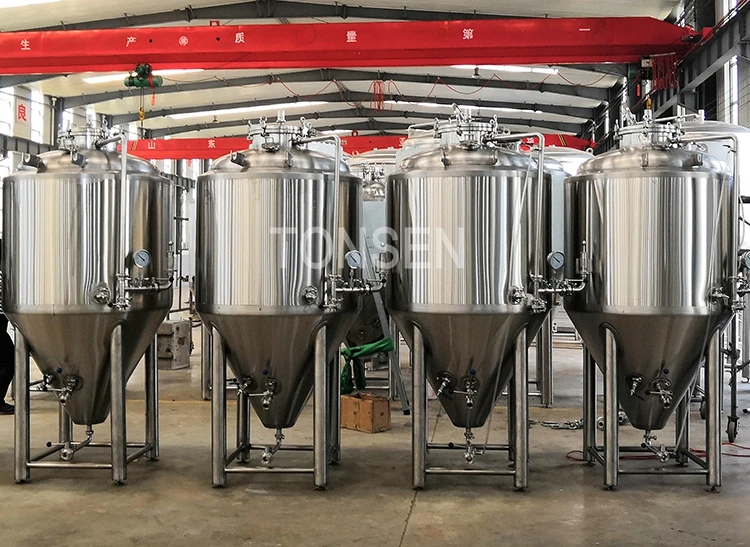

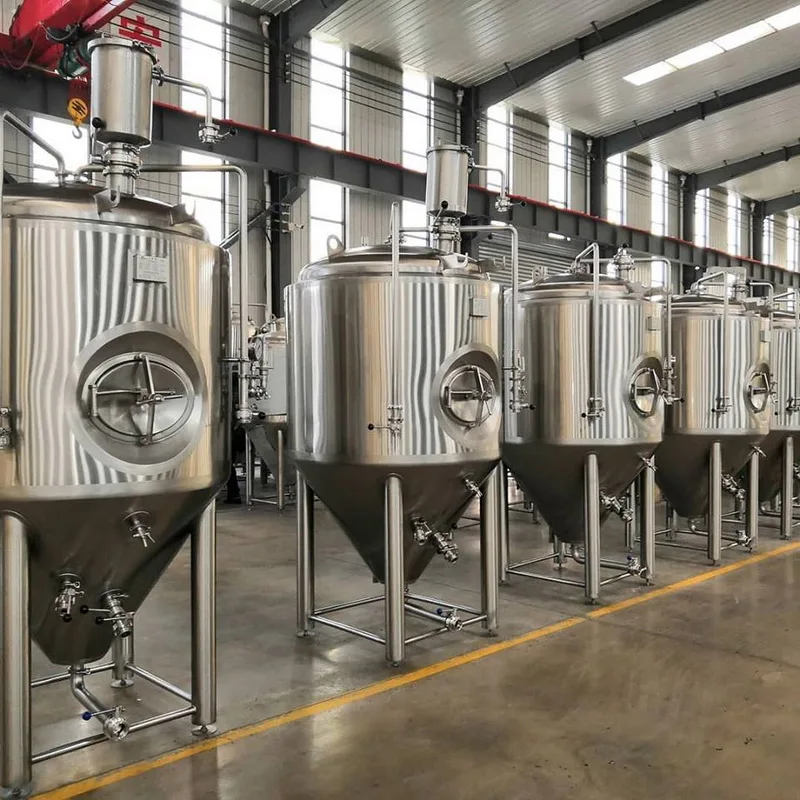

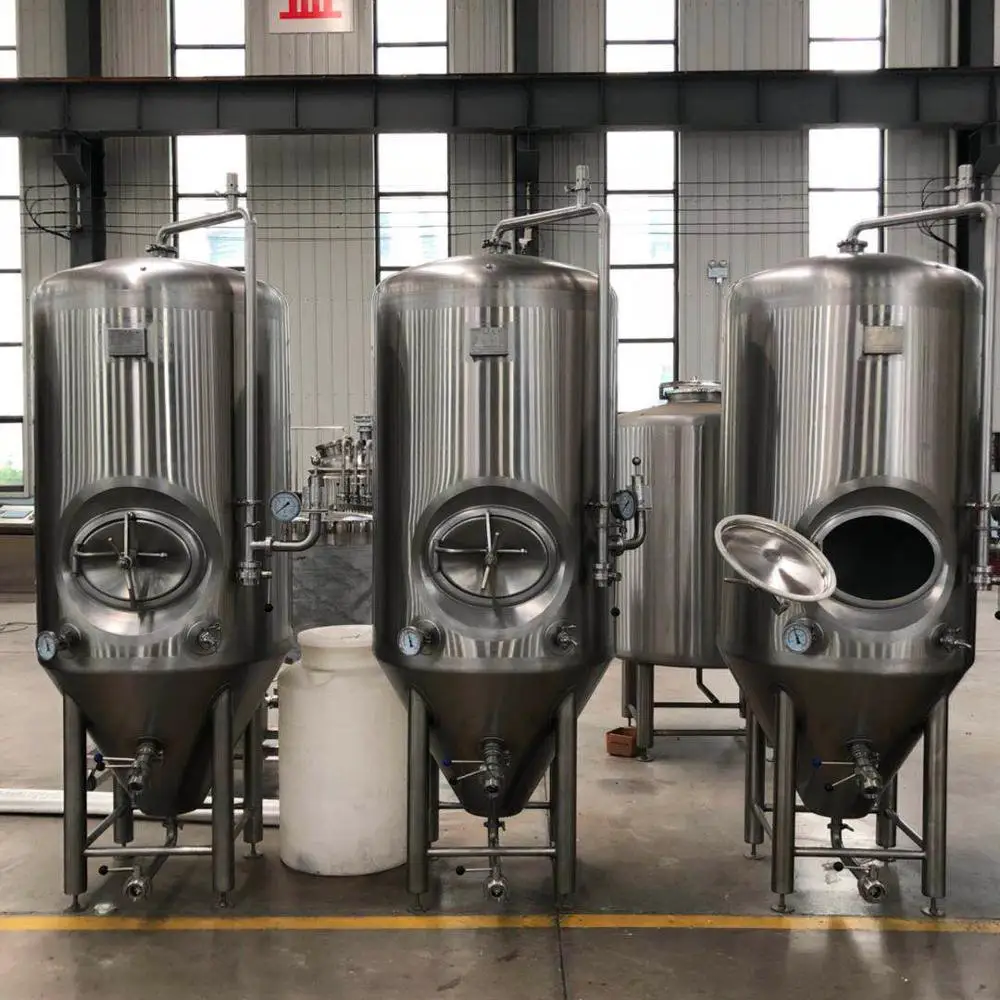

Fermentation systems is made up of Fermentation Tank and Bright Beer Tank.

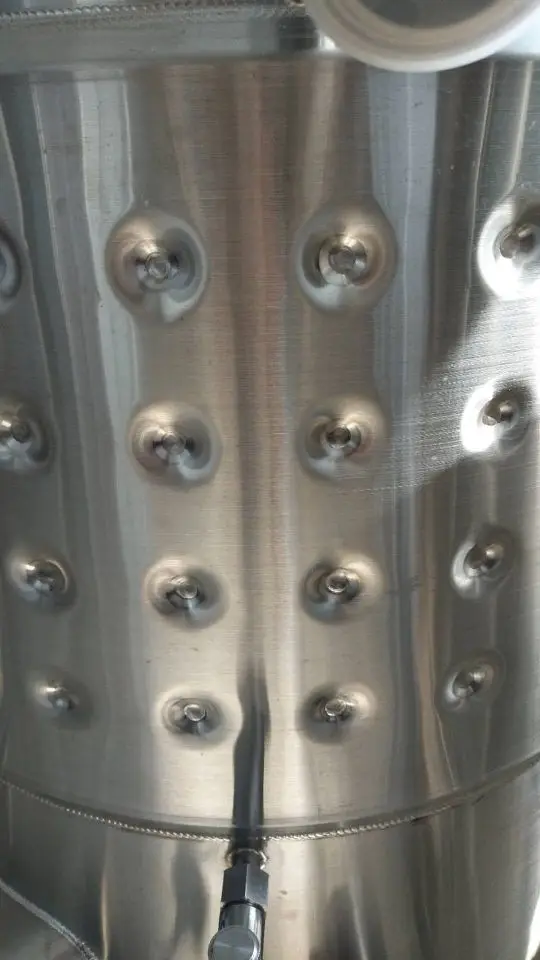

Generally, Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets on cone andon cylinder.
Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel,the Polyurethane insulation thickness between the inner and outer is 80-200mm.
Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel,the Polyurethane insulation thickness between the inner and outer is 80-200mm.
Accessories:
1.Thermowell with high accuracy temperature sensor
2.CIP, rotary spray ball
3.Inner tank mechanical polishing and out Plate Surface protection ribbon polished on welds.
1.Thermowell with high accuracy temperature sensor
2.CIP, rotary spray ball
3.Inner tank mechanical polishing and out Plate Surface protection ribbon polished on welds.
4.Inlet and outlet valves, drain valves on cone
5.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve,pressure gauge
and accessories matched.
5.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve,pressure gauge
and accessories matched.
Sample of Equipment, customize available aslo
Fermenter | SUS304 | 1000L 2000L |
Headspace | 25% | 25% |
Interior | SUS304 | Thickness 3 mm |
Exterior | SUS304 | Thickness 2 mm |
Bottom cone | 60 degree | Yeast outlet |
Cooling method | Glycol cooling | Dimple cooling jacket |
Temperature control | PT100 | |
Pressure display | Pressure gauge | |
Pressure relief | pressure relief valve | |
Safety valve | safety valve | |
Cleaning | SUS304 | CIP arm with 360 spary cleaning ball |
Insulation layer | Polyurethane | 80mm |
Manway | SUS304 | Side or top manway |
Sampling valve | SUS304 | Aseptic type, no dead coner |
Thermometer | PT100 | |
Carbonation device | SUS304 | Optional |
CIP trolley | 1 | |
PLC or PID (meter display) | 1 | |
Pipes, valves, spear parts | 1 |
Detailed Images I
spent grain door
Level gauge with scale
Plate heat exchanger
Lauter inner
inner polishing
platform
Detailed Images II
side manway
cip 360° rotary ball
hop adding port

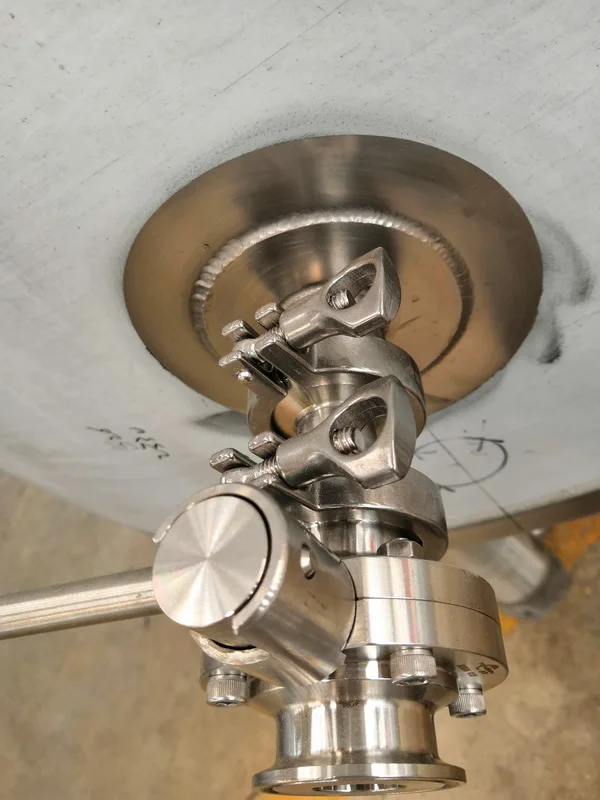

sample valve
beer outlet
breath valve
Our Service
a.) Free consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Free debugging instruction of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer;
e.) Training of equipment maintenance and operating personally;
f.) New production techniques;
g.) Provide 36 months complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free;
Our Company
Our company is a professional beer equipment manufacturer. We are specialized in professional design,manufacture,installation and commissioning of various beer equipments and supporting facilities.
We pay a lot attention to details and we have excellent after sales service.
We can supply all equipments for beer.
