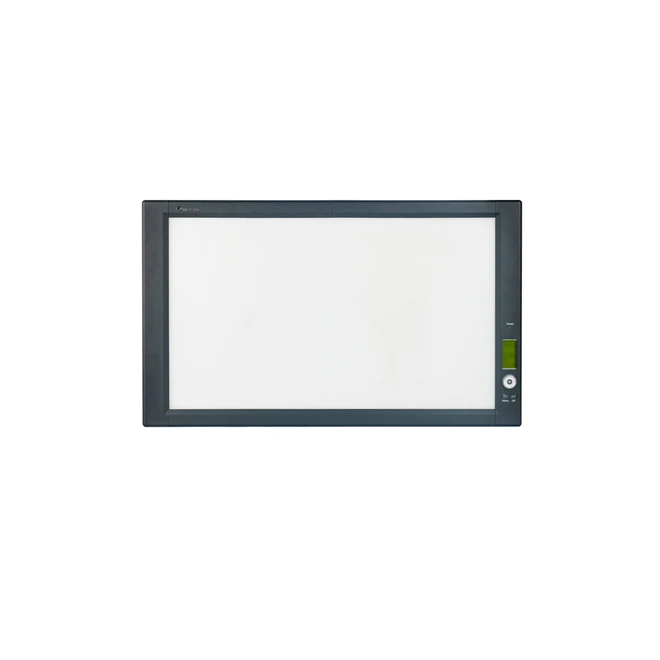

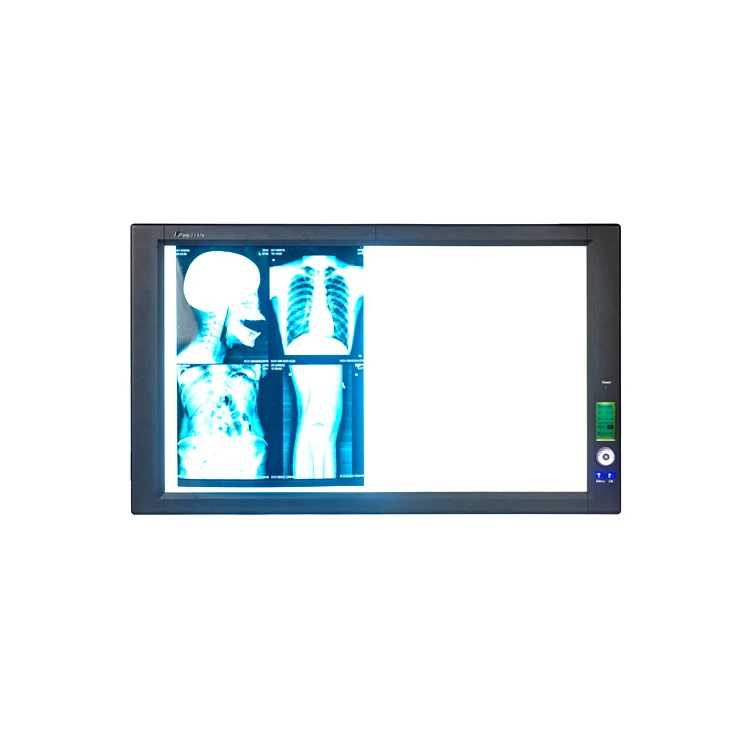

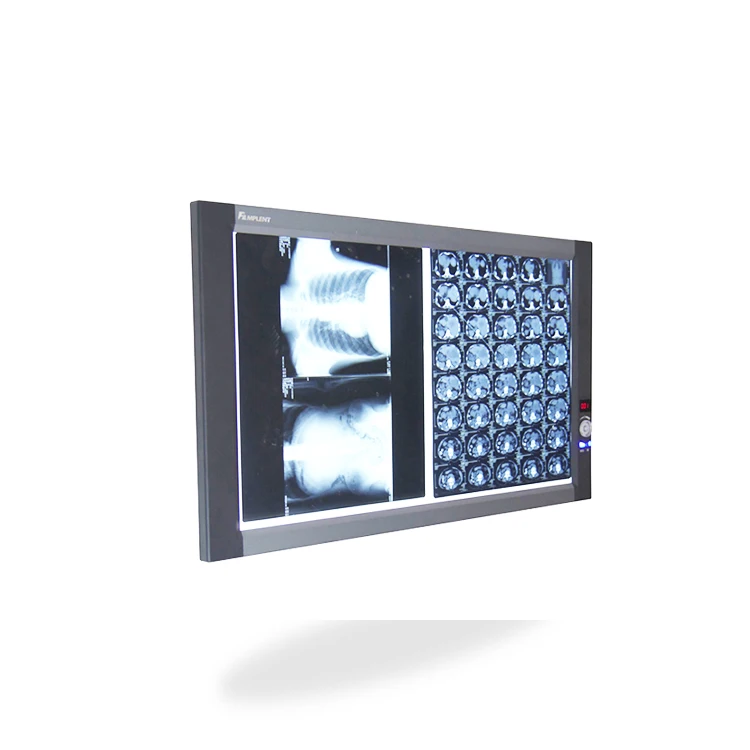

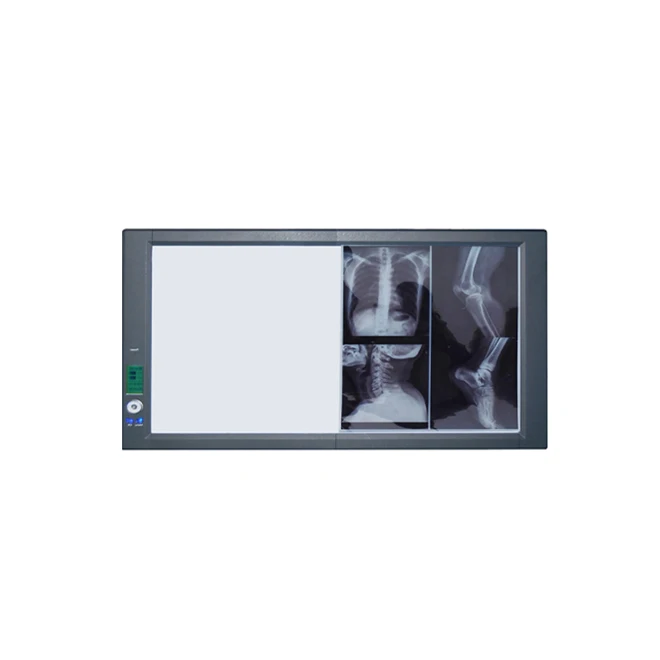

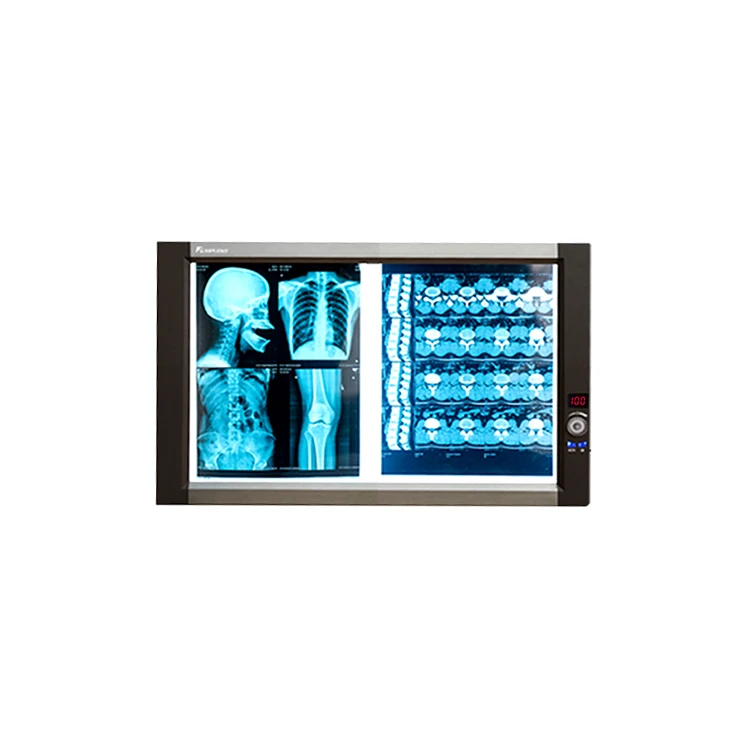

Mplent top sales ZG 2C smart led slim x ray film viewer negatoscope X Ray illuminator with CE with ISO13485 factory

Ultra slim LED x ray film viewer

ZG Series

Single

(ZG-1C)

Double

(ZG-2C)

Triple

(ZG-3C)

Quadruple

(ZG-4C)

Size(L×W×H mm)

478×506×25

838×506×25

1198×506×25

1558×506×25

Visual Area(L×W mm)

360×425

720×425

1080×425

1440×425

Power(W)

30W

60W

90W

120W

LED Specification&Lifespan

Super Bright SMD LED, 144pcs/bank;  CCT ≥ 8000K;Lifespan ≥ 100000 hours

Adaptor

Global Adaptive Power;AC90V-240V ,50/60Hz

View Panel Luminance

PWM Dimming System,can be modulated range from 1% to 100% continuously,Average Luminance :0~4500cd/ m2

Sensor function

The panel will light up automatically when film inserted and off when moved away

Uniformity

≥90%

Fixture

SS roller oblique compression type Fixture

Installation

Wall mounting, Bracket mounting

Application Scope

General Film,Digital Film,Breast Mammography Film

Application Condition

Room Average Illuminance ≤ 100 lux

Features

• Full Digital Control


• Advanced Ultra Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips


• Imported Acrylic View Panel


• Eye Protective Feature


• PWM Low-Voltage Digital Continuous Dimming System


• LED Constant Current Drive Power


• Automatic film activation


• Improved film clip
