Price:$2,800.00 - $7,850.00

Quantity:


Product Overview

Description


 Large width concrete helicopter power float smoothing machine


fankui



Product Description


Products Introduction:


1.Ride on operation reduces intensity of labor and increse effeciency of work





2.with dual rotor, much heavier weight and much better compaction, the efficiency is higher than walk behind power trowel





3.A non overlapping is designed for two pans working





4.Hydraulic type steering system with rapid response and easy control





5.Low barycenter design provides stable operation





6.A strong power supplied by honda gasoline engine





7.HH-QMG2 5 Blades design, much better compaction result.


Large width concrete helicopter power float smoothing machine





Product Description:


1.Hydraulic control for driving and pitch adjustment. It is most popular in the market.





2.Working over 14hrs,working dia2475mm.





3.Lowe barycenter design provides stable operation.





4.Hydraulic control for driving and pitch adjustment.





5.Special frame design to change blade and pan more easier.





Technology


Hydraulic control HONDA gasoline powered ride-on concrete trowel machine























































































Model:



HH-QMG2









Working type



Operate method:



Ride-on



Working control:



Hydraulic control



Working width:



75in*2



Working speed:



80-150rpm









Blade of the plate



Blade material:



65Mn



Blade quality:



8



Blade size:



350*150mm



Hole pitch:



4.75in












Engine






Engine model:



HONDA



Engine type:



Gasoline,air colled,four stroke,OHV,double cylinder



Engine power:



20HP/3600rpm



Fuel tank capacity:



15L



Fuel consumption:



313g/kw.h









Size of the machine



Length:



2060mm



Width:



1030mm



Height:



960mm



Packing size:



2140mm*1100mm*1100mm



Weight



Net weight:



395kg

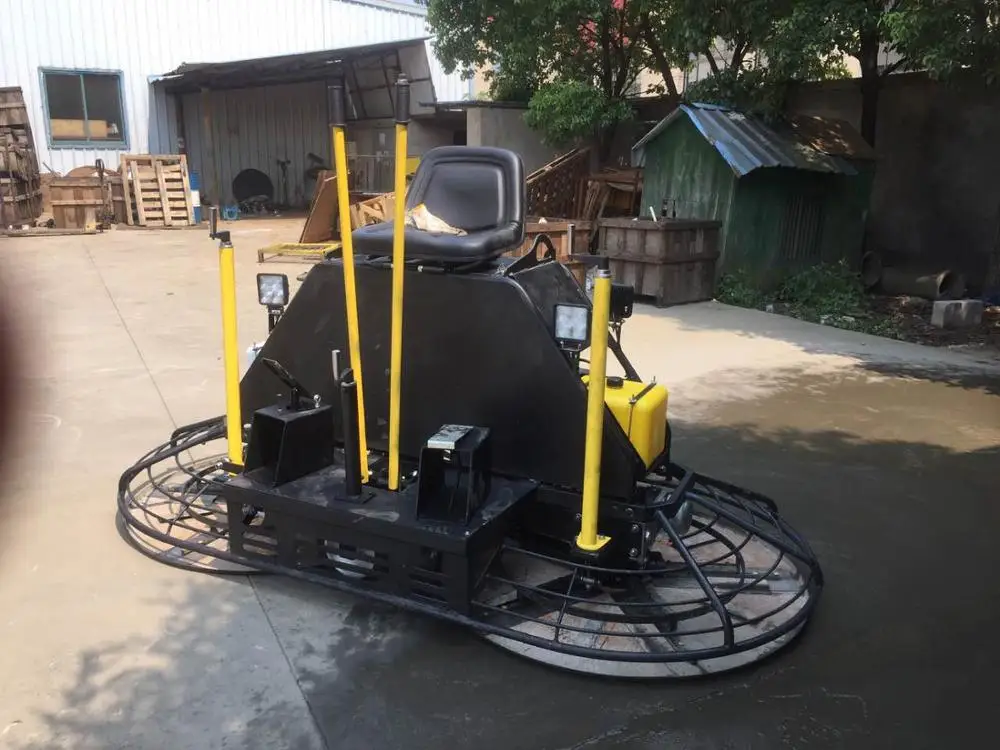

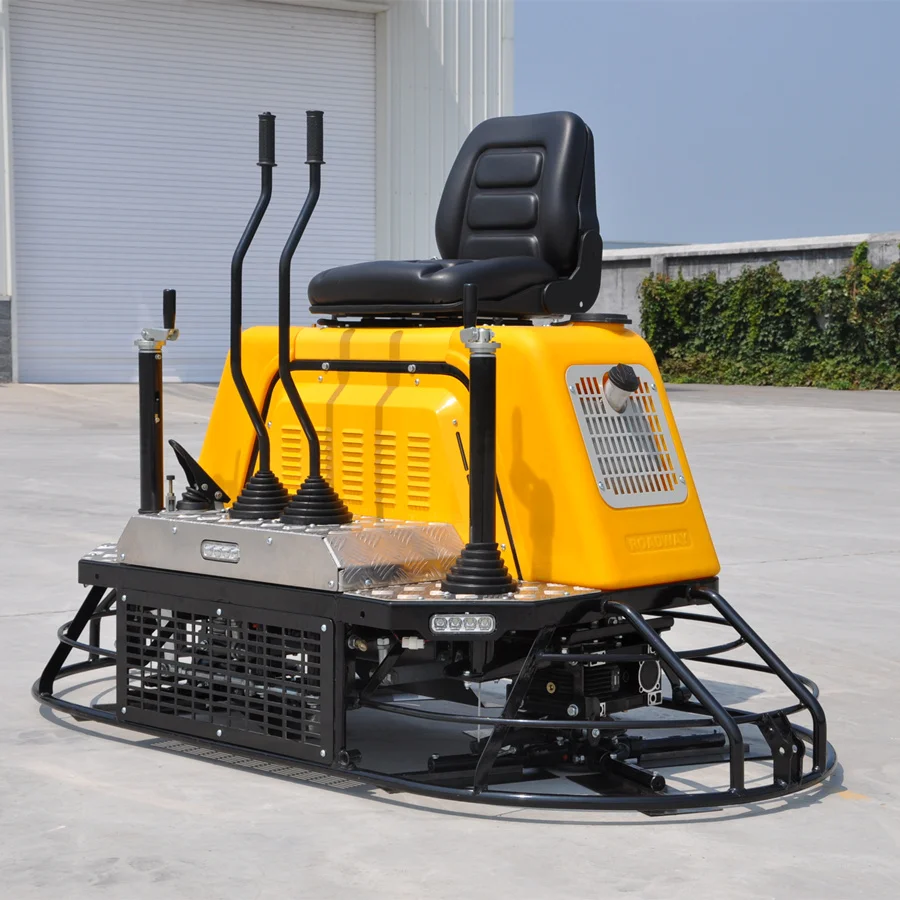

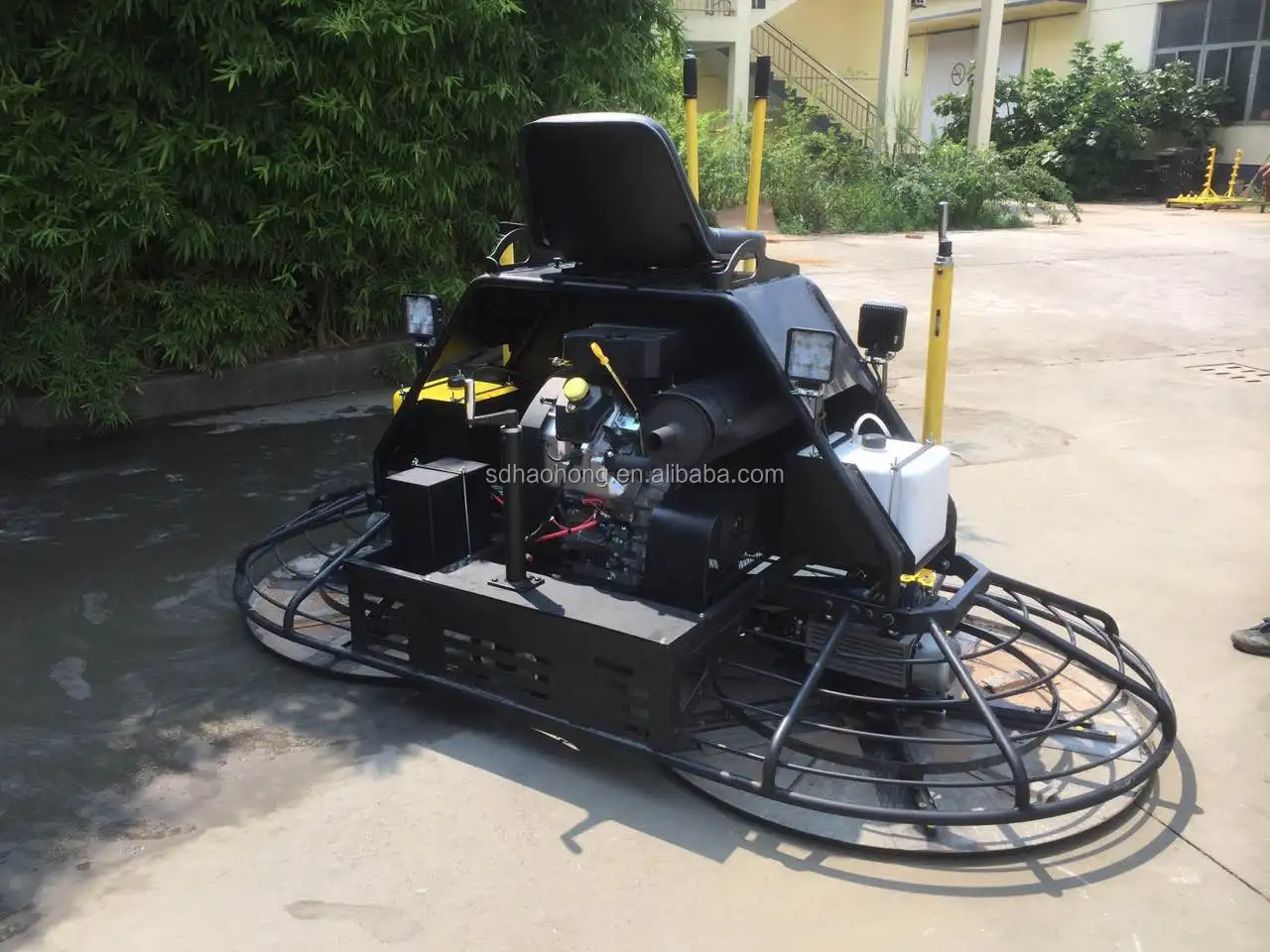

Detailed Images


Large width concrete helicopter power float smoothing machine


Large width concrete helicopter power float smoothing machine


Large width concrete helicopter power float smoothing machine





Large width concrete helicopter power float smoothing machine Large width concrete helicopter power float smoothing machine Large width concrete helicopter power float smoothing machine


Large width concrete helicopter power float smoothing machine


Large width concrete helicopter power float smoothing machine Large width concrete helicopter power float smoothing machine

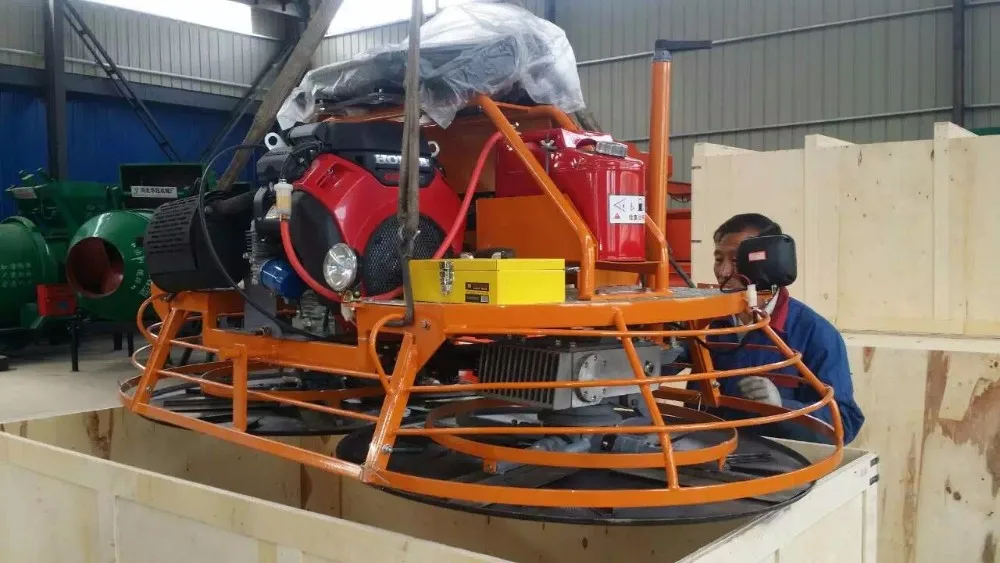

Packaging & Shipping


Large width concrete helicopter power float smoothing machine
