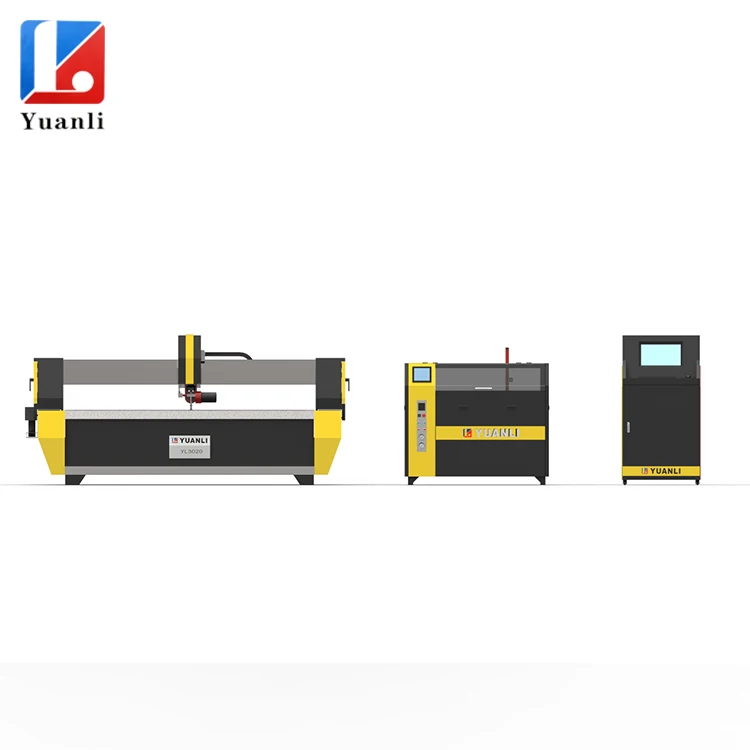

Waterjet marble mosaic use Waterjet Cutting Machine for Floor Medallion Tiles
Product Description
Five-axis water jet works by triaxial add two axis of rotation, namely C axis and B axis, can make any swing cutting head, the entire intelligent control system completely.
Technical Parameters
Model
YL-2015
Cantilever
Gantry
Platform dimensions
3000*2900
3300*2500
Travel
2000mm*1500mm
2000mm*1500mm
CNC control system
AC servo system
AC servo system
Cutting accuracy
±0.1mm
±0.1mm
Repeatability
±0.01mm
±0.01mm
Vo
Fast positioning accuracy
±0.025mm
±0.025mm
voltage
220V/380V/415V
220V/380V/415V
Power
50/60Hz
Advantage:5 axis can realize the any angle of cutting within the range of ±5 degrees,and it has the superior performance during the machining process by marble, ceramics, etc. When the cutting head is less than 2-4 degrees, two pieces of the work piece can have the effect of the upper surface has almost no crack and the lower surface has horn mouth. That means you needn't to do the secondary machining, and it can improve the efficiency, decrease the investment in machining, improve the environment and improve the quality of parquet. At present, it is widely used in the parquet, especially for ceramics, stone, glass, metal, etc. It is the advanced version of free polishing in the traditional parque
