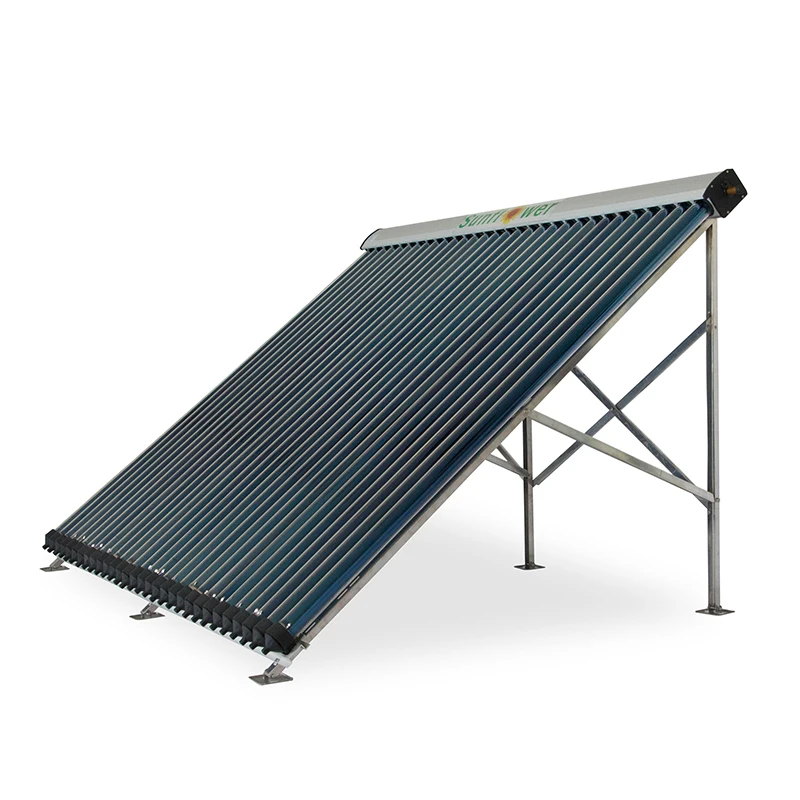

SFB245818 24 Tube Pressure Solar Collector With Heat Pipe Solar Panel For Split Pressure Solar Heating System With High Quality

SFB245818 (24 Tube) Pressure Solar Collector with Heat Pipe, which is the use of vacuum tube's high solar absorption ratio and low emission ratio coating to convert the absorption of solar radiation into heat that is quickly passed to the runner through the phase change copper conduction tube inserted in the vacuum tube, transforming into thermal energy that can be used by solar heating systems.

Specification

SFB155818 (15 Tube) Pressure
Solar Collector with Heat Pipe

SFB205818 (20 Tube) Pressure
Solar Collector with Heat Pipe

SFB305818 (30 Tube) Pressure
Solar Collector with Heat Pipe

Compact Non Pressure Solar Water Heater

Compact Pressure Solar Water Heater with Heat Pipe

Solar Swimming Pool Water Heater

Split Pressure Solar Heating System

More Solar Water Heaters
We have more items of solar water heaters for your different application.

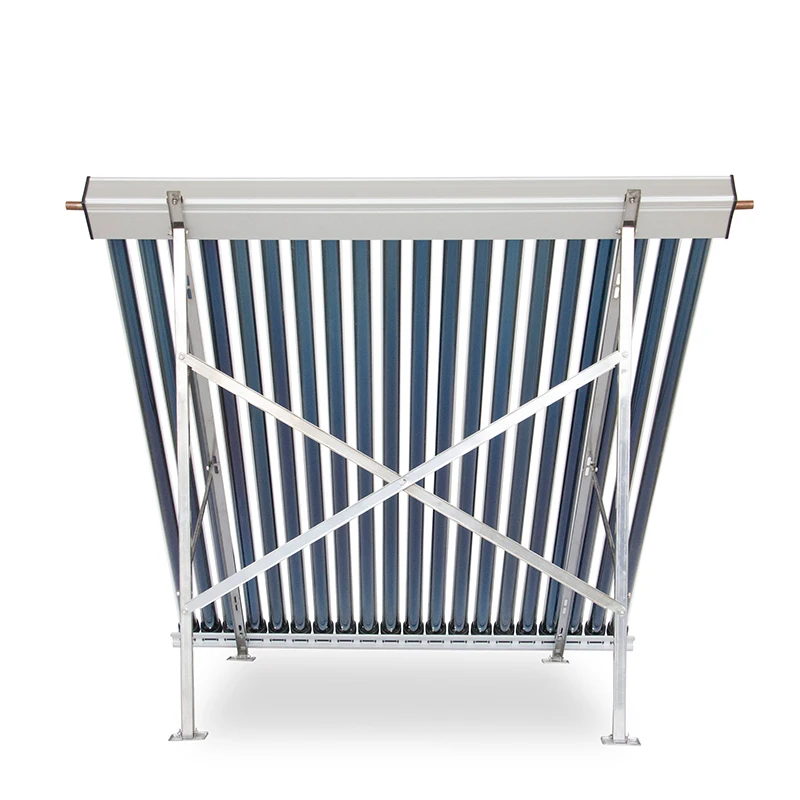

Standing frame

If the roof is flat, stand frame is required.

Heat pipe

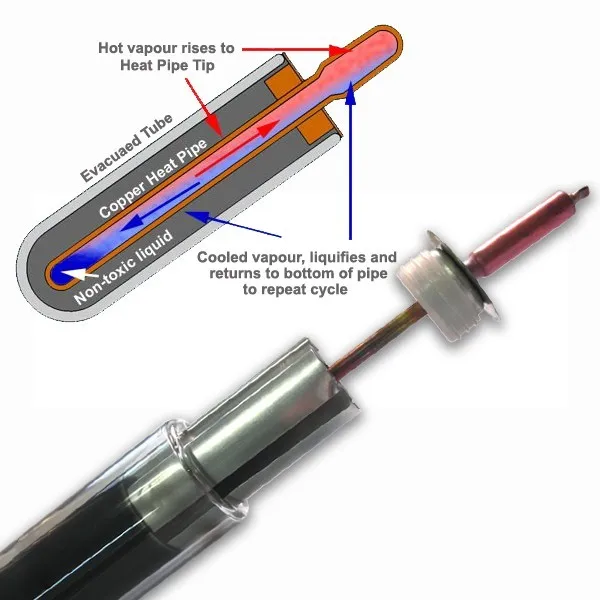

Heat pipe is evaporation - condensing type heat transmission equipment, it relies on working medium status change in the tube to realizes heat transmission.

The solar heat pipe collector module can be combined with a variety of heating equipment. Through good intelligent design, automatic control switching can be achieved to maximize the utilization of solar energy. Not only reduce energy costs, but also ensure the continuity of heating.

Solar heat pipe is easy to install, hot start speed, high thermal efficiency, adapt to various environments. As long as there is sunshine, solar heat pipes will bring you more hot water, especially in low temperature areas.

Ingenious bracket structure design, solar collectors are suitable for installation on various roofs. The user-friendly design makes the installer safer and more convenient on the roof. The integrated design of the building makes your roof more beautiful.

The heat pipe and runner are made of high quality TU1 copper material, which has good thermal conductivity; the shell is made of high-quality aluminum alloy material with surface oxidation, which is not only beautiful but also has good corrosion resistance; Cotton insulation, heat loss is small. The rigorous screening of raw materials and the continuous process control ensure that the solar heat pipe collector has a service life of at least 15 years.

1. Split pressure solar collector is pressure-type solar collector, working pressure 0.6mpa, test pressure 0.9mpa.
2. Evacuated tube solar collector is perfect combination and integration of architecture. It's suitable for installation

    on flat roof, sloping roof and ground.
3. Seamless connection with water tank, boiler, heat pump and gas heater.
4. The solar energy collector adopts double-layer vacuum glass tube, with high thermal efficiency and long life.
5. The heat pipe and runner adopt TU1 copper material, good thermal conductivity, welding property and corrosion                      resistance.
6. Unidirectional heat transfer of superconducting heat pipe, small heat capacity, low start-up temperature and fast

     heat transfer.
7. The superconducting heat pipe has good low temperature resistance and is suitable for use in cold areas;
8. Split pressure solar collector adopts rock wool insulation, high temperature and low heat loss.

Welcome to the website of Jiangsu 1st Sunflower Intelligence Technology Co., Ltd
Since entering the field of manufacture of solar products in 1998, 1st sunflower has accumulated deep expertise, good R&D and production skills in solar products and green environmental friendly products. Therefore, we have excellent product design capabilities to provide customers with fast solutions and after-sale support.
The predecessor of Jiangsu 1st Sunflower Intelligence Technology Co., Ltd is 1st Sunflower Renewable Energy Co., Ltd. We are committed to promoting a low-carbon, natural and healthy lifestyle, and we are committed to providing the most advanced green and sustainable products to our customers around the world.
In the process of continuous development of the company, 1st sunflower continuously improves products according to the regional characteristics and living habits of different countries in order to make the product more concise, more convenient to use, more efficient and less maintenance. At last but not least, reduce energy costs while maintaining comfort and protecting the environment.
Our customers are around the world. In order to adapt our products to different scenes, we have also visited many regions over these years. Our long-term experience has taught us the industry habits and international trade policies of many countries. In addition, we have excellent technical staff and experienced international trade service team, who can provide the quickest response and the most powerful support for the problems you face in the process of our cooperation.
The new 1st sunflower (Jiangsu 1st Sunflower Intelligence Technology Co., Ltd.) aims to provide comprehensive, innovative and sustainable solutions for pollution-free solar products, solar energy utilization, and health & sports, including design, manufacturing and delivery. In addition to our main products, like solar water heaters, solar power systems, solar fans, solar air conditioners etc, we are further extend to the health & sports field, to actively pursue our corporate mission – providing customers with comfortable low-carbon natural health lifestyle.
Our new 1st Sunflower will continue to provide a full range of low carbon, environmentally friendly and natural products&solutions for individuals, families, businesses and public projects to further meet the market's functional and price needs. We strictly follow international practices and quality standards in product development, design, manufacturing, improvement, product trace ability and service procedures. In addition to providing you with high quality with reasonable price products and solutions, we further provide you with fast and active after-sales support and service.
Feel free to contact us for further cooperation.

Shipping Info:
Our Solar Water Heaters can be shipped to the entire global market.
Delivery Time: 10 days

Payment Details:
Payment method: T/T, L/C, Western Union, Paypal

Packaging Details:
Description: SFB245818 (24 Tube) Pressure Solar Collector with Heat Pipe
Package/volume/weight: Carton/0.32cbm/81kg
Packing quantity: 95/20GP, 225/40HQ
Shipping Mark: By your requirement
