JK MSH Pro Laboratory Digital Magnetic Stirrer with Hotplate

Product Overview

Description

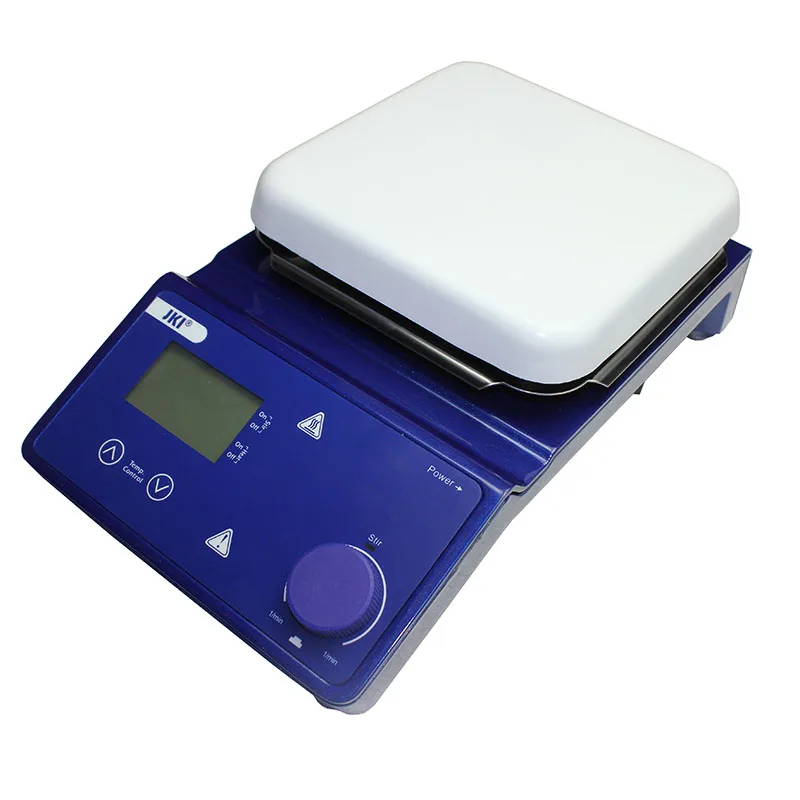

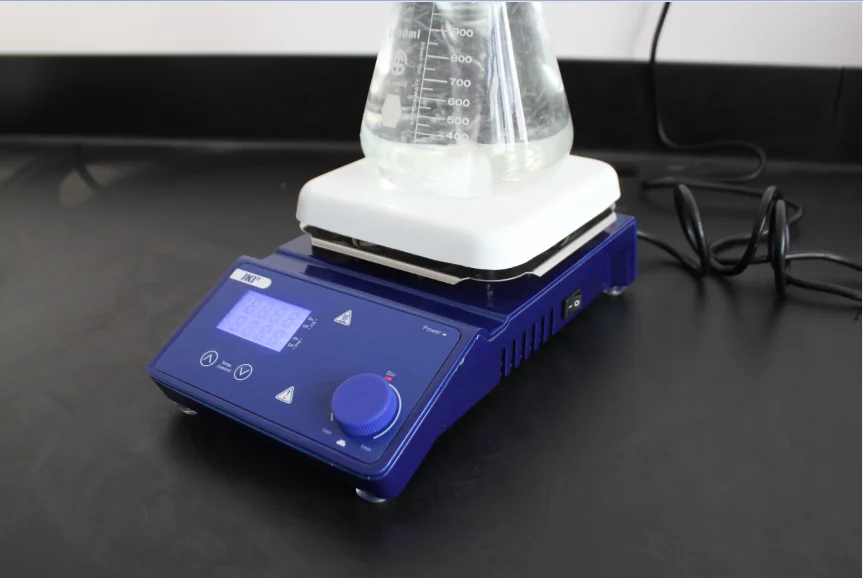

JK-MSH-Pro Digital Magnetic Stirrer with Hotplate





Features:



• Magnetic stirrer suitable for unsupervised operation, with new stir technology

• Automatic judgment stirring bar displacement and capture

• Hotplate with stainless steel surface or porcelain enamel surface with excellent chemical resistance

• Easy-to-read backlit LCD display

• Fuzzy logic control microprocessor technology guarantee maximum control accuracy

• Multiple modes ensure the stirring function not change due to external factors

• PC control via RS232 interface



Technical Parameters:



Square/Disc optional

Voltage[VAC] 110/220 ;

Frequency[Hz] 50/60;

Power[W] 500;
Max. stirring quantity(H2O)[L] 20;
Stirring point position quantity[mm] 80;
Motor type :brushless motor ;
Speed range[rpm] 200-1500;
Speed and temperature display LCD ;
Speed display accuracy[rpm] 1 ;
Plate material:Material

Ceramic coating surface/Stainless steel ;
Dimension of Plate[mm] φ135 or 155
Heating Temperature Range[℃] RT-380;
Temperature display accuracy[℃] 0.1;
Temperature sensor of extra position PT100(Optional);
Packing size:0.37*0.28*0.18cm;

Weight:3kg.
Permissible ambient temperature[℃] 5-40 ;

Permissible ambient humidity 80% ;

RS232 interface optional

Protection class acc. to DIN EN60529 IP42;
