12V 24V Waterproof Industrial Electric Telescoping Linear Actuator for TV Lift Recliner Chair
- Category: >>>
- Supplier: Guangdong G-Motor Health Technology Co. Ltd.
Share on (60795013863):
Product Overview
Description

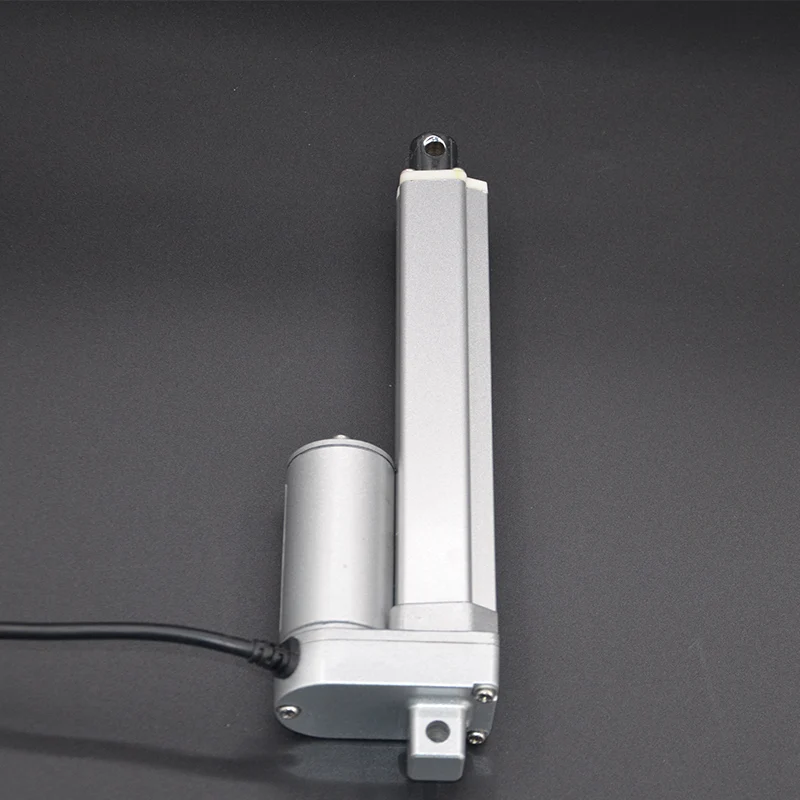

12V 24V Waterproof Industrial Electric Telescoping Linear Actuator for TV Lift Recliner Chair
What is the Details of our Linear Actuator?
| Product Name | Linear Actuator |
| Brand Name | G-motor |
| Certification | CCC, CE,UL,TUV,ROHS |
| Rated Voltage | 12V / 24V / 36V / 48V |
| Stroke | 25-1550mm |
| Speed | 6.5mm/s-40mm/s |
| Load | 10-2000N |
| Protect Feature | IP66 |
| Limit switch | Built-in |
| Speed(RPM) | 7000rpm |
| Size of 1 seat | 44*15*22cm |
| Application | Lifting desk,Massage chair,Dental bed |
| Our advantages | 1.15 years experience; 2.OEM is avariable; 3.Factory price; 4.CE certification; 5.Low MOQ; 6.Dlivery time:3-15Days; 7.Strict control of linear actuator quality in the production process. |
Product Features &Specification
Features:
1.Aluminum gear housing
2.Enhanced powder metal gears
3.Aluminum piston rod
4.Aluminum outer shield
5.ACME screw
6.Built-in limit swith
7.Both for push and pull
8.Protection IP66

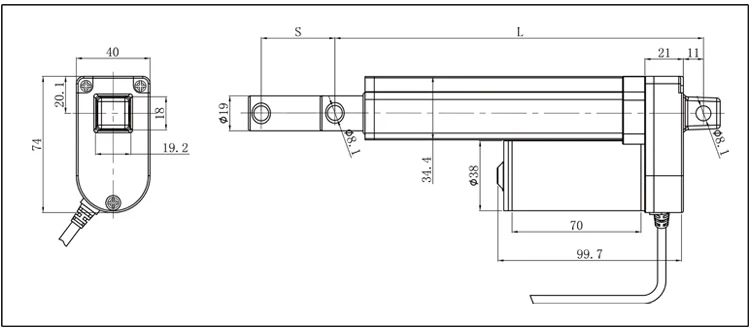

Product Profile:

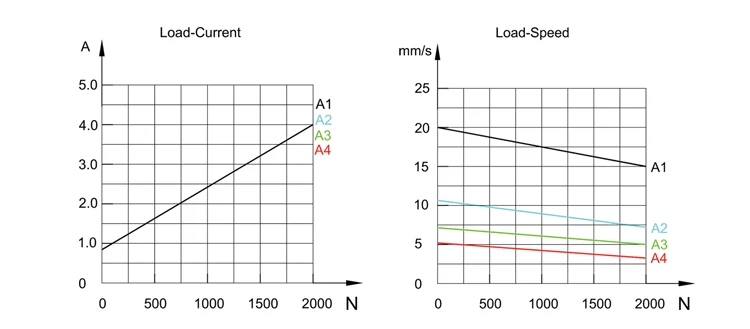

Performance Curve:
We can make different spcification according to your requirement.
| Voltage | Load and Speed |
| 12V | 1800N~6.5mm/s 1350N~8.5mm/s 900N~13mm/s 600N~21mm/s 300N~40mm/s |
| 24V | |
| 36V | |
| 48V |
| Stroke | Mini install length | Stroke | Mini install length |
| 25mm | S+100mm | 800mm |
S+155mm |
| 50mm | 850mm | ||
| 100mm | 900mm | ||
| 150mm | 950mm | ||
| 200mm | 1000mm | ||
250mm | 1050mm | ||
| 300mm | S+155mm | 1100mm | |
| 350mm | 1150mm | ||
| 400mm | 1200mm | ||
| 450mm | 1250mm | ||
| 500mm | 1300mm | ||
| 550mm | 1350mm | ||
| 600mm | 1400mm | ||
| 650mm | 1450mm | ||
| 700mm | 1500mm | ||
| 750mm |
| Code | A | B | C | D | E |
| Gear ratio | 5:1 | 10:1 | 20:1 | 30:1 | 40:1 |
| Max.Load(push/pull) | 300N | 600N | 900N | 1350N | 1800N |
| Max.Speed at full load | 40mm/s | 21mm/s | 13mm/s | 8.5mm/s | 6.5mm/s |
Click here>>> Tell us your requirement!!
Applications
Send inquiry here>>> to get a sample!!!
Advantages
Customer feedback
Related Products
Factory & Our Office
Factory Show & Our Office
Exhibition
Exhibition
Certifications
Cetificate
Hot-sale product
Hot-sale product
Packing and Shipping
Click Here >>>Contact us to get more informations.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q:How long is the warranty?
A:One year.
If you have another question, pls feel free to contact us .
