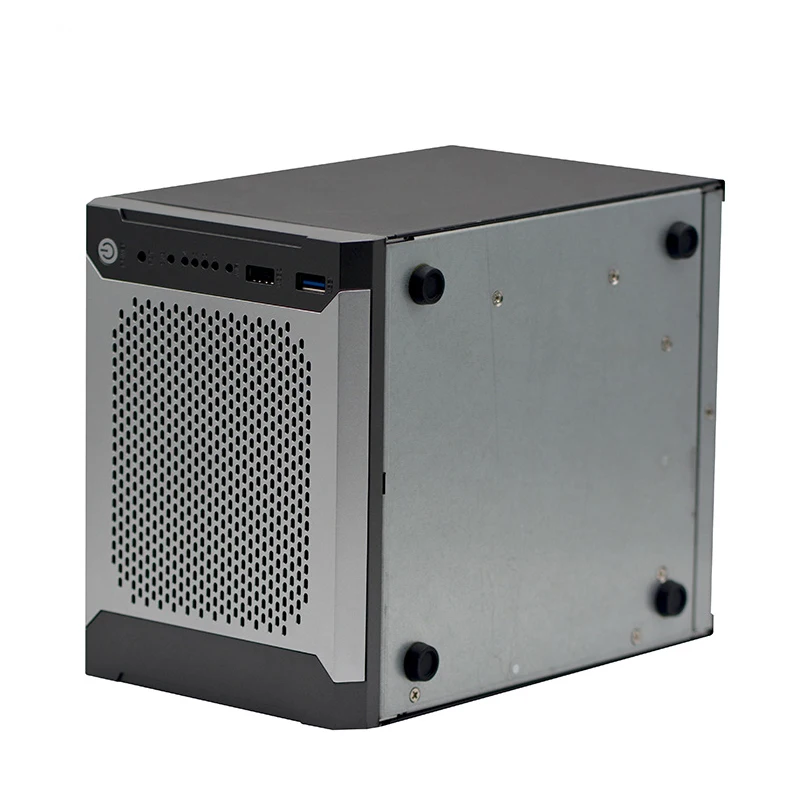

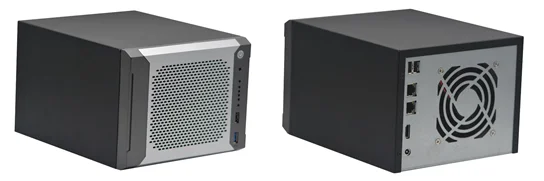

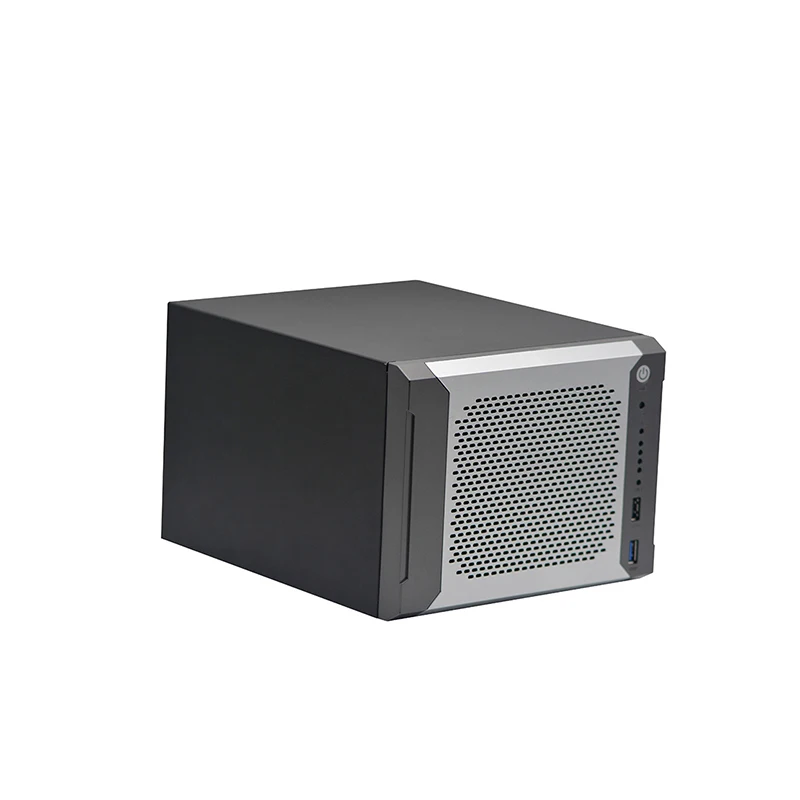

nas storage sever 4 bay nas case with J1900 cpu nas motherboard
- Category: >>>
- Supplier: Shenzhen Armortec Technology Co. Ltd.
Share on (60795014905):
Product Overview
Description
Feature:
NAS industrial server
♦ base on X86 CPU,Native support for container virtualization technologies such as Docker
♦ adopt Intel J1900 CPU,Quad-core and four-thread,support 1 way 4K/30FPS
♦1*memory slot,can be extended to 8GB
♦4*hard disk,can be extended to the 9 bit disk by YANYUGONGKONG Extension equipment
♦SUPPORT RAID,BASIC,JBOD,RAID 0/1/5/10 Multiple array types(only support Windows OS )
♦support EXT4 and Btrfs os
♦support hot plug
♦Nominal continuous reading speed 226.07MB/S,Continuous reading 222.98MB/S(Non-encrypted SMB protocol transmission)
♦ 2* Intel 211AT Gigabit Ethernet, Support wake on LAN/PXE
♦ A NAS system that integrates computers, routers, and set-top boxes,takes the place of traditional cloud boards, computers, routers, set-top boxes, etc
| specification | NVR194Z | |
| Chassis | Color | black |
Dimension | 186mm*225.5mm*141.5mm | |
| Structure | System fan heat dissipation, sheet metal material | |
| Processor | CPU | Integrated Intel Baytrail J1900 2.0GHz quad core processor |
| Graphics | Core graphics | Integrated Intel HD Graphics Core Graphics |
Memory | ram | 1*DDR3L SODIMM Memory slot,support 1333/1066MHz memory,upto 8GB |
| Storage | SATA | support 4*3.5 inch SATA |
SSD | support 1* MSATA SSD expansion | |
| Front I/O | USB | 1* USB2.0 port,1*USB3.0 port |
| Switch | 1*Power switch,1*Reset switch | |
LED | 4*HDD LED,1*Power LED ,1*WiFi LED | |

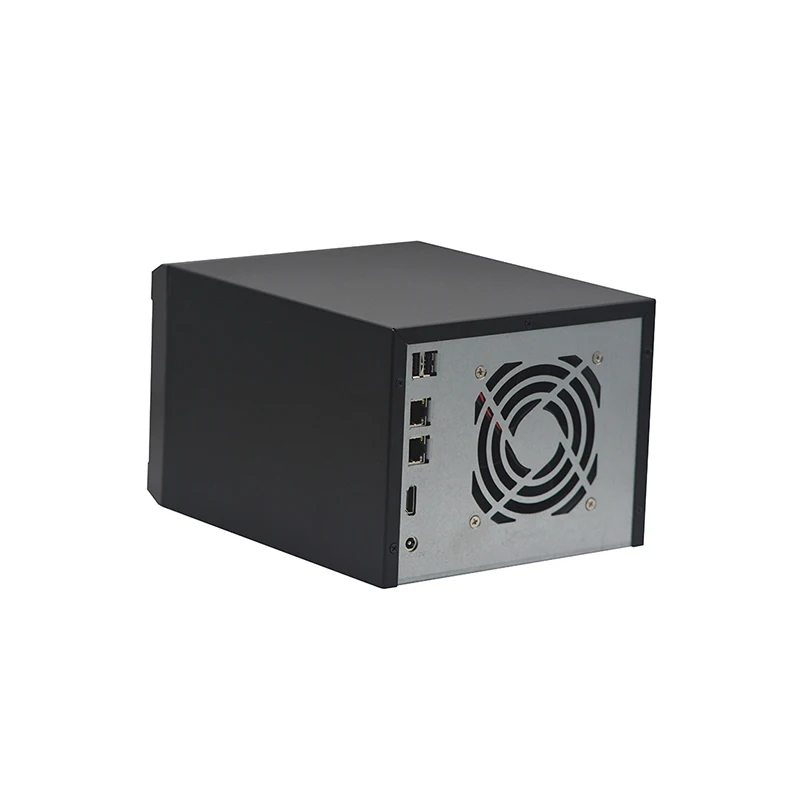

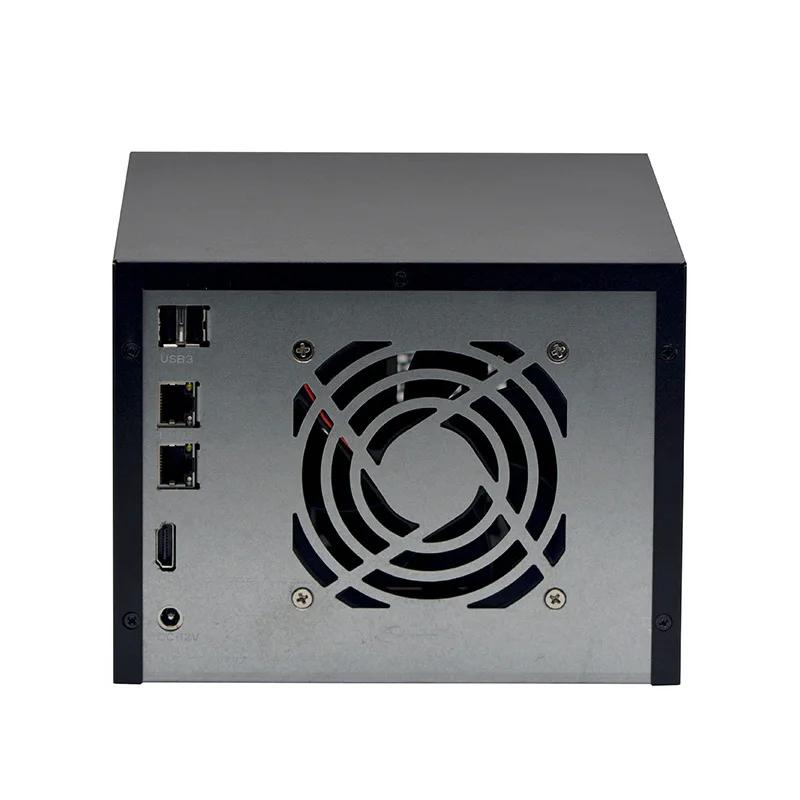

Rear I/O | LAN | 2*RJ45Gigabit Ethernet Network |
| Display output | 1* High definition multimedia slot | |
Power | 1*12V DC power input connector | |
USB | 2*USB2.0 port | |
| Power |
| DC12V |
| OS |
| Windows7 /Windows 10 |
Reliability | Installation | desktop |
Operating Temp. | 0℃~45℃ | |
Storage Temp. | -20℃~70℃ | |
Humidity | 5%-95% relative humidity, non_condensing | |
Vibration | 0.5g rms/5-500HZ/random/operating | |
| No. | Model No | processor | Motherboard | Memory | HDD | Network port | COM | USB | WIFI | Adapter | System |
| 1 | NVR194Z | J1900/2.0GHz | NVR19 | / | / | 2* Intel 211AT | / | 4 | N/A | 12V/5A | / |
Producing Process :
SMT
DPI
AOI
Assembly
Burn- in Room
Packaging
Established in 2011, Armortec Technology Limited has grown rapidly in the industrial motherboard industry, diversifying itself from a manufacturer for industrial motherboard to industrial PC, mini PC, firewall server and industrial motherboards. This has made Armortec the choice vendor for many of the quality-oriented manufacturers that integrate PC assemblies into their non-PC equipment where unique form factor, 24/7/365 operation, strict revision control, harsh operating environments, and 5 to 7+ years product life cycles are required.
Armortec is a company that is fully committed to developing its products, services and consumer relations through extensive R&D, strict Quality Assurance practices, and effective outreach initiatives. Customer loyalty through interaction, focus and feedback are policies that help form the Armortec culture, as well as a commitment to achieve, and a dedication to innovate.
In their efforts, Armortec's global achievements in the industry have received both recognition and respect, proving their level of quality and commitment time and time again. Armortec continue to develop award-winning products, offering a complete range of networking solutions consisting of industrial motherboard, industrial PC, mini PC, firewall servers, NAS PC, ATM PC, POS PC and so on.
Through technological advancements and the power of imagination, Armortec is continuing to grow, endlessly striving to achieve their goal of becoming one of the top 3 industrial PC and mini PC providers in China. While continuing to develop their global market share, Armortec will never cease to promote opportunities to further advance through the world of networking and innovation.
Armortec - Technology Creates Future.
Our Services
1.Warranty: 1 year, the second year and the third year, we can
repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Question: Can you put my brand name (logo) on these products?
Answer: Yes, We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Question: How much do I need to pay for your OEM service?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: How did I trust your company?
Answer: We have 12 years export from Alibaba, and our factory have more than 16 years' R&D Manufaturing experiences.
Question: After I get the products, If the products are broken , what kind of After-sales service you support?
Answer: First, please contact us and tell us problems, we can give good solutions to you, Second, you can return the goods, and we repair. We want to make a long time business with you, not one time.
If you have any concern feel free to let me know .
Joy is Here (24 hours, 7 days)
Email :joy.l.han(at) armortec.net
Skype: joy.l.han(at) armortec.net
