20KV 1uF 1mF 1mfd 105 Film Capacitor

 Temperature Range  -40 ~ +85℃  ( Relating to operating current )
 Capacitance Range   160pF~20μF  ( Others made to order available )
 Capacitance Tolerance ΔC/C  J:±5%    K:±10%
 Rated Voltage Un   3k~30kVdc/1k~10kVac ( Others made to order available )
 Voltage Proof Between Terminals UTT  1.4Un ( 60s )



Applications:
(1)Super-High-Voltage power supply of high top medical treatment equipment.
(2)High voltage converter.
(3)High voltage coupling and carrier wave communication signal coupling in high voltage transmission line.
(4)Protection facilities of large-scale machine and safety measurement apparatus.

Description of products:
(1)Reference standard:GB/T 2693 idt IEC 60384-1.
(2)Metallized polypropylene/polyester film wound,non-inductive construction.
(3)The polyester tape or specific tape wrap and epoxy resin end filled.
(4)Excellent self-hearing property and temperature stability.
(5)Dry construction assuring safety use.
(6)Terminals including tinned copper wire,copper solder tags,copper screw,copper nut and other are available on request.

Technology Features:
(1)To adopt special tape to prevent insulation materials filled in high voltage devices from appearing crack,to avoid producing creepage appearance along with the crack.
(2)Design of product can assure that there are not ion current inside capacitor under AC and high voltage pulse application.
(3)More miniature size product available on request.

20KV Specification:
 SPECIFICATION  Dimension (mm)  Part Number

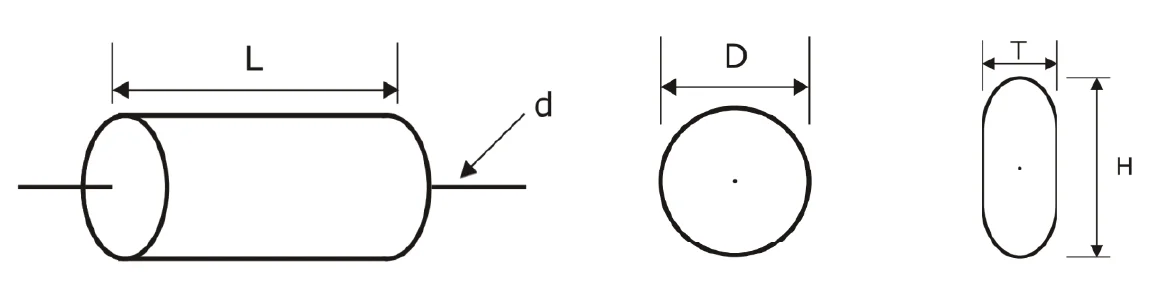

 D  L   d dv/dt(V/uS) Ipp (A)
 20kVdc 0.006uF 6NF 602  21  106  0.8  2500  16  MXHV21602J203
 20kVdc 0.01uF 10NF 103  16  100  0.8  3200  32  MXHV21103J203
 20kVdc 0.02uF 2NF 203  22  100  1  3200  64  MXHV21203J203
 20kVdc 0.05uF 5NF 503  32  100  1.2  3200  160  MXHV21503J203
 20kVdc 0.1uF 100NF 104  43  100  1.2  3200  320  MXHV21104J203
 20kVdc 1uF 1000NF 105  96  168  1.2  1800  1800  MXHV21105J203
 25kVdc 0.006uF 6NF 602  27  113  0.8  -  -  MXHV21602J253
 25kVdc 0.01uF 10NF 103  34  113  0.8  -  -  MXHV21103J253
