China Supplier Metal Shielded Cat5 Dual Port RJ45 Connector
- Category: >>>
- Supplier: Shenzhen Youte Electronic Co. Ltd.
Share on (60795022142):
Product Overview
Description
China Supplier Metal Shielded Cat5 Dual Port RJ45 Connector
Product Description
RJ45 Connector: | |
Specification: | |
Product Type: | RJ45 Jack |
Jack Type: | RJ45 |
Number of Positions: | 8 |
Number of Contacts Loaded: | 8 |
Shielded: | With |
Jack Configuration: | 1x 14 |
PCB Termination Type: | Solder |
PCB Mount Angle: | Side Entry |
Electrical Requirement: | |
Rating Voltage: | 150V AC max |
Rating Current: | 1 Amp max. |
Contact Resistance: | [30] Milliohms Max. (Initial), [50] Milliohms Max. (Final) |
Current leakage: | 1mA Max. [500]VAC for 1minute |
Dielectric withstanding Voltage: | No creeping discharge or flashover shall occur |

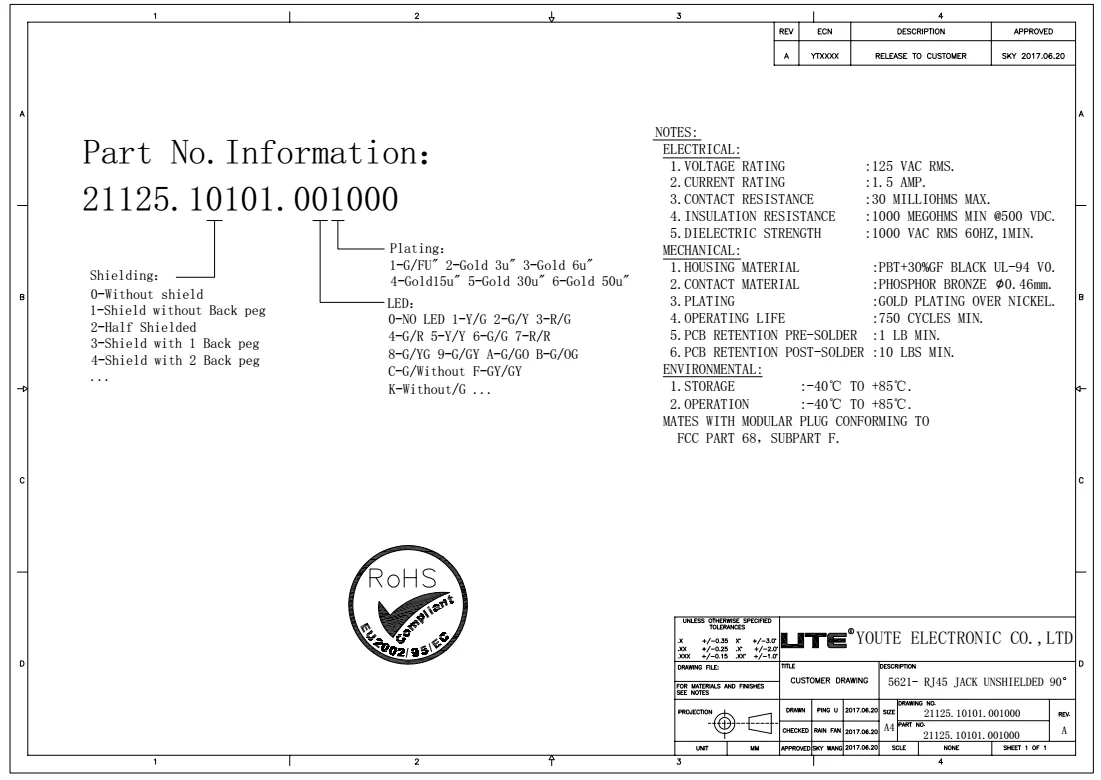

![ZPYHV0~~ZHVDD8X]DX3_{4.png](http://sc01.alicdn.com/kf/HTB1kTOhvDXYBeNkHFrd763iuVXaD/200674483/HTB1kTOhvDXYBeNkHFrd763iuVXaD.png)

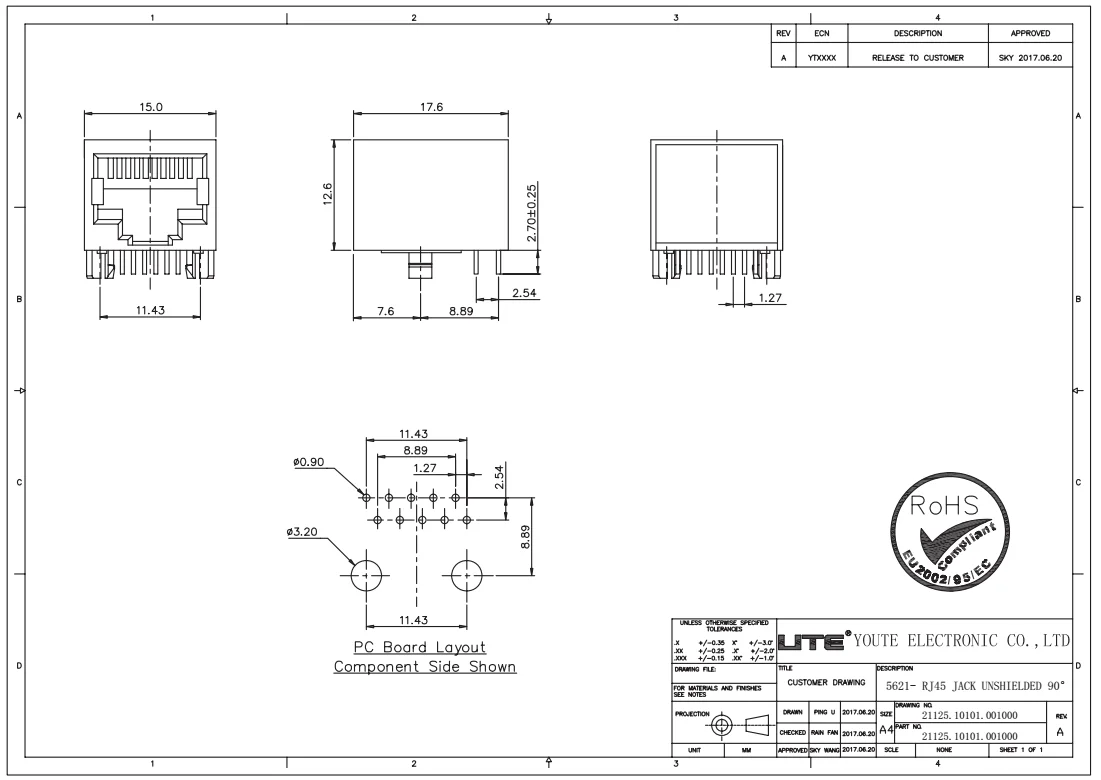

![~01Y(_SS]{VBZLP$QK76AQ.png](http://sc02.alicdn.com/kf/HTB1OESiDL5TBuNjSspc762nGFXab/200674483/HTB1OESiDL5TBuNjSspc762nGFXab.png)
Related Products
About US
Certificates
Our Exhibitions
Our Advantage
Packaging & Shipping
FAQ
Q: how long Delivery time ?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days USB Series: 7~15 days
Pin Header/Female Pin header
Connector: 7~15 days
SATA/HDMI Series: 7~15 days
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements
(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
