DCHH202 2A Industrial Brass Explosion proof Ship Marine Switch IP56

Product Overview

Description

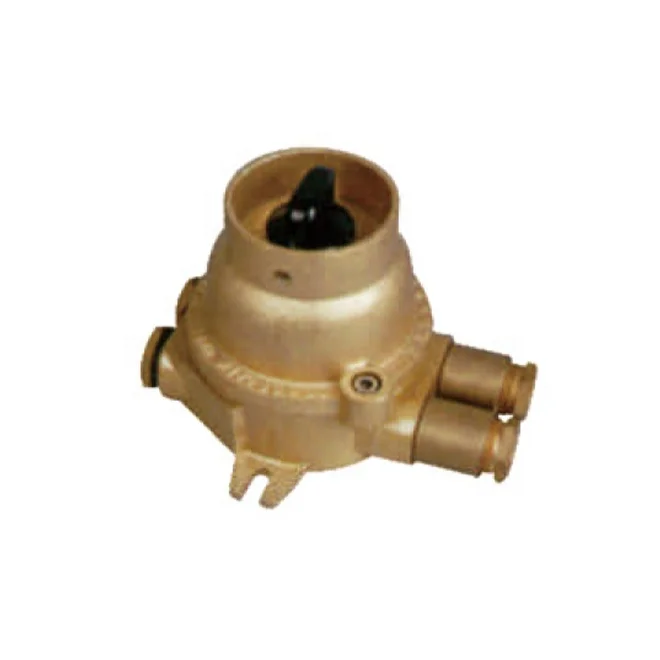

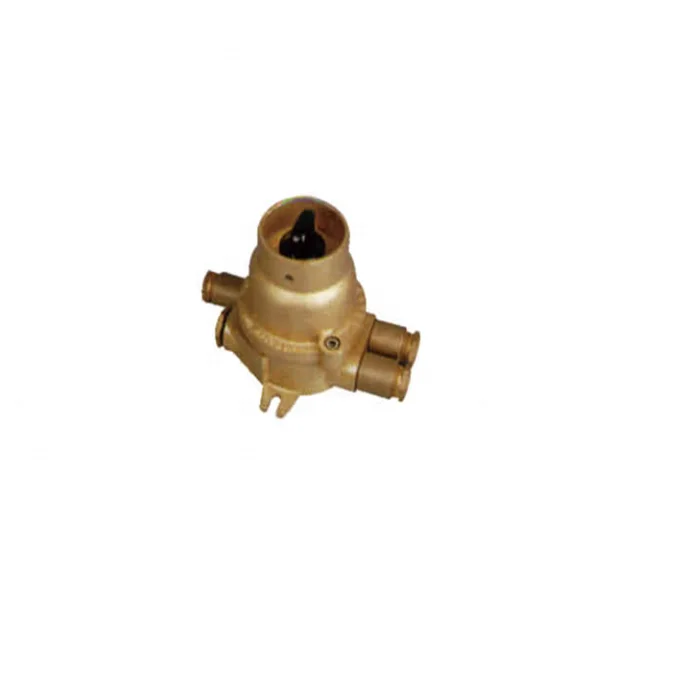

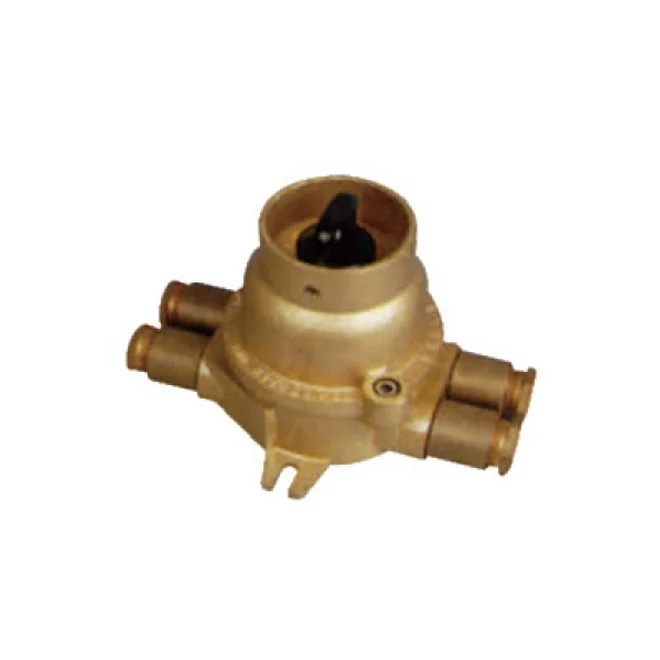

DCHH202-2A Industrial Brass Explosion-proof Ship Marine Switch IP56

Features

1.  Fit for electric appliances connecting and circuit breaking in ships, sea petroleum, chemical industry site etc.

2.  The shell adopts precision brass casting, it has the feature of fine sealing function and fine electric function.

3.  This series of products have passed the Examination of National Explosion-proof Electrical Test Center, and was Approval by CCS(China Classification Society). certificate number 0051SQ20619ROM.

4.  Fit for armored cable φ10-φ12.5mm.

Specifications

Name(Type)	Weight	Protection  class	Adopted standard	Explosion-proof type	Voltage/Current
dCHH202-2  EXPLOSION-PROOF SWITCH	2.25kg	IP56	IEC60079	Exd IICT6	380V/16A
dCHH202-2A EXPLOSION-PROOF SWITCH	2.25kg
dCHH202-3  EXPLOSION-PROOF SWITCH	2.27kg
dCHH202-4  EXPLOSION-PROOF SWITCH	2.35kg





Packaging Detail	Label + Inner Box + Export Carton
Common Packing	Label, Color Inner Box, etc
Delivery	By Courier, By Air, By Sea
Port	Ningbo, Shanghai, Guangzhou
