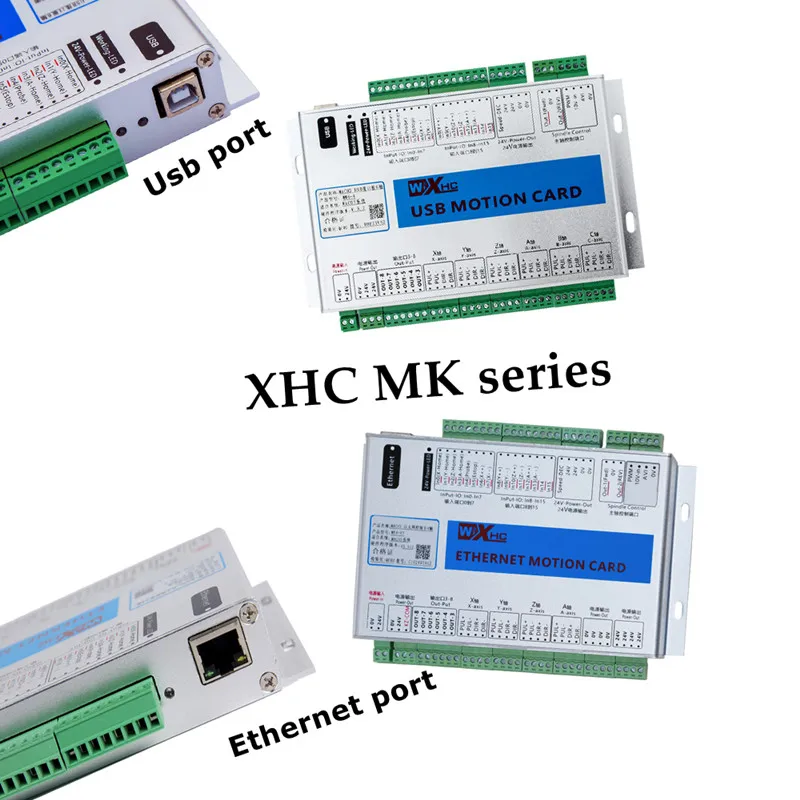

Hot sale XHC mach3 3 axis Lan/usb cnc motion controller card CNC board MK3 V

Share on (60795080039):


Price:$123.00 - $154.00

Quantity:


Product Overview

Description


Alibaba good supplier  XHC good quality low price 3 axis mach3 Lan interface cnc controller


We are Manufacture ,  these products are produced in our own!!!





Typical application:


support all kinds of numerical control equipment, such as engraving machine, cutting machine system and cnc machine so on.









Product Description

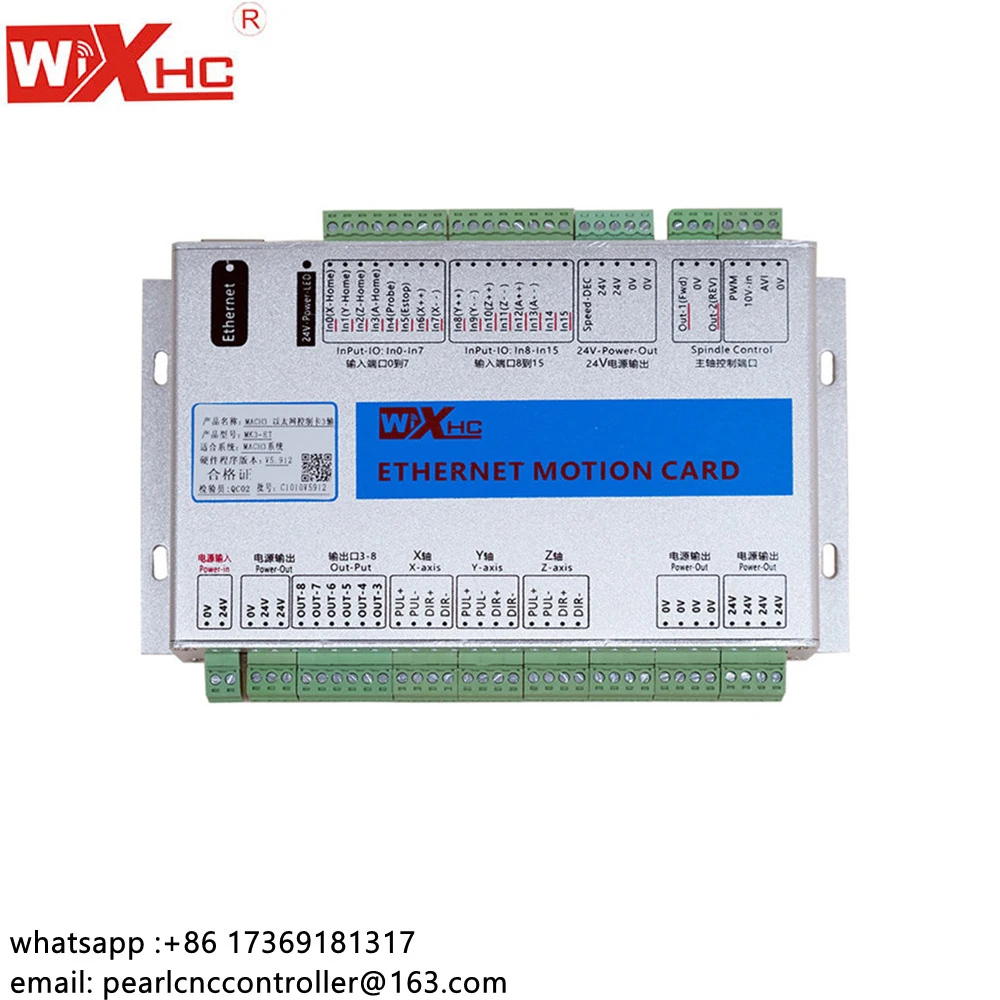

Model: MK3-ET 3AXIS


            MK4-ET 4AXIS


            MK6-ET 6AXIS


Application software: MACH3


Application Control card application industry :CNC cutting machine.


CNC router.Machining Center.Mechanical arm.Automated production equipment.











Features:


1.Fully supporting all Mach3 versions


2.Full support for USB hot-swappable, the card is Monitoring USB connection status at any time.


3.Supports MAX 6-axis


4.Maximum step-pulse frequency is 2000KHz


5. Status indicator LED can be useful to show the USB connection, and working stauts by flashing.


6.16 input IO+8output IO, support spindle feedbackfunction, support difference output. all IO-port isolation, interference,


stable performance


MKX-ET- (5)MKX-ET- (3)MKX-ET- (9)MKX-ET- (8)





Electrical Characteristics



























































































Parameter Description



axis output control



Drive Current



Isolated open collector output; 5V, 20mA



Drive



Pulse + direction output



Output frequency



200KHZ



axes



MK4:4-axis;MK6:6-axis



Isolation Voltage



3.5KV



Spindle inverter output



Analog voltage output



0——10V



PWM output



5V,2KHZ,Duty; 0-100%



Pulse + direction output



5V,15HZ to 400HZ



Spindle speed input



Input



Isolated input, 5V pulse signal



Isolation Voltage



3.5KV











8 IO output



Drive Current



Isolation :50mA, 25V



Isolation Voltage



3.5KV











16 IO input



Input Current



Isolated inputs, 5 mA, maximum voltage 25V



Isolation Voltage



3.5KV



USB interface



Complies with USB2.0 standard














Packaging & Shipping


Packaging: Neutral carton packaging

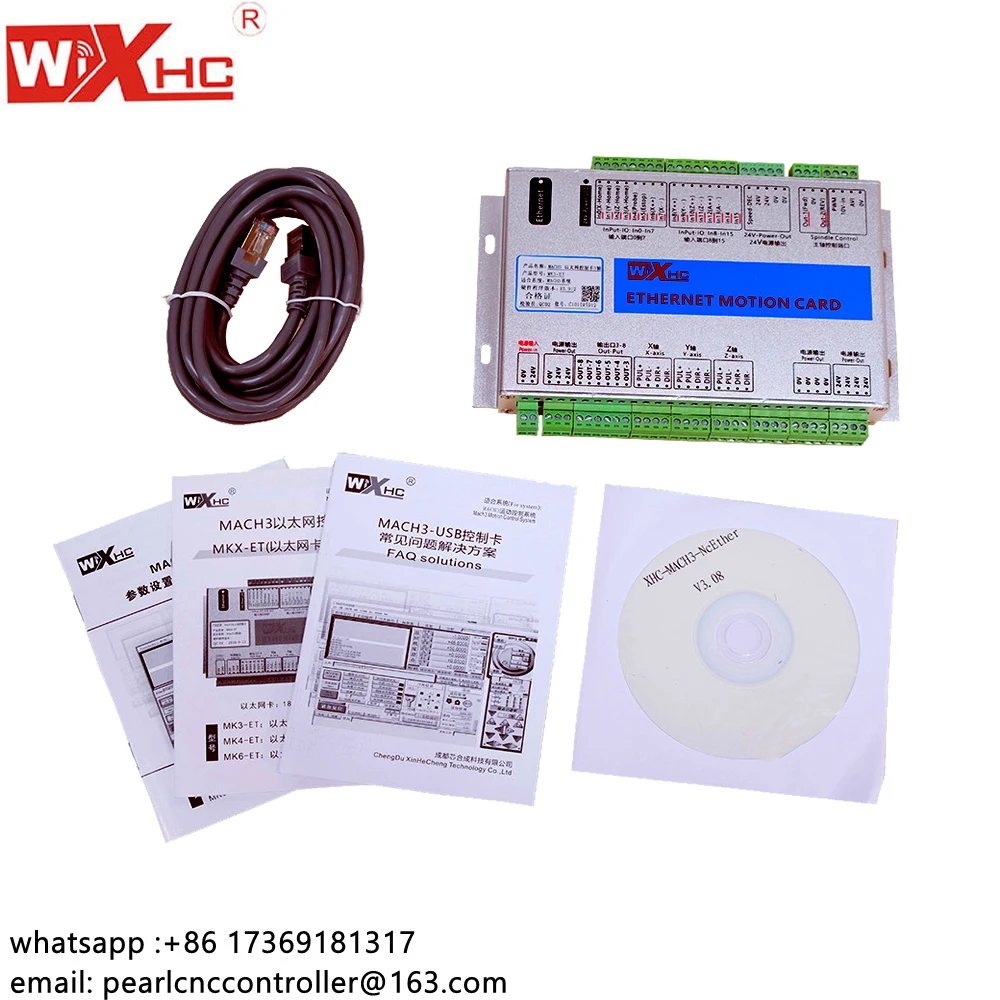

Accessories included: 1*CD+1*manual +1*USB cable+1*card board


MKX-ET- (10)








Shipping:





A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)


B25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.


C. We can arrange shipment by sea based on customer request or only send to china mainland for free shipping .














Our Services





1.We provide you the friendly English User manual or operating videos for free.


2.24 hours technical support by email or calling.


3.Warranty: 1 year free, 2-3 years cost price and free technical support always.


4. OEM/ODM accept . But the MOQ of OEM/ODM is at least 100 sets.
