Product Overview
Description

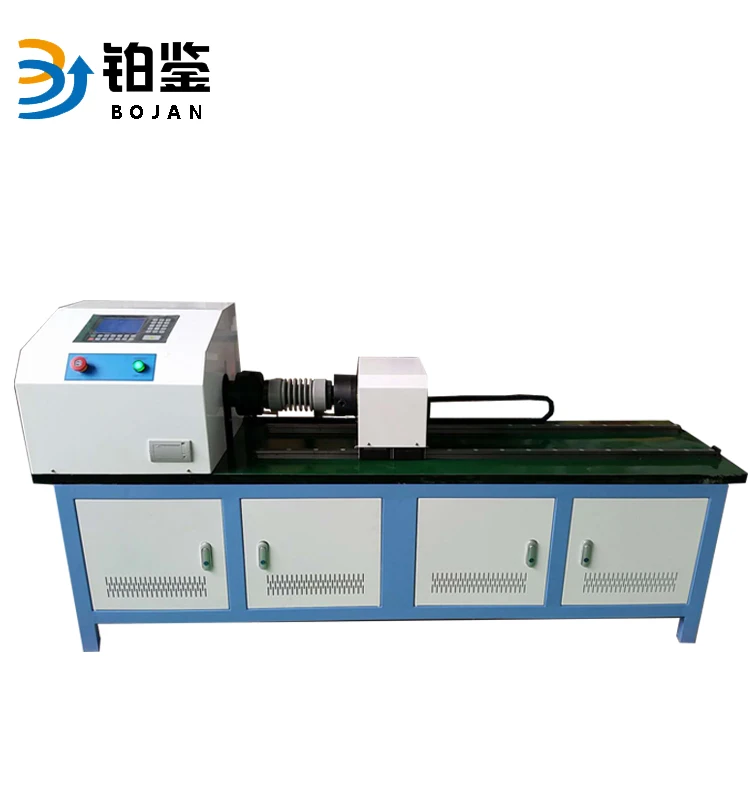

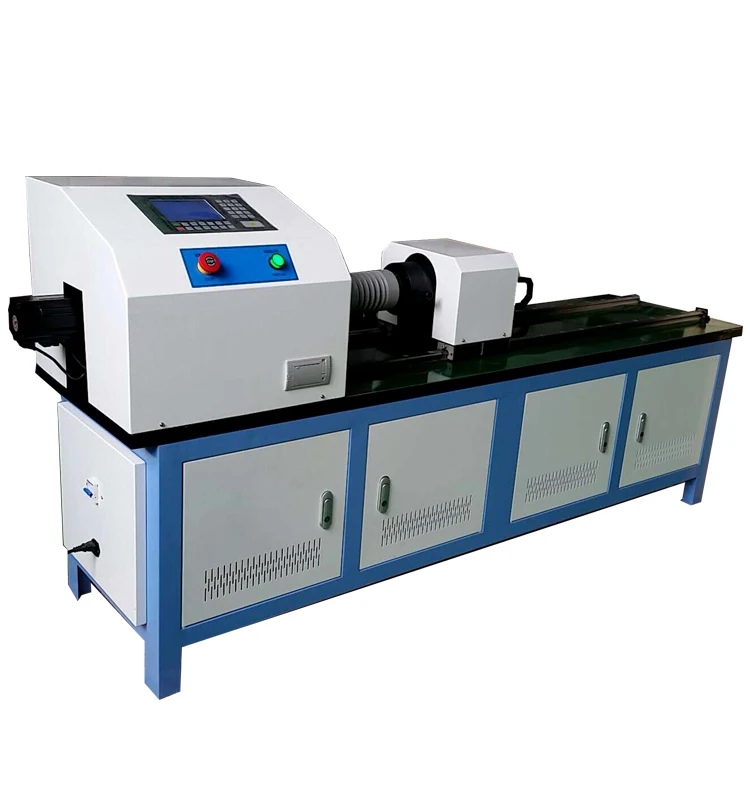

Torsion testing machine price
Product Description
Torsion testing machine is composed of loading system, transmission system, data acquisition, processing, control, display system, etc. It is suitable for testing the mechanical properties of various types of torsional elastic components, components, bolts and the like. The machine adopts horizontal structure, embedded high-performance single-chip MCU controller, liquid crystal display, full Chinese operation and display interface, display information is intuitive and easy to read, multi - key operation, and Chinese display interface make your operation easier. Completely follow the habitual prompt interface sequence to complete the system parameter settings. Using AC servo motor, precision reducer drive, with uniform loading, stability, no impact phenomenon, accurate data acquisition control.
Torsion testing machine uses the all-digital Test mart data acquisition and processing system and liquid crystal display system to perform multi point test on the torsional angle of the sample.
Technical Parameter
Maximum torque | 200N.m |
Effective side torque range | 4-200N.m |
Relative torque error indication | ±1.0% |
Torque resolution | 1/±100000 |
Twist angle measurement range | 0 ~ 1000 |
Torsion angle indication relative error | ± 1.0% |
Relative indication of speed indication | ±1 |
Clamping distance | 0 ~ 300mm (can be customized) |
Size | 1050*430*550mm |
Weight | 200kg |
Testing machine level | 1 |
Company Information
Certificate
Our advantage
Our partners
We are here
FAQ
1.Are you factory of trade company?
We are factory + trade company.
2.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after you received. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or Skype video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
3. What’s the delivery term?
Standard machines | In stock |
Customized machines | We can negotiate ( 7-60 days ) |
In urgent need | We can consider making a special arrangement for you |
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
5.How to install and use the product?
We will send you operating instructions, English video by Email. Most of our machines are shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.
6.How can I believe that after payment the goods to me?
We are honest and trust worthy supplier. we’re a member of alibaba trade assurance . It will guarantee of all of your payment.
