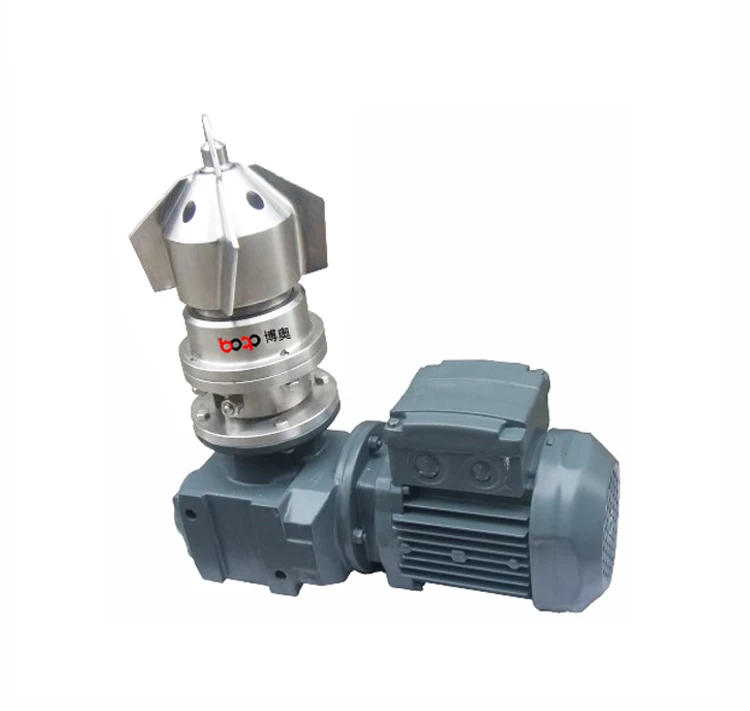

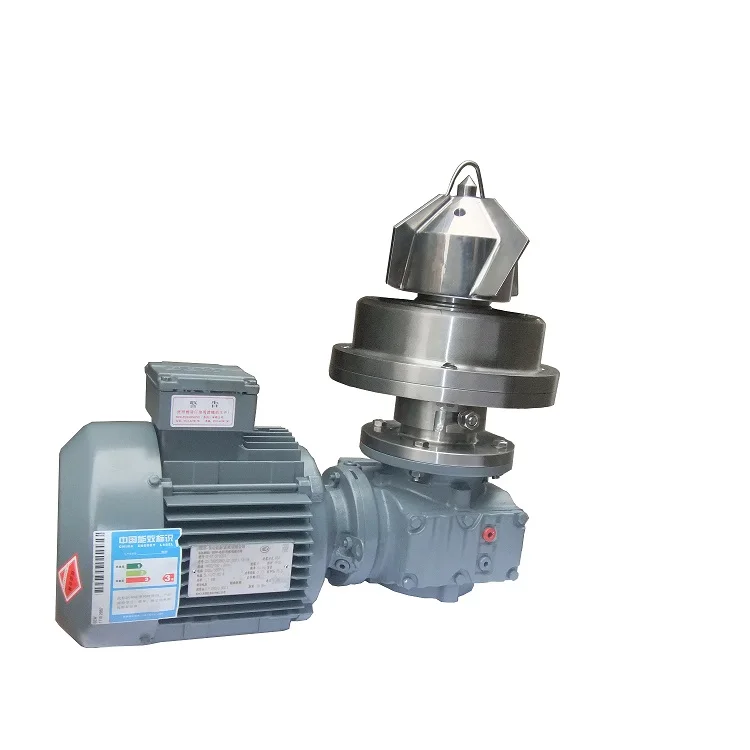

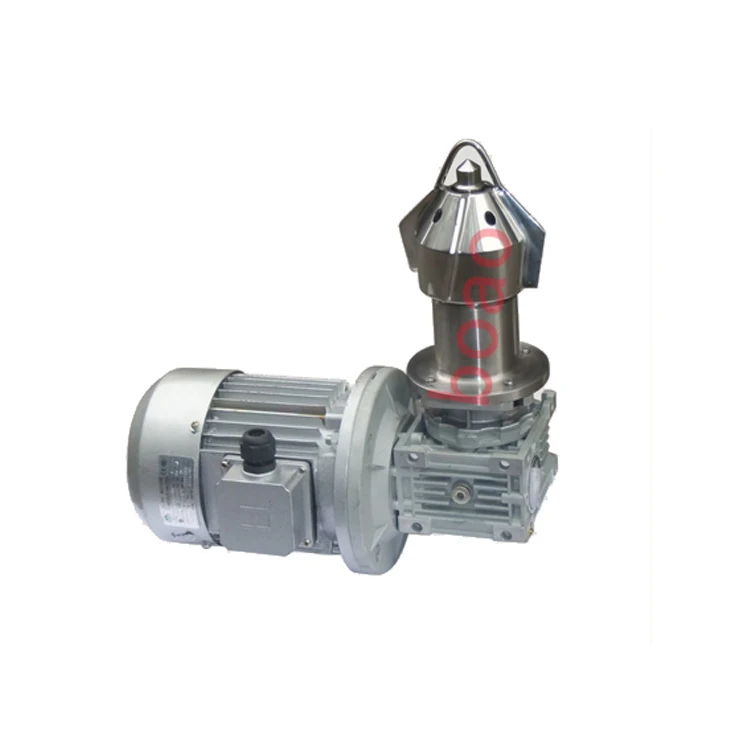

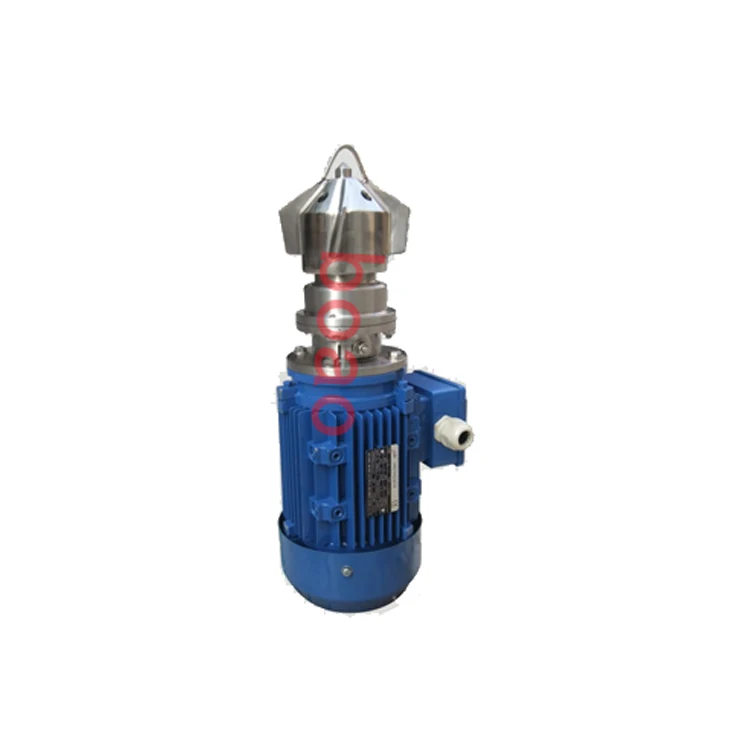

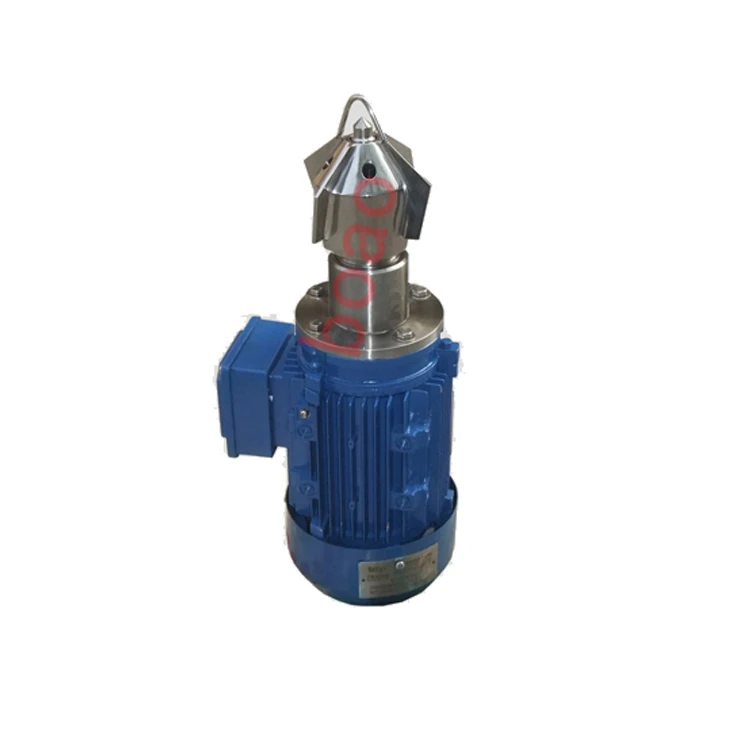

ACJ Series Bottom Magnetic mixer Operating Principle Technical Parameter Installing Dimension Documents Downloads 1.Product Desciption: ACJ and BCJ series is New design which is an improvement based on the CJ series. ACJ: BOAO makes disassemble of separation sleeve and tank available. Connection by the welding flange ,which is more conform with “Pressure Vessel standard” and much easier for maintenance when any trouble shooting. The sealing style between of separation sleeve and welding flange also keeps cleaning without any dead spot.
Application Bottom entry magnetic agitator ,which is also call magnetic mixer, which presents a highly hygienic solution for the applications of dispersion, dissolution, homogenization and mixing of a wide range of media in the pharmaceutical industry. The magnetic agitators are especially useful in sterile processes; absence of mechanical seals prevents any contact with the exterior environment. The most common applications are dissolution of glucose in dematerialized water, maintenance of vaccine suspensions homogeneity and agitation of blood fractions, also for pharmaceutical such as vaccine mixing.
2.Working principle: Operating principle1. The mixing impeller produce a vortex ,which sucking the soluble powder or liquid towards to the impeller 2. After reaching the impeller, the fluid flows in a radial direction rush to the tank wall by the centrifugal force of impeller. 3. After reaching the tank wall ,the fluid travels upwards and then circulation down to the suction end of impeller. 4. The overall bulk movement and the mixing action around the mixer ensure that a homogeneous ,mixing ,dissolving, dispersing, is achieved.
3.Technical parameters: Design and features High blending capacity with low shear. Magnetic coupling. No risk of leakage. CIP/SIP design. Bayonet coupling for easy assembly/disassembly of the drive unit. Low power consumption. Effective blending even of small volumes. Very low particle generation. Bottom mounted. Excellent for suspensions. Practical when there is no much space at the top of the tank. Frequency converter recommended. Autoclavable agitating element (with previous disassembly of the drive unit).
Product Name
Bottom Magnetic Mixer
Material
SS304,SS316L
Working Temperature
-30-200℃
Feature
Whole Seal,No leakage,Simple structure,Easy to dismantle and clean,No-dead Angle
Buyer offer Info.
Tank's capacity and Dimension,with jacket or not,Medium(Viscosity),Pressure,Material,and other request,then we can suggest our model for you.
Certificate
Packing & Delivery
Company Introduction
Our company BOAO Mechanical Manufacturing Co.,Ltd,is a famous high-end sanitary pump supplier in China,established in the year 2003,experienced in the polishing machine,Food Grade Emulsifier,pump,mixer producing and researching and developing,our product quality is stable.
BOAO adopts the CNC machining center,CNC lather advanced processing equipment to produce the high quality products.
BOAO awarded multiple pump and mixer's patents.
Our company provide:design,simulation experiment test and manufacturing integrated production through the COMSOL Multiphysics.
FAQ
Q:Warranty
A:1year.
Q:Can the mixer/homogenizer/pump be customized?
A:Yes,we can customize the mixer according to customer's working condition.
Q:Packing
A:Plywood case,carton,also can packing according to the customer's requirement.
