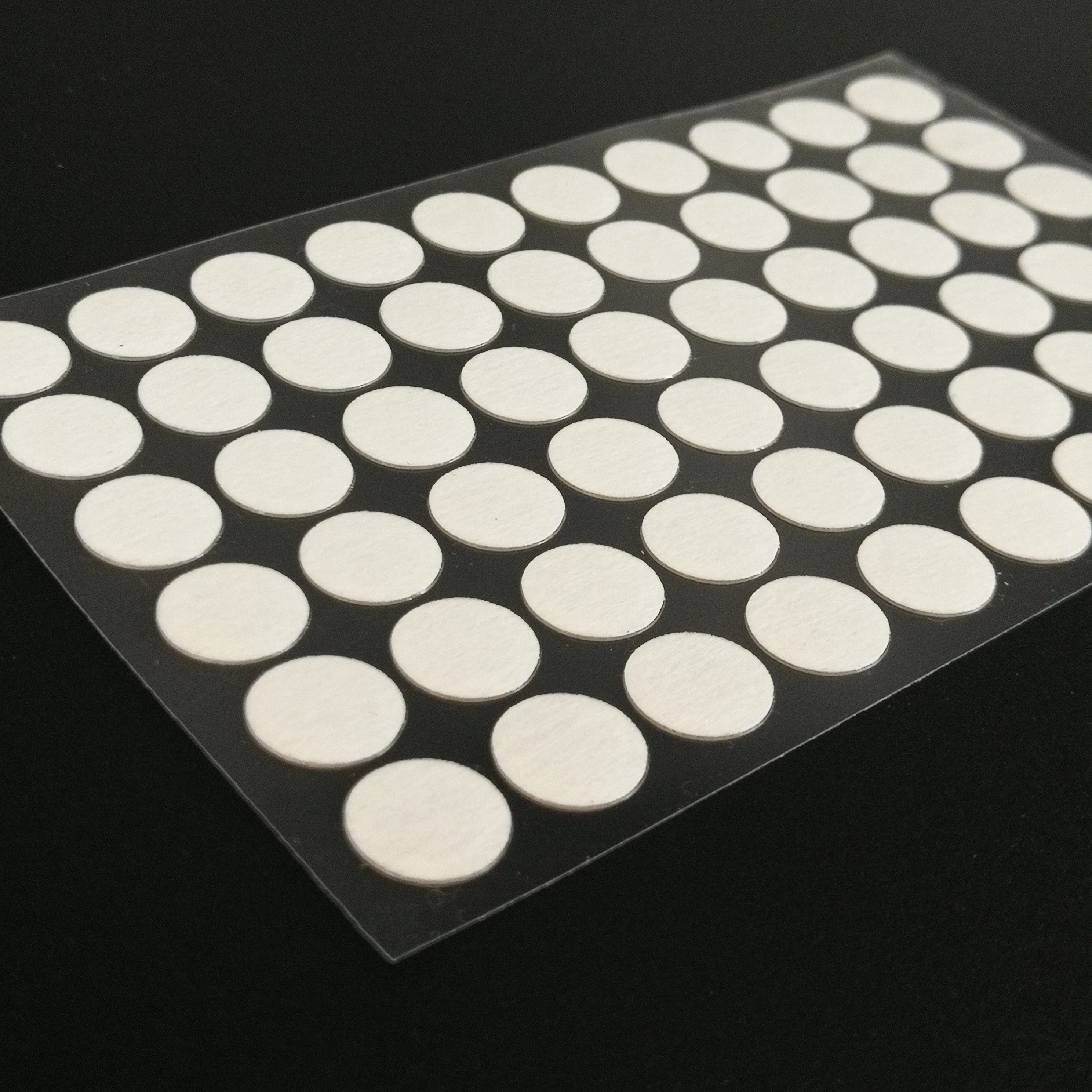

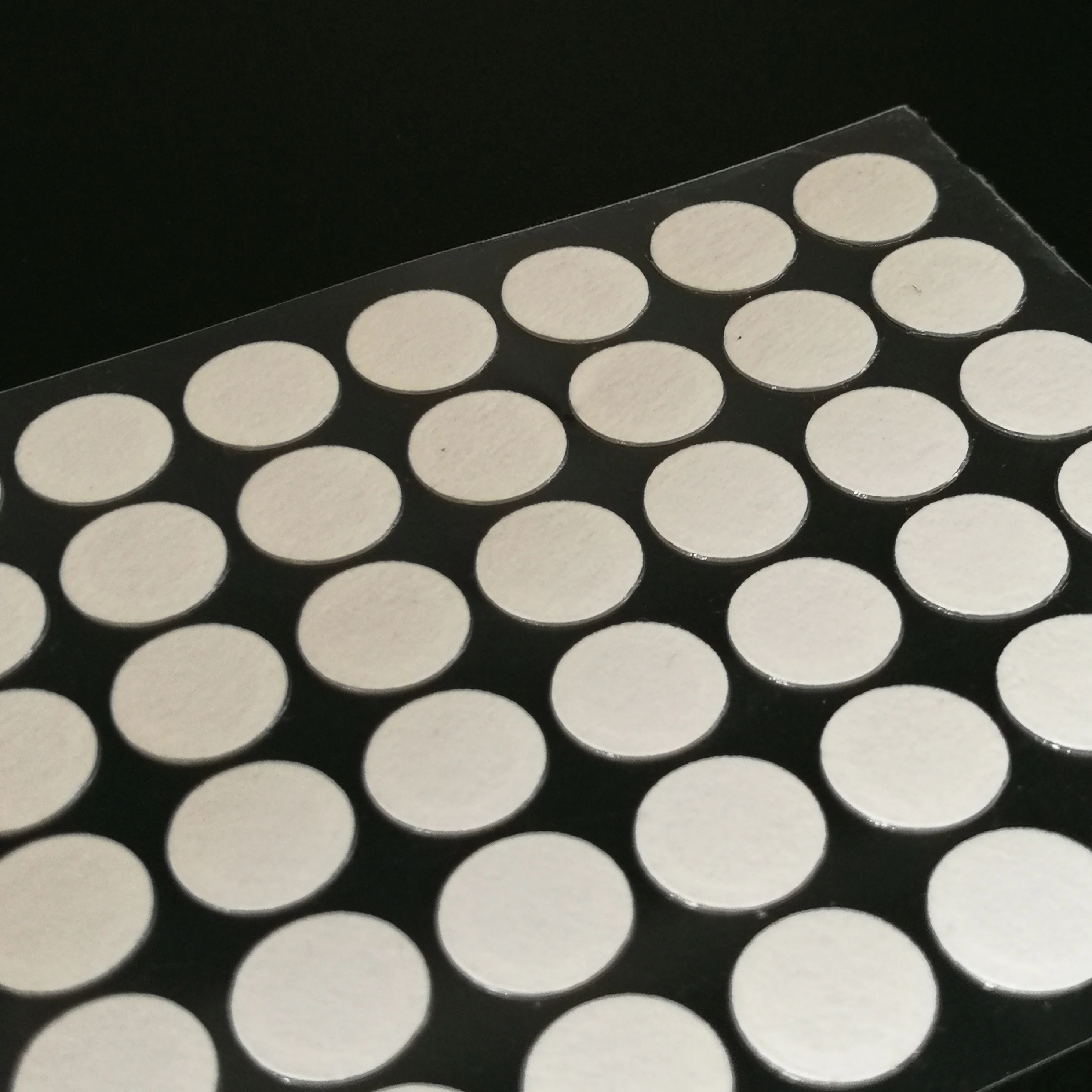

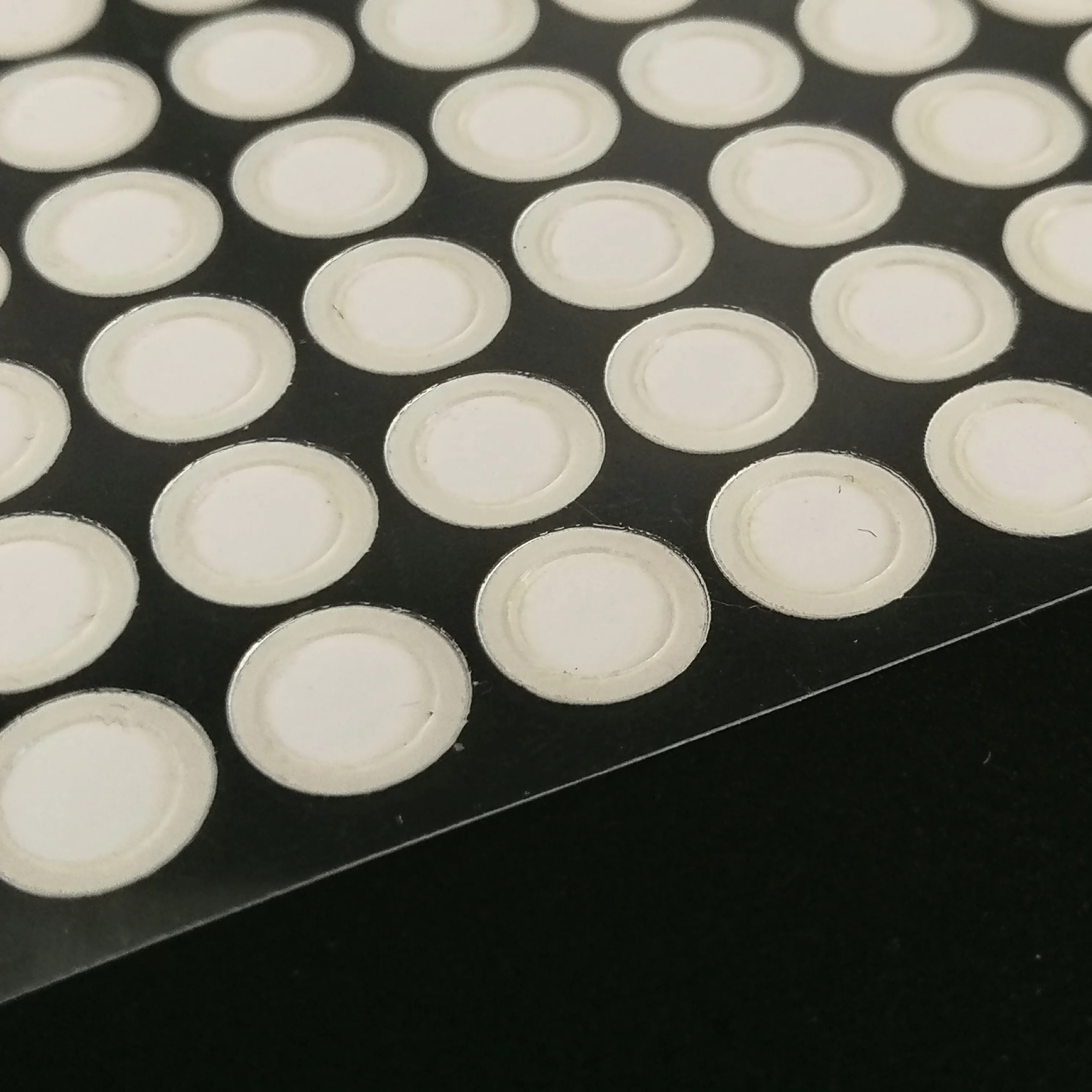

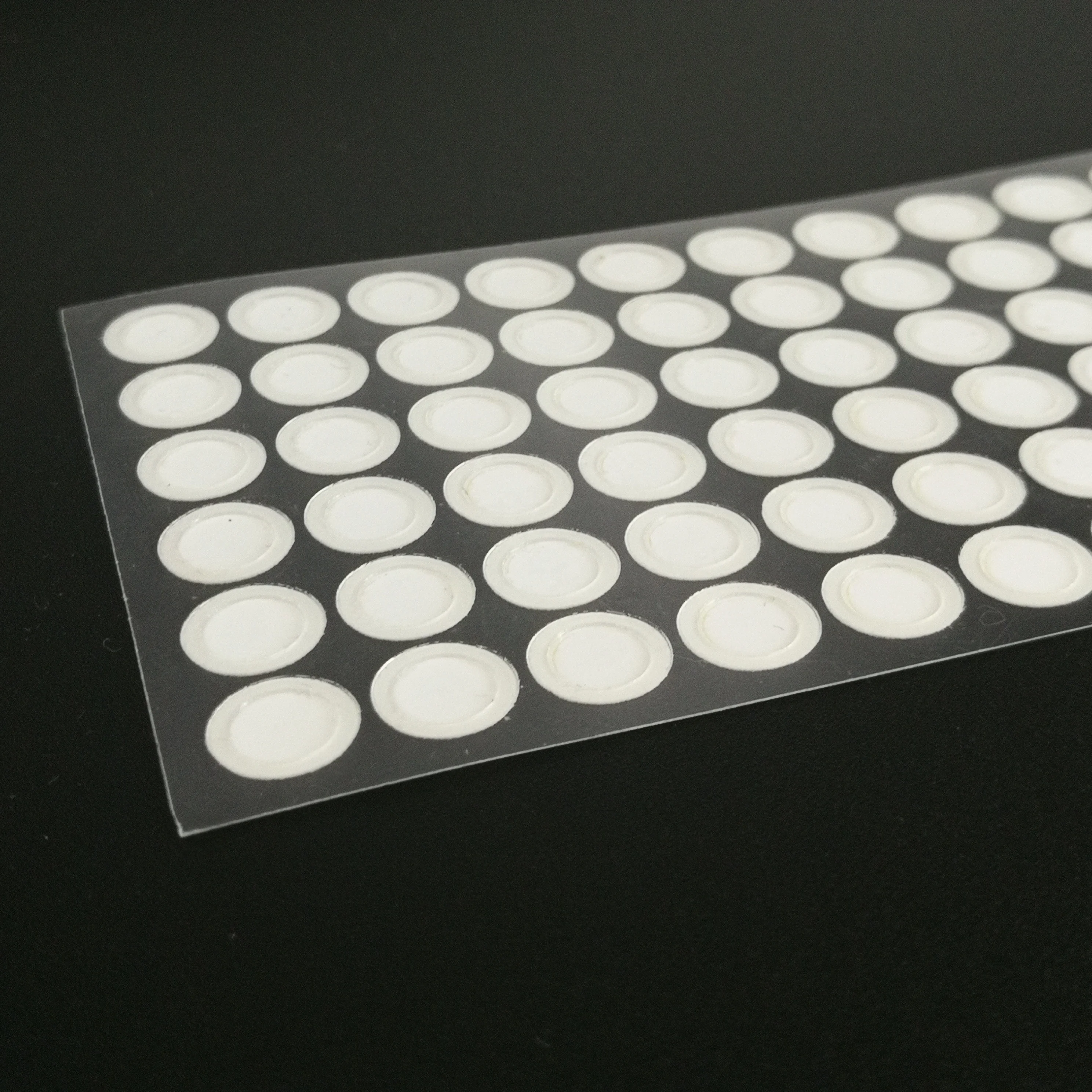

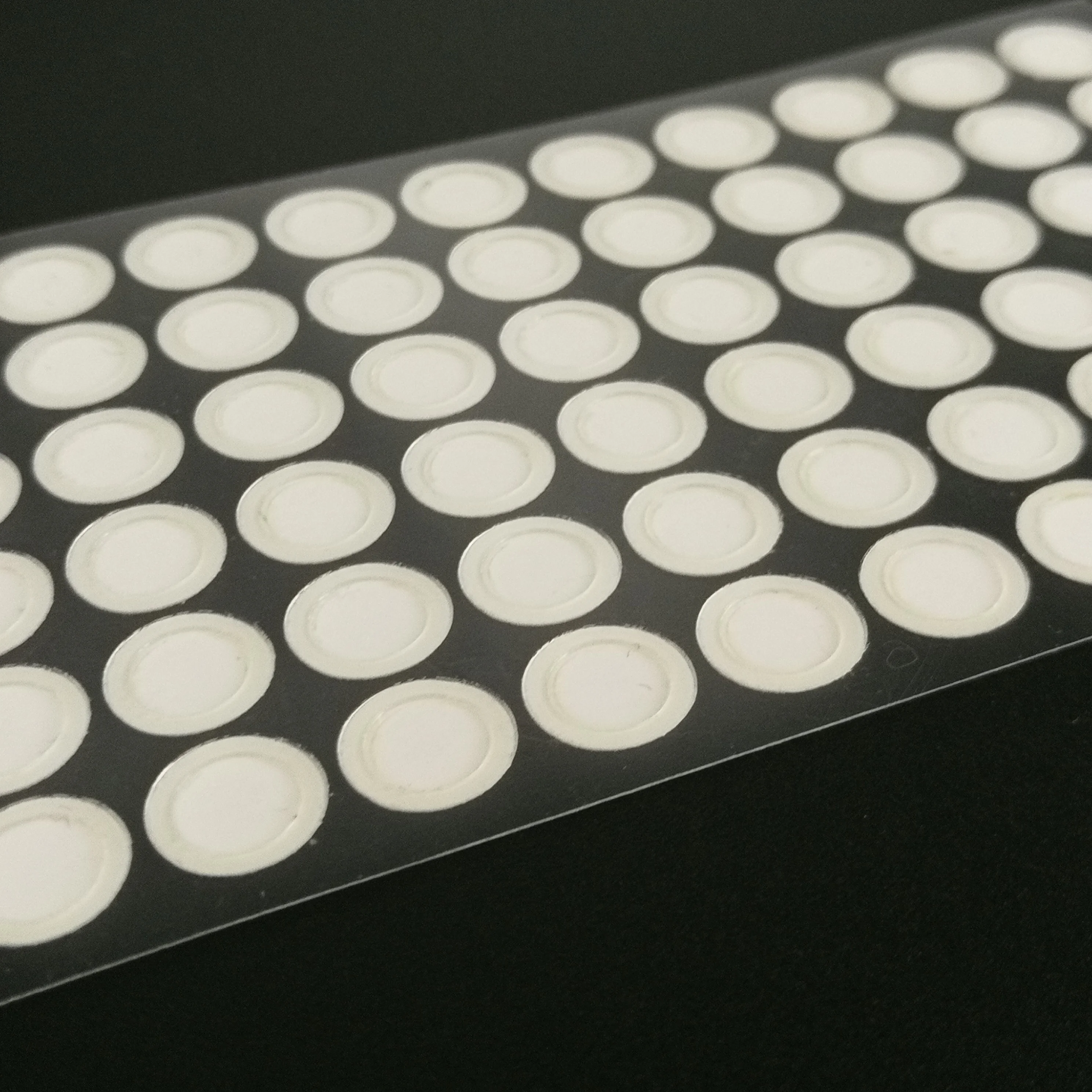

Electronic device breathable waterproof dustproof PTFE Vent Membrane

Product Overview

Description





.PN	WEP	Airflow@70mbar		Thickness   mm	Color	Oleophobic		IP Rating	Temperature
SP832	14.5psi	1000-1600ml/min/cm²		0.12-0.15	Black			IP67	-40~125℃
SR130	8psi	5000-6000ml/min/cm²		0.1-0.15	White			IP67/IP68	-40~125℃
SR132	10psi	4000-5000ml/min/cm²		0.12-0.14	White			IP67/IP68	-40~125℃
SR135	14.5psi	3500-4000ml/min/cm²		0.12-0.15	White			IP67/IP68	-40~125℃
SR450	21psi	1000-2000ml/min/cm²		0.15-0.2	White			IP68	-40~125℃
SR452	14.5psi	1000-2000ml/min/cm²		0.12-0.16	White			IP67/IP68	-40~125℃
SR455	21psi	800-1300ml/min/cm²		0.15-0.2	White	6		IP68/IP69K	-40~125℃
SR457	14.5psi	1300-1600ml/min/cm²		0.15-0.2	White	7		IP67/IP68	-40~125℃
SR458	29psi	1000-1700ml/min/cm²		0.17-0.22	White			IP67/IP68	-40~125℃
SW001W/B	43.5psi	200-300ml/min/cm²		0.15-0.2	WT/GY			IP67/IP68	-100~250℃
SW002	58psi	100-200ml/min/cm²		0.25-0.3	Gray	6		IP67/IP68	-100~250℃
SD221	80psi	800-1000ml/min/cm²		0.15-0.2	White			IP67/IP68	-40~125℃
