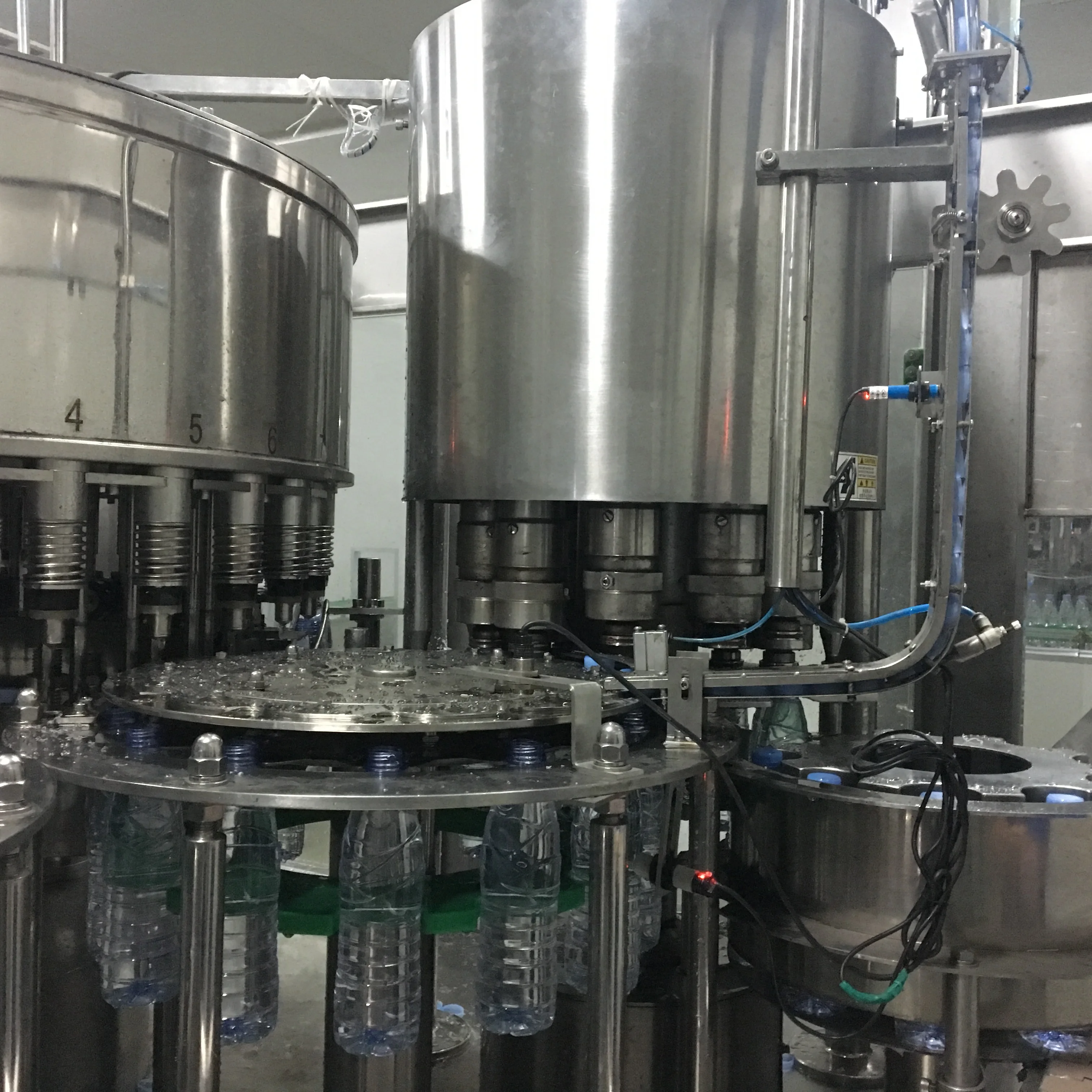

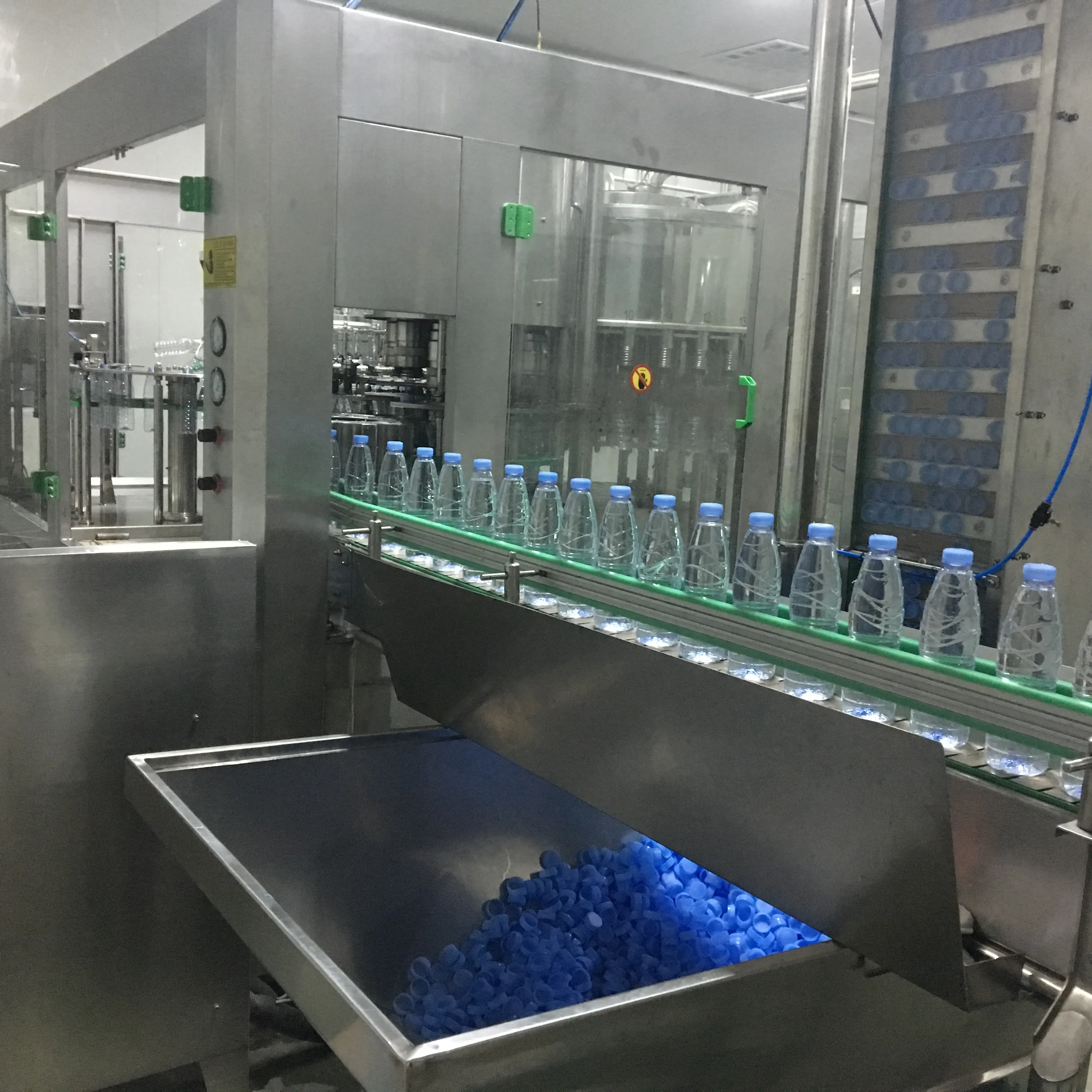

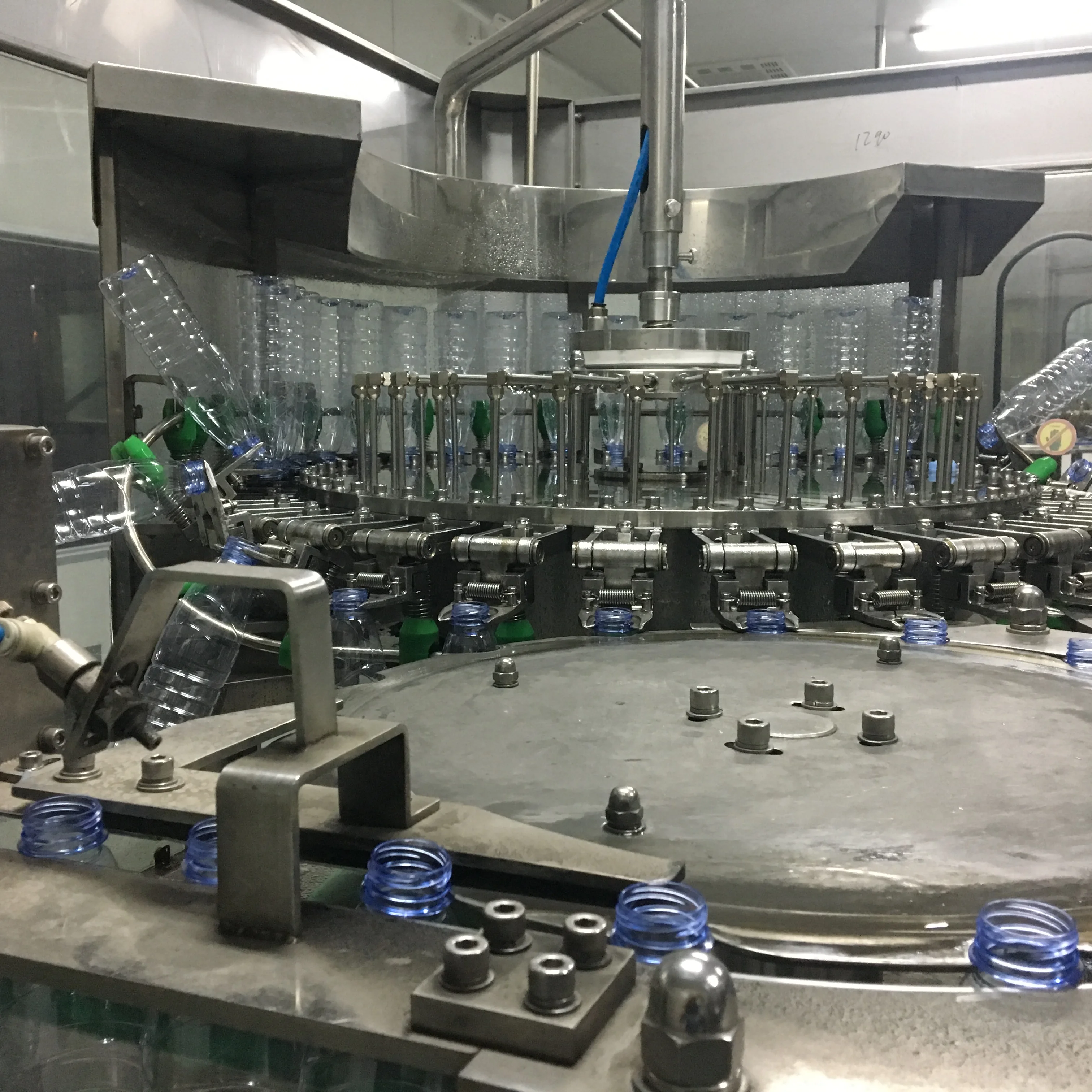

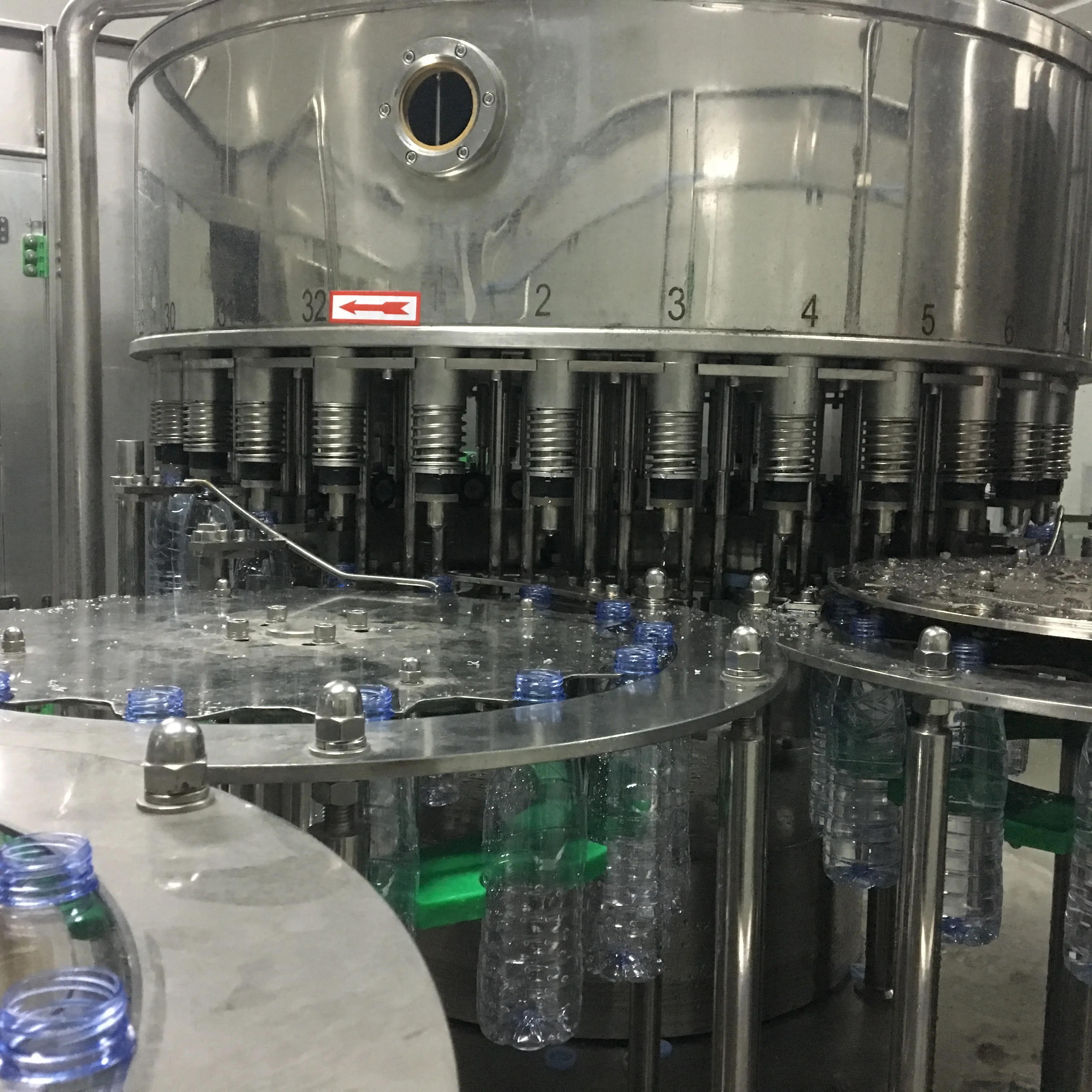

Fully automatic pure water bottling machine monoblock washing filling capping 3 in 1 machine

1.Complete set includes air conveyor, monoblock rinsing filling capping machine and discharge conveyor.
2.Compact design saves space.
3.Heavy duty carbon steel tubular frame makes machine stable and durable enclosed with stainless steel sheathing secured to the tubular frame.
4.All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material
5.All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.
6.Rinsing, filling and capping are integrated into one.

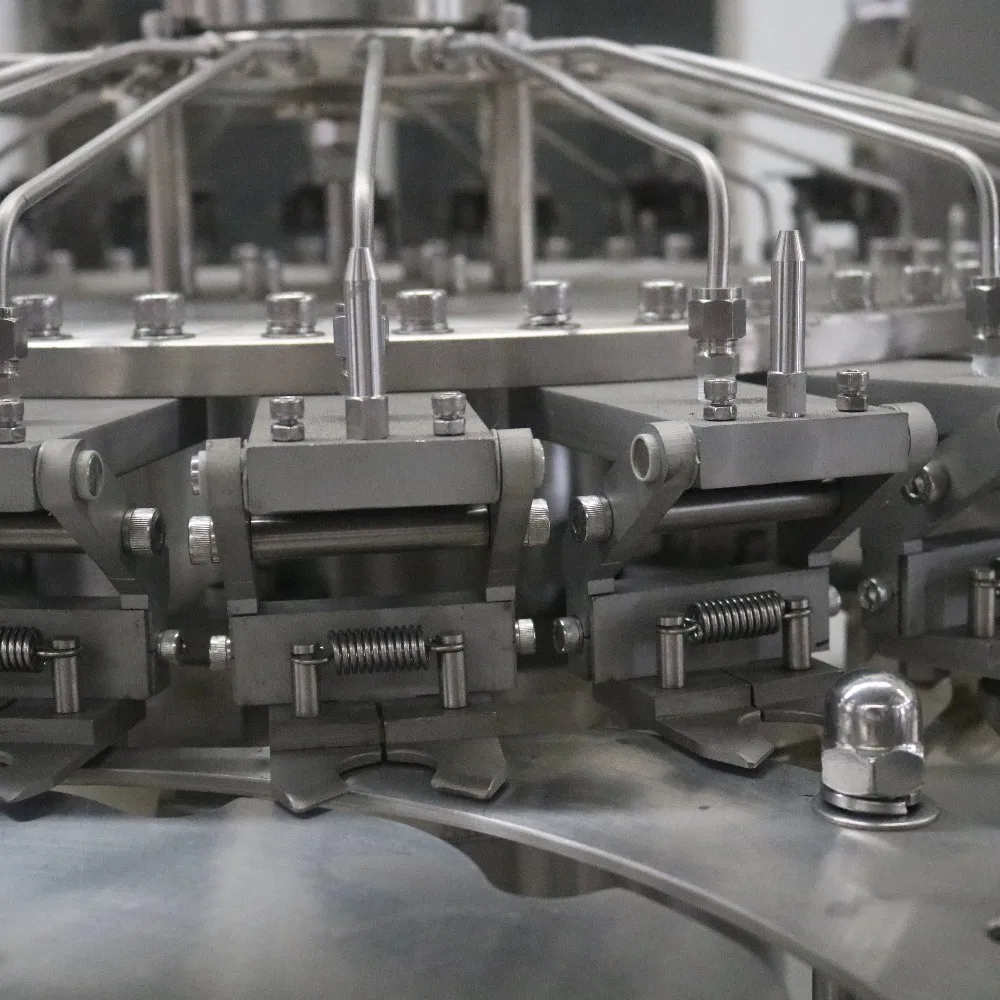

7.Unique design bottle neck suspend system makes bottle move smoothly.

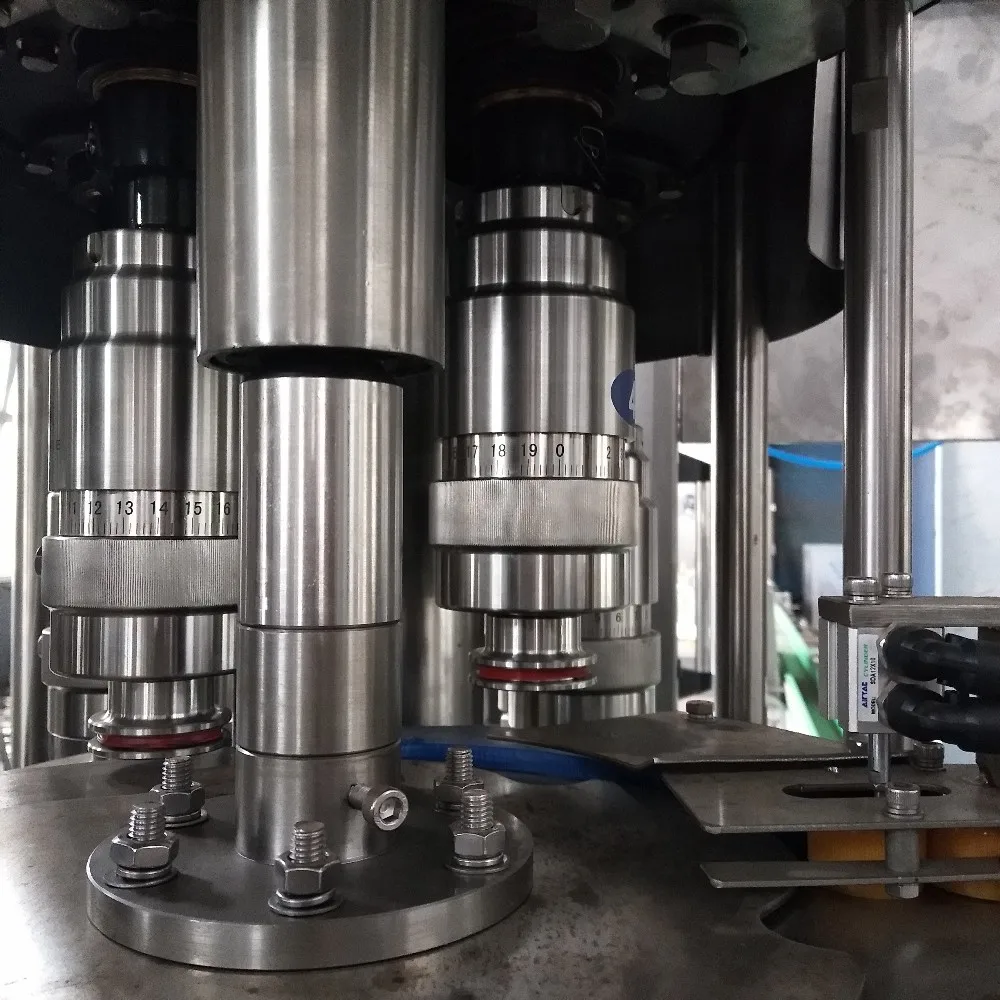

8.Precise and accurate fill-to-level valves give even filling in all bottles at same level.
9.No bottle, No filling.

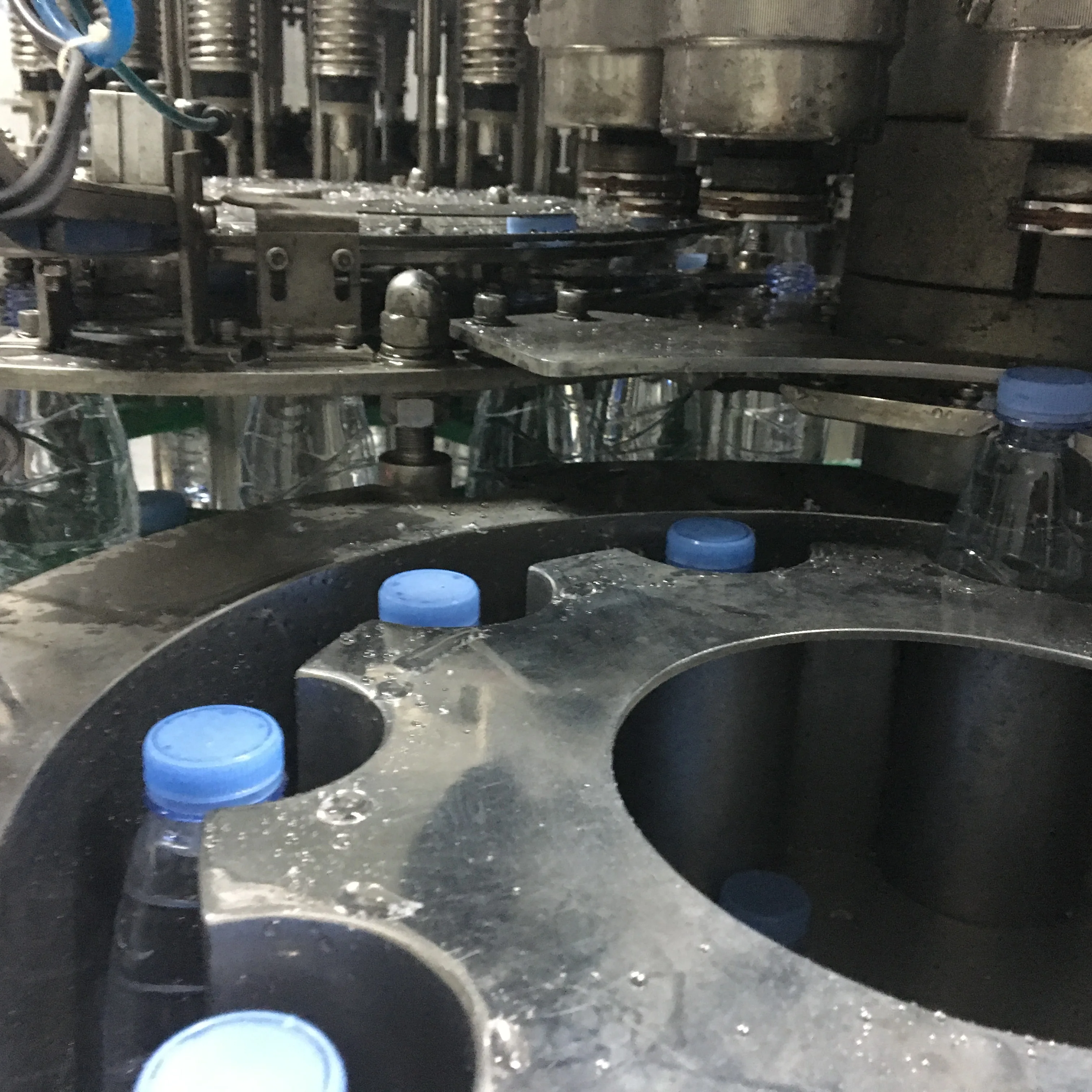

10.Magnetic capping head eliminates over-tightening of caps.
11.No bottle, No capping.
12.Fast and easy changeover for various bottle sizes minimizes down time.
13.PLC control and friendly touch screen HMI interface.
14.Adjustable speed by inverter
15.Easy to operate, clean and maintain

Accessories

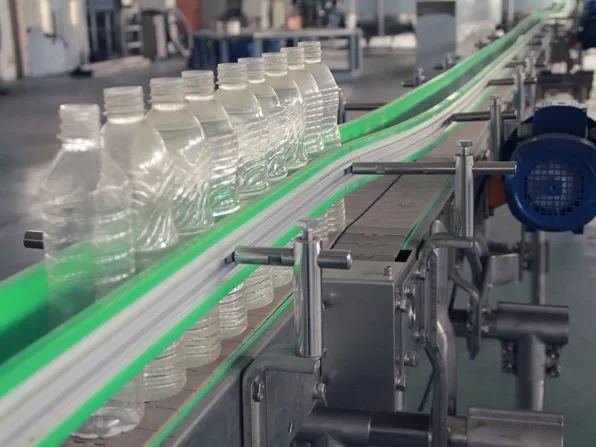

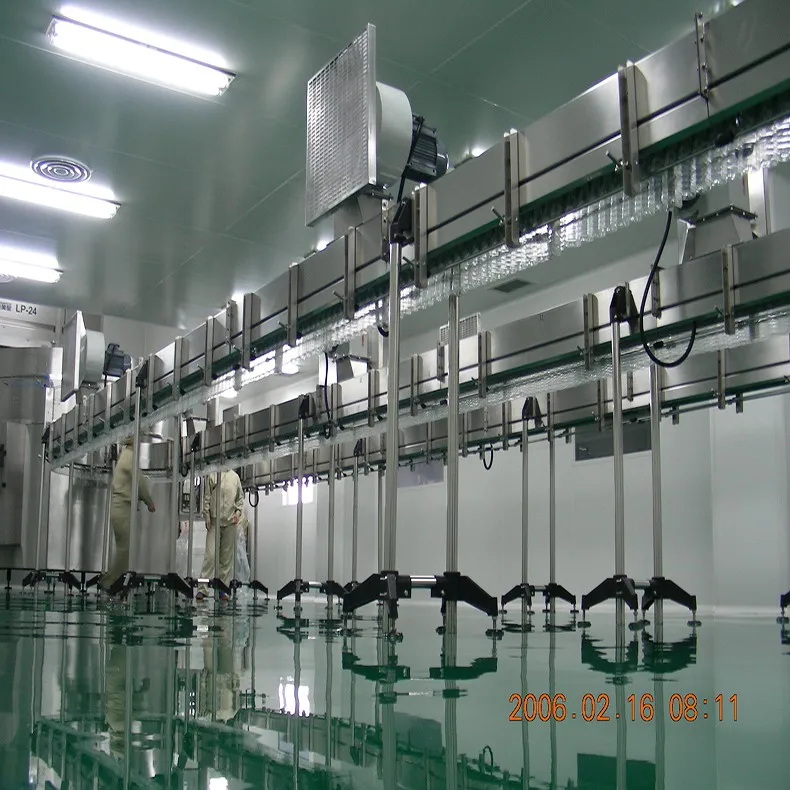

1.Infeed air conveyor with Blower
2.Outfeed conveyor with tabletop slat chain
3.Automatic cap elevator/feeder

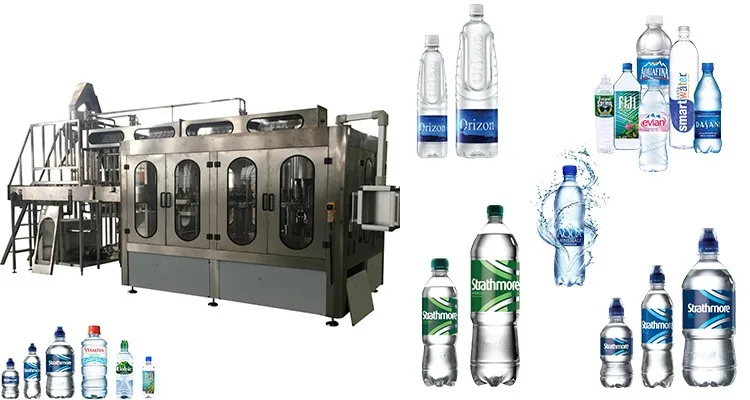

1 - It can apply to fill natural spring water, purified water, carbonated water,flavored water into PET bottle by changing few spare parts.

2 - Its usual production capacity is in 1,000-25,000bph, 0.25-2.5L PET bottle is available.

3 - Automatic Water Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304/ SUS316.

4 - Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS.

5 - Filling accuracy is more or less than 1%.

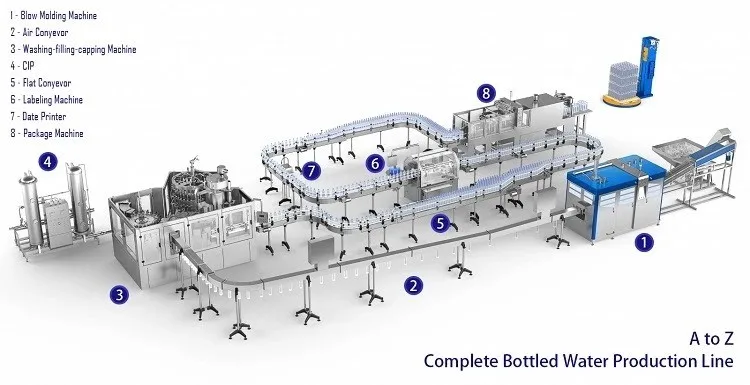

6 - We can provide complete beverage ideal solution - blowing. filling. packing for PET bottle.

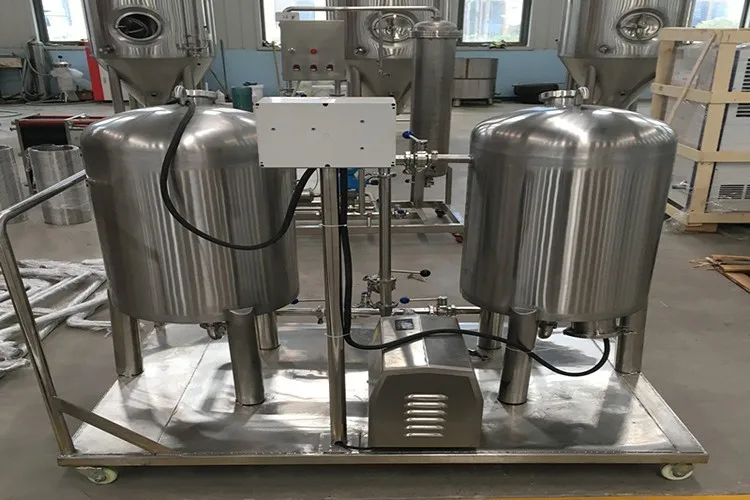

B-Automatic CIP clean-in-place system

Automatic CIP clean-in-place system
CIP is specially designed for the clean up of beverage production line and filling equipment, with three cleaning sections of acid, alkali and hot water, in which temperature can be set up for acid, alkali and hot water.
CIP is specially designed for the clean up of beverage production line and filling equipment, with three cleaning sections of acid, alkali and hot water, in which temperature can be set up for acid, alkali and hot water. A new generation of touch screen operation, which is both open-and-shut and easy to handle.
Characteristics:
1.This CIP cleaning system can be used in food,drink,and medicine process indusry.
2.It makes the production plan reasonable and improve the product ability.
3.Clean and disinfect circularly the whole production line without being dismantled or opened.
4.Prevent the dangers during the cleaning work,as well as saving the labor force of workers.
5.Save the cost of the cleaner,steam,water and other output cost.
6.Extend the service life of machines including the pars.
7.Three optional types: Manual system,semi-automation system,the full-automation system.

C-Water Treatment

Available water treatment systems

1 / Pure water - RO Reverse osmosis treatment

2 / Mineral water - Hollow filter water treatment

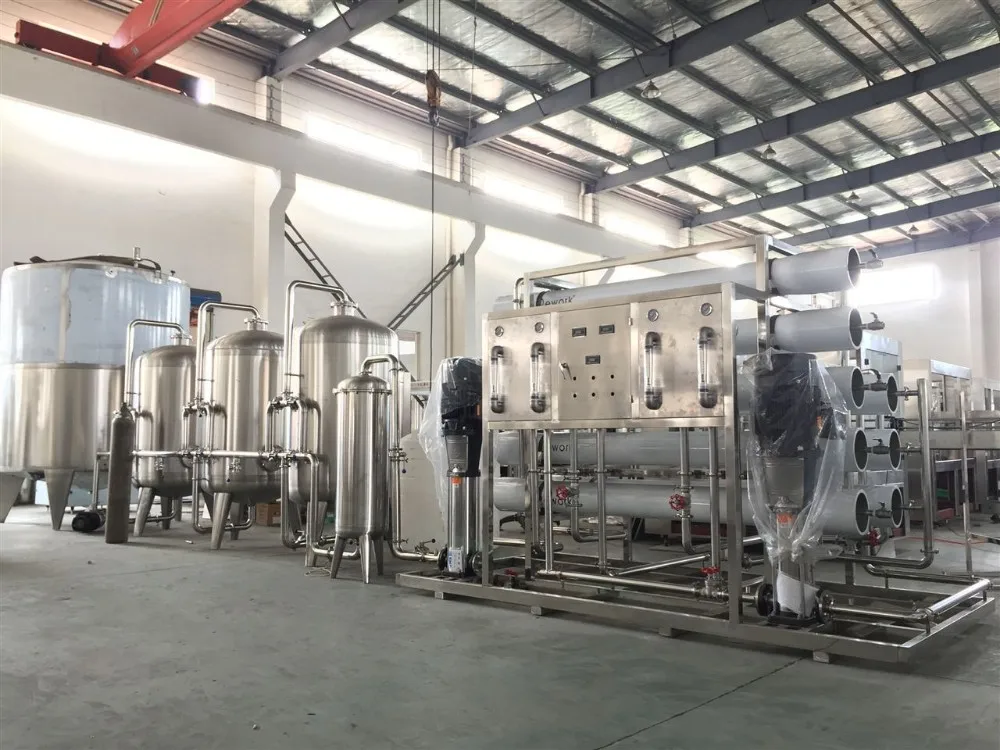

Pure Water - RO Water Treatment System.
1 - Raw water tank + Raw water pump
2 - Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 - Reverse Osmosis (one level)
4 - UV sterilizer
5 - Finished water tank + Pure water pump
1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

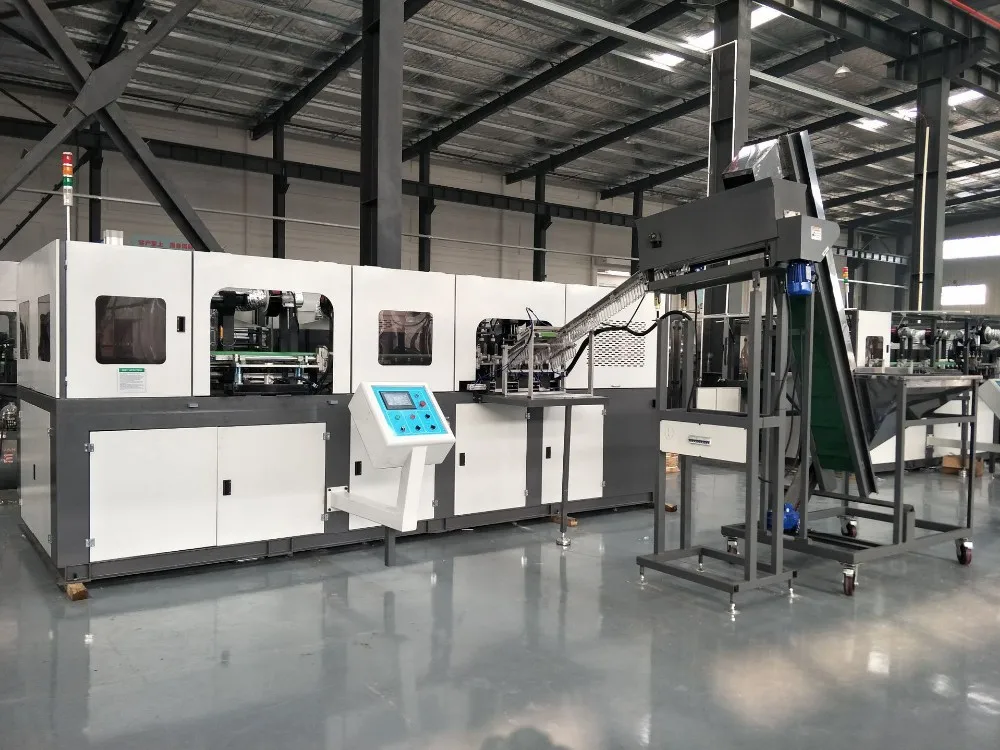

D-PET Blowing Machine

Bottle Making Machine.
1 / Full automatic bottle blow molding machine
2 / Semi automatic bottle blwoing machine<0.1-5L><5-25L>
3 / Semi automatic hot filling bottle blow molding machine
Suitable Bottle Volume.
1 - Plastic Bottle 0.1 - 3L
2 - Hot Filling Bottle 0.3 - 2.5L
3 - Gallon 2.5 - 5 Gallon
4 - Oil Bottle 0.1 - 6L
5 - PP Bottle 0.3 - 2.5L

Main features.

1 - Stable performance with advanced PLC.

2 - Conveying preforms automatically with conveyor.

3 - No contamination and low noise with the air cylinder to drive the action not the oil pump.

4 - Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

5 - Strong clamping force with high pressure and double crank links to lock the mold.

Flow chart.

High Pressure Air Compressor -- Air Tank -- Air Fiter -- Air Dryer -- Low Pressure Air Compressor -- Air Fiter -- Full Automatic Blow Moulding Machine -- Mould -- Water Chiller

E-Labeling systems

Available labeling type.

1/Heat shrink sleeve labeling machine < Single head > < Double head >

2/OPP Hot melt labeling machine

3/PVC label stick labeling machine < Single side > < Double side > < Three side >

Choose your suitable label type

1/PVC/PET shrink film label.
Widely used in food, beverages, mineral water and daily products.
Material: PVC heat shrinkable film, PET heat shrinkable film.
PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;
PVC/PET heat-shrinkable labels printed flattened folding diameter: not more than 270mm;
Height: according to customer requirements;
Thickness: 3 wire to 5.5 wire, according to customer requirements, roll or cut sheet can be;
Color: Up to 9 colors
2/Sticker label.
Material: Coated paper, Synthetic paper, BOPP.
Color: Up to 9 colors.
3/OPP label.
Material: PVC heat shrinkable film PET heat shrinkable film;
PVC shrinkage: longitudinal shrinkage 1%-4% lateral shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1%-3% lateral shrinkage 70%.

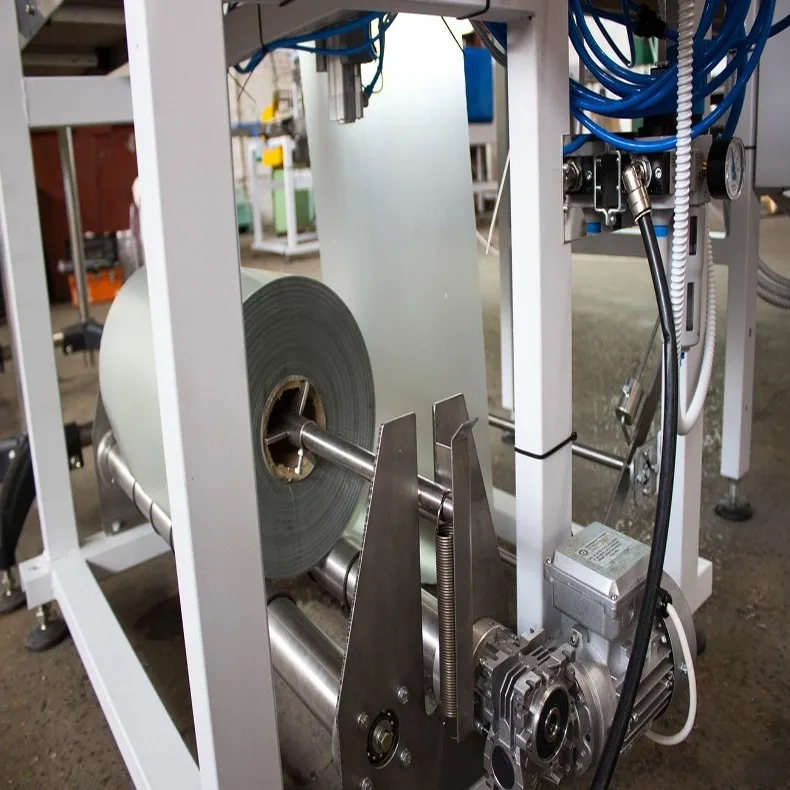

1/Body is built with stainless steel, aluminum alloy and square steel tubes.
2/welded tubes ensure stable and smooth operations at high speed performance.
3/Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness.
4/Round plate type suction label.
5/Automatically detect and adjust the production speed
6/Emergency Stop Safety Device disables the machine when senses an abnormality.
7/Automatic tension control.
8/Automated label proofreading and Cutting System.
9/Automatic warning system and alarm will be activated when it is out of label.

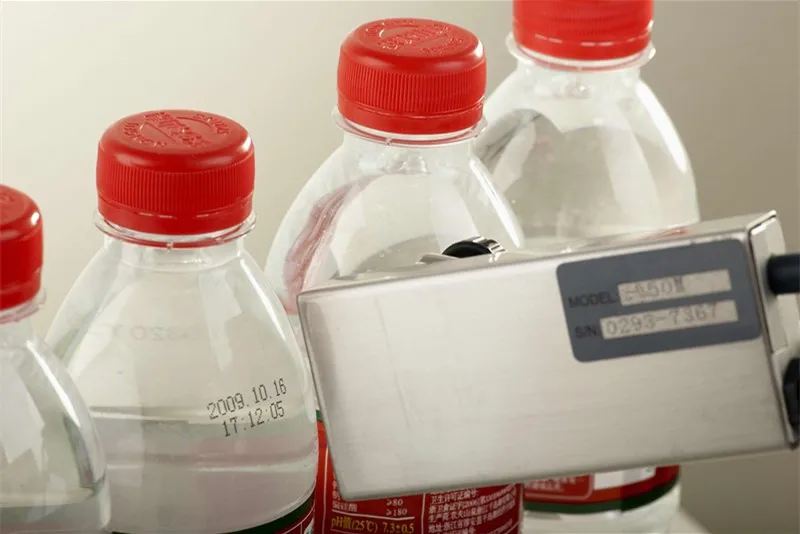

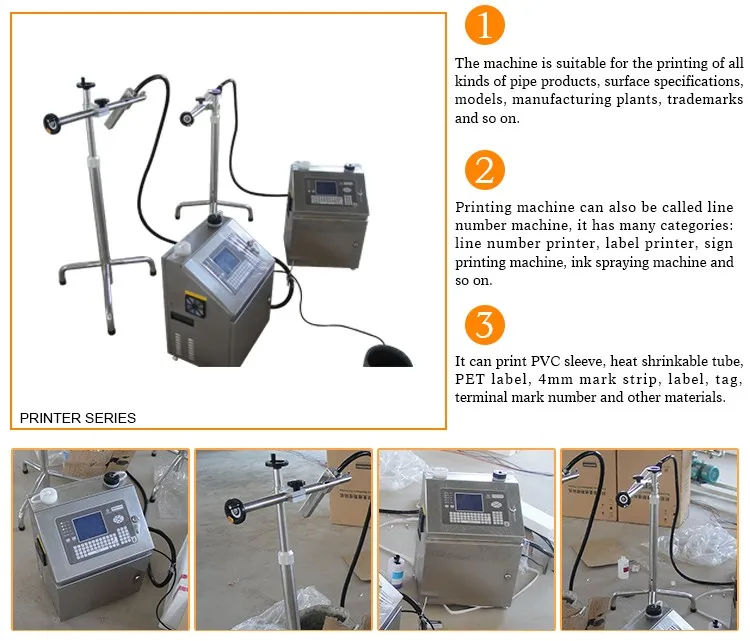

F-Date Printer

Available packing type

1 - PE film.

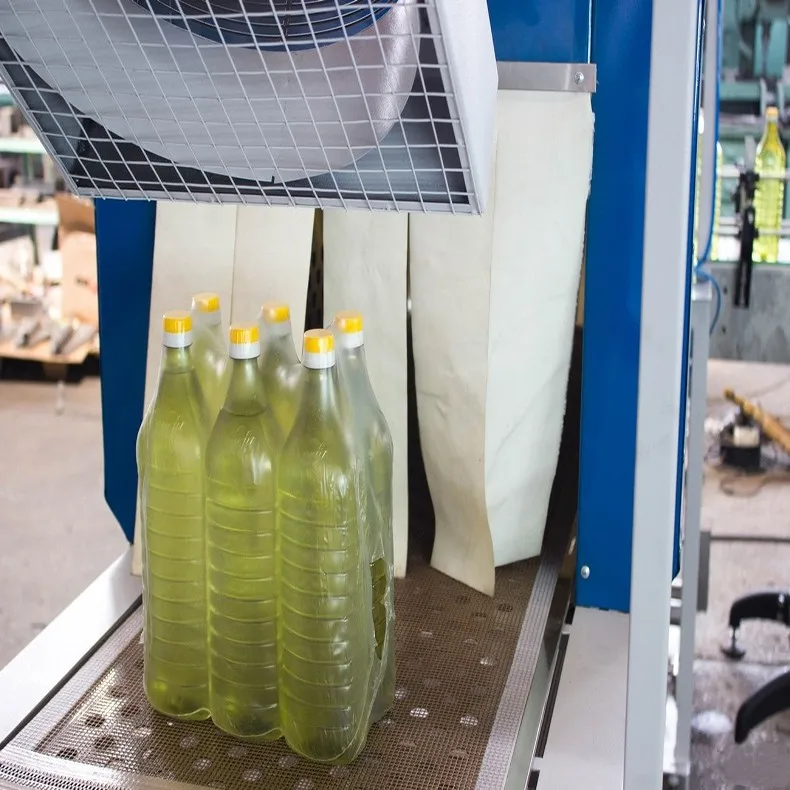

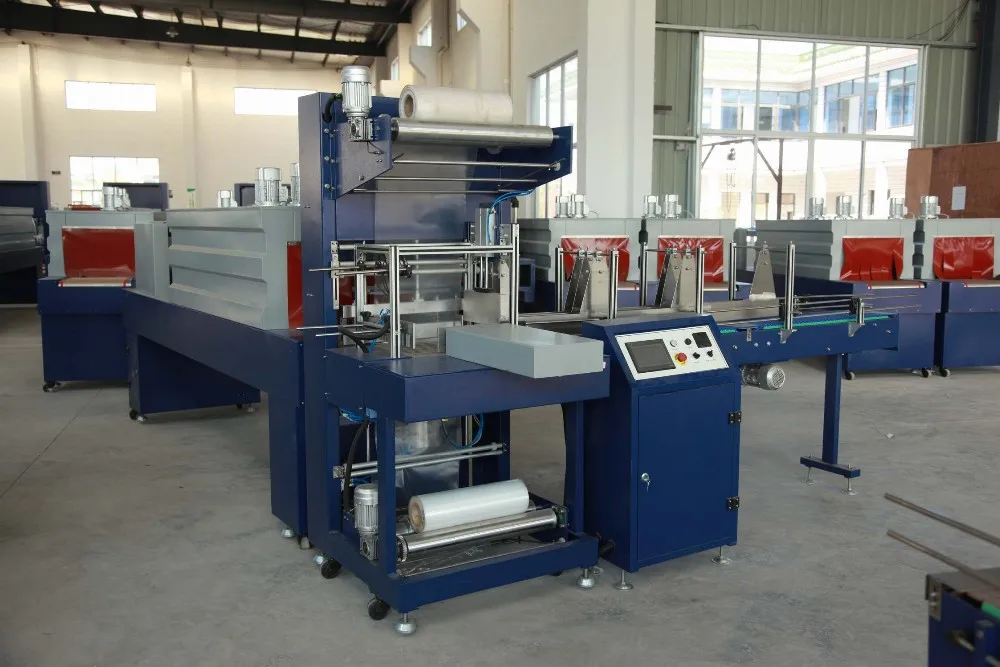

1/L-type Automatic Shrink Wrapping Packing Machine.
2/Semi-automatic Shrink Wrapping Machine.
3/Linear type PE Film Shrink Wrapping Machine.
2 - Half-tray with PE film.

1/Linear Type Automatic Half-tray PE Film Shrink Wrapping Machine.
3 - Carton box.
1/Cardboard Type Carton Packing Machine.
2/Carton Forming Packing Sealing Machine.
