Factory supply 6m single arm smart pole ,antique street light pole for smart city
- Category: >>>
- Supplier: Minghui Lighting Co. Ltd.
Share on (60795233531):
Product Overview
Description

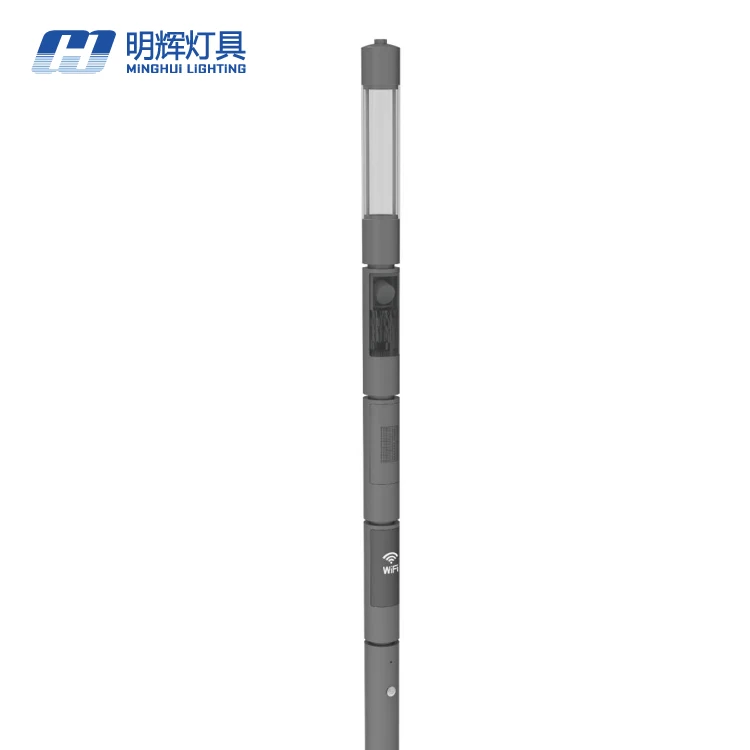

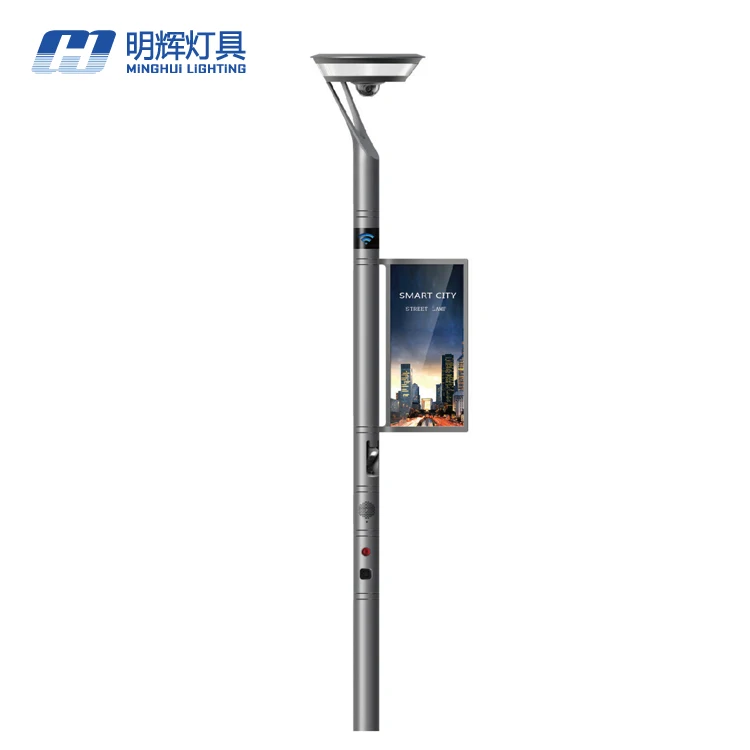

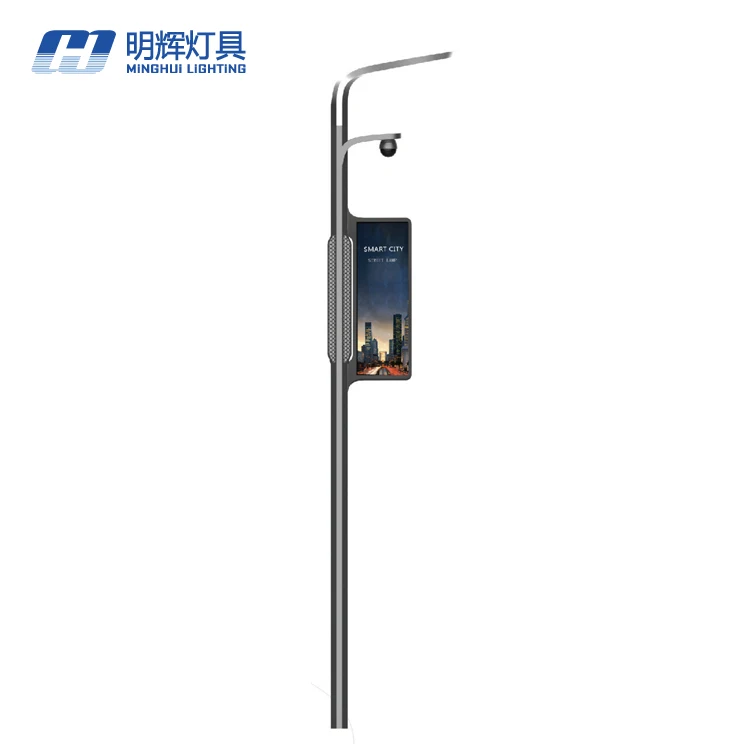

Factory supply 6m single arm smart pole ,antique street light pole for smart city
Product Description
Smart street light pole 's feature
1.The pole is made of galvanized steel pipe and Q235 carbon steel,201 or 304 stainless steel materials( optional for special requirement)
2.there are many options for the appearance of the poles, such as round pole, cone pole, octagonal cone pole, octagonal straight pole and so on.
3.the standard size butt round rod is suitable for mass customers. It is economical and widely needed.
4.the pole is equipped with the base cage and lightning arrester device to ensure the safety of the pole parts.
5.the pole can be processed by different processes according to the on-site environment of the customer. It can be hot-dip galvanized treatment, high-temperature powder spraying, etc. Select materials of different thickness according to the normal weather condition on site.
Street Pole's Date sheet
Material | Regular Aluminum Or Stainless stell Q235B/A36,minimum yield strength≥235n/mm² |
Mounting height | 3m-12m |
Shape of pole | Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal |
Thickness | 3mm-10mm |
Brackets | Single or double brackets are in the shape and dimension |
Base plate | square/round/Polygon in shape with slotted holes for anchor bolt or as customer’s requirement |
Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape. |
Ground mounted | The length buried underground |
Surface treatment | Hot-Dip galvanized following ASTM A123 |
80-100 microns in average for Thickness of Galvanizing | |
Color polyester power or any other standard by client required. | |
Usage | Garden |
Street | |
Protection grade | IP66 |
Warranty | 20 Years |
Wind Resistance | Aganist wind pressure of 160Km/h |
Certificates | ISO9001,CE,CCC,RoHS |
Packages | Packing with plastic paper or according to client’s request. |
OEM/ODM | Welcomed |
Technical parameter for smart pole
Pole | 3-12meter |
LED lamp | 30-180W |
Driver |
|
Single control | Zigbee /Lorawan/NB-lot |
Camera | 3-inch hemisphere, 300W pixels Supports maximum 2048 * 1536@30fps hd picture output Support h. 265 efficient compression algorithm, can save more storage space Support area intrusion detection, border detection, mobile detection and other intelligent detection functions Supports 350 ° horizontal rotation, vertical direction 0 ° to 90 ° Support 300 preset bits, 8 cruise scans Support POE (802.3af) power supply Support e-home protocols and fluorescent-cloud services Lightning protection, surge protection, surge protection, IP66 protection level |

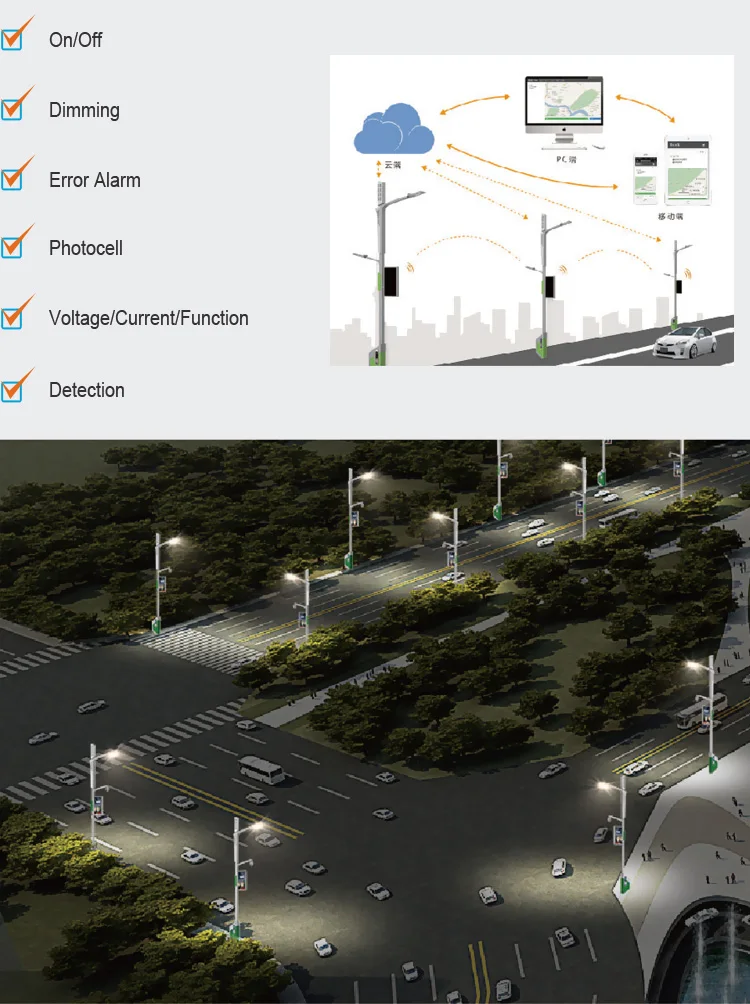

Software | Lighting system,advertisement, camera monitor,environment |
weather sensor | Eight in one: Humidity, Air Pressure, Wind Speed, Wind Direction, Temperature, Decibel, PM2.5, PM10 |
WIFI-AP | 2.4GHz 500MW / 300Mbps Chinese multi-SSID supports VLAN isolation Cover 100 meters and connect to 100 points Support 2 N-port antenna interfaces |
WIFI-AC | Centralized control of up to 128 APs The platform is based on embedded architecture to achieve high-speed forwarding of multiple services. Support IEEE802.11a/b/g and IEEE802.11n standards Implement centralized access and centralized deployment of APs |

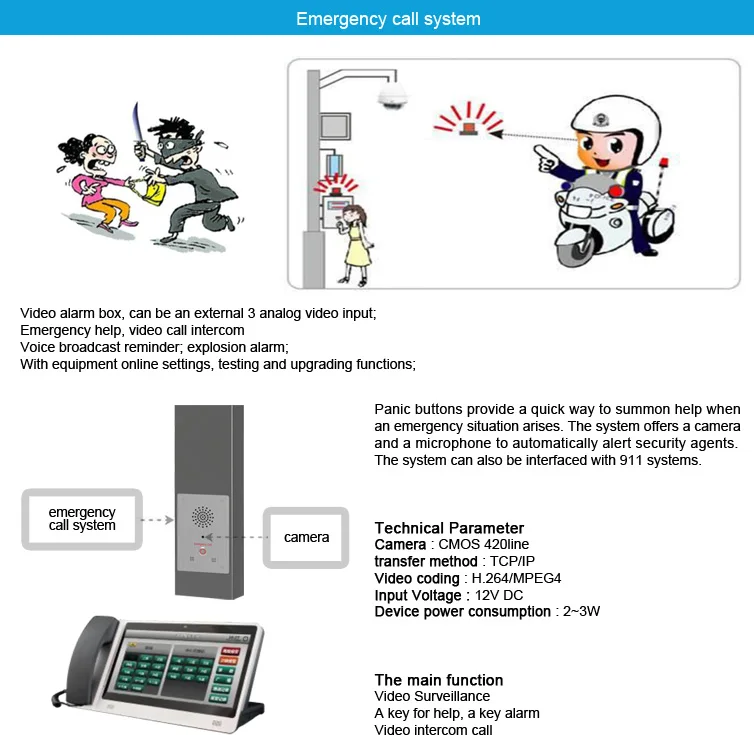

One key calls the terminal device | Hd camera, active real-time surveillance,720P CMOS camera Full duplex voice intercom, audio coding: g.711, G713, PCM 3 m distance intercom, speaker: 8 Ω 3 w Dynamic noise reduction, clear sound pickup, SNR >85db Outdoor rainproof, IP52. RJ45 interface, support TCP/IP, DHCP |
Voice box | Theoretical power 1.4W×2 Impedance 4Ω Signal to noise ratio ≥ 80 Sensitivity 450±50mV |
Microphone | For network call microphone input |

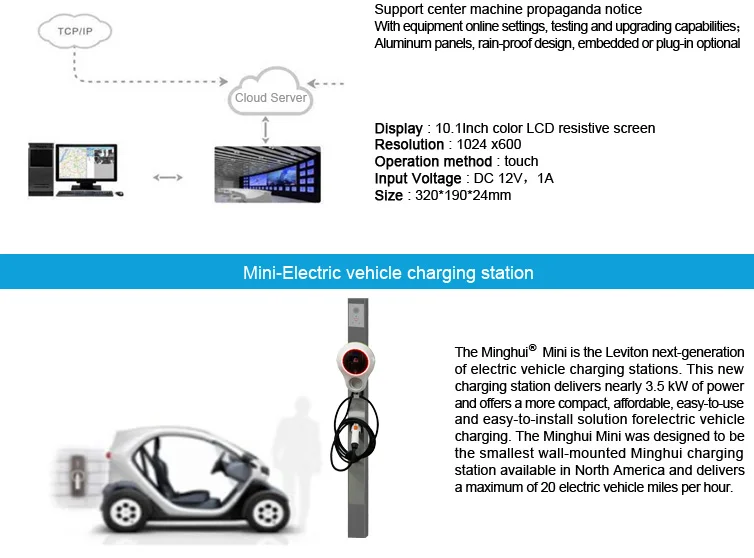

Charging Station | Installation form: embedded installation;Working environment temperature: - 30 ℃ ~ + 50 ℃ Input voltage: AC220V plus or minus 10%;Charging mode: single charge Total power: 7kW; Whole machine performance: the efficiency is greater than 99% Start mode: swipe card, APP scan code: protection level is greater than or equal to IP54 |
LED full-color display | Model: P4 indoor full color screen rated current Indoor color display: 40 (mA) Rated voltage: 5 (V) module size Module size: 256 * 128 (mm) Size size: 740 * 512 use environment environment: outdoor outdoor |
full-color control card | Full color control card / support LED screen / P2.5 / P4 / P5 / P10 |
Multifunction exchange | Support network interface, WIFI, 4G (optional), access to the Internet, multi-network simultaneously online; Ethernet interface 1 X WAN 10/100Mbps, Adaptive Ethernet port 4 X LAN 10/100Mbps ,Adaptive Ethernet port Power supply range: 9-24V DC (24W) Working average current: about 320mA@12VDC |
ODM/OEM | YES |
Company Profile
Packaging & Shipping
1.Standard export packaging for all customers.
2.Special packaging instruction is also welcomed, but with different cost.
3. DHL / FedEx / UPS / TNT, Door-to-Door.
4. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving.
5. Your designated forwarders are welcomed.
