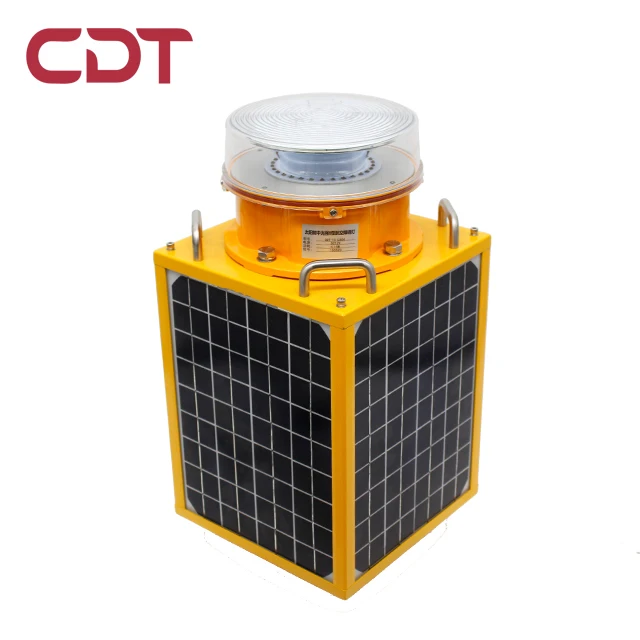

CK 15 T Solar Powered Medium Intensity Building/Tower Warning Light,FAA ICAO Standard Solar Aviation Obstruction Light

• Product Picture

• Parameter & Diagram

Item	Parameter
Model	CK-15-T
Operating Voltage	DC12V(other available)
Power consumption	≤10W
Flashing frequency	20~60times/min
Light Intensity	>2000cd
Life span	>100,000 hours
Emitting color	Red
Beam angle	360° horizontal
	more than 3° vertical beam spread
Method of synchronization	NA(could choose the GPS)
Overall size(mm)	255mm×255mmx515mm

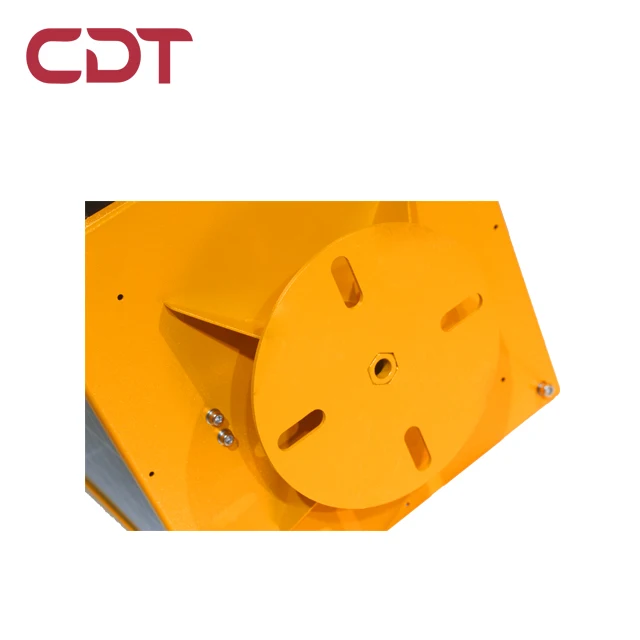

Installation size(mm)	105mm×-4x∅M10
Ingress protection	IP65
Lightning protection level	10KA
Operating temperature	-40℃~55℃
Net weight	17KG
Wind load	80m/sec.

• Specification

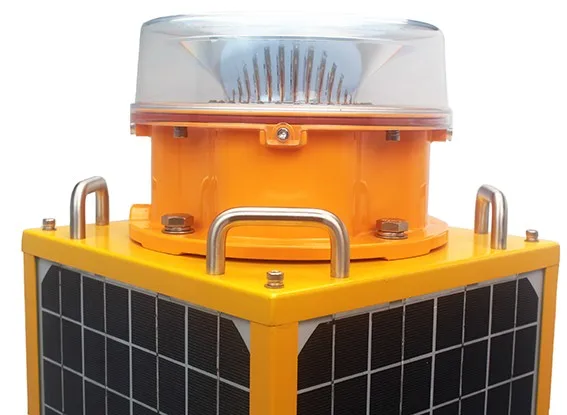

1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
   up to 90%, quite high impact resistance and fit the bad environment very well.


2. The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum
   alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.


3. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3
   years.


4. Based on the single chip computer micro power control, could control the charge and
   discharge precisely.


5. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%),
   lifetime more than 20 years.


6. Using Fresnel lens optical design, range further.


7. Further use reflector optical design, visual distance, angle more accurately, thoroughly
   eliminate the light pollution.


8. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and
   high efficiency.


9. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control
   light intensity level.


10. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
    times, Imax 15KA so that the light is suitable to harsh environment.


11. Integral structure, protection lever of Ip65.


12. Synchronizing GPS function is available.
