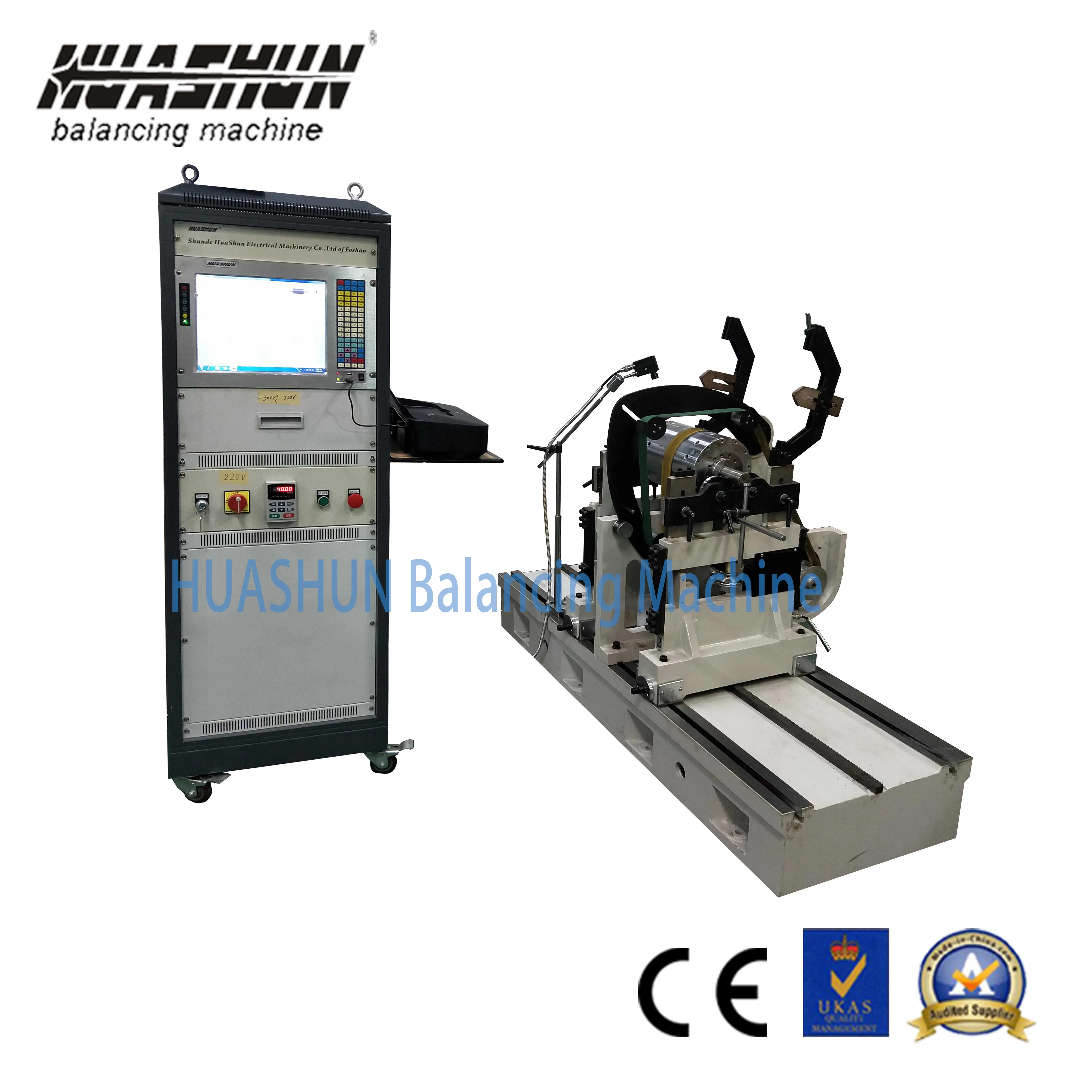

HUASHUN HB300 PI CE Certified Roror Dynamic Balancing Machine Price

Share on (60795300142):


Price:RUB 77,064.90 - RUB 770,649.00

Quantity:


Product Overview

Description

Product Description

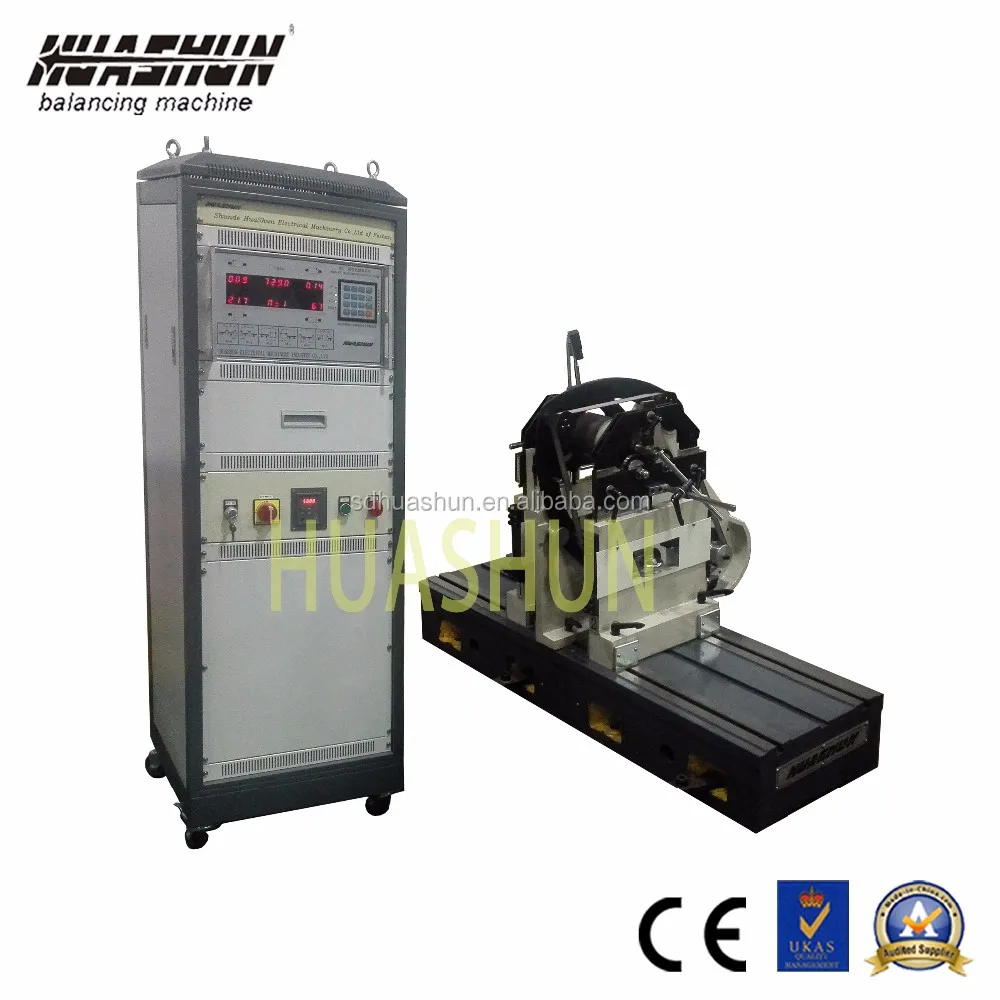

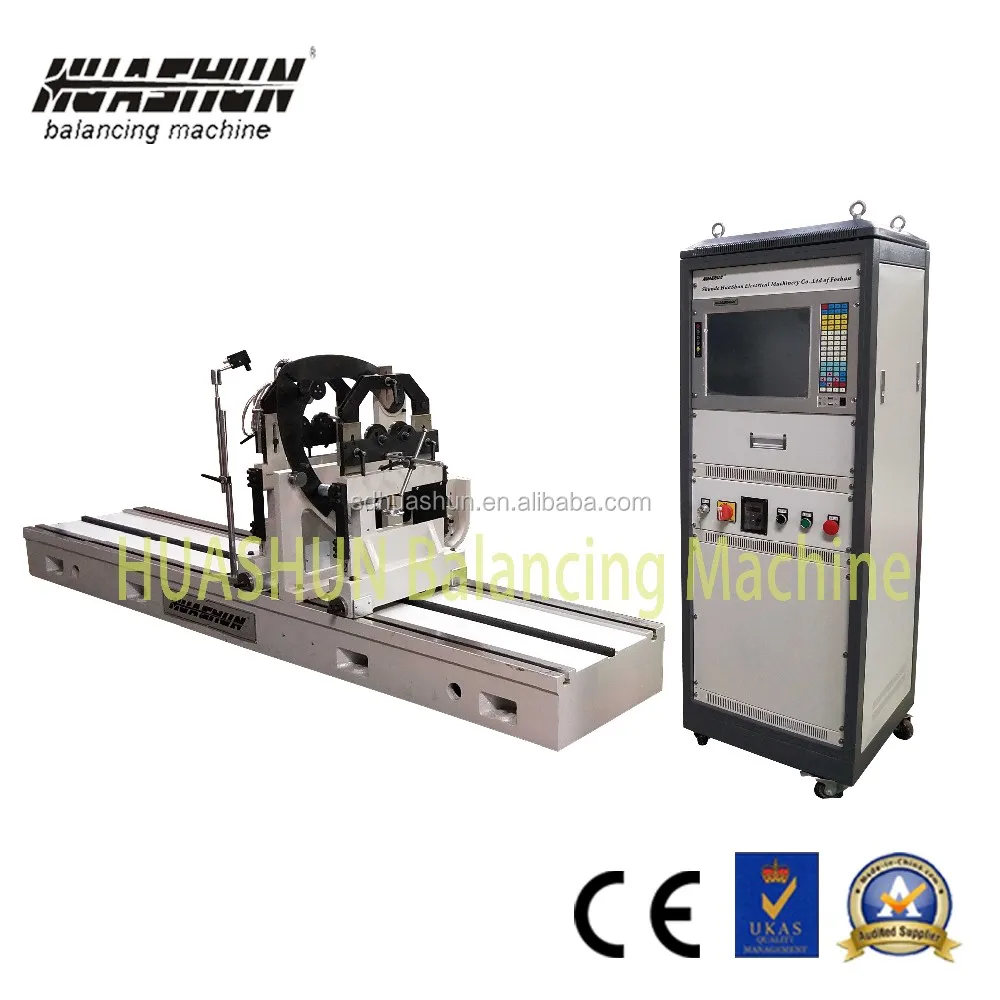

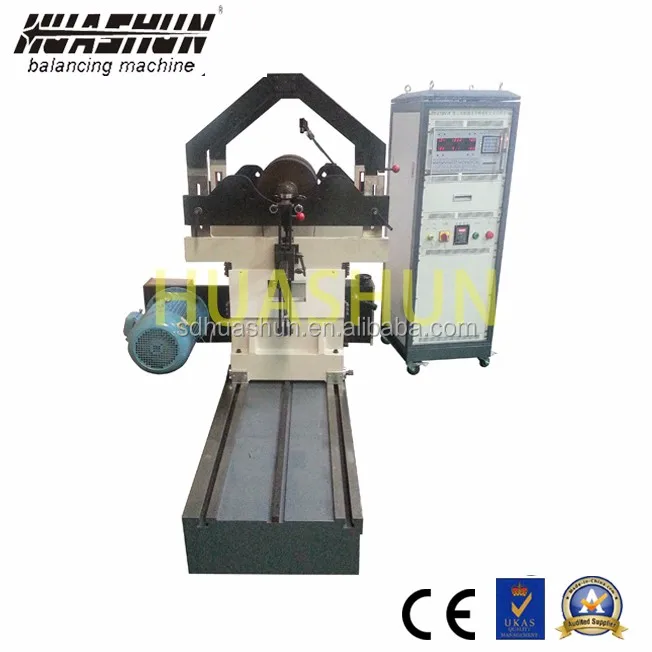

HUASHUN HB300-PI CE Certified Roror Dynamic Balancing Machine


Application Areas

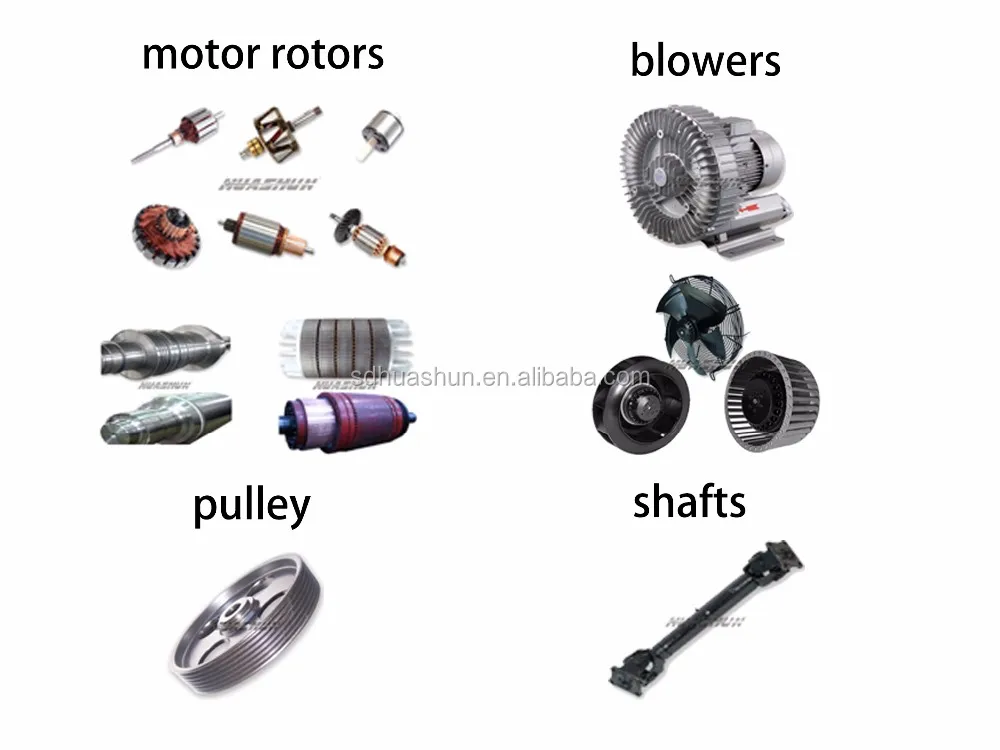

For ventilation device, ceramic machines, rubber rollers, mechnical mainshafts, motor rotors, puleys, blowers, cutting tools, etc.

Structure

1.Belt drive

2. With piezoelectricc transducers, good stabillity

3.Computer measuring system with mega data storage capacity


Advantages

1. Great output volume, high sensitivity,excellent stability

2. 6 kinds of standard rotors to select, direct display

3. With memory & print function

Technical Parameters


Type of balcing machine
Universal hard bearing balcncing machine
Belt drive
Specification/Type
HB300-PI
Weight of workpieces
300kg
Diameter of workpieces
1150mm
Dis. between supports
200-1100mm
Min. achieveable residual unbalance amount
less than 0.5 g.mm/kg
Balancing speed
300-2500r/min
Journal dia. of supports
10-180mm
Journal dia. of belt drive
40-300mm
Unbalance reduction ratio
Greater than or equal to 85%
Motor power
3kg
