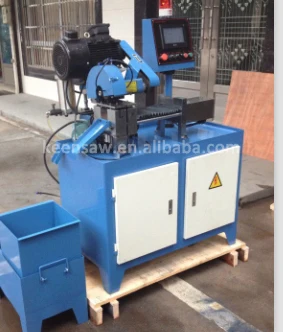

Auto Feeding Circular Sawing Machine for Copper Tube Cutting Machine
- Category: >>>
- Supplier: Lishui Keensaw Machine Co. Ltd.
Share on (60795308651):
Product Overview
Description
Machine Feature
1. Man-machine interface control. simple and convenient to operate.
2.Two kinds of speed; high and low,can adapt to different material cutting.
3.Floating clamping and automatic feeding do not hurt the surface.
4.Automatic counting and shutting down function are easy to manage.
2.Two kinds of speed; high and low,can adapt to different material cutting.
3.Floating clamping and automatic feeding do not hurt the surface.
4.Automatic counting and shutting down function are easy to manage.
5.Equipped with a digital display, it is easy to adjust the cutting length, the precision can reach to ±0.05mm
6.Automatic lubrication, cutting without burr, ensure long life span saw blade.
7.Cut one piece or cut in bundle, suitable for less or mass production.
8.Cutting surface smooth, flood coolant clean and cool the saw blade.
6.Automatic lubrication, cutting without burr, ensure long life span saw blade.
7.Cut one piece or cut in bundle, suitable for less or mass production.
8.Cutting surface smooth, flood coolant clean and cool the saw blade.
Machine Parameters
Model | KTC-160NC |
Material Thickness | 0.1-3mm |
Material Diameter | 0.5-45mm |
Length | 2-600mm |
Clamping width | 100mm |
Saw blade thickness | 0.7-1.2mm |
Saw blade size | 150-180mm |
Accuracy | ±0.05mm |
Applicable material | Aluminum, Brass, Copper |
Motor Power | 1.8KW |
Pneumatic | 6kg/cm² |
Weight | 300kg |
Size | 1100*800*1600mm |
Standard accessories | Lubricating system, Feeding shelf, Clamping device, One saw blade |

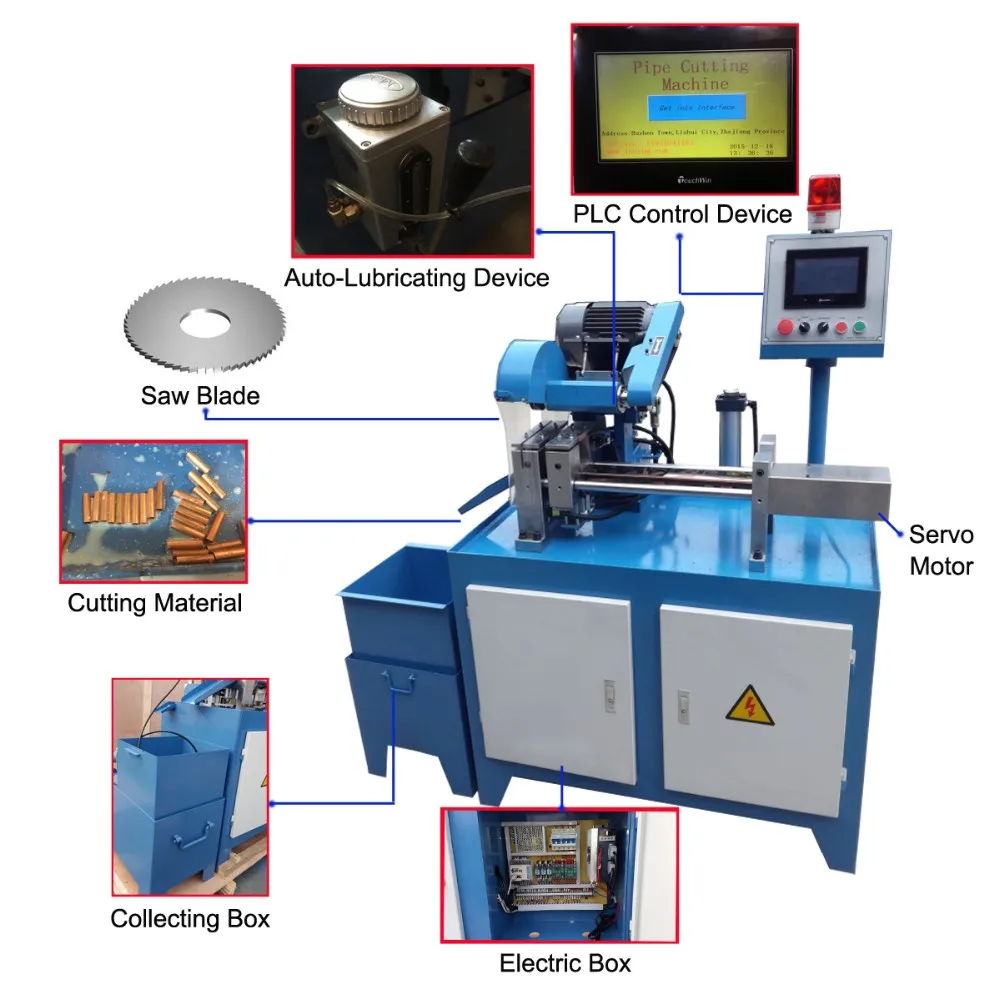

Machine Details
Machine Parts Details

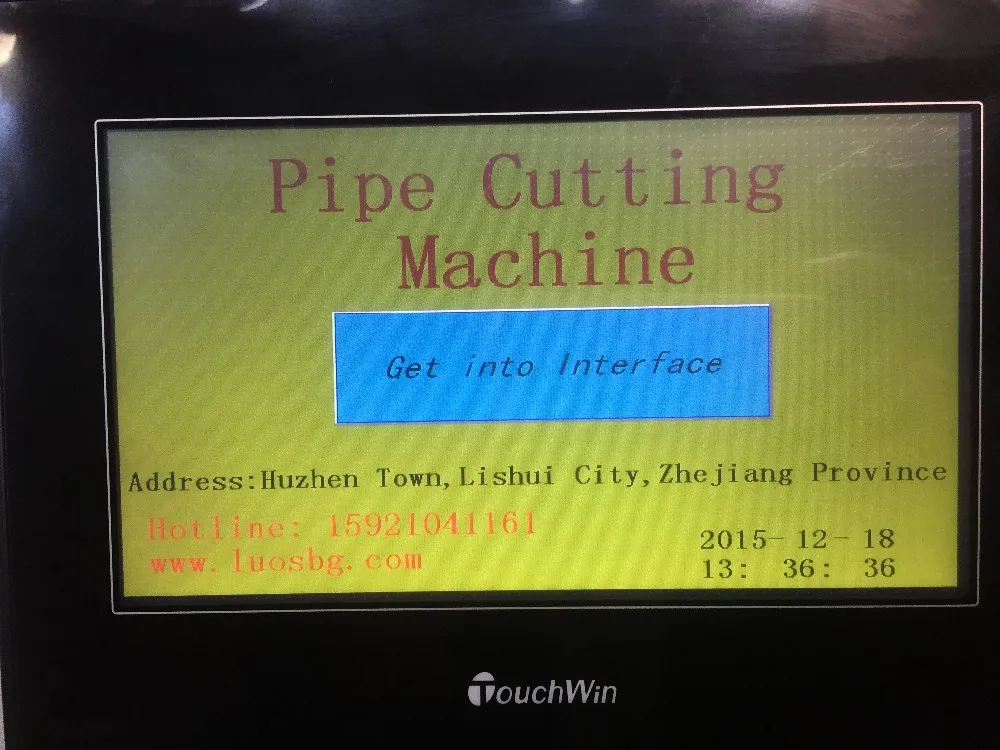

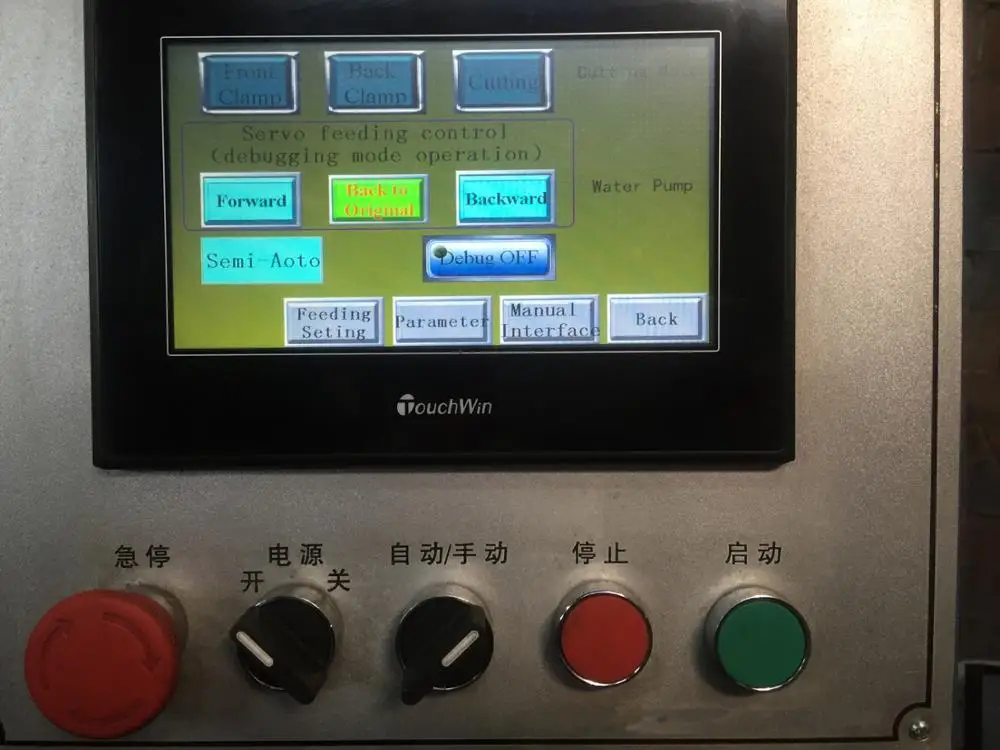

PLC Control System
This machine adopts man-machine interface control and touch screen with easy operation ,which can adjust the cutting length directly and ensure precision be to +/-0.05mm.

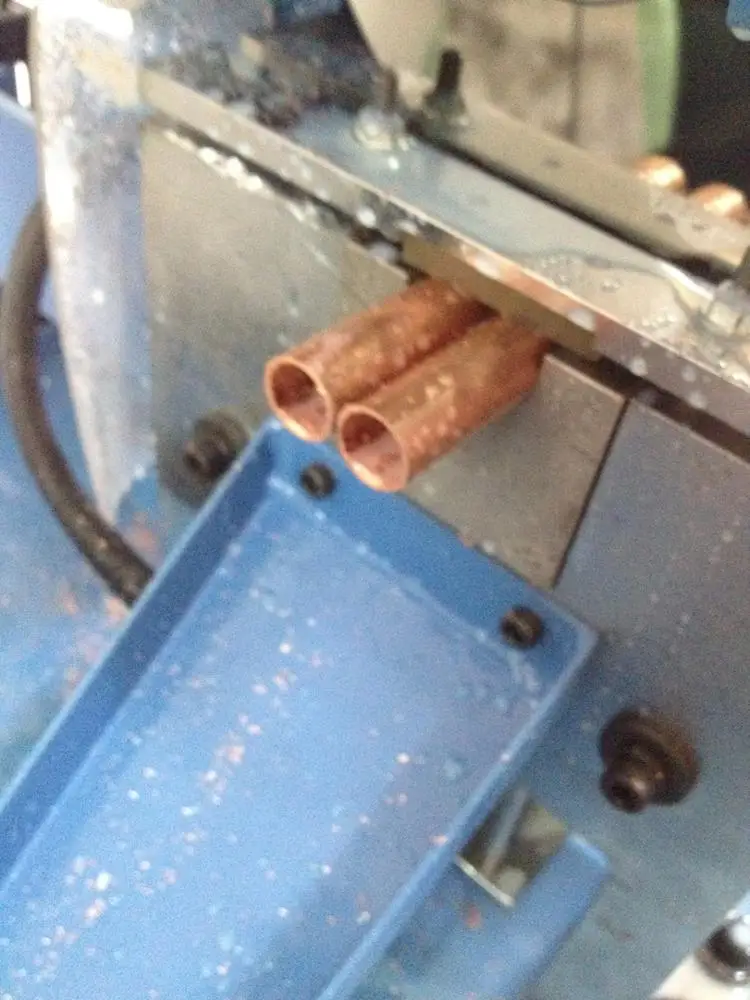

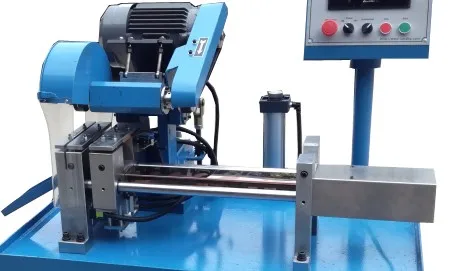

Clamping & Feeding System
Pneumatic controlled clamping vise and automatic servo feeding system protect surface of material without damage during feeding and high cutting accuracy.

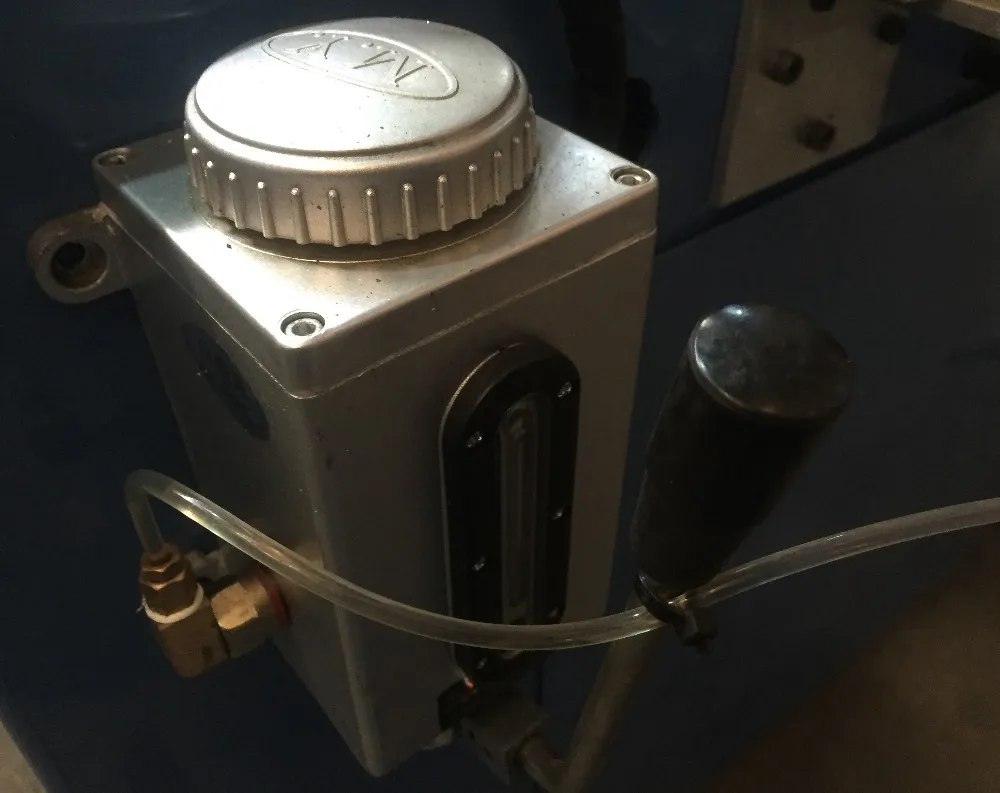

Auto-Lubricating system
Automatic lubricating keep saw blade within a longer working life and ensure cutting surface of material more smooth.

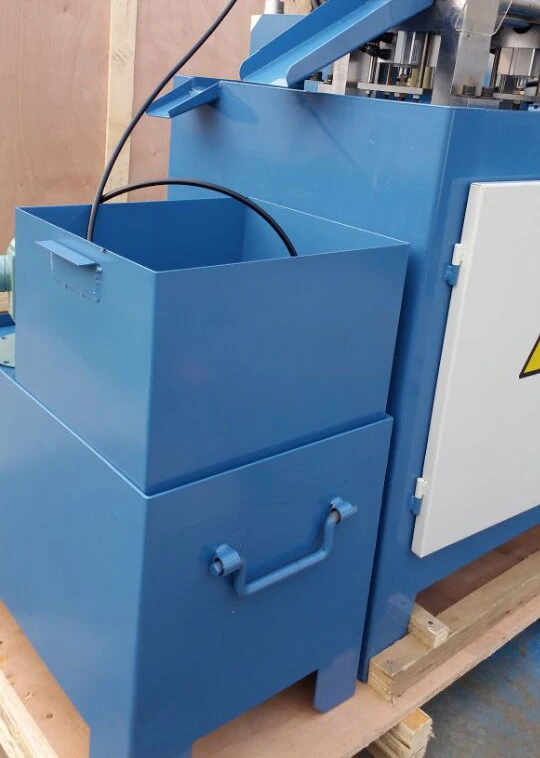

Collection Box
Centralizing the cutting material in to collection box, simply and convenient material collecting
Packing & Delivery
Company Presentation
Lishui Keensaw Machine Co., Ltd is a one-stop metal cutting solution Specialists, professional manufacturer for cnc carbide circular saw, band saw, cnc tube cutting machine, chamfering machine, HSS saw blade and bi-metal band saw blade. All products with high quality according to the world standard. and have passed the ISO9001:2000, qualified with CE certification. What proud of us is our products has been exported to more than 40 countries all over the world with good reputation and excellent feedback from the end users. Your demand is our pursuit.
We are always persisting in our business philosophy of "ensuring high quality product, offering competitive price and keep
improving excellent after-sales service". Hope we can establish long-term cooperation with all our clients. And hope we can improve competitiveness and achieve the win-win situation together with all our clients.
We sincerely welcome customers from all over the world to contact us for the machine you need! and sincerely hope we can help our customers on their business.
We are always persisting in our business philosophy of "ensuring high quality product, offering competitive price and keep
improving excellent after-sales service". Hope we can establish long-term cooperation with all our clients. And hope we can improve competitiveness and achieve the win-win situation together with all our clients.
We sincerely welcome customers from all over the world to contact us for the machine you need! and sincerely hope we can help our customers on their business.
Contact keensaw directly, Get what you need exactly!
Our Service
FAQ
1. Q: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
2. Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client
3. Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirement.
4). Q: Your price are high
A: You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from our customers
5. Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
