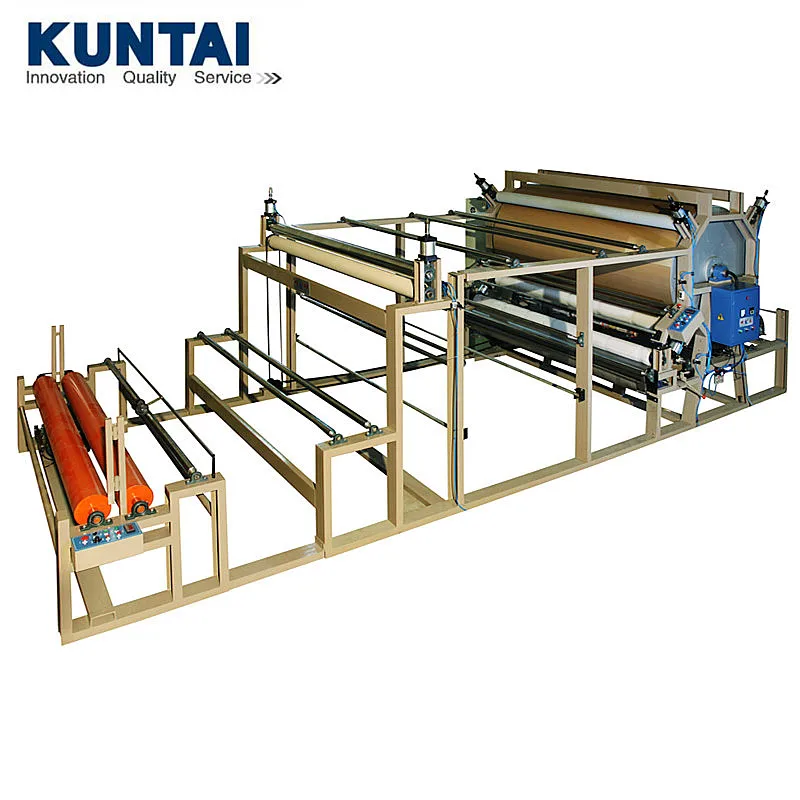

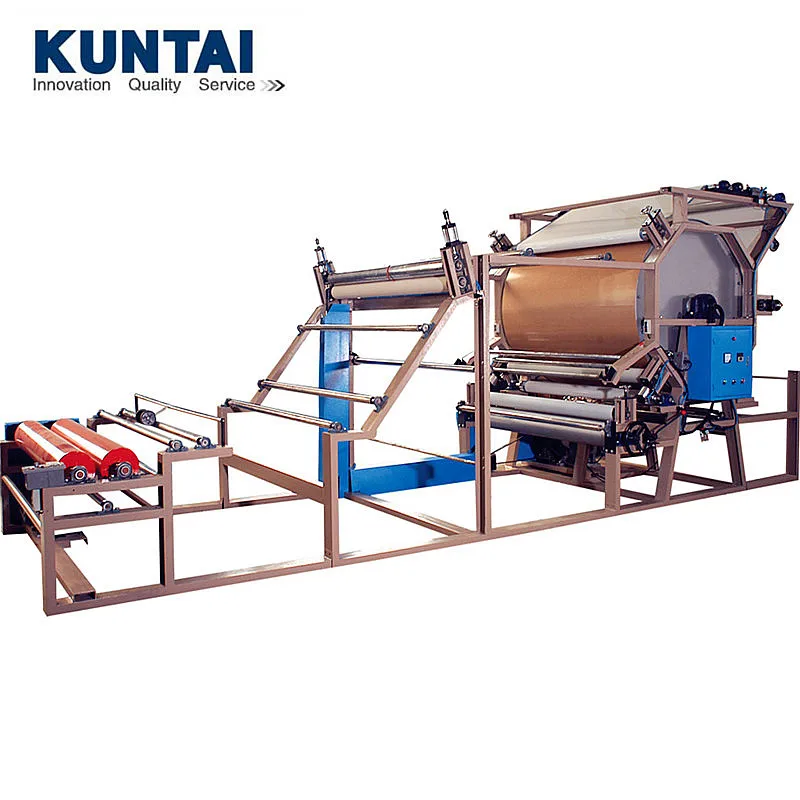

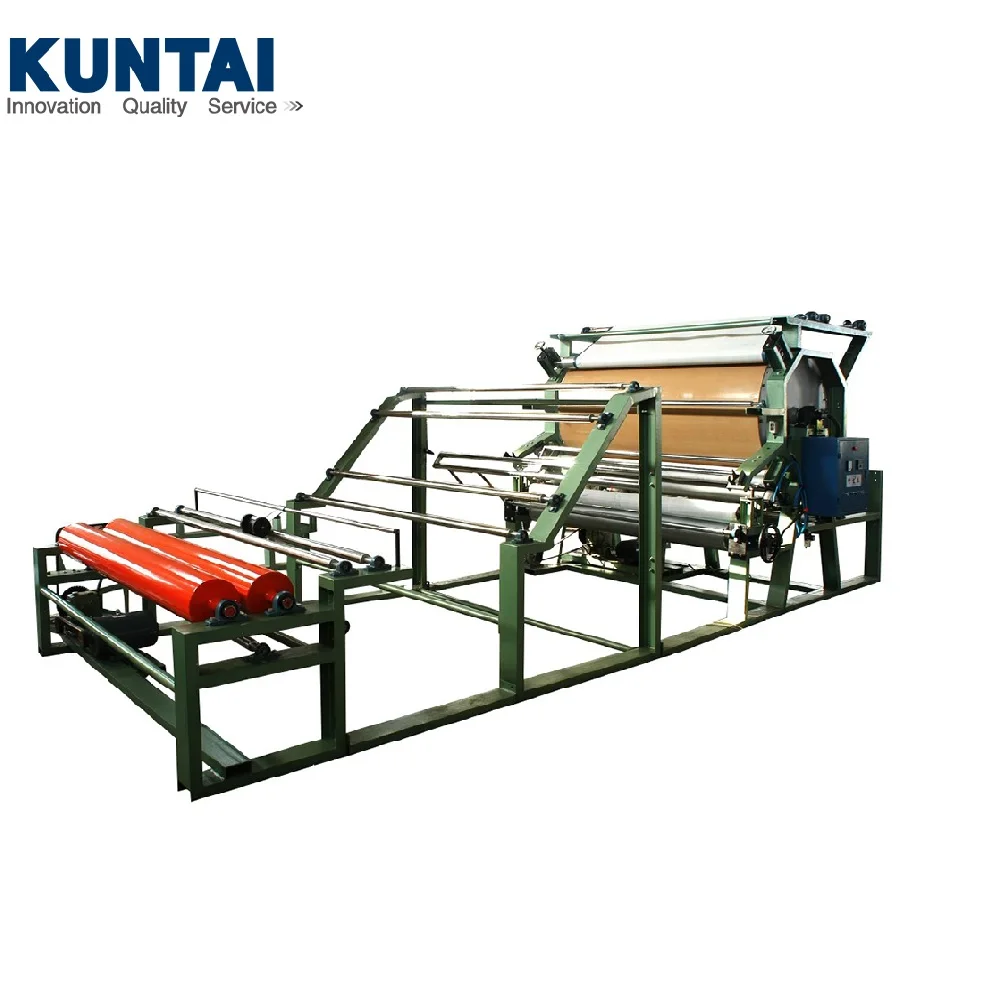

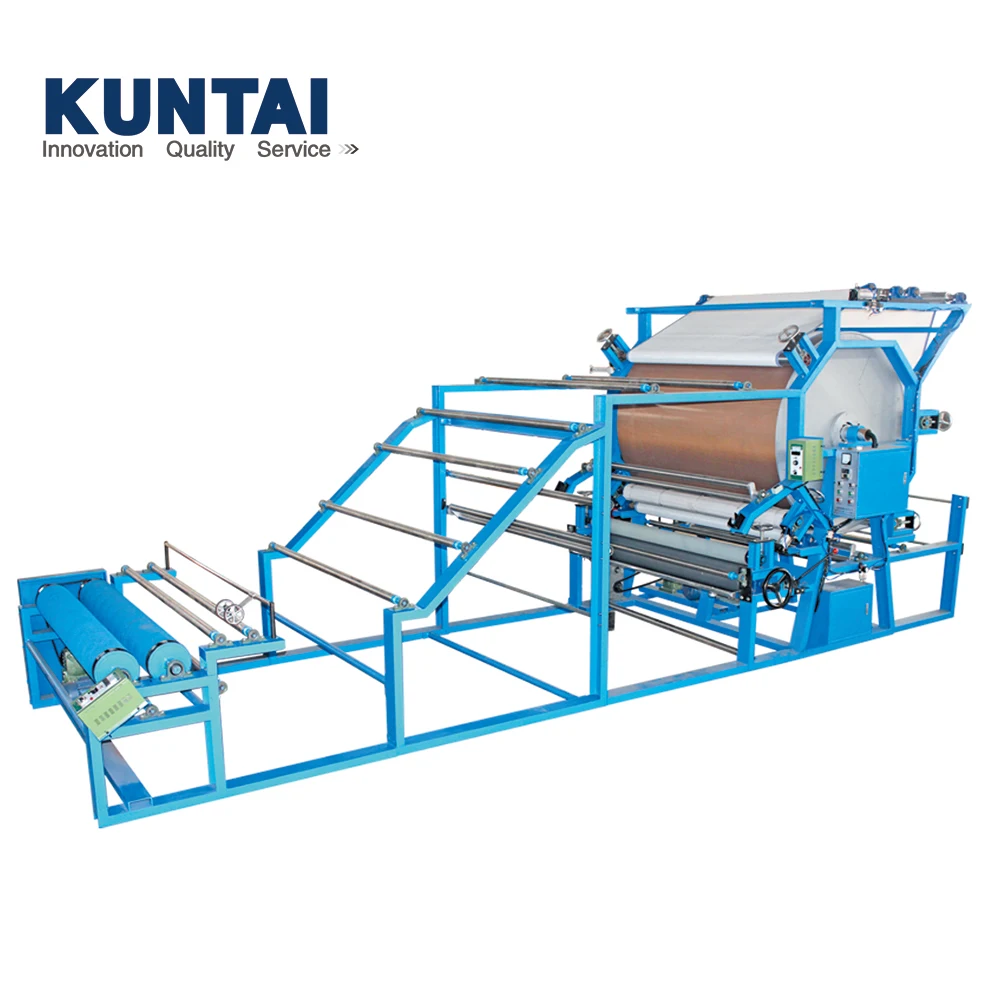

Water Based Glue Sand Paper Laminating Machine
Product Description
APPLICATION
Sand Paper Laminating Machine is used for:
1. Gluing material and laminating with other materials, suitable for laminating sand paper, lamb cashmere, fleece, plush, brown velvet, nonwoven fabric, EVA, leather, synthetic leather, etc.
2. Widely used in sand paper industry, clothing, shoes and hats industry, luggage, bag industry, interior decoration, car interiors, toy and other industries.
LAMINATING MACHINE FEATURES
♦ It adopts water-based glue.
♦ Improve the quality of the products greatly, save cost.
♦ Vertical structure, low breakdown rate and long service time.
♦ it adopts high-temperature net belt to press the compound into a layer 1, composite coating, and the mesh belt has automatic correction function, the composite material out neat, smooth, no deviation etc. improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness.
♦ This sand paper laminating machine has two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs.
♦ Surface of heating roller is coated with Teflon in order to efficacious prevent the hot melt adhesive against sticking on the surface of roller and carbonization.
♦ For clamp roller, both hand wheel adjustment and the pneumatic control are available.
♦ Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life
♦ Customized manufacturing is available.
♦ Low maintenance cost and simple to maintain
Main Technical Parameters:
Maximum Material Width: 1600mm
Machine Roller Surface: 1800mm
Machine Speed: 20-40m/min
Glue Type: Water Based Glue
Max Temperature: 180℃
Laminating Temperature: 120℃
Heating Method: Electric Heating
Gluing Way: Full coating
Estimated Machine Dimension: 6500mm x 2300mm x 2250mm (L*W*H)
Estimated Machine Weight :4500kg
OPTION:
1. Accumulators for foam, textile, backlining, etc
2. Edge cutting device
3. Inspection machine
4. Swaying device to sway the final laminated materials into piles
5. Cutting machine
6. Conduction oil heating drying roller instead of normal heating drying roller ( When the temperature required by the materials is over 160 celcius degree.)
... ...
SAND PAPER LAMINATING MACHINE DETAILS:
Packaging & Shipping
Outside Package: Standard Export Container
- Machines well packed with protective film and loaded in export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
