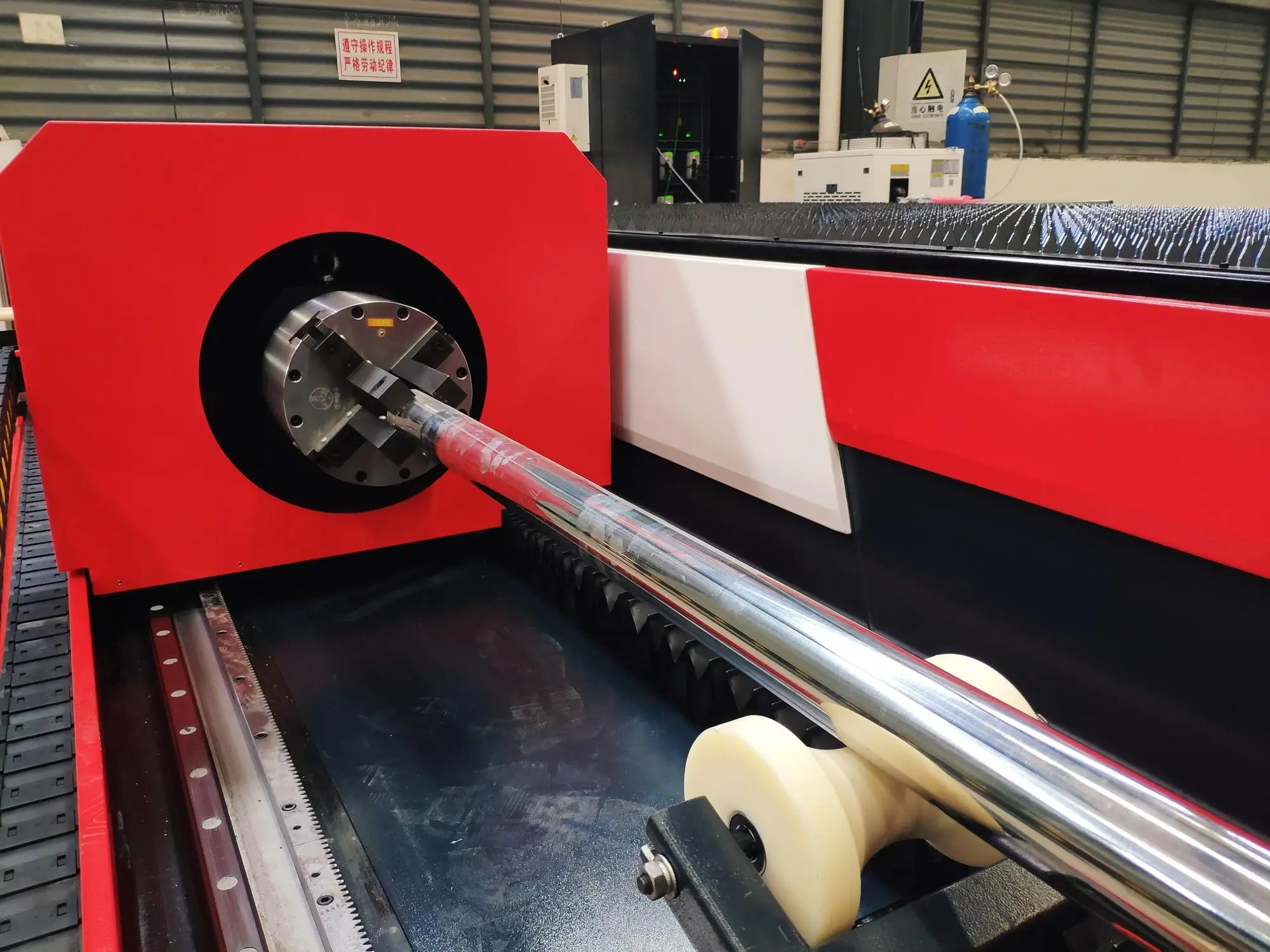

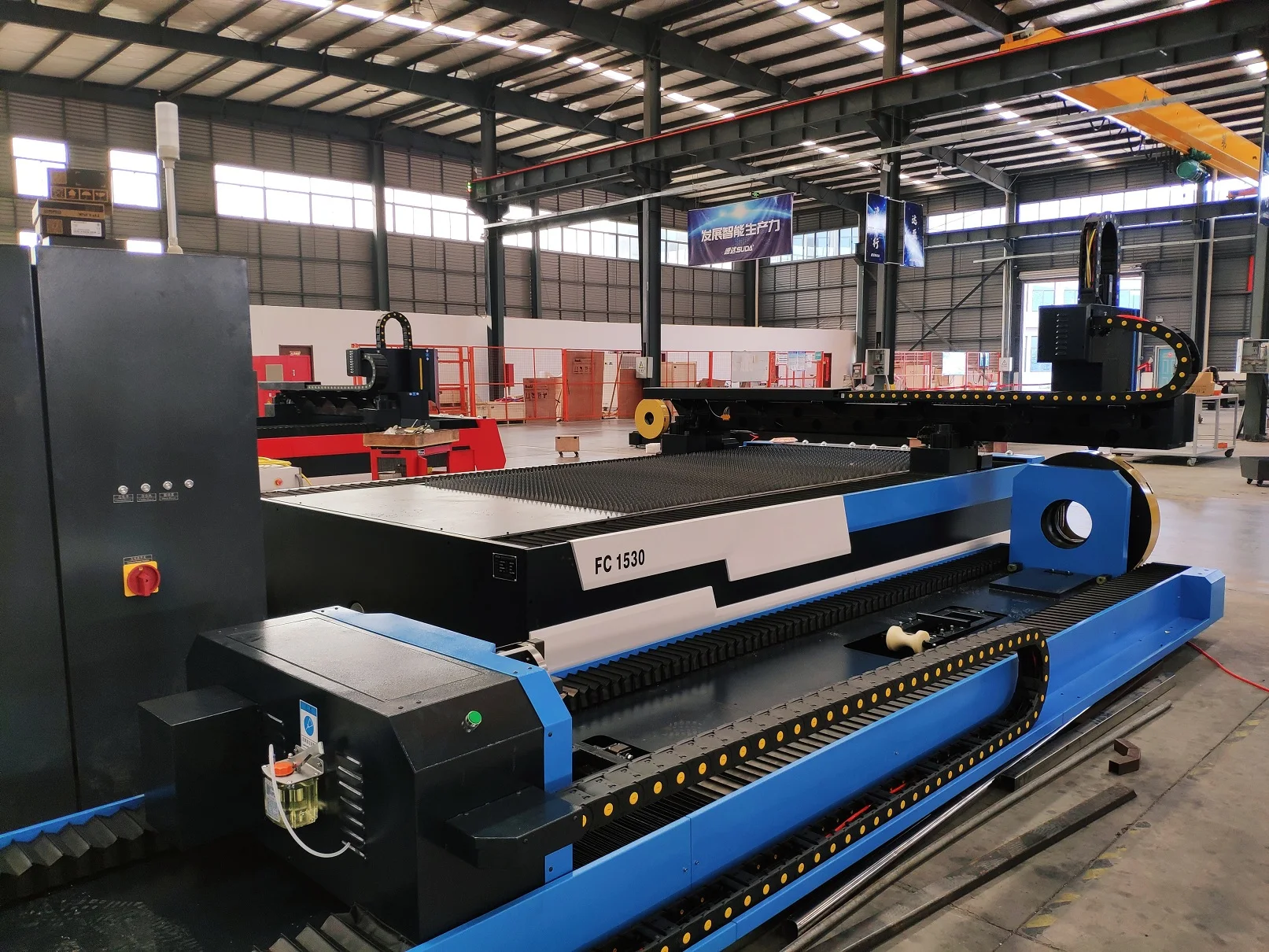

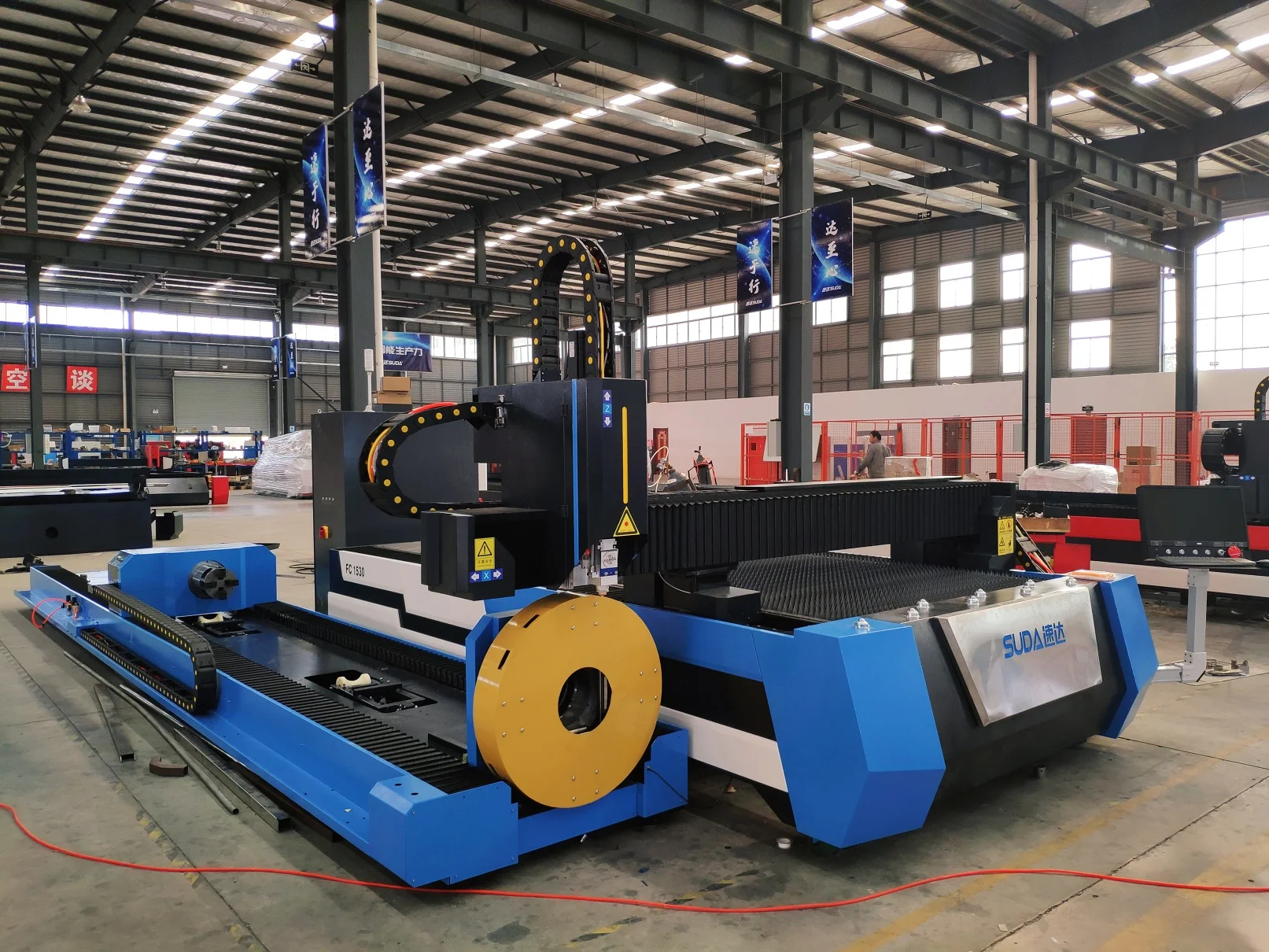

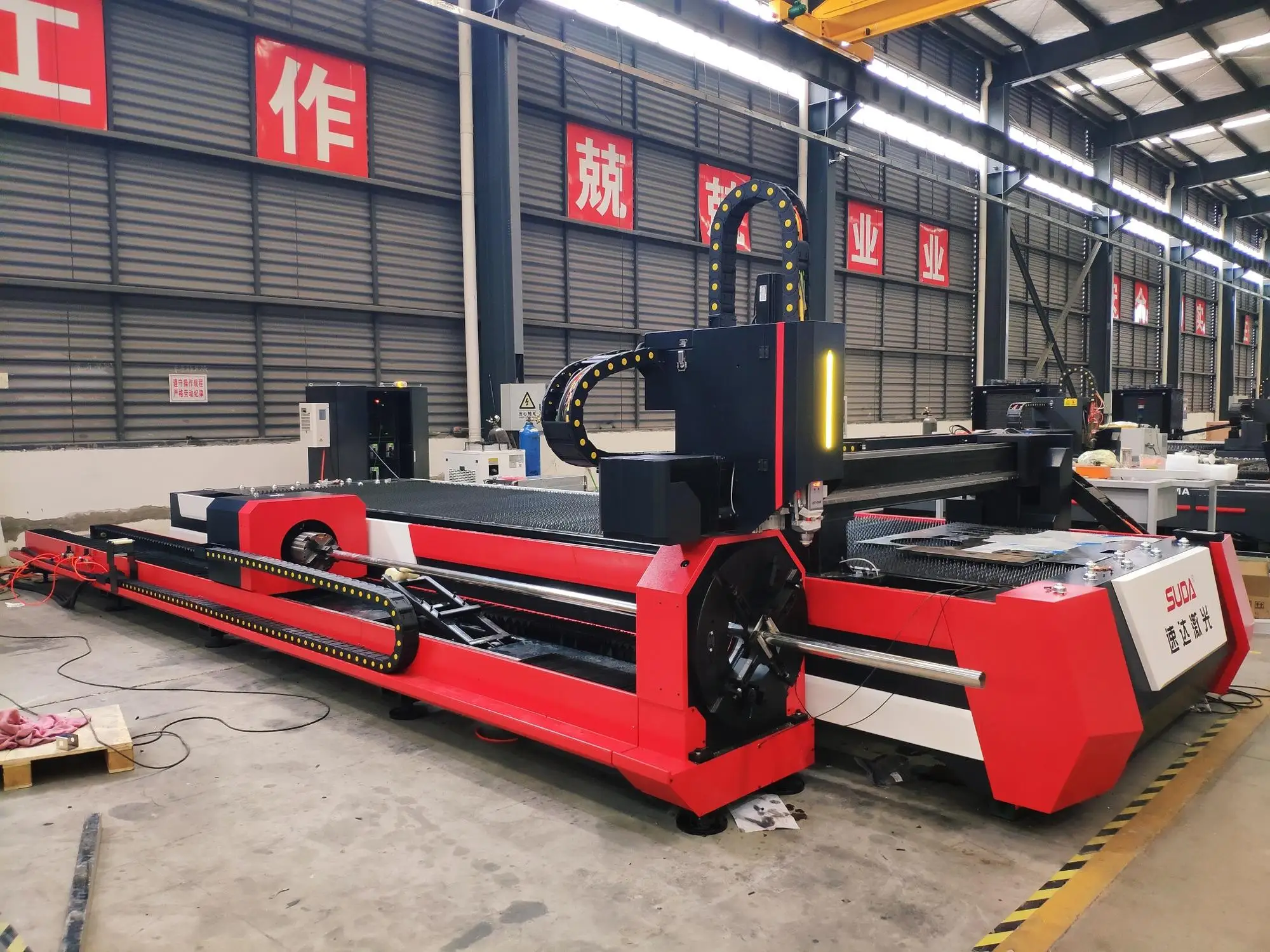

SUDA Rotary Device 1000w Pipe Fiber Laser Cutting Machine for stainless steel and carbon steel
- Category: >>>
- Supplier: Hefei Siwei CNC Machinery Co. Ltd.
Share on (60795346066):
Product Overview
Description
Product
Configuration:
1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.
2. Adopt NC pentahedron machining, milling, boring, tapping and other machining processes to ensure high processing accuracy.
3. Configure with Japan THK linear rail for all axis, to ensure durable and high precision for long time processing.
4. XY axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured, Z axis are transmitting by high accuracy rolling ball screw.
5. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, stronger torque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
6. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development, built-in process, ensure high-quality cutting effect.
7. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.
8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on ecery point.
9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

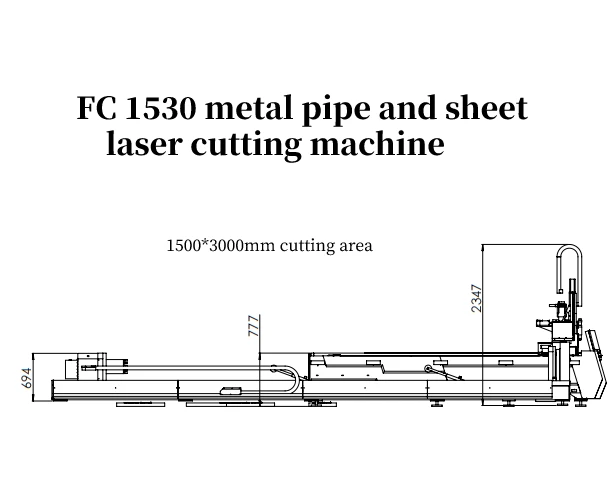

Model | FC1325 | FC1530 | FC1540 | FC1560 | |||||
working size(X&Y)(MM) | 1300*2500 | 1500*3000 | 1500*4000 | 1500*6000 | |||||
Laser medium | Fiber laser | ||||||||
Laser power | 800W, 1000W, 1500W, 2000W(optional) | ||||||||
Cutting thickness | According to the material and power | ||||||||
Min Route Width | 0.1mm | ||||||||
Repeat precision | ±0.05mm | ||||||||
Aiming Positioning | Red Dots | ||||||||
Wave Length | 1080nm | ||||||||
Power supply | 220-380V/50HZ | ||||||||

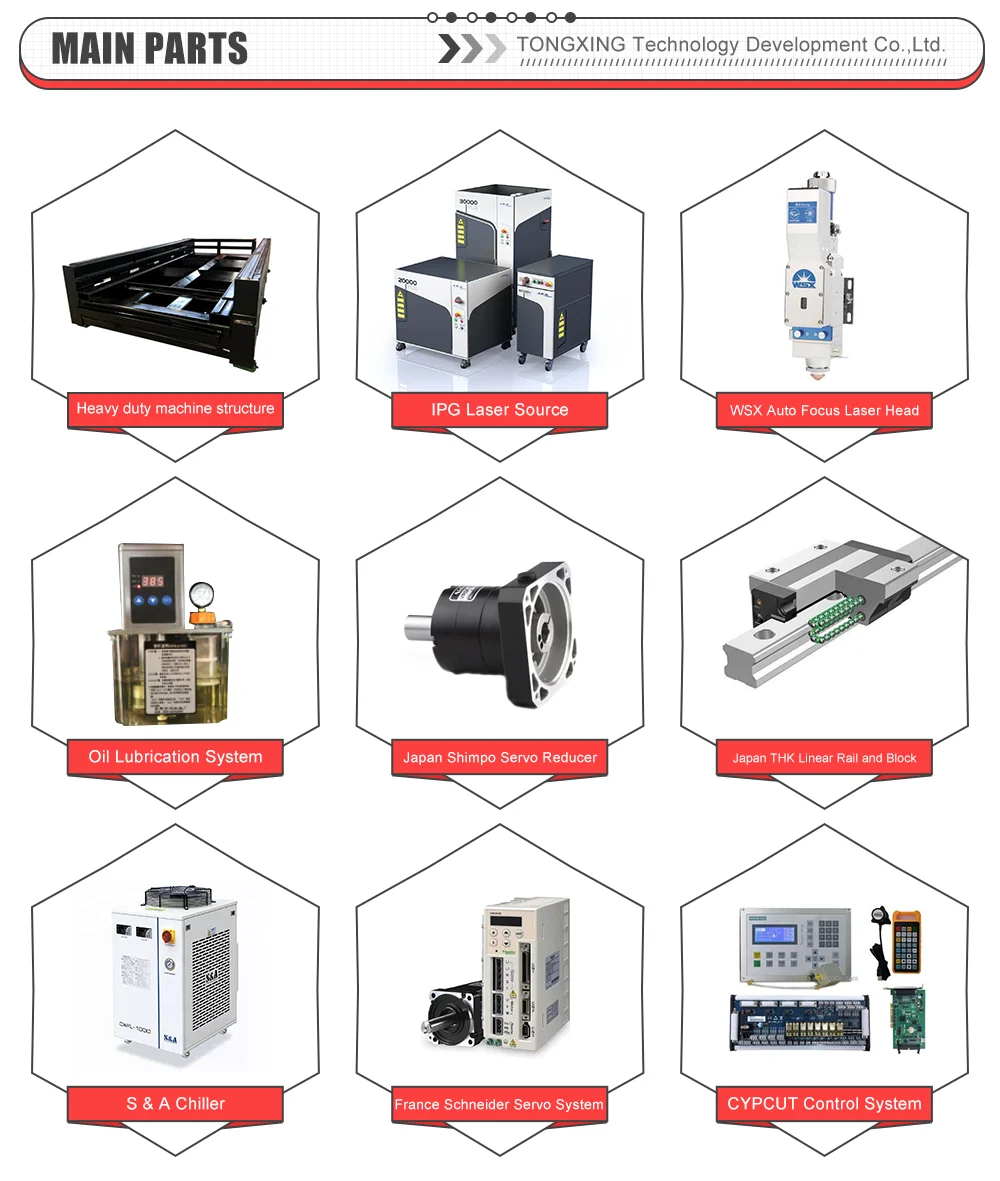

Main Parts
Machine Structure:
The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing,
Japan THK Linear Rail and Block
The machine adopts the best linear and block rail from Japan. We have the feedback from our client that its block even can use over 10 years and can't break.
The usage lifespan and the product quality definitely can be ensured
France Schneider Servo System
The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.
CYPCUT Control System:
The best control system in fiber laser machine industry,
It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head
S & A Chiller:
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry
Raycus Laser Source :
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional).
Japan Shimpo Servo Reducer:
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.
WSX Fiber Laser Cutting Head :
Our fiber laser machine 1000 watt install the WSX NO:1 manual focus cutting head,
The machine also can optional the NC30 automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following
Oil Lubrication System
This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.
