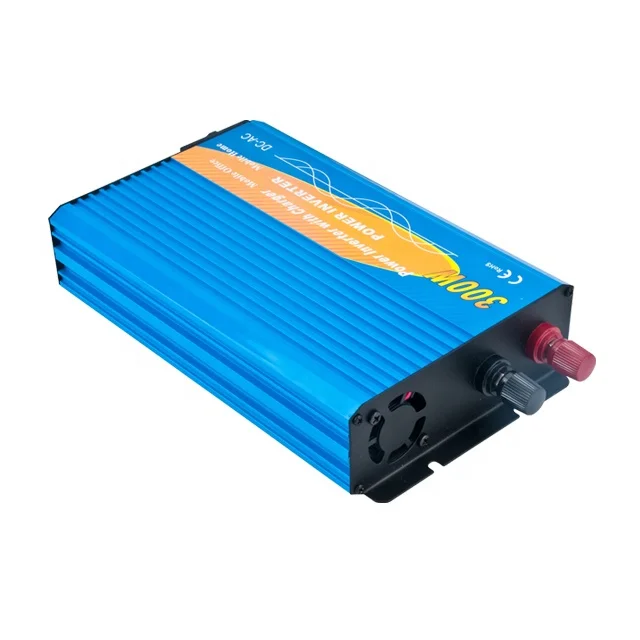

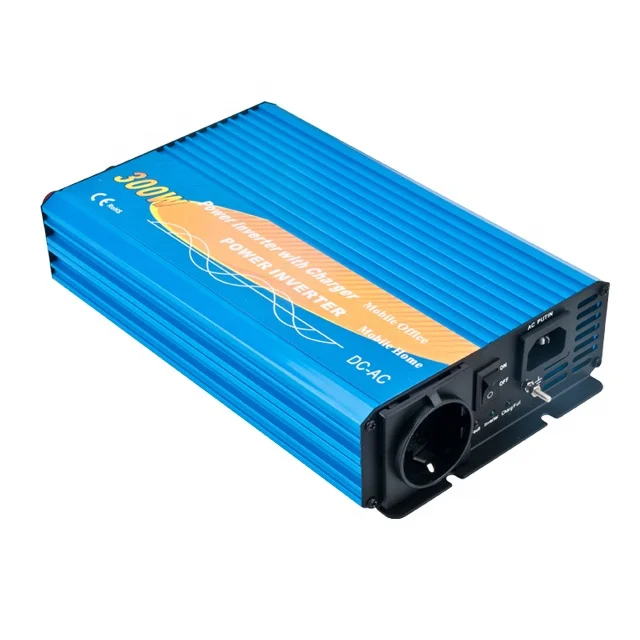

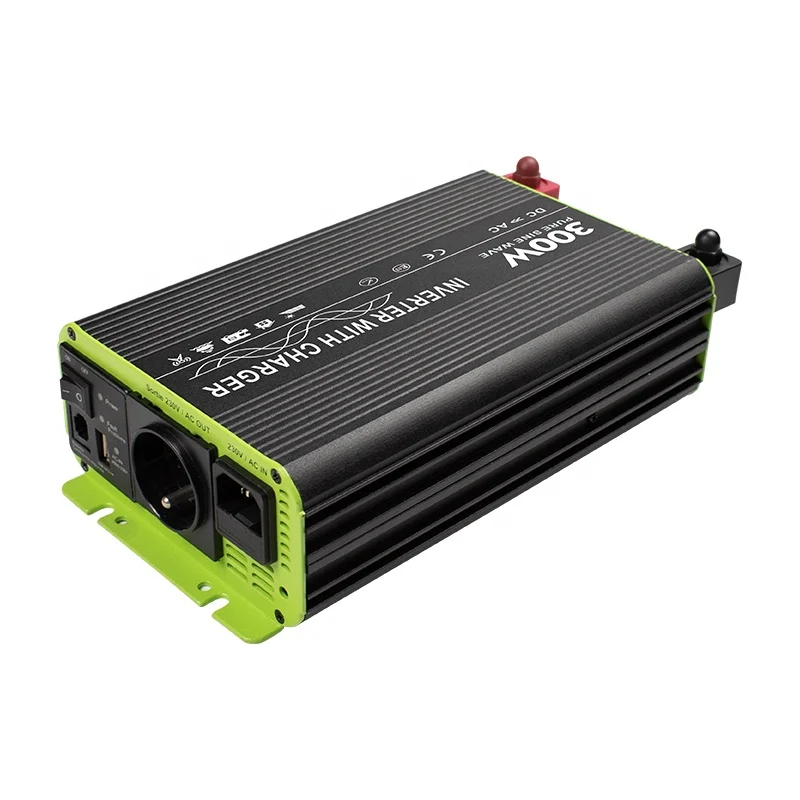

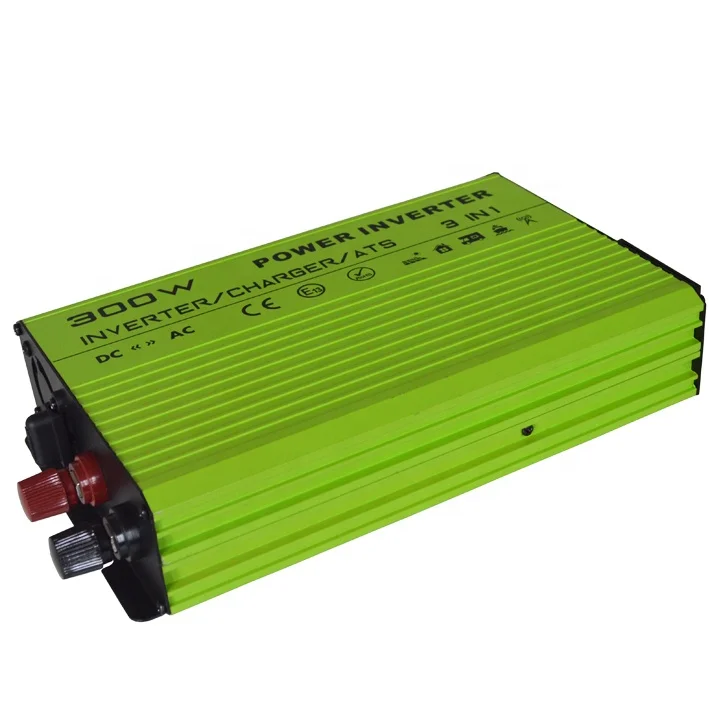

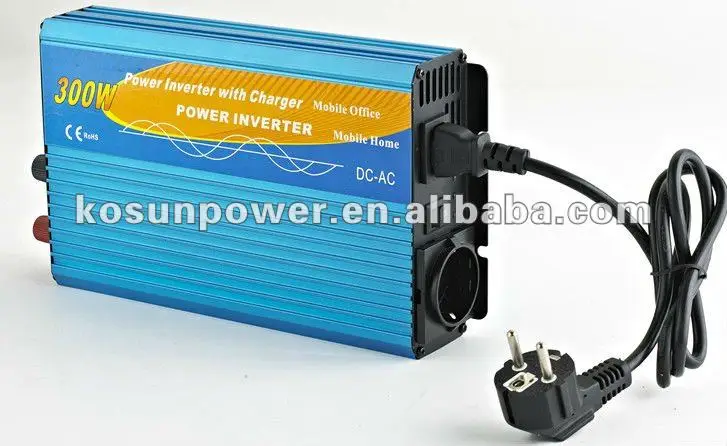

Portable UPS Inverter 12v 220v 300w Inverter FANS CE Single DC/AC Inverters 201 300w 90% 50/60hz Blue/black Kosunpower KSC300P

Model

KSC300P

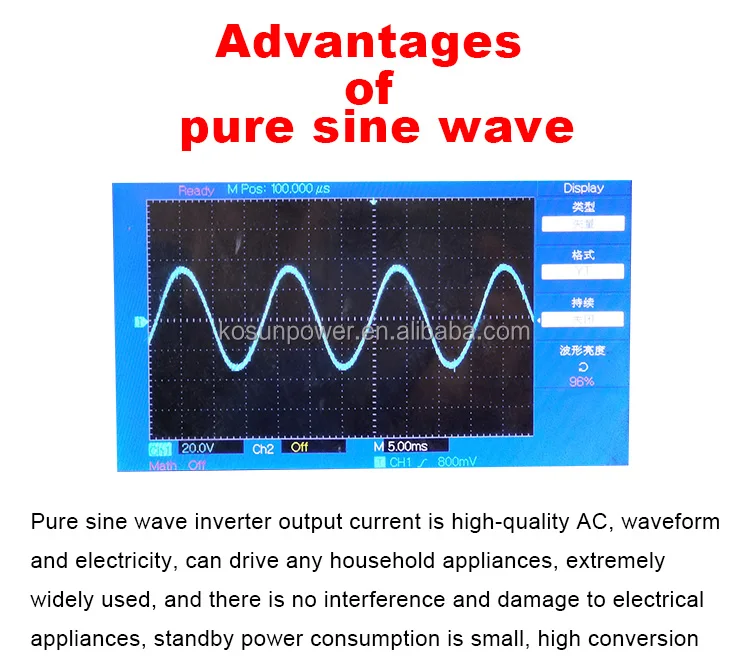

Output Waveform

Pure Sine Wave

Inverter Spec.

Continuous Power

300W

Maximum Constant Power Start

360W

Peak Power

600W

Input Voltage

12V/24V/48V

Output Voltage

100V/110V/115V/120V/220V/230V/240V

No Load Current Draws

<0.8A

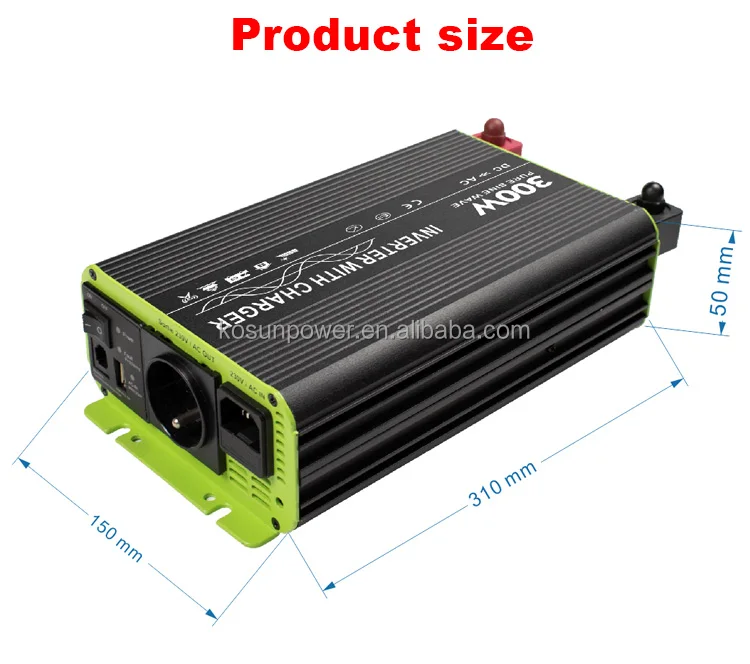

Dimensions(L*W*H)

230*150*50mm

Weight

3.5KGS

Protection Function

Low voltage alarm

Low voltage shut down

Over input voltage

Over temperature

Over load

Short circuit

Reverse Polarity (Fuse)

Charger Spec.

AC Input voltage

AC80V-130V±10%         AC180V-260V±10%

DC Charging Voltage

12V/24V/48V

DC Charging Current

10A/20A/30A

Three-stage Charging

Bulk/Absorption/Float charge

Automatically Switching Time

≤20ms

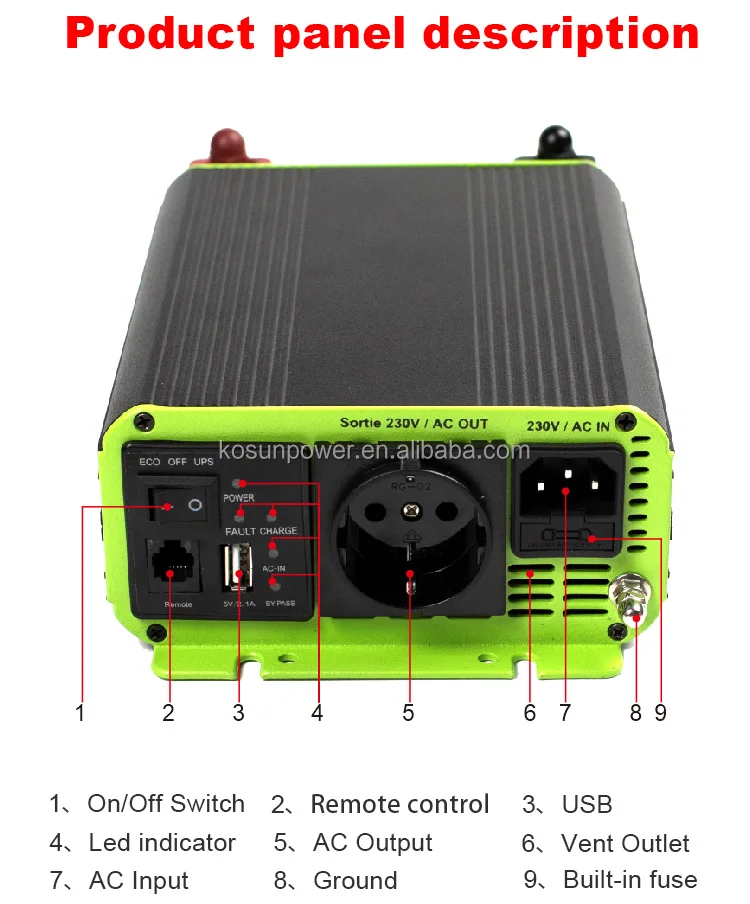

LED Indicator Light

Charger, Fault, Inverter

Application

Automobiles, RVs, Boats, tractors, trucks, Laptops, TV sets, Video Games, CD Players, DVD Players, Power tool, Office Equipment, Major Household Appliances, etc.

Environment

Operating temperature: -10°C~+50°C

Operating relative humidity: 20%~90%RH non-condensing

Storage temperature: -30°C~+70°C

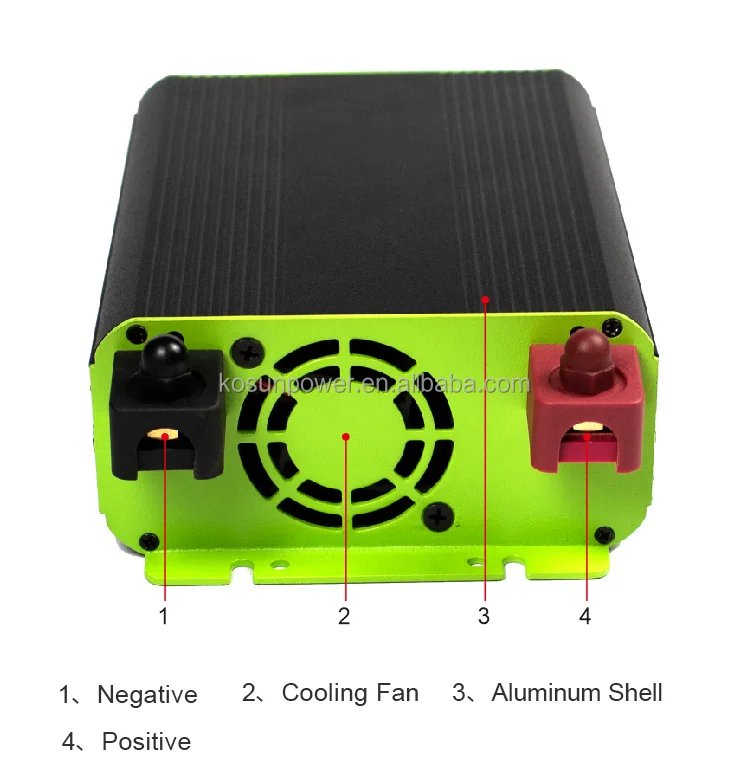

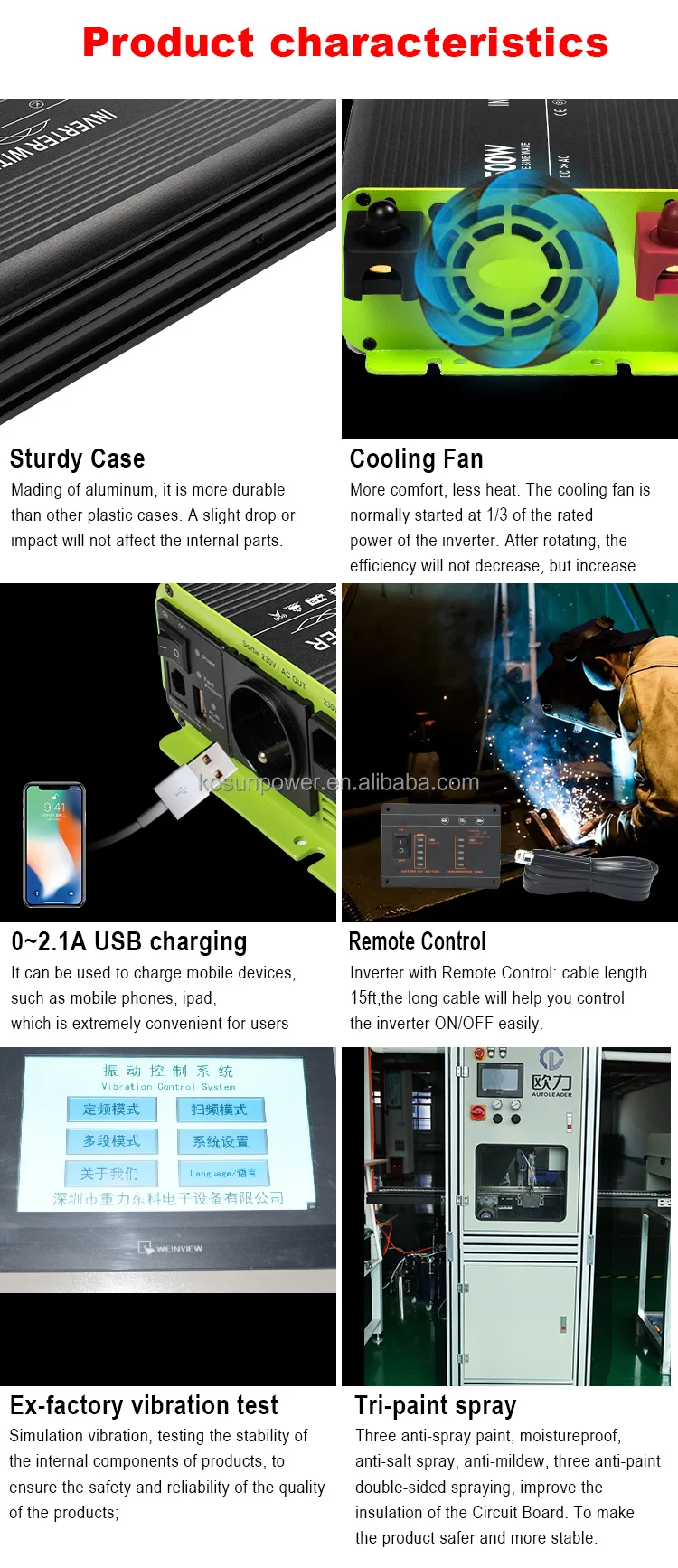

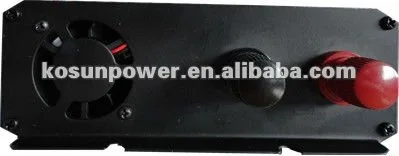

Cooling Fan automatically run: inner temperature rising up is ≥45°C

Packing

Inner packing

320*200*140mm

Outer packing

420*340*430mm

Gross weight

12KGS/5PCS

Stage

Description

Stage 1:Bulk Charge-Constant current

Current is supplied to the battery at a constant rate while voltage gradually rises.

Stage2:Absorption Charge-Constant Voltage

Voltage remains constant and current reduces as the battery becomes charged. This ensures complete charging.

Stage3:Float Charge

After the battery reach full charge, charging voltage is reduced to a lower level to prevent gassing and to prolong life. This stage is often referred to as a maintenance charge. Rather than charging a battery, it keeps an already-charged battery from discharging while providing load current.
