Product Overview
Description
professional electric/gasoline/diesel plate compactor/vibrating tamping compactor
Product Description

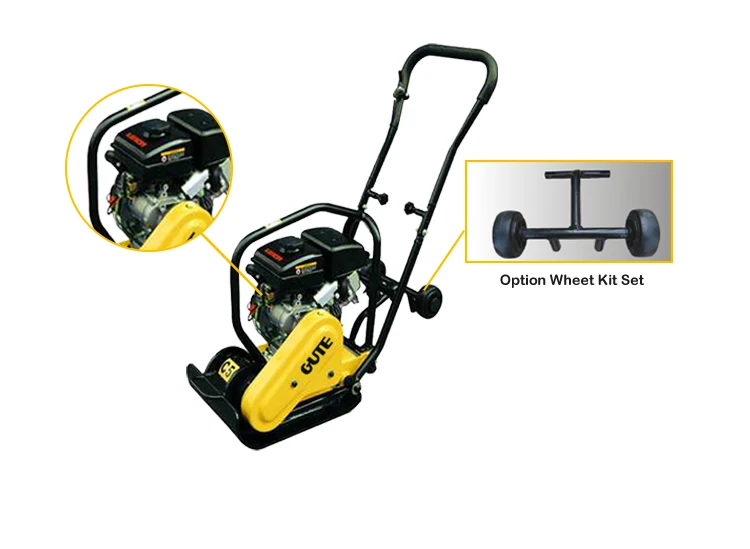

1. Foldable handle for easy transportation and stock.
2. Open plate provides self cleaning.
3. Built-in wheel kit for easy transportation..
4. Heavy-duty shock mounts reduce vibration to the upper engine&handle.
5. Sealed belt cover to prevent sand and soil in.
6. Round edge protect the exciter housing and even objects around working site.
7. Lifting hook as standard part.
8. Throttle control is available as standard part.
| Model | C50 | C90 | C160S (L) | C330 | ZBR75S |
| Centrifugal Force | 8.5kn | 16KN | 30KN | 38KN | 14KN |
| Vibrating Frequency | 5210vpm | 4750VPM | 4500VPM | 4500VPM | 4300VPM |
| Max. Travel Speed | 15m/min | 20m/min | 20m/min | 20m/min | 21m/min |
| Plate Size | 450*300mm | 540x450mm | 700x500mm | 700x500mm | 500x520mm |
| Efficiency | 250m2/hr | 450m2/hr | 480m2/hr | 480m2/hr | 520m2/hr |
| Compaction Depth | 20cm | 30cm | 50cm | 50cm | |
| Engine Type | Loncin G154 (3HP) | Honda GX160(5.5HP) Loncin G200(6.5HP) | Honda GX270(9HP) Loncin G270(9HP) | Honda GX390(13HP) Loncin G390(13HP) | Gasoline Kohler CH260 |
| Weight | 52kg | 90kg | 146kg | 250kg/275kg | 77kg |
