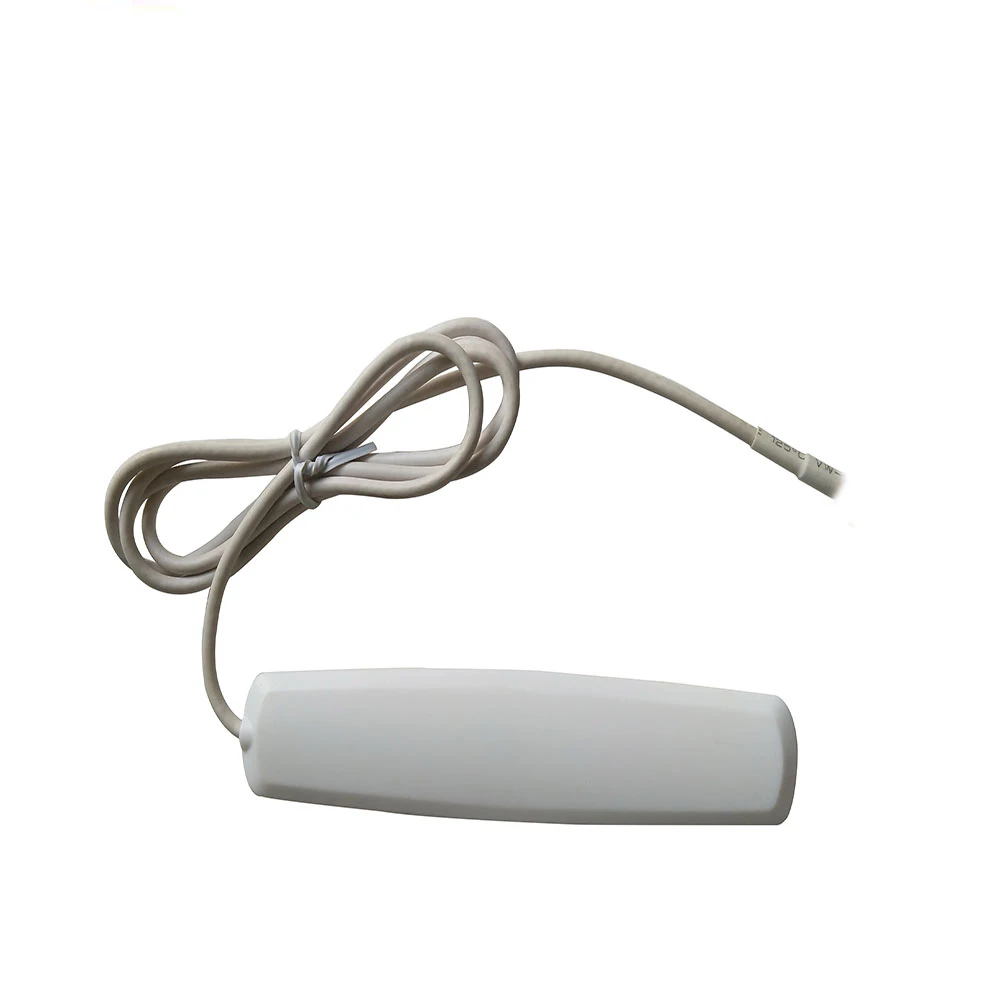

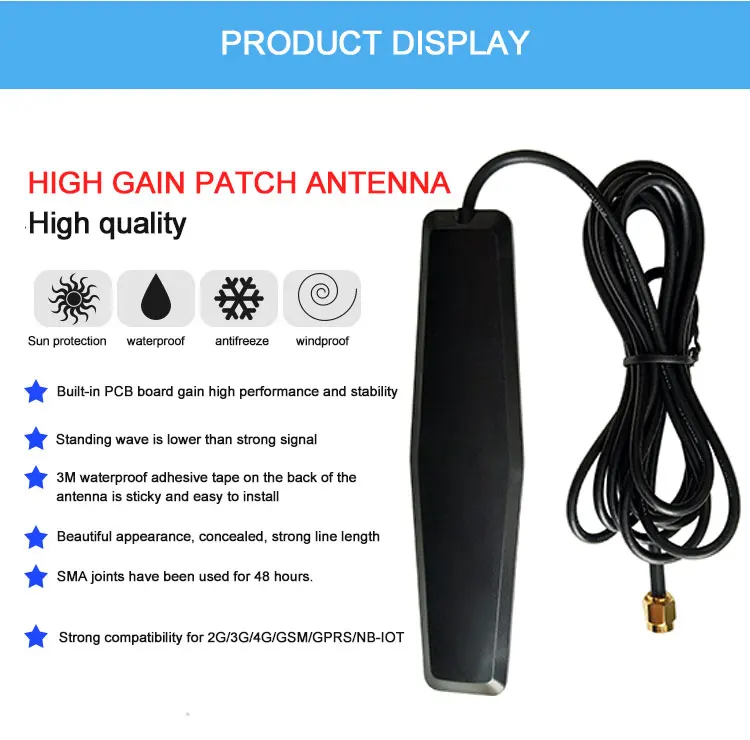

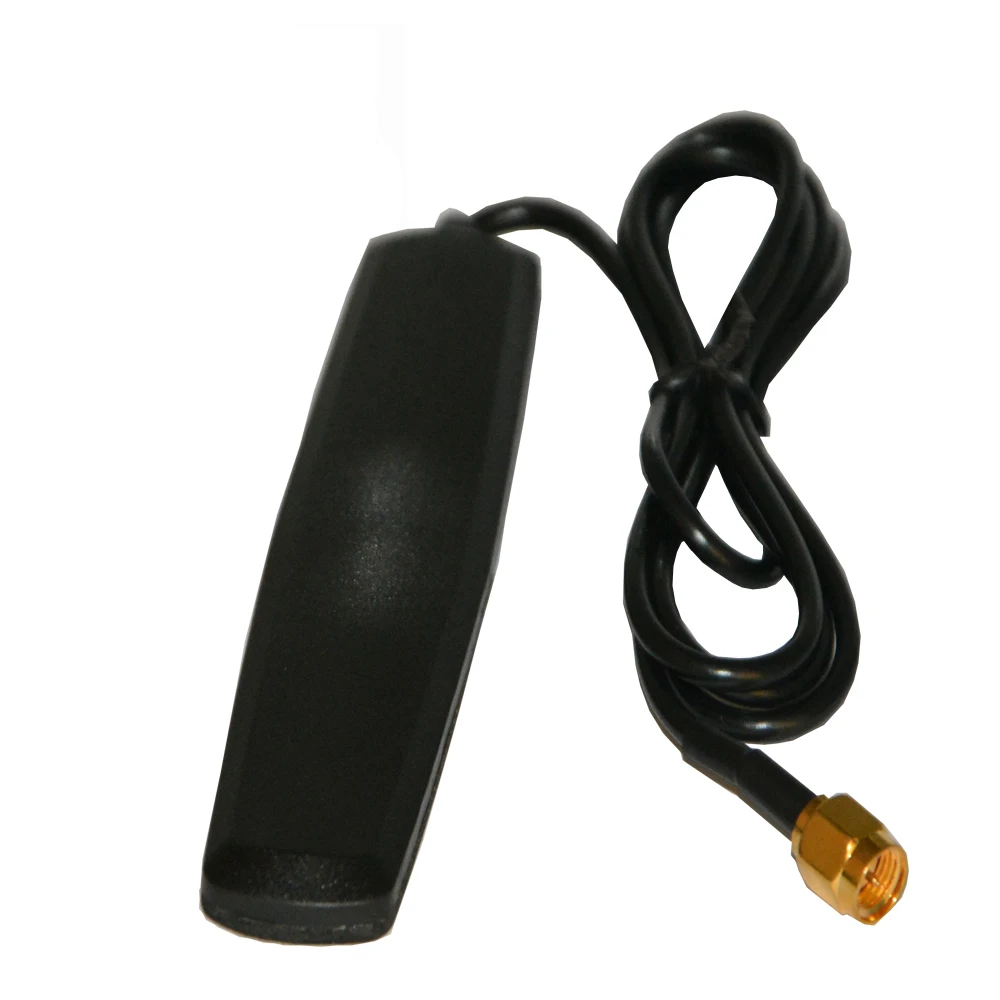

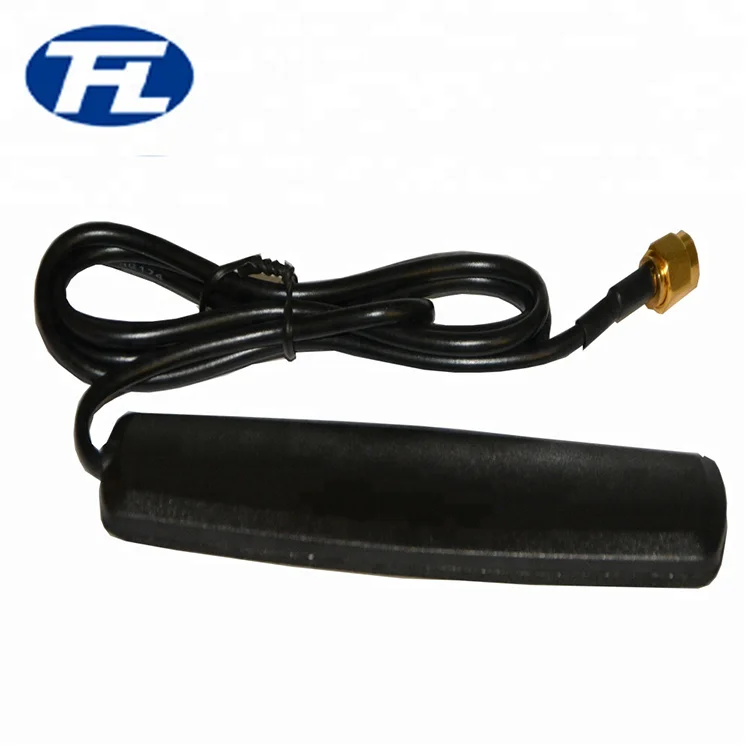

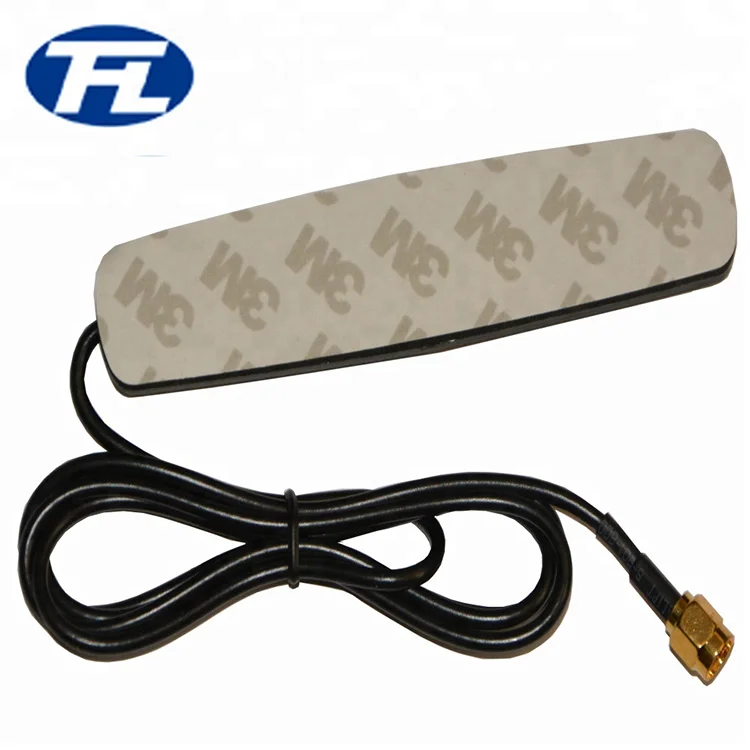

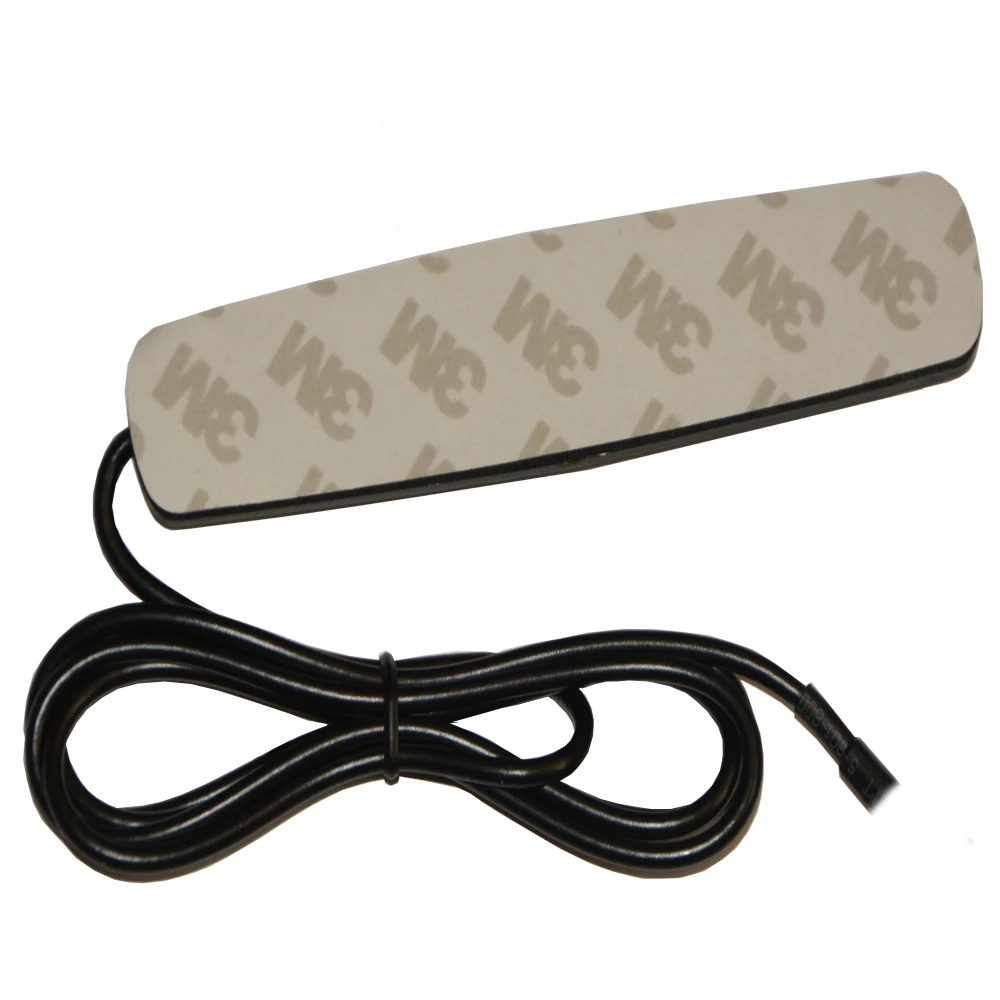

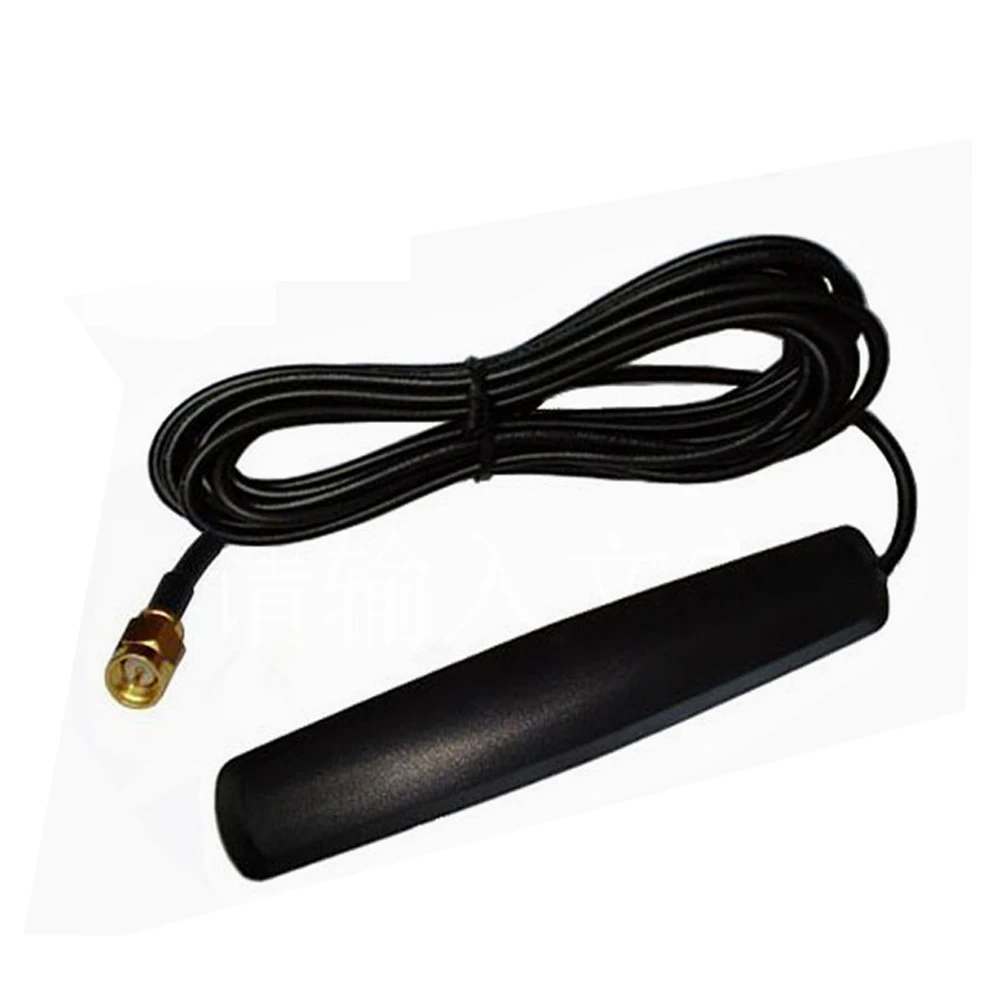

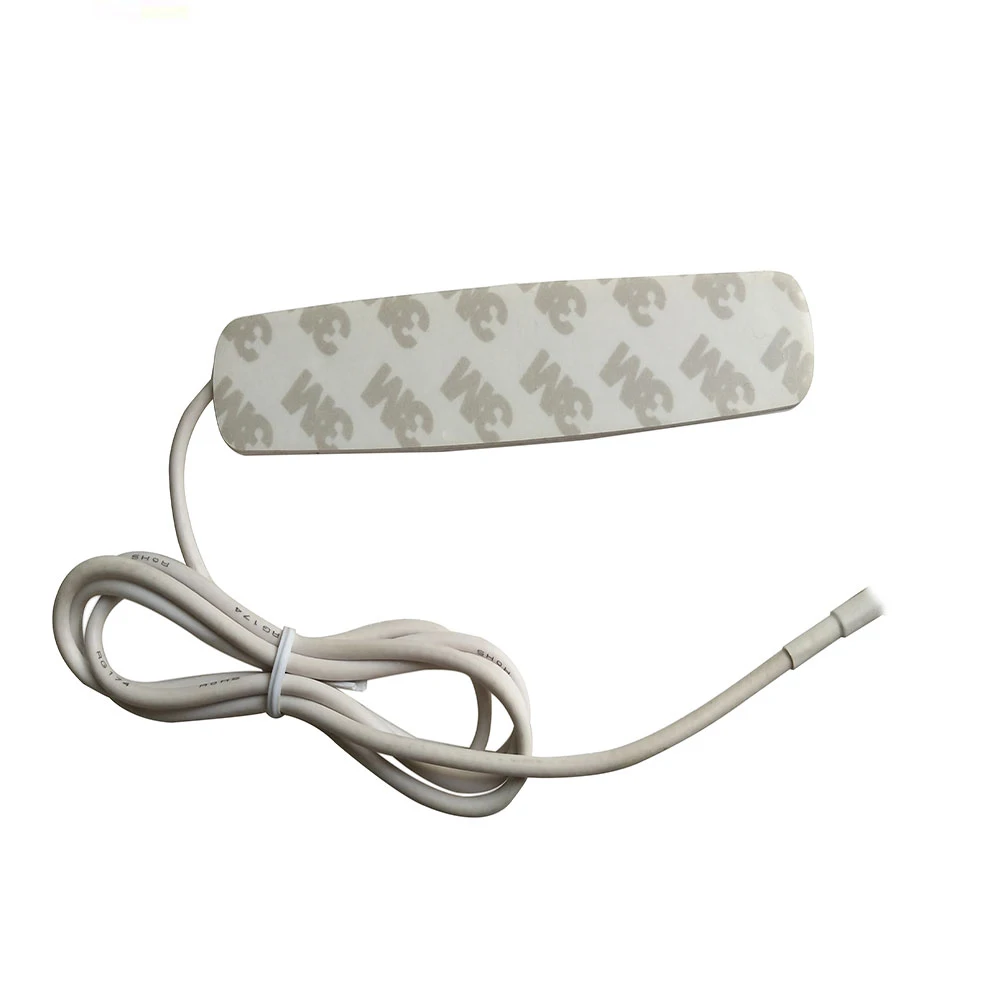

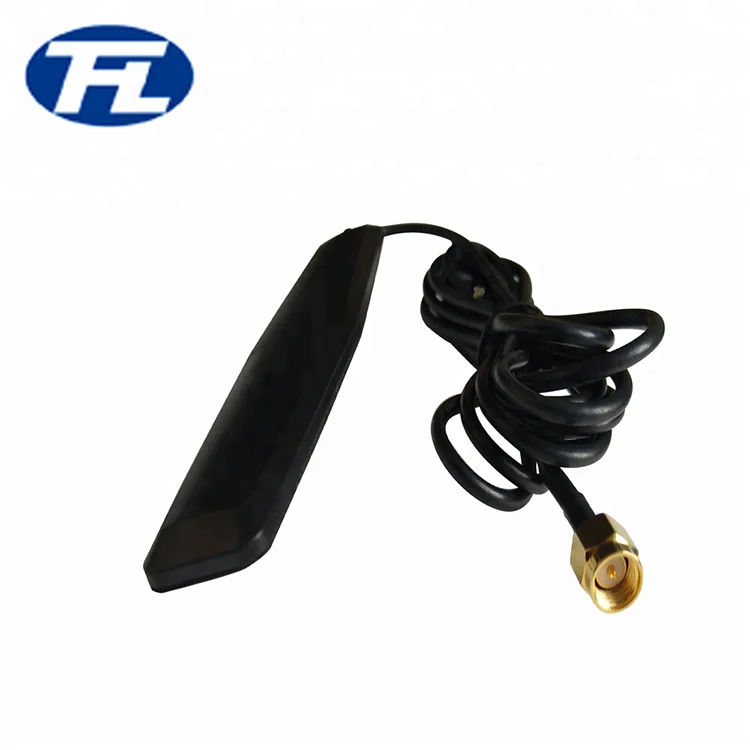

2023 Factory price Mini Sticker GSM Car Patch Antenna With 3meters RG174 SMA Connector

Product Overview

Description

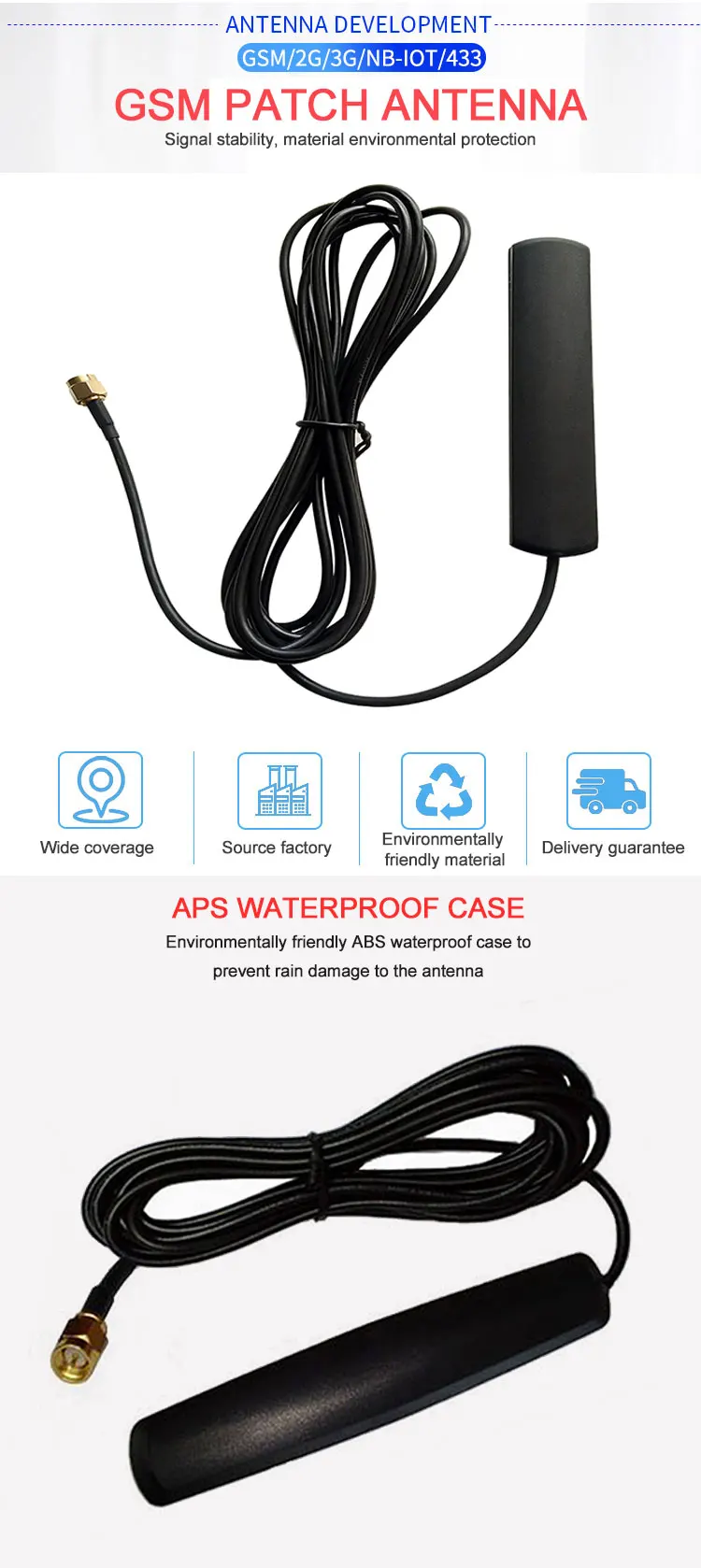

GSM Antenna FL-M103A
Specification
1) GSM Antenna
Frequency Range	824~894 MHz
	880~960 MHz
	1710~1990 MHz
	1920~2170 MHz
V.S.W.R	2.0:1
Impedance	50 ohm

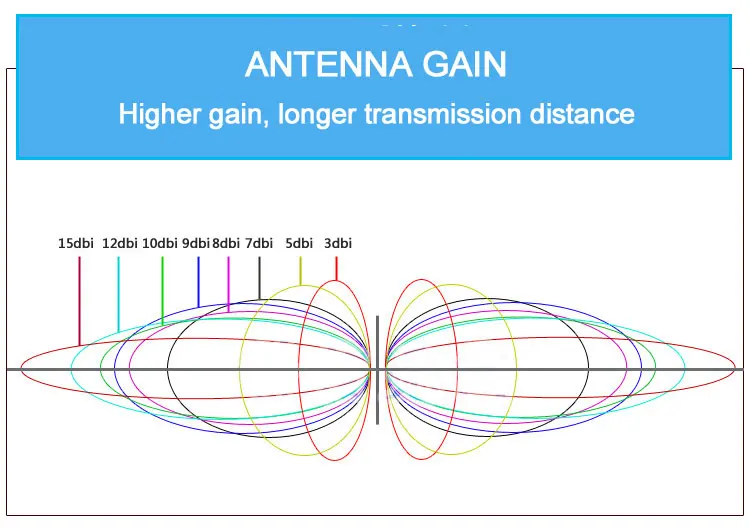

Typical Gain(w/o cable)	2 dBi
Polarization Type	Vertical or Horizontal
2) Mechanical

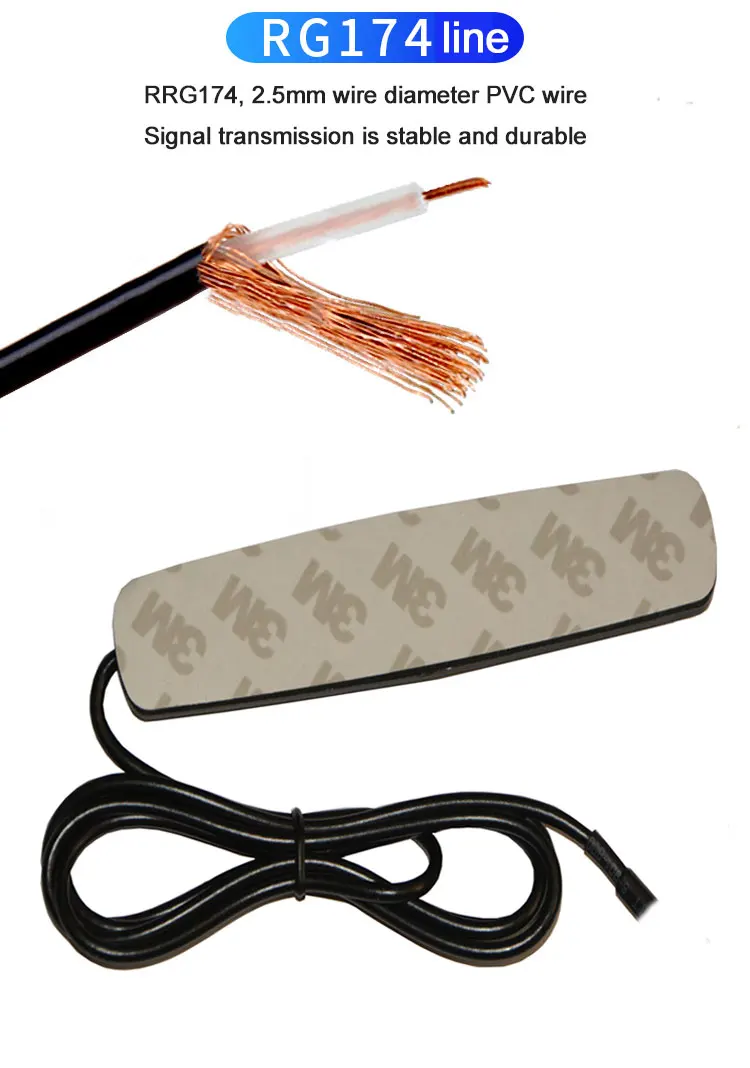

Cable	RG174, 3m or others

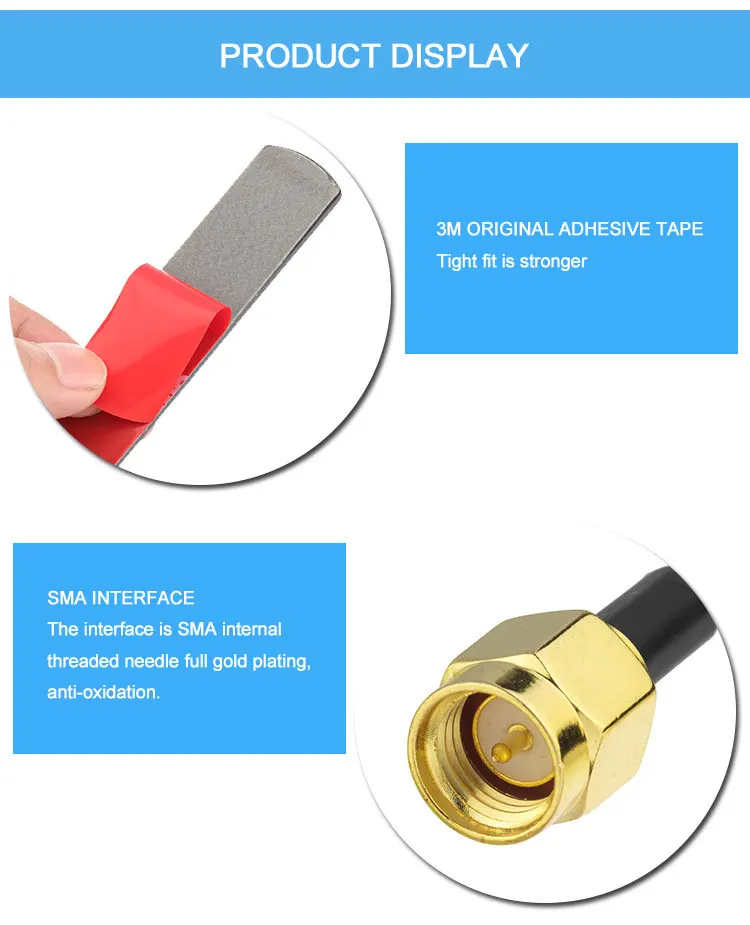

Connector	SMA/MCX/Fakra or others

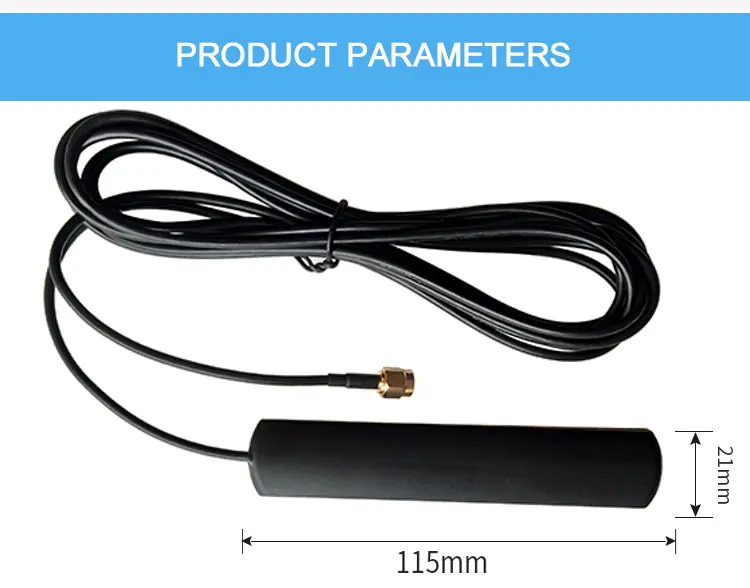

Size	116*24*4mm
Mounting	Adhesive
Housing	Black
3) Environmental
Working Temp.	-40℃~+85℃









Q: Can I get one sample?

A: Yes, sample is for free.

Q:Payment term:
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal

Q: What's the delivery time?
A: 1-2 working days for the sample, 7-10 working days for quantity below 5K, 15-30 working days for the quantity below 20K.

Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.

Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q:How can you guarantee the product quality?
A: All of our items are manufactured unter RoHS directive and CE certified. Before shipment, we'll 100% inspect the commodity.

Q: What should customers do when you get the bad quality products?
A: If there are any damaged items, please kindly contact us for after-sale service. Generally, we'll pay for it in customer's next orders.
