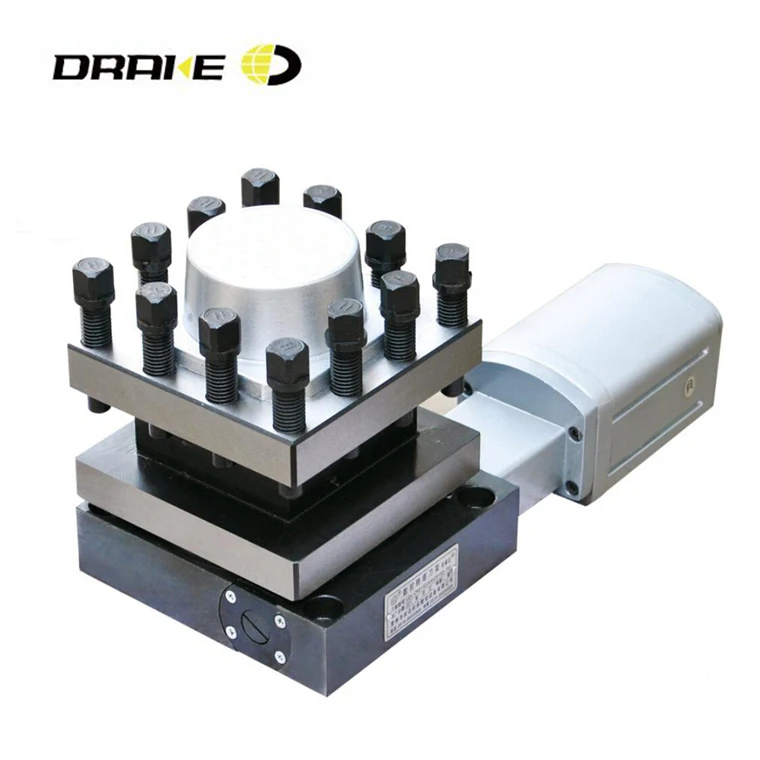

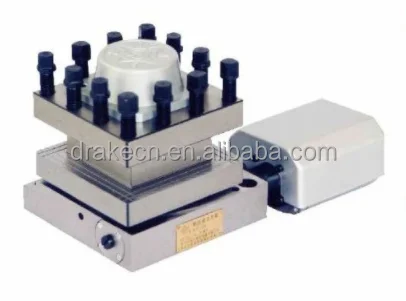

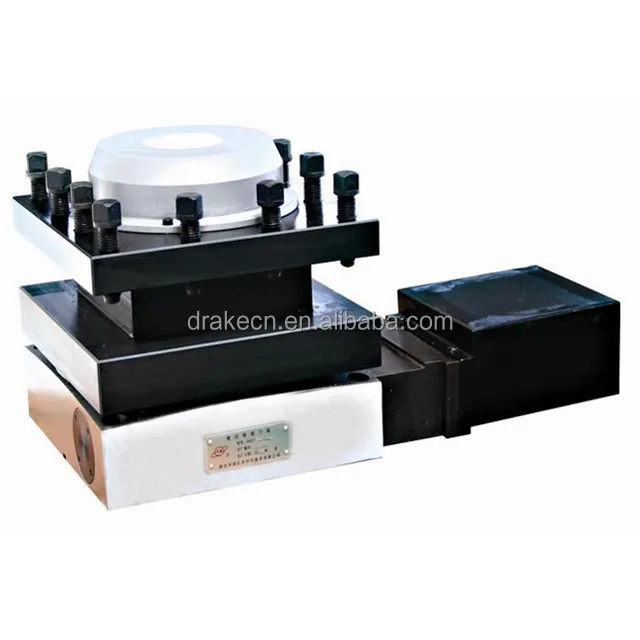

LD4B CK6140 series 4 position station automatic vertical type NC tool turret

Product Overview

Description

 LD4-CK6140 machine use 4 postion nc turret







Technical features:

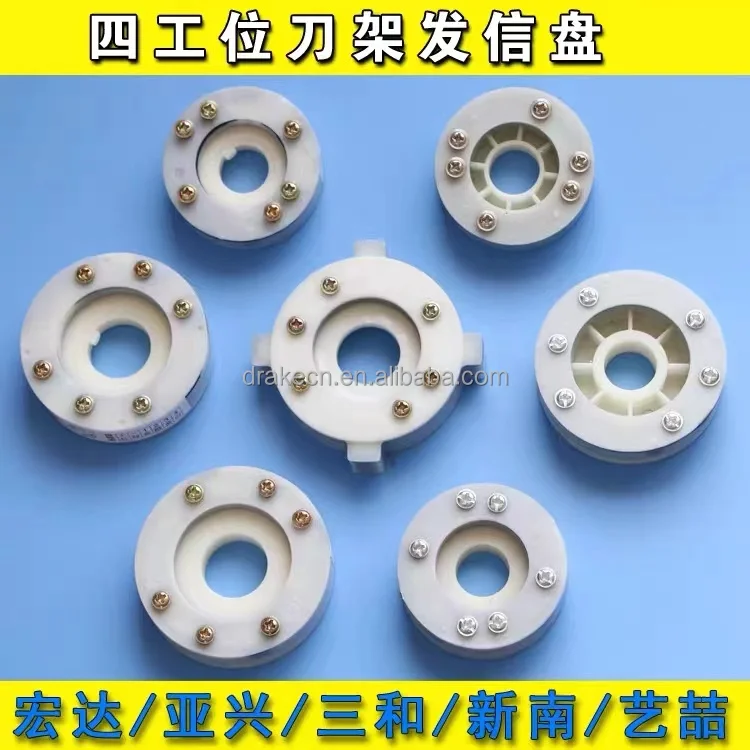

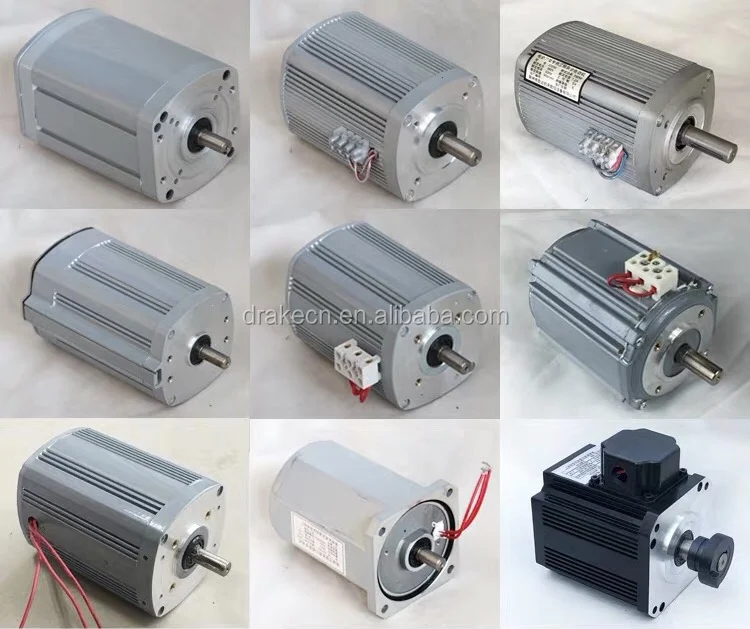

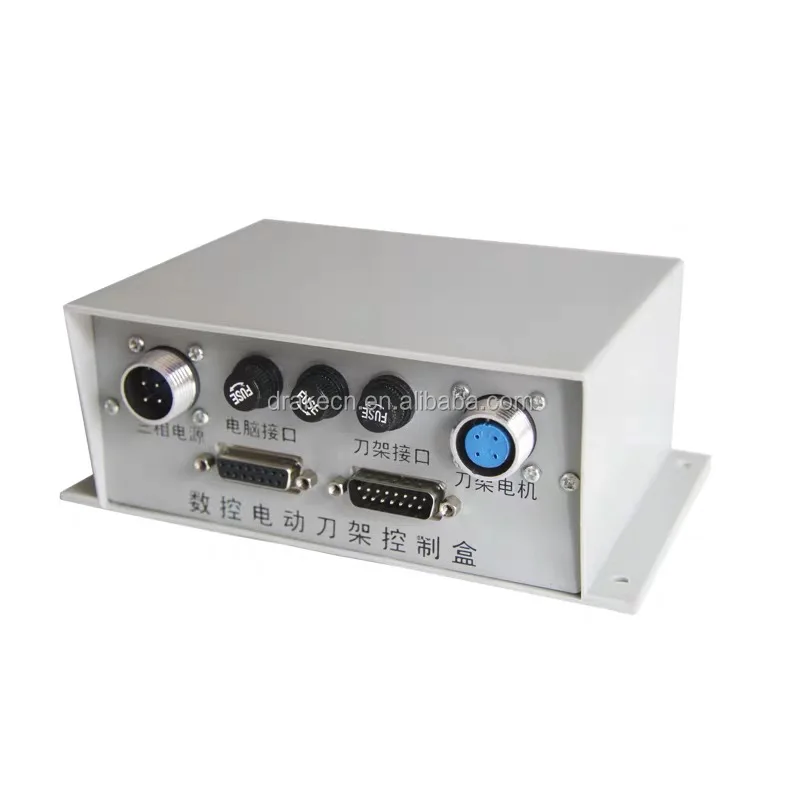

LD₄  series vertical NC turret adopts the working principle of worm wheel and worm for driving, face gear coupling as fine indexing mechanism, big screw for clamping,sending signals with Hall unit. It features fast change tools, high repeatability accuracy, high stiffness. It is a popular product for economic NC lathe.

1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.

2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.

4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.

5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.

Size Parameters

Model/Dim	H1	H2	H3	H4	L1	L2	L3	L4	A	A1	B	B1
LD4CK0610	86	40	15	11	57.5	86	70	50	70	35	87	36
LD4CK0620	116	48	19	16	58	100	80	56	80	40	110	55
LD4CK0625	128	51	22	16	86	118	110	80	120	55	126	56
LD4CK6125	162	57	35	16.5	110	118	136	96	136	68	148	68
LD4CK6132	187	70	40	21	76	127	152	104	161	76	171	76
LD4CK6136	194	77	33	21	76	127	152	104	161	76	171	76
LD4CK6140	202	81	40	23	76	127	162	112	192	81	192	105
LD4CK6150	242	121	40	47	76	127	162	112	192	81	192	105
LD4CK6163	253	120	51	40	110	132	200	124	200	100	200	100



Model/Dim	C	D	D1	E	E1	F	φ	φ1	φ2	h	M
LD4CK0610	74	57	50	6.5	10	6.5	φ7	φ11	φ68	6.5	M6
LD4CK0620	94	64	52	8	13	8	φ9	φ14	φ78	9	M8
LD4CK0625	110	90	80	15	20	8	φ9	φ14	φ88	9	M10
LD4CK6125	126	108	108	14	14	11	φ11	φ17	φ88	11	M12
LD4CK6132	146	126	126	23	23	12	φ13	φ19	φ88	13	M16
LD4CK6136	146	126	126	23	23	12	φ13	φ19	φ88	13	M16
LD4CK6140	168	152	152	20	20	12	φ13	φ19	φ88	13	M16
LD4CK6150	168	152	152	20	20	12	φ13	φ19	φ88	13	M16
LD4CK6163	177	150	130	25	35	11.5	φ13	φ19	φ98	13	M16





Performance Parameters



Model/Data	Center height (mm)	Motor  power(W)	Max.tangential  torque(N·m)	Repeatability  accuracy(")	Time of changing  tool and lock(s)
					90º	180º	270º
LD4CK0610	40	40	100	±2	1	1.4	1.8
LD4CK0620	48	50	150	±2	1.2	1.6	2
LD4CK0625	51	90	300	±2	1.7	2.2	2.7
LD4CK6125	57	90	400	±2	1.9	2.4	2.9
LD4CK6132	70	120	500	±2	2	2.5	3
LD4CK6136	77	120	500	±2	2	2.5	3
LD4CK6140	81	120	600	±2	2	2.5	3
LD4CK6150	121	120	600	±2	2	2.5	3
LD4CK6163	120	180	800	±2	2.5	3.2	3.9
