Description

*Newest version of software!!

*This is used for USB device power supply and time control.

*Can be used with a coin acceptor or other devices that can

  output pulse signals.and you can set up for what values to start your machine!!

*Suitable for any kinds of automatic control devices such as gaming machines,

  massage chairs,shoe polishers,washing machines,chargers,dryers,and PCs.

Features

(1)Controls USB electrical devices ( USB mouse , keyboard ...etc) power.

(2)Suitable for public place location and most of electric device control,

    for example:PCs,washing machines,dryers,massage chairs,chargers,etc.

(3)AC 1250W/DC 500W electrical relay capacity.

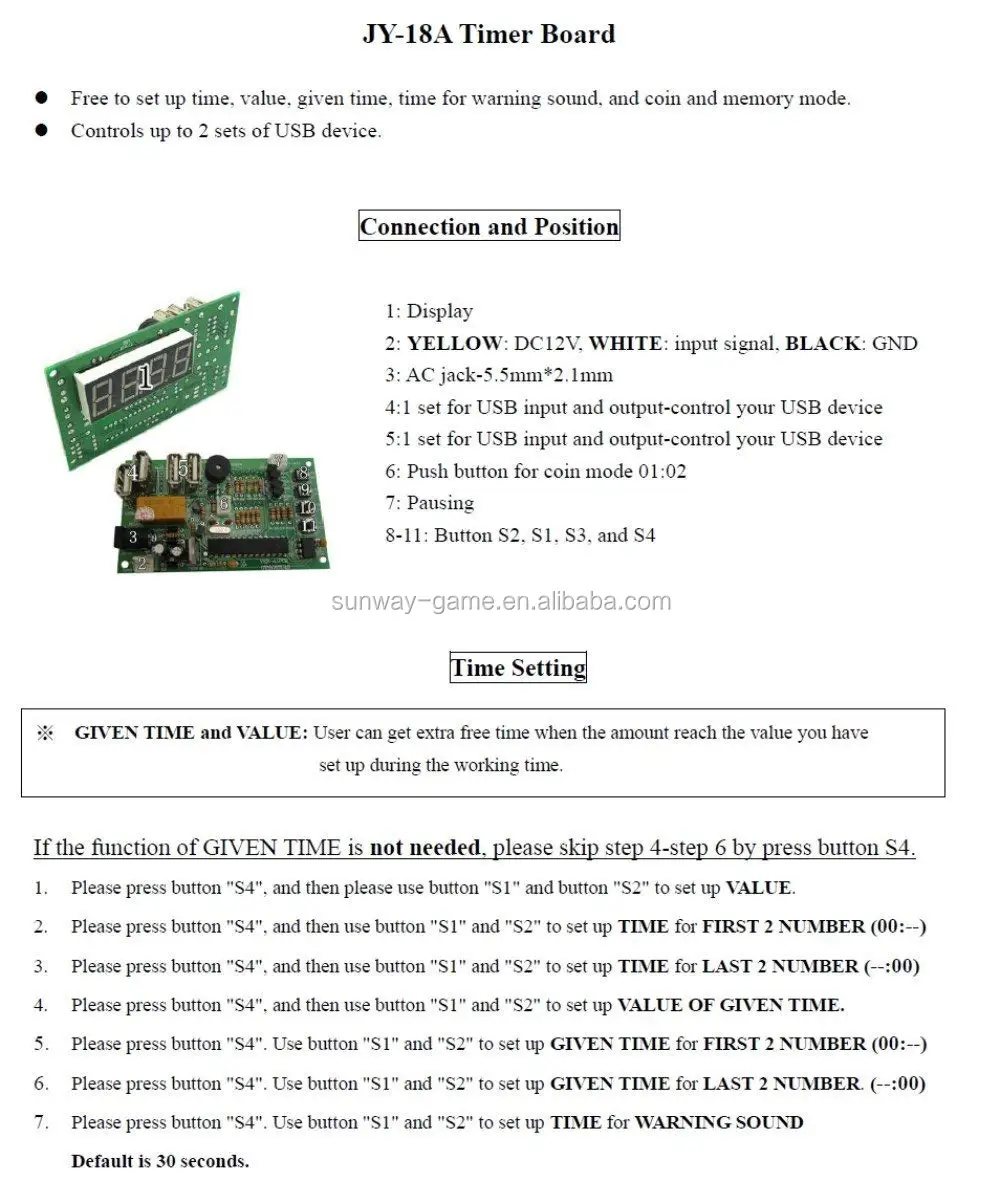

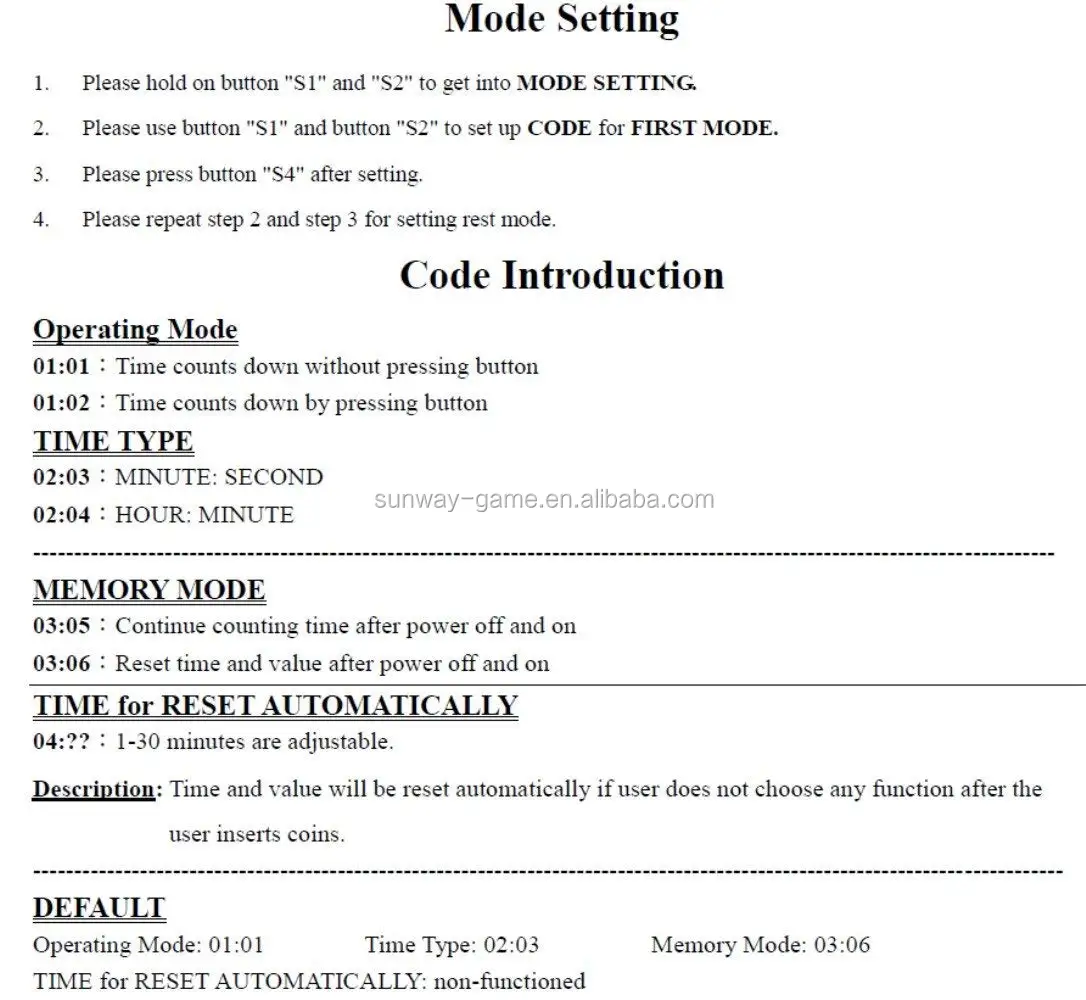

(4)Digital timer: rate adjustable by owner through three simple push button switch.

(5)The time can be set by seconds or by minutes.

    maximum time : there are 2 version of software

   •99:00 (minutes:seconds) or •99:00 (hours:minutes)

(6)Control  time by seconds-minutes or  minutes-hours.

(7)Accumulate time when signal inputs.

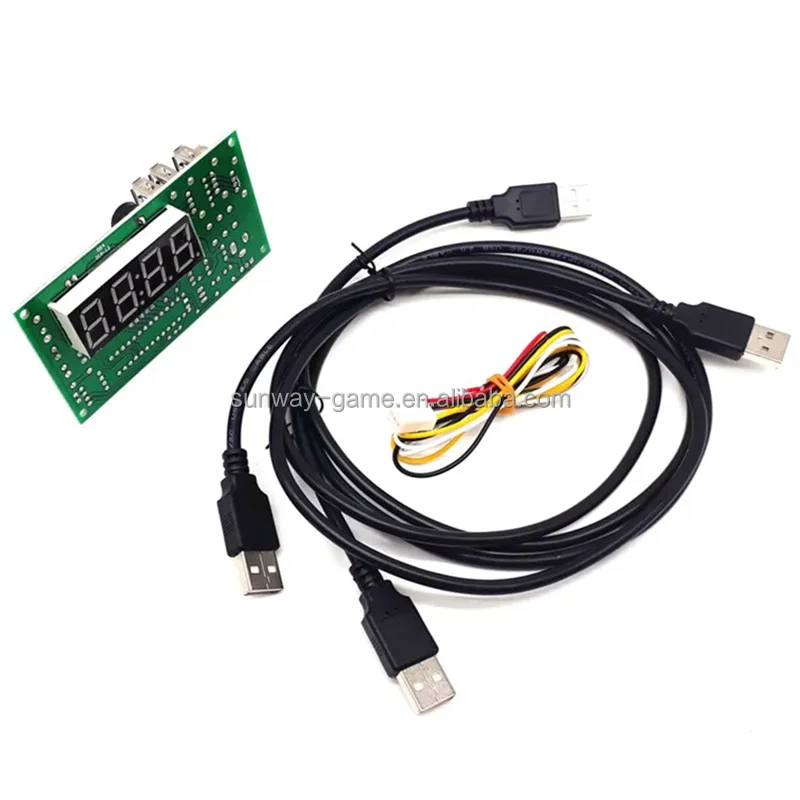

(8)Timer control board with coin acceptor operates with 12V DC power.and has

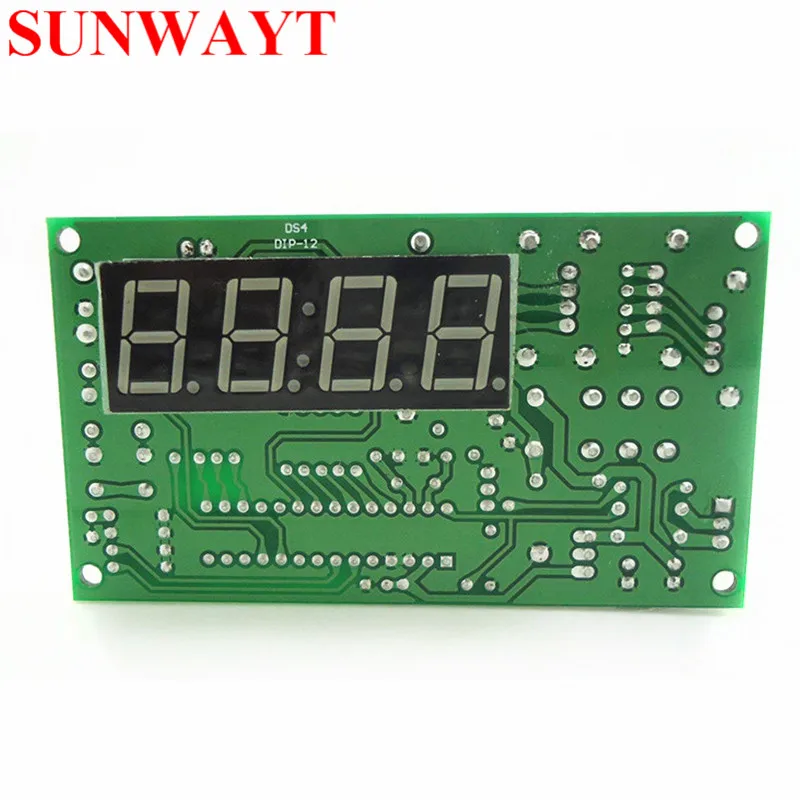

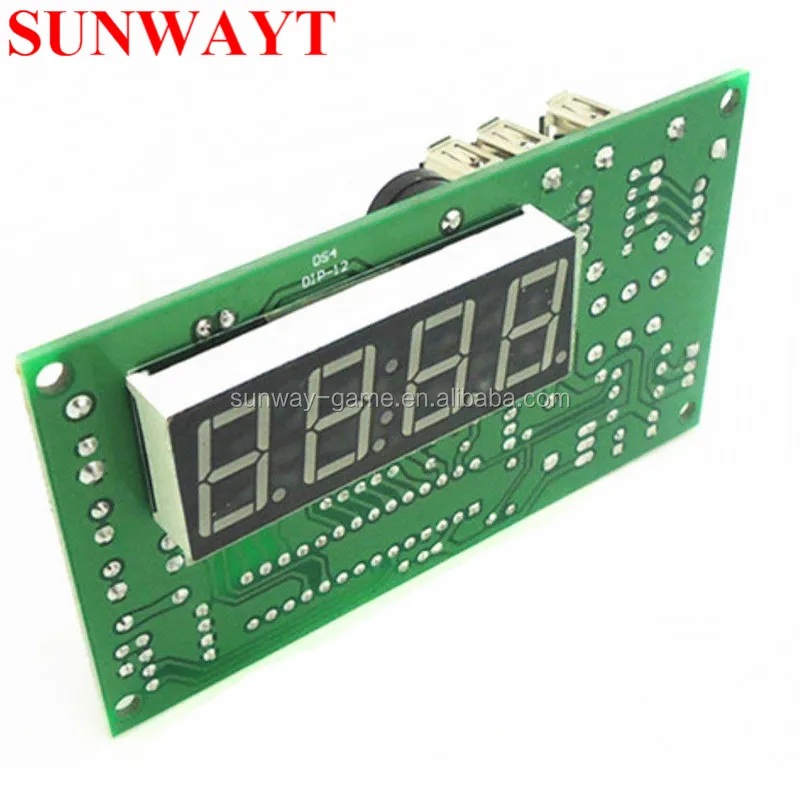

    the LED to show the Time left.

Specifications

The timer control board for any electrical load does not exceed the following:

•DC 28V,AC 250V,Current 5A

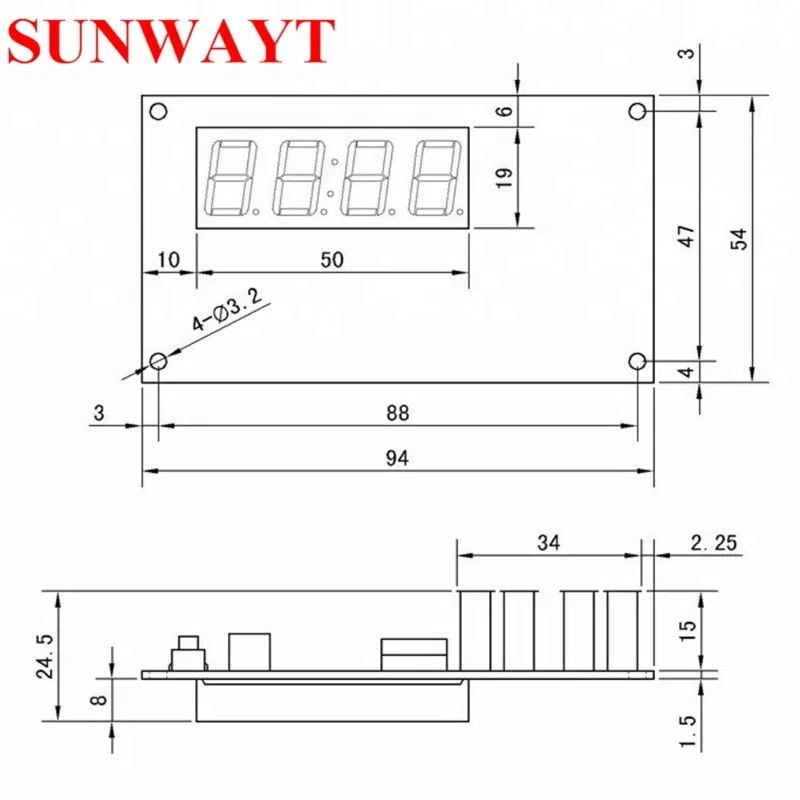

•Size:93.0mm X 54.50mm

•Unit Ship Weight:0.35kg
