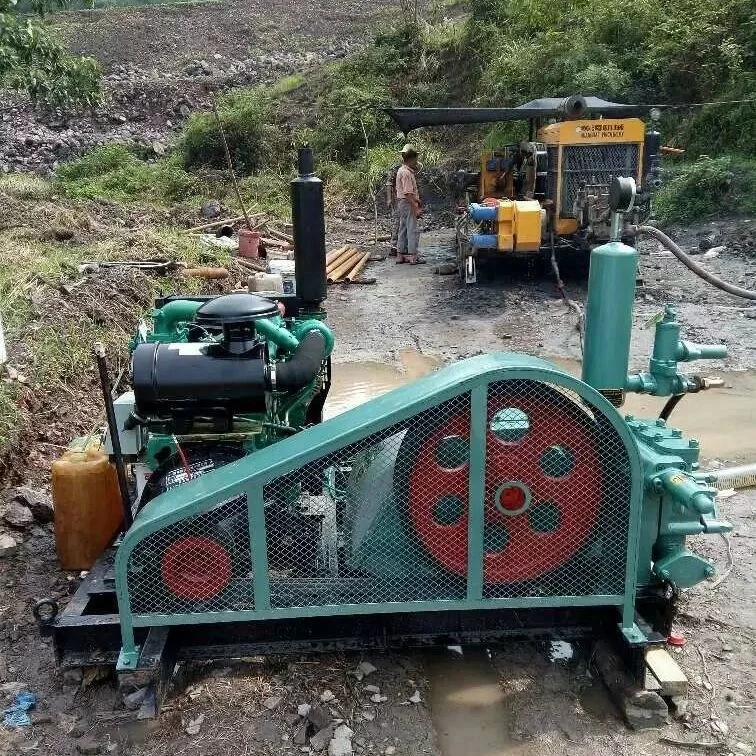

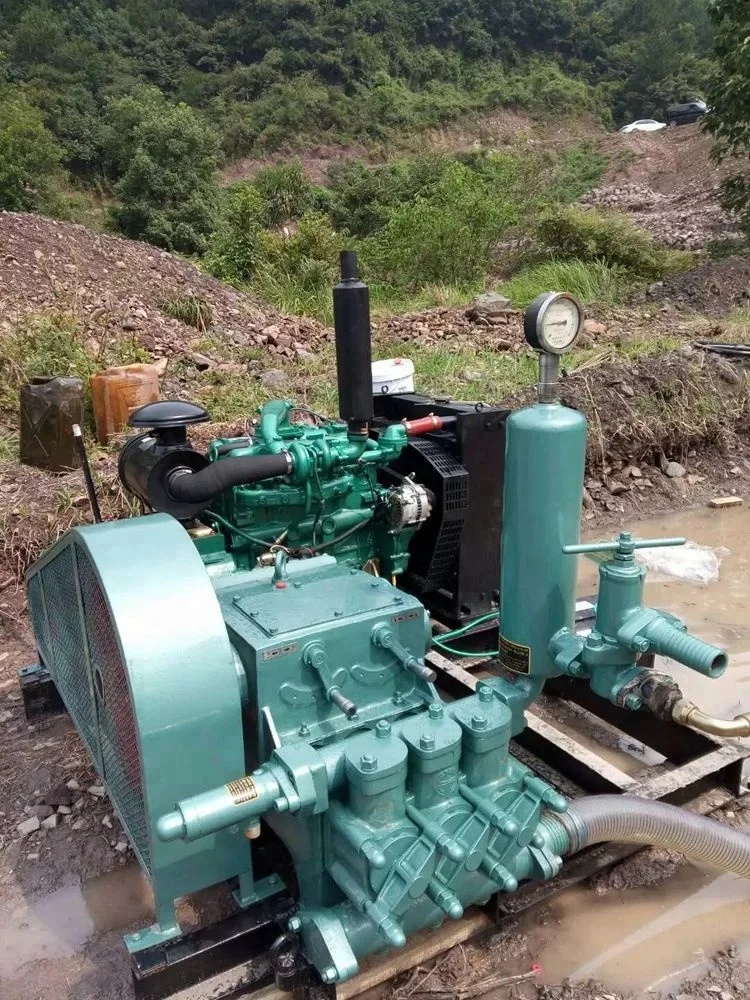

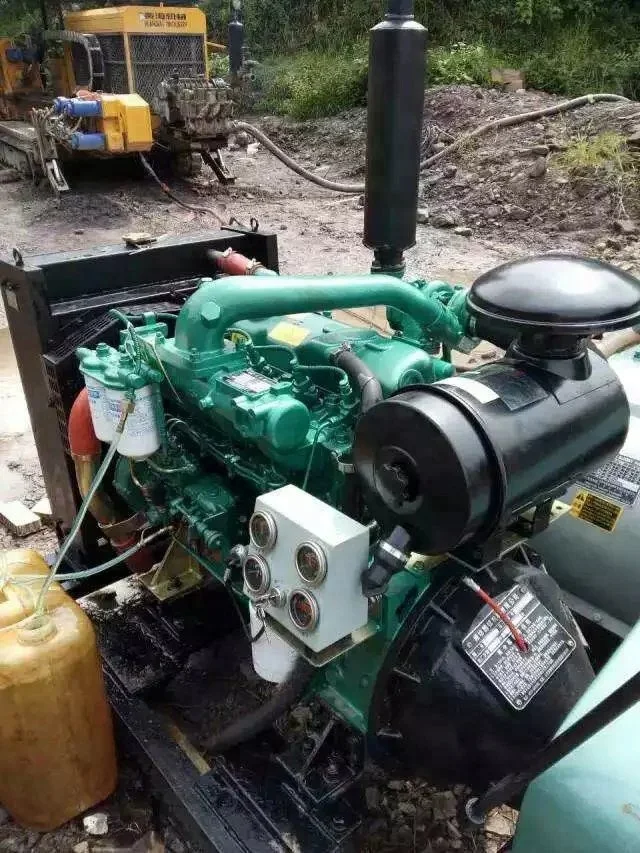

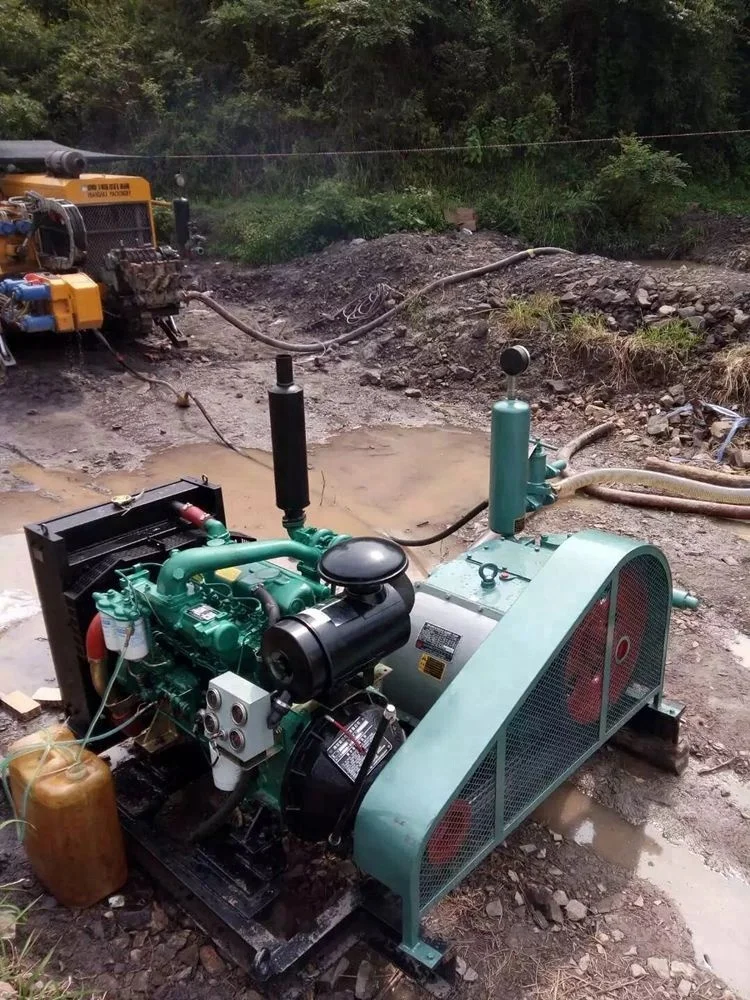

BW 600/10 Diesel Engine Driven Triplex Piston Mud Pump
- Category: >>>
- Supplier: Changsha Miracleland Import & Export Co. Ltd. [Hunan China]Changsha
Share on (60795534624):
Product Overview
Description
Product Description
BW-600/10 Triplex Slurry Pump
BW600 / 10 mud pump is a horizontal triplex single acting reciprocating piston pump. The pump is suitable for about 70 tons of trenchless drilling rig, shallow hole drilling wells and specialty construction and oil drilling shallow holes, 2000 meters above the core drilling. The pump has four traffic and four kinds of pressure, can better meet the different aperture or hole deep drilling technology needs. Compared with the same specifications pump has a smooth, wide flow range, high output pressure, longer consumable life and stable performance characteristics.
With sophisticated structure and new materials in China and abroad, small volume and light weight, easy assemble and disassemble as well as long service life of high wear parts, this mud pump enjoys superior performance.
With sophisticated structure and new materials in China and abroad, small volume and light weight, easy assemble and disassemble as well as long service life of high wear parts, this mud pump enjoys superior performance.
Technical Parameters
| Type | BW-600/10 Single-acting triplex piston | |||
| Stroke | 110mm | |||
| Bore | 100mm | |||
| Pump speed (s.p.m) | 232 | 162 | 109 | 76 |
| Output volume (l.p.m) | 600 | 415 | 280 | 195 |
| Discharge pressure (Mpa) | 3.5 | 5 | 7.5 | 10 |
| Input power (Kw) | 55 | |||
| Suction pipe dia (mm) | 89 | |||
| Discharge pipe dia (mm) | 51 | |||
| Overall dimensions (mm) | 2330X1715X1230 | |||
| Weight (kg) | 1170 | |||
BW Series Size Mud Pumps Available:
BW-120, BW-145, BW-150, BW150/1.5, BWZ-150, BW-160, BW160/10, BW-160H, BW-200, BW-250, BW-280/12, BW-280/30, BW300/12, BW-300/12B, BW-300/16, BW-320, BW-350/15, BW-450, BW-450/5, BW-600/10, BW-800/15, BW-1000/12, BW-1500/12, BW-2000/12, BW-2500/16.
Horizontal Directional Drill Series Pumps:
BW-100, BW-150GM, BWF-160/10, BWF-240, BW-250A, BWF-250, BW-320A, BWF-400/10, BWF-600/10.
