Product Overview

Description

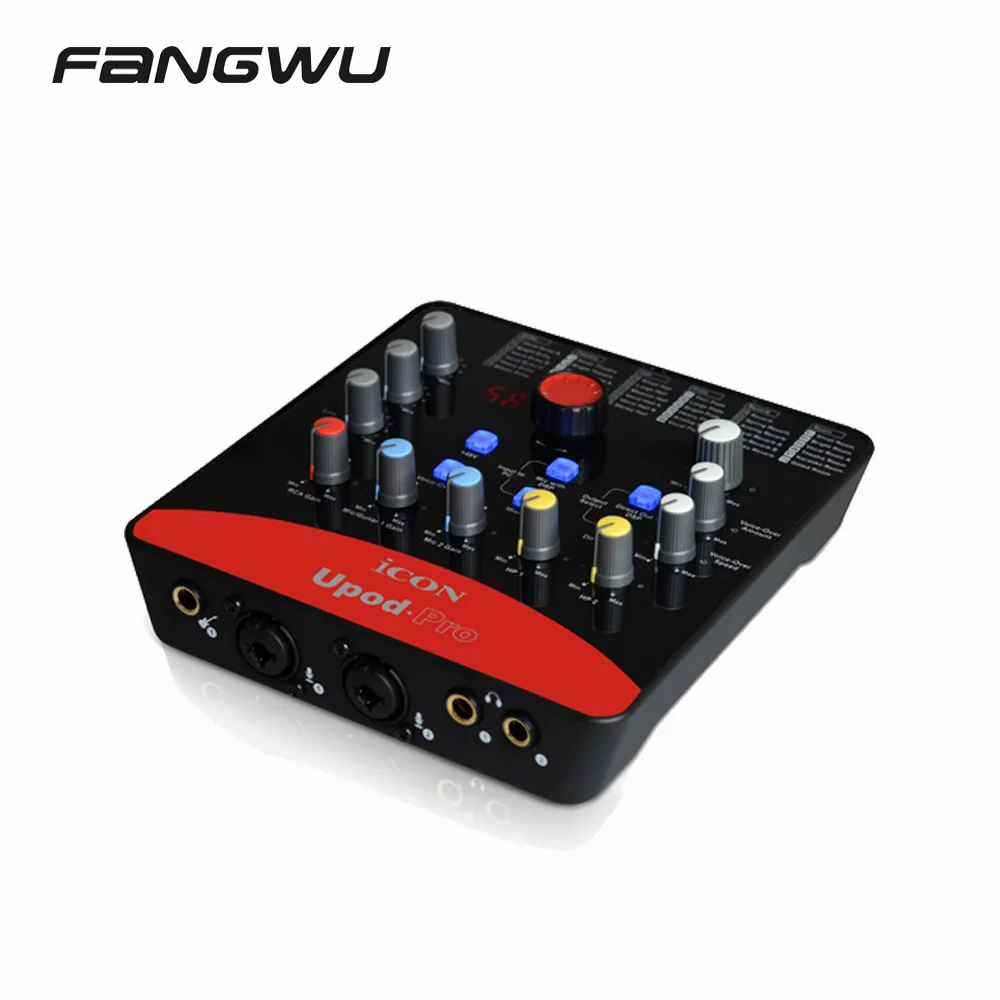

Upod Pro

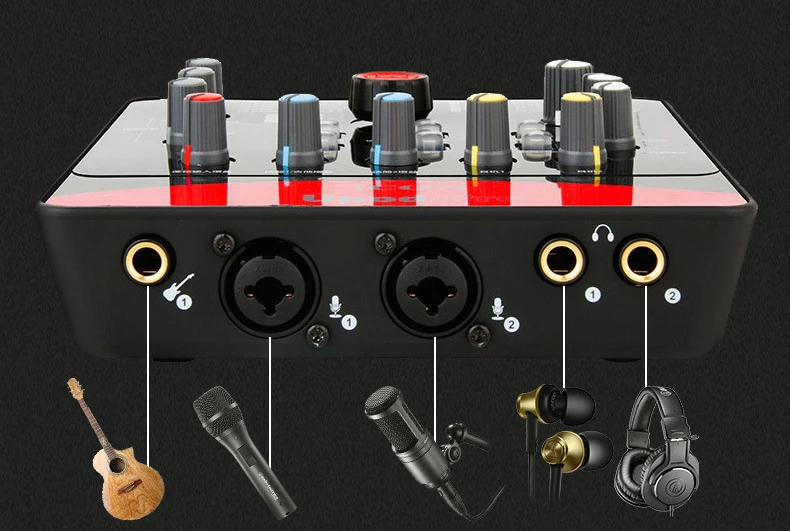

*16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
*2×2 analog I/O full duplex recording and playback
*ICON innovative unique mic preamp with individual gain control.
*Equipped with +48V & +5V phantom power.
*Built-in ICON 72-DSP effect with control knob on the top panel.

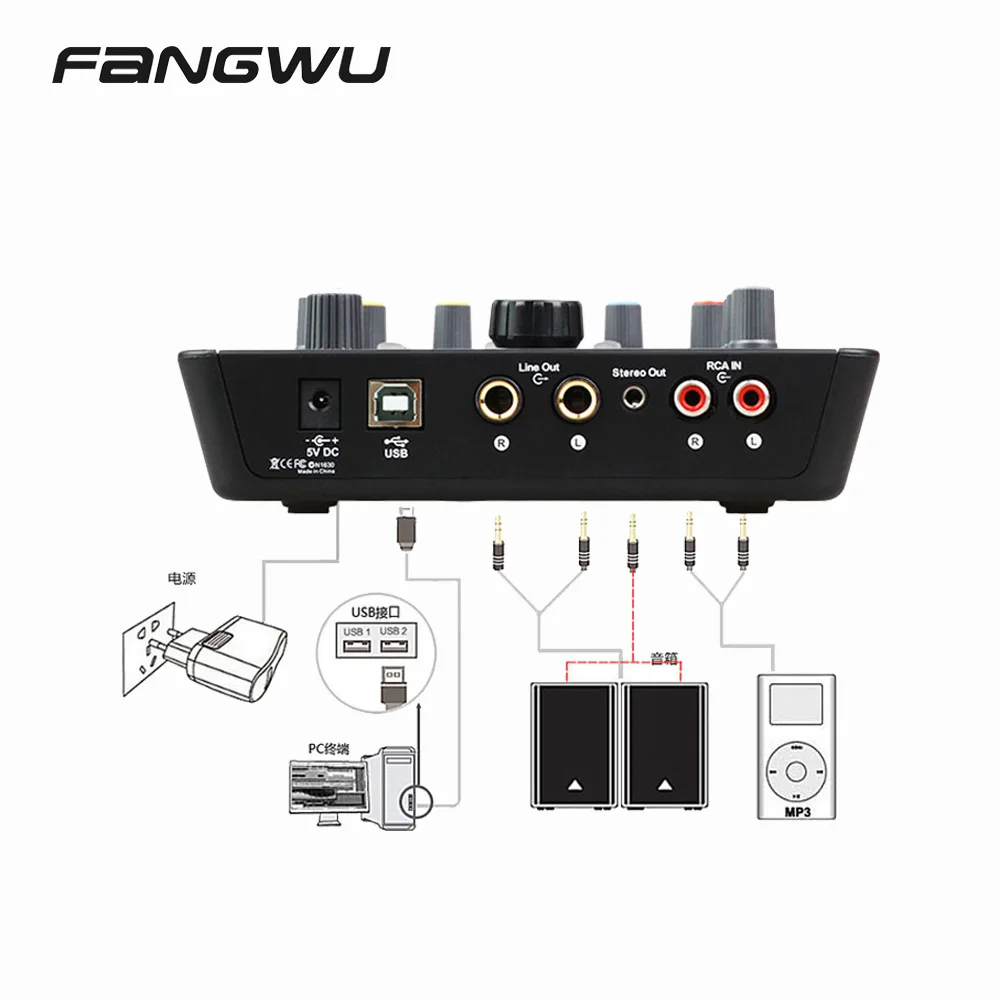

*2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.
*Built-in stereo RCA input with individual gain control
*Functions as a stand-alone device with RCA input & DSP processing.
*Equipped with Hi, Mid & Low EQ adjustment knobs.
*Attenuator (Voice-Over) function button equipped for music fade-out automatically when mic signal is present.
*Two Voice-Over function control knobs for adjusting the BGM ramping speed and ducking amount.
*Buttons equipped for controlling mic signal (dry/wet) recording to PC.
*Buttons equipped for controlling monitoring signal (dry/wet).
*Master volume control on the top panel
*2 headphone outputs on 1/4” TRS jacks with individual volume control
*USB2.0 compatible
*Plug & play and no driver installation is needed.
*Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit),Windows 10
*Full duplex, simultaneous record/playback





Mic Input
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.0061% (-86dB)
Crosstalk	-85dB @ 1kHz
Input Impedance:Mic in	1.8K Ohms, typical
Adjustable Gain	+39dB
Inst Input
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.0061% (-86dB
Crosstalk	-75dB @ 1kHz
Input Impedance	Inst in 500K Ohms, typical;
Total Gain Range	+38dB
Line Inputs (RCA IN, Unbalanced)
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.003% (-86dB)
Crosstalk	-90dB @ 1kHz
Input Impedance	10K Ohms, typical
Adjustable Gain	+8dB
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.003% (-86 dB)
Crosstalk	-90dB @ 1kHz
Nominal Output Level	-+2dBV, typical
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load)
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Power into Ohms	20 mW into 100 Ohms
THD+N	<0.06% (-66dB)
Signal-to-Noise Ratio	-90dB, A-weighted
Max Output Level into 100 Ohms	+2.0dBV, typical
Load Impedance	32 to 600 Ohms
