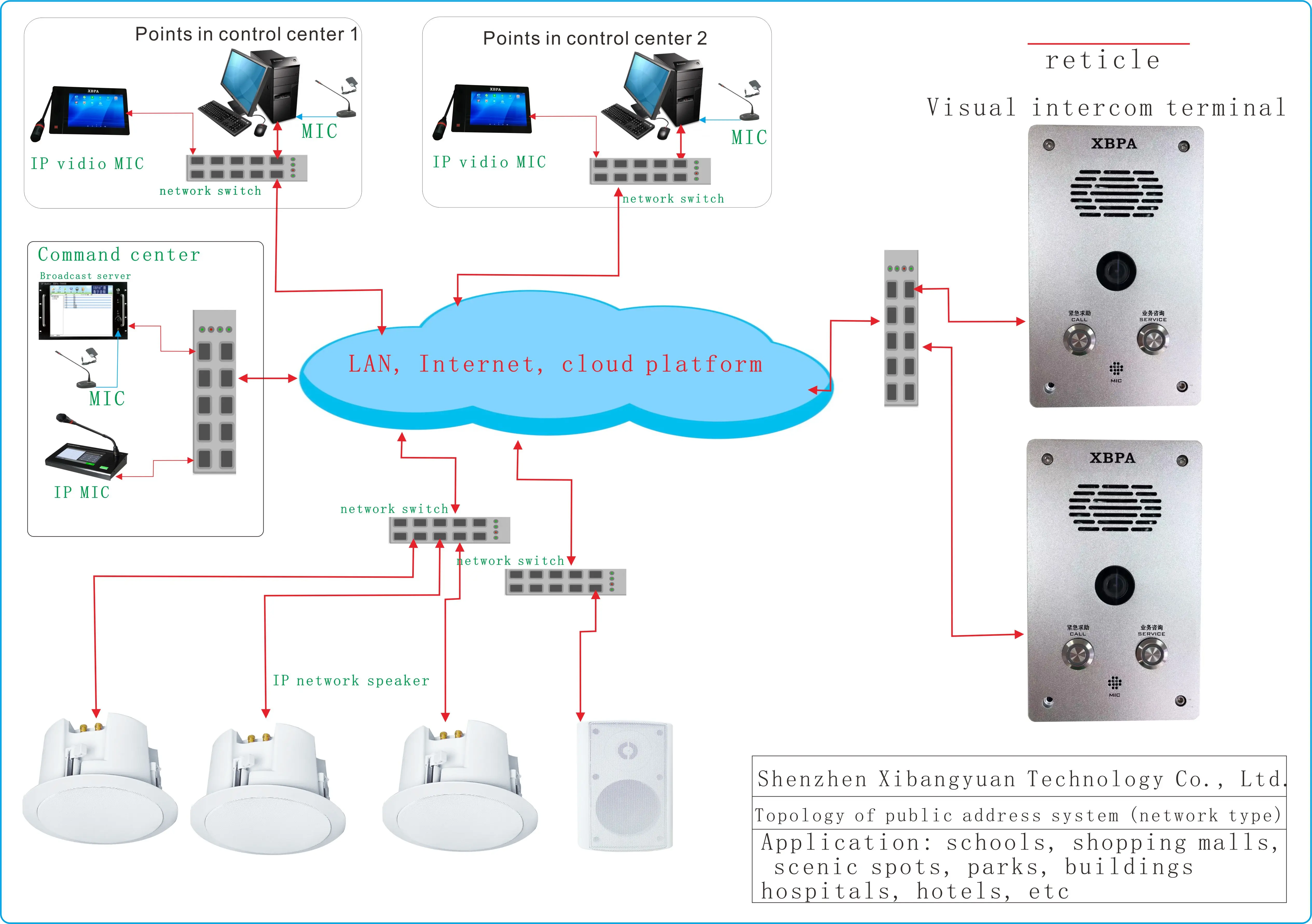

IP Network Visual (video) intercom system software Including IP network audio intercom terminal and video intercom terminal

 Product use:

The data exchange, operation and function control management platform of control system

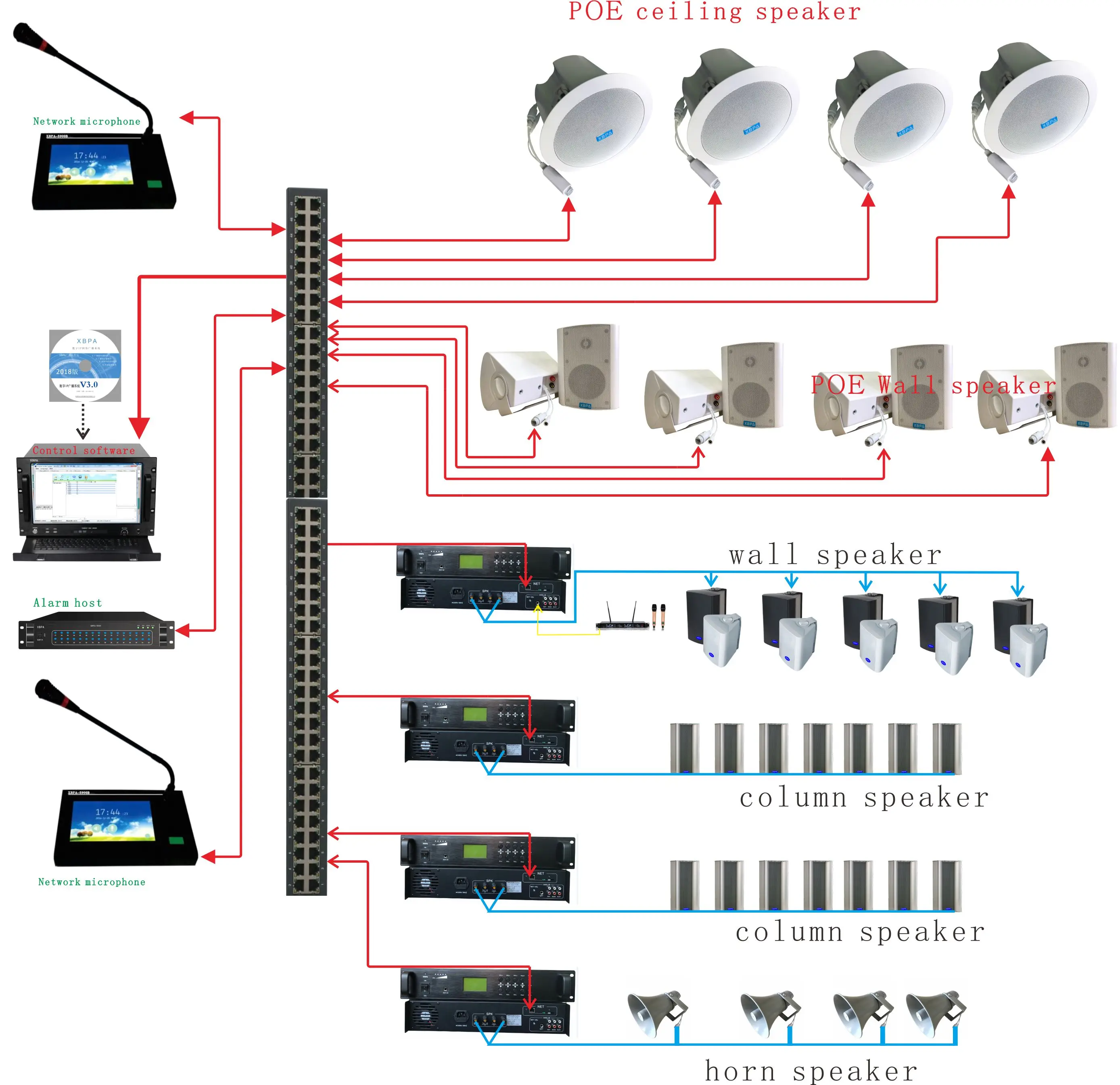

Equipped with IP network broadcast system, installed in the broadcast control host
Product features:
The software is compatible with ONVIF, GB28181 and hikang private agreement
Support of SIP protocol, VOIP telephone system (support of mainstream ip-pbx), audio and video call can be realized with IP video phone, and NVR can be connected to onvif protocol to realize 24-hour recording and video storage.
Enable all, local, or single terminal to broadcast paging through IP network paging microphones or workstations.
The workstation software also supports remote paging across the Internet.
TCP supports three broadcast transmission protocols, UDP, TCP and multicast, which can set different broadcast transmission modes for different broadcast tasks in the current server.
Support mobile APP to access functions across the Internet and local area network, and realize functions such as remote broadcast propaganda, timing and manual background music playback, remote access control, visual intercom, real-time mining and broadcasting.
When the client imports a scalar map or engineering map, you can freely edit the detailed position and name parameters of the device. When the alarm occurs, the map will automatically set the position to the corresponding position of the alarm. The operation of the client is simple and convenient.

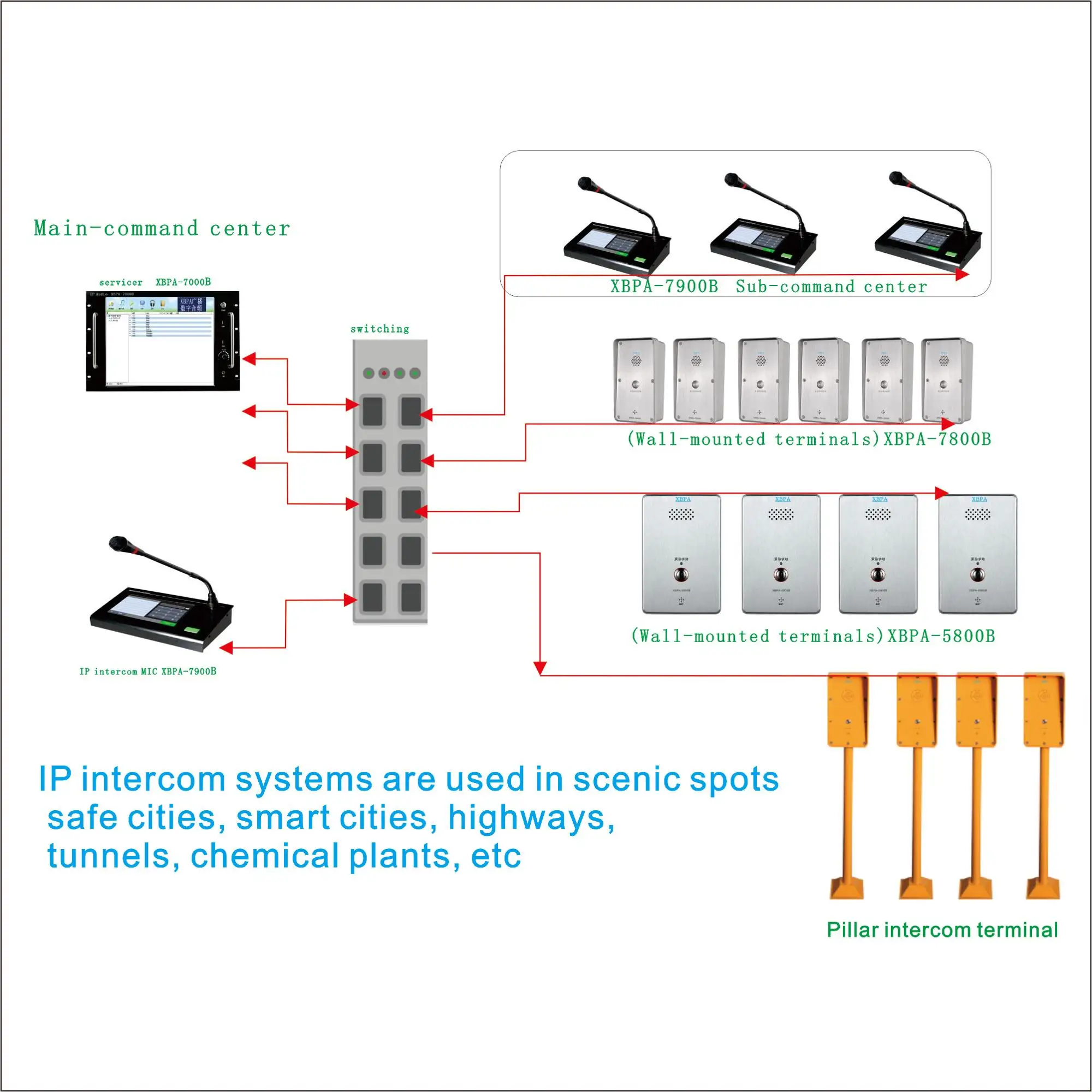

It can be linked with video monitoring system, especially suitable for large-scale monitoring and broadcasting engineering.
The audio encoding formats of PCM, AAC and G711 are supported at the same time.
Terminal support MP3, WAV and other lossless compression audio file broadcast, support 8-48k sampling rate and 32k-768k code rate file playback;
The program software includes broadcast server software, user workstation software, server backup software and broadcast terminal setup software
The program is responsible for audio streaming on demand service, task scheduling, workstation management, authority management and basic Settings
Pan provides timing and real-time media services for all network terminals, responds to the requests of each network terminal, and provides data interface services for all audio stations
The system can monitor all terminals' operation status in real time, with offline, idle, receiving and ringing, fire alarm, terminal intercom and other status display functions
Playback has a file broadcast function, can set up playback task to control playback immediately, can achieve multiple partitions simultaneously broadcast different programs
Unique terminal speech function, can set up to broadcast the program content from local terminal to several other terminals synchronously
Console can be set to collect external audio source through the server built-in sound card, and specify the partition terminal for real-time playback
Switch is equipped with a coding terminal function that can collect multiple external sound source signals and assign them to different partitions at the same time.
Program with server or user timer function, multiple programs can run and play synchronously and automatically through software setup program.
The fire alarm is set in software programmed alarm mode with the highest priority function
N + 5\\ various fire alarm Settings
Audio terminals can be allocated in a single partition to facilitate flexible broadcast management
Can set up a large - capacity MP3 audio source program library, convenient terminal instant collection
Support multiple storage modes and support local, central and NVR network storage of intercom, audio and video information
Remote parameter setting is available for terminal equipment, including power amplifier multiple, sound range, sensitivity, alarm (noise alarm, emergency alarm, fire alarm) monitoring period and condition.
The software USES USB encrypted dog management to prevent casual use by outsiders. The single server supports 6000 terminals and supports multi-level management.
Windows XP, Windows7, Windows10, Windows2000, Windows2003, and Windows2008, Windows2012, the server SDK supports cross-platform compilation and portable running under Linux system, and supports integration and development with third-party system.

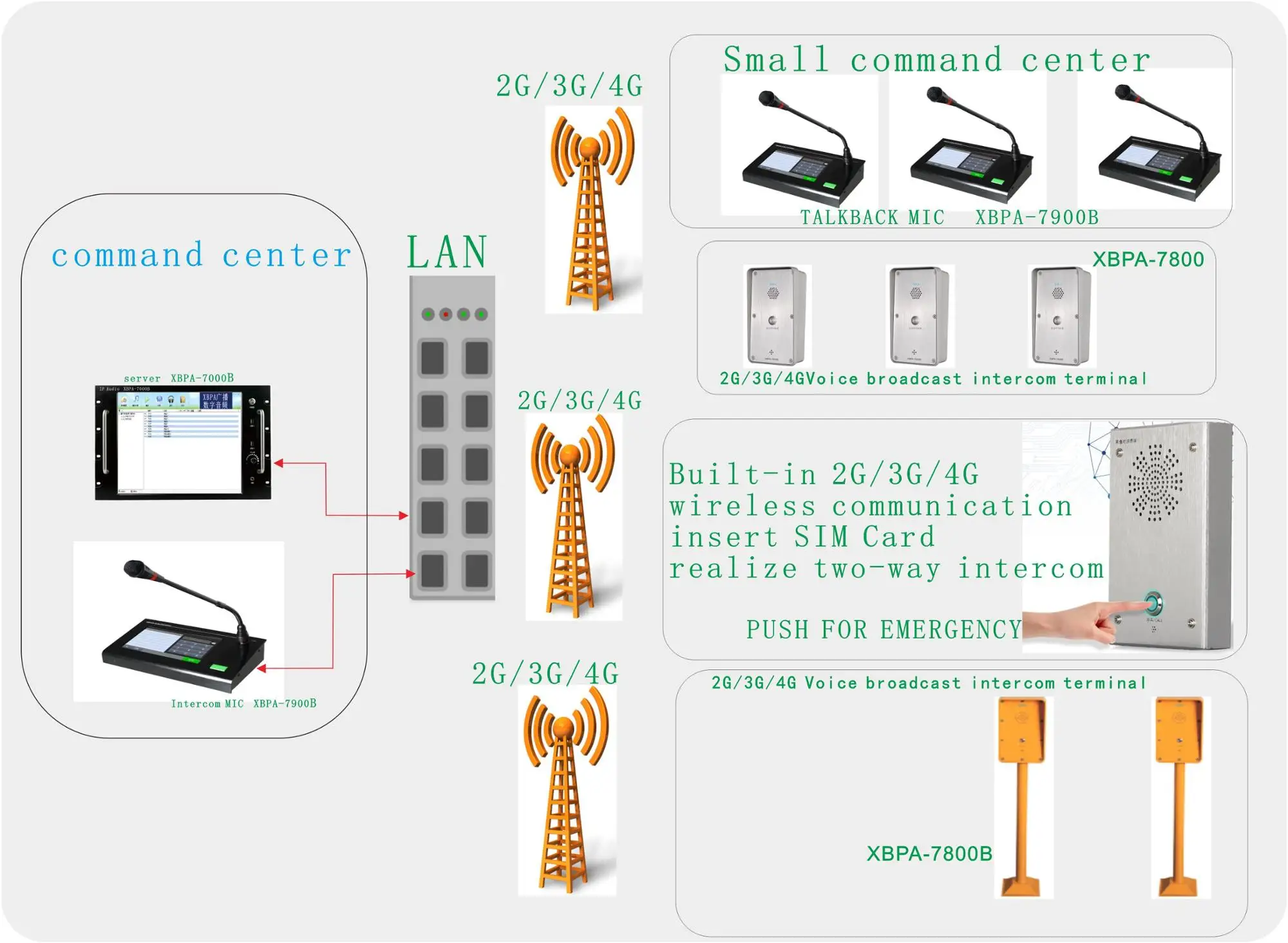

My company research and development production and sales of IP network intercom system, IP intercom products include outdoor talkback terminals, IP phone, a key for help intercom, GSM card 2 g / 3 g / 4 g wireless talkback terminals, IP intercom products all passed the ISO9001 quality certification, ISO14001 environmental certification, ISO18001 occupational health certification, ISO27001 information technology security certification and confidence fire certification and 3 c certification,

We are also constantly meeting the needs of certification around the world.
